• Multi-effects especially for vocals
• Compressor, eq, delay, reverb
• Lo-fi, distortion, radio etc.
• Automatic pitch correction
• Harmony, double effects, looper
• Connect to your computer/mobile via USB-C for recording and playback
• Powered by 4 AA batteries (included) or power supply (optional)

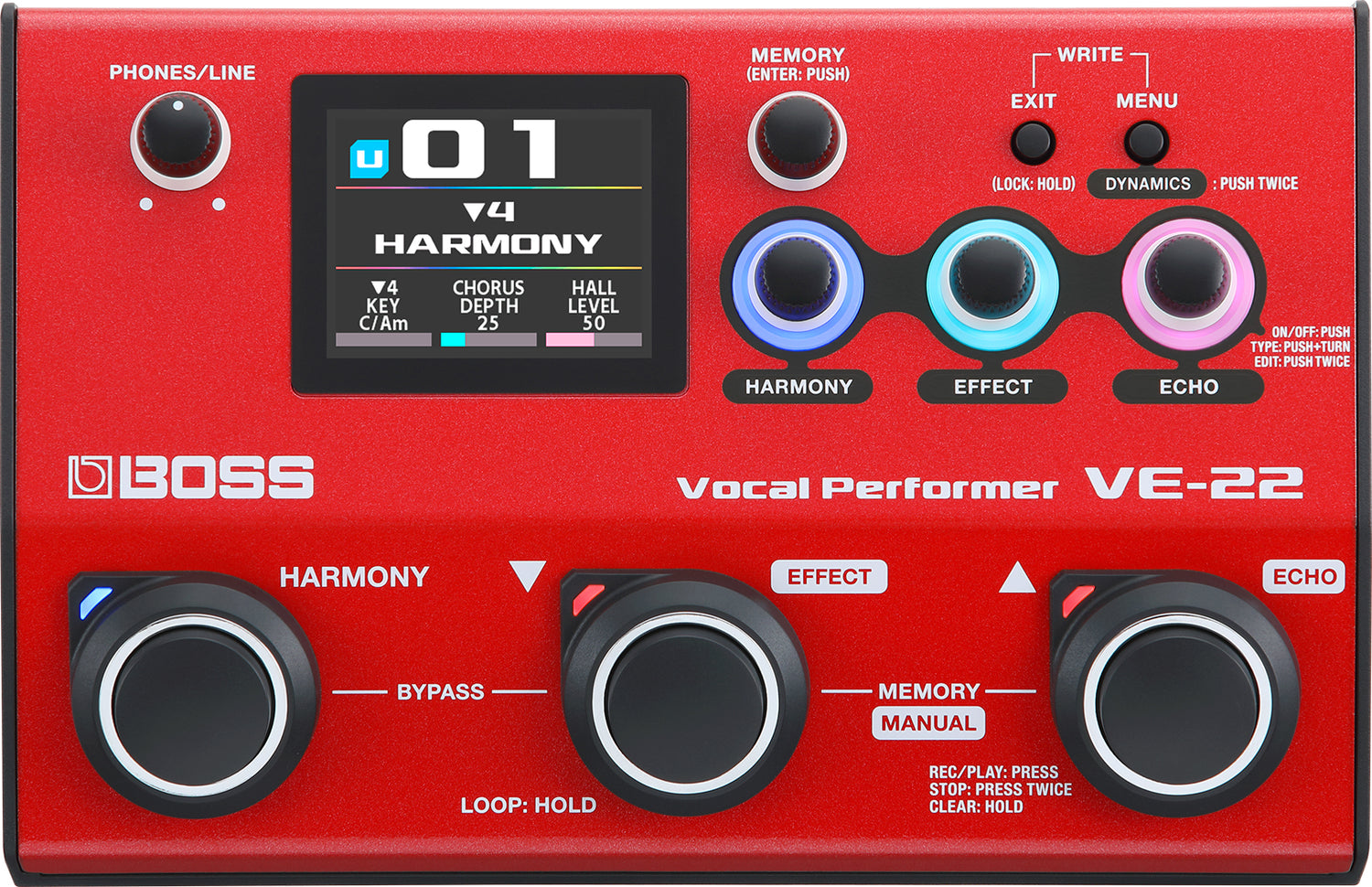

Boss VE-22 Vocal Performer

• Advanced multi-effect specifically designed for vocals.
• Many classic effects like compressor, eq, delay, reverb.
• Lo-fi, distortion, radio, ring mod and other special effects.
• With automatic pitch correction - adjustable from subtle to aggressive electronic sounds.
• Harmony and double effects.
• Easy to use and with clear LCD display.
• 50 presets and 99 memories.
• XLR input with phantom power and sensitivity control.
• Two xlr outputs with stereo, dual mono or wet/dry mix + dry only.

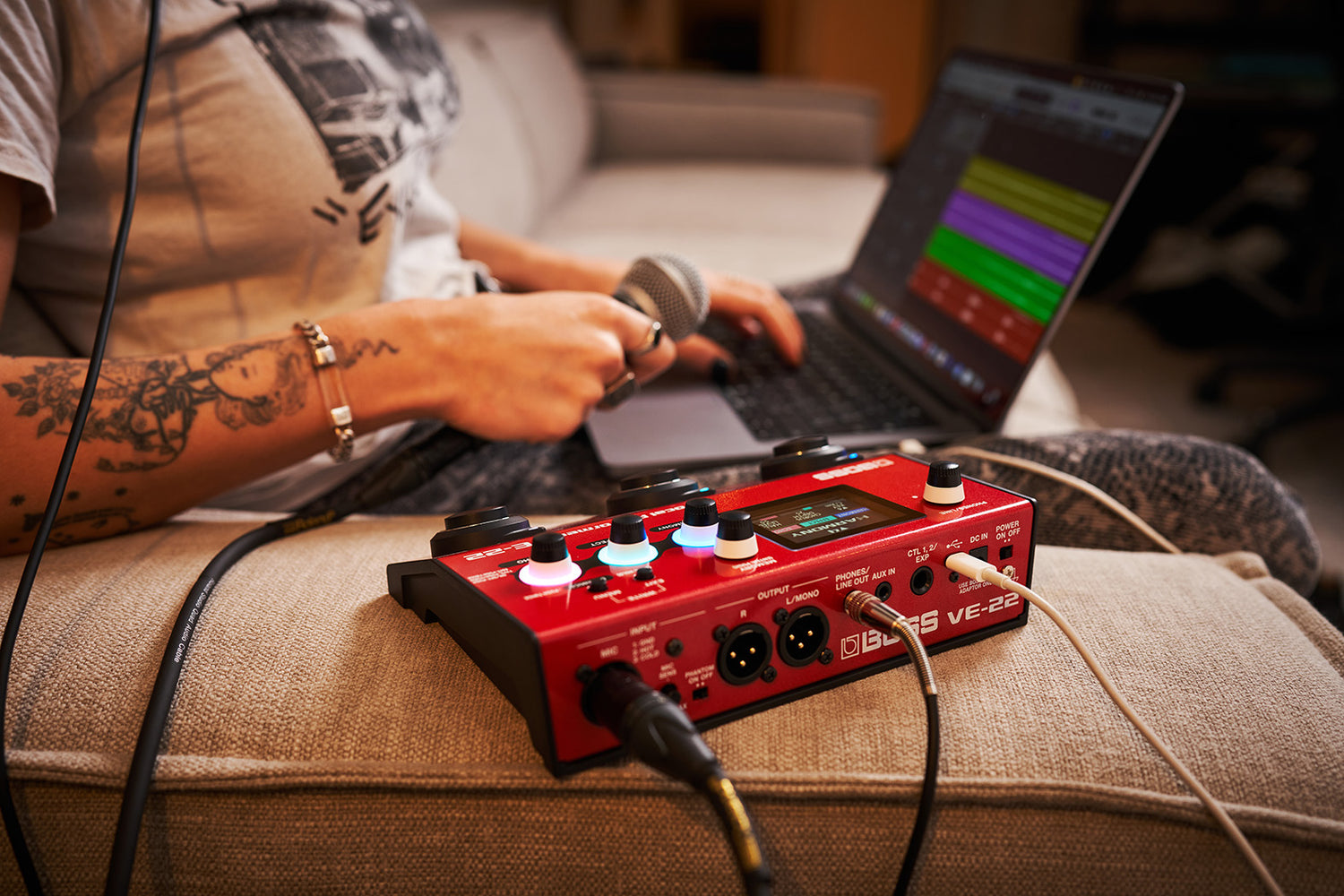

• Connect the VE-22 to your computer or mobile via USB-C for recording and playback.
• AUX input for external audio source.
• Built-in looper, jack for expression pedal.
• Can run on 4 AA batteries (included) or power supply (optional).

• Sample Rate 48 kHz
• AD Conversion 24 bits + AF method
• AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion 32 bits
• Processing 32-bit floating point
• Effects 39 types
• Memories 99 (User) + 50 (Preset)
• Phrase Loop 37 sec.
• Nominal Input Level INPUT: -40 dBu (Adjustable), AUX IN: -20 dBu
• Maximum Input Level INPUT: 0 dBu, AUX IN: 0 dBu
• Input Impedance INPUT: 4 k ohms, AUX IN: 27 k ohms
• Nominal Output Level OUTPUT L/MONO, R: -40 dBu, PHONES/LINE OUT: -10 dBu
• Output Impedance OUTPUT L/MONO, R: 600 ohms, PHONES/LINE OUT: 47 ohms

Recommended Load Impedance OUTPUT L/MONO, R: 600 ohms or greater
PHONES/LINE OUT: 47 ohms or greater

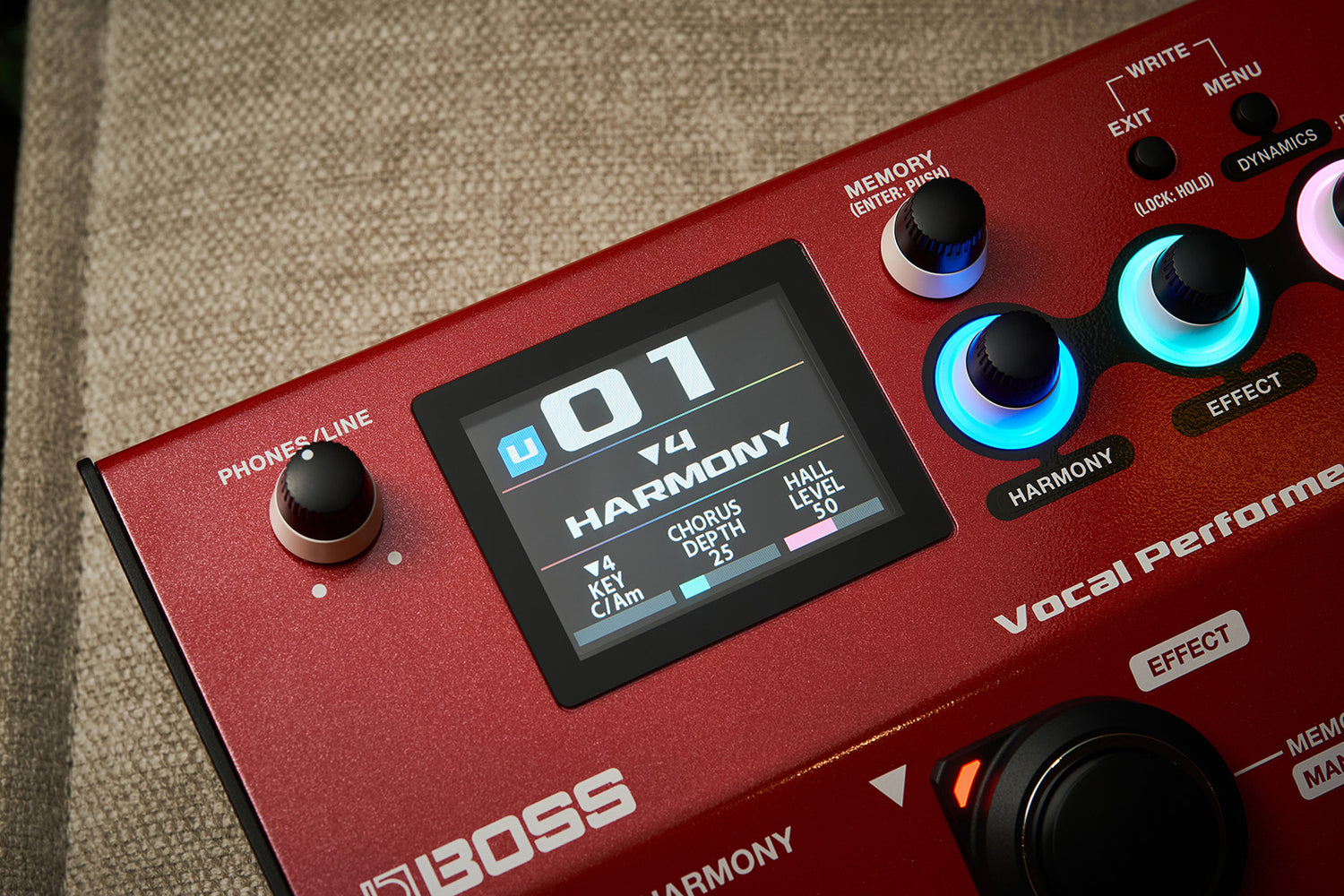

• Display Graphic color LCD 320 x 240 dots

Controls:

• HARMONY switch
• DOWN switch
• UP switch
• MENU button
• EXIT button
• PHONES/LINE knob
• MEMORY knob
• HARMONY knob
• EFFECT knob
• ECHO knob
• MIC SENS knob
• PHANTOM switch
• POWER switch

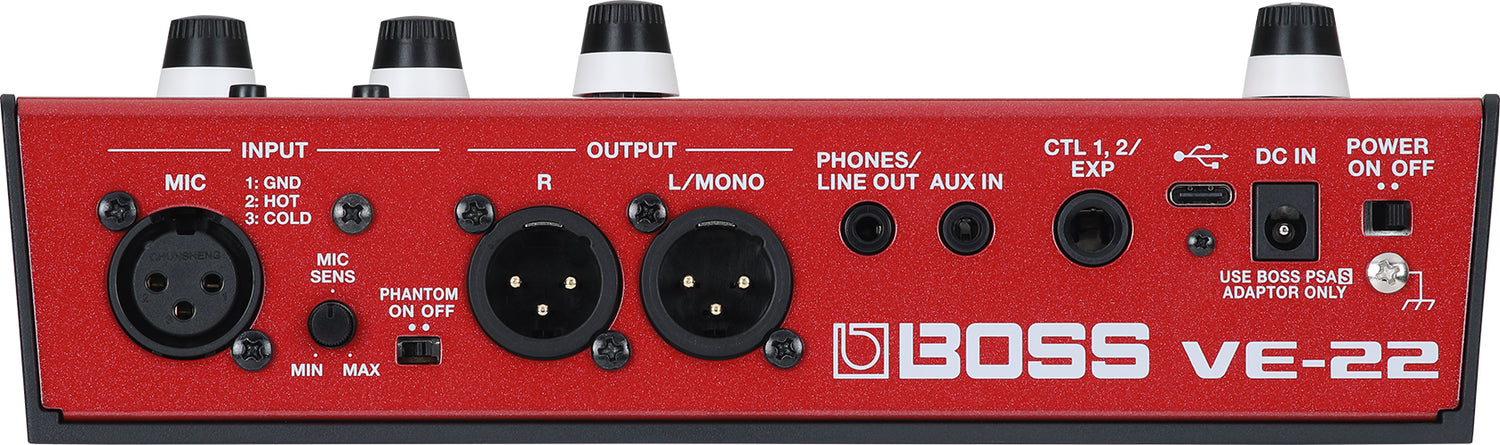

Connectors

• INPUT connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
• OUTPUT L/MONO, R connectors: XLR type
• PHONES/LINE OUT jack: Stereo miniature phone type
• AUX IN jack: Stereo miniature phone type
• CTL1,2 / EXP jack: 1/4-inch TRS phone type
• USB COMPUTER port: USB Type-C(R)
• DC IN jack

Power Supply

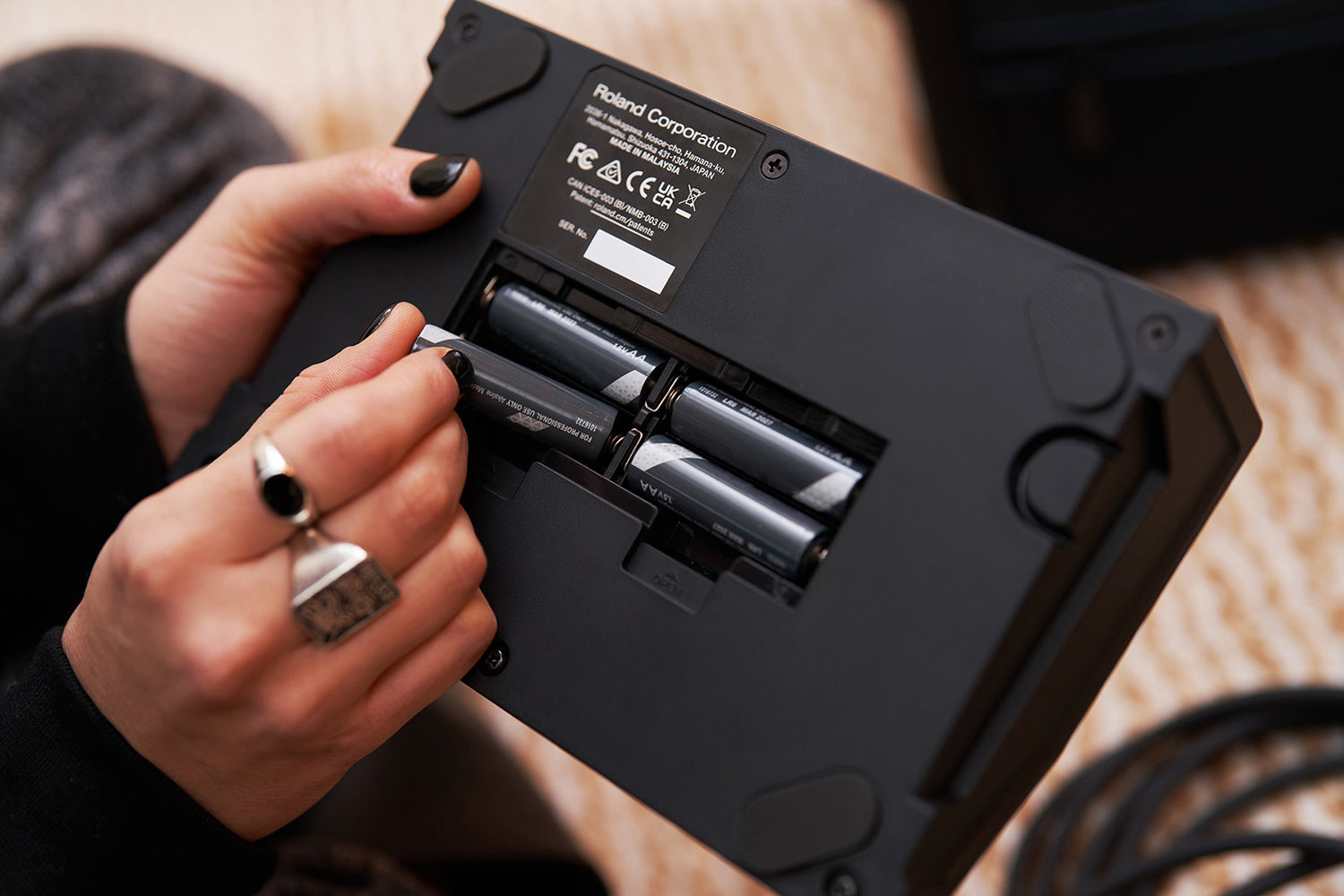

• Alkaline battery (AA, LR6) x 4 or
• AC adaptor (PSA-S series: sold separately)

Current Draw

• 260 mA (with phantom power)
• 180 mA (without phantom power)

Expected battery life under continuous use

• Alkaline battery: Approximately 6 hours (with phantom power)
• Alkaline battery: Approximately 9 hours (without phantom power)
• * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

• STARTUP GUIDE
• Alkaline battery (AA, LR6) x 4
• Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

• AC adaptor: PSA-S series
• Footswitch: FS-5U, FS-6, FS-7
• Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
• Carrying Bag: CB-VE22
• Width 218 mm / 8-5/8 inches
• Depth 143 mm / 5-11/16 inches
• Height 64 mm / 2-9/16 inches
• Weight (including battery 910 g / 2 lb 0.1 0z
