Description
Description
- Newly developed VRDS mechanism
- TEAC Δς discreet DAC
- Double mono structure
- Fully balanced transmission
- Mqa full decoder
- USB DAC functionality
- RDOT-NEO up conversion
- Dual Clock System
- High capacity transformers
- Audiofil CD player from the top shelf with excellent technical specs.

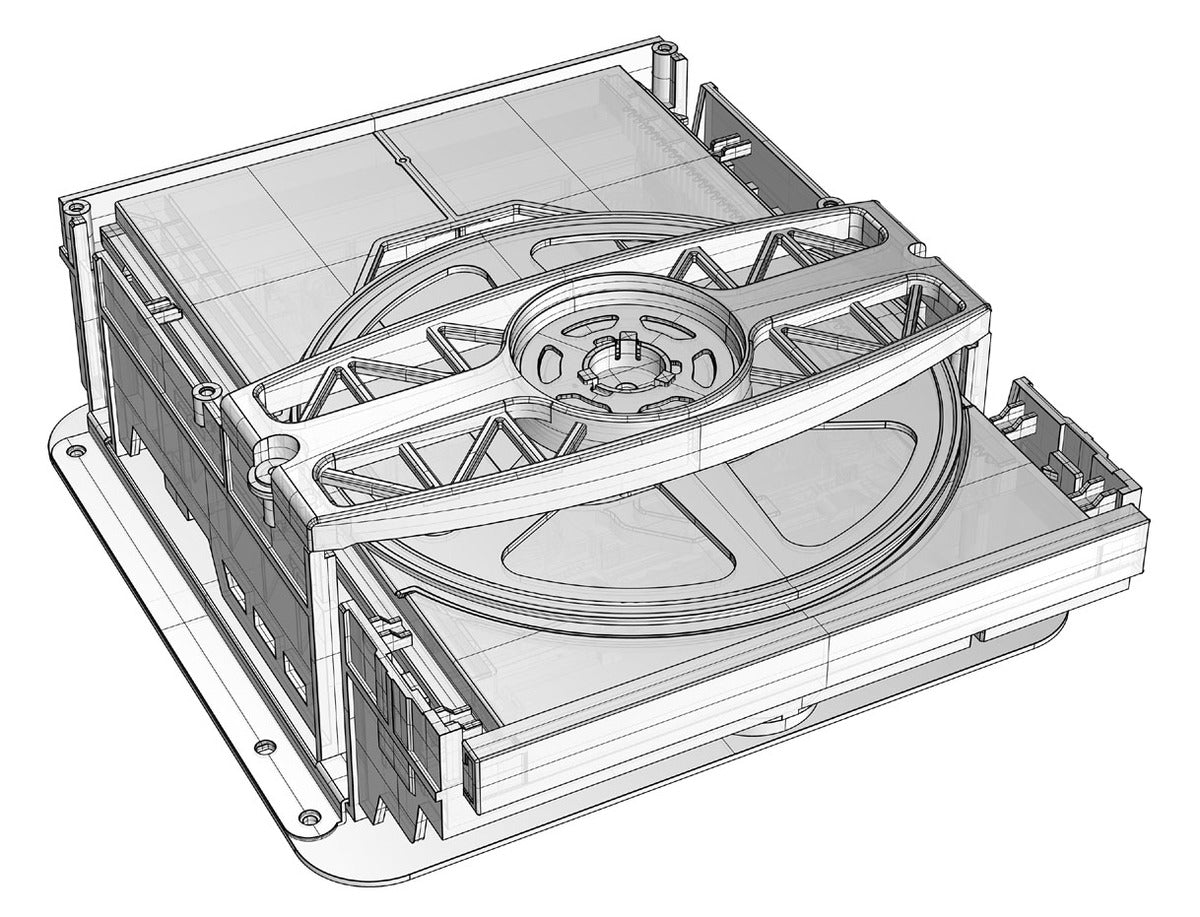

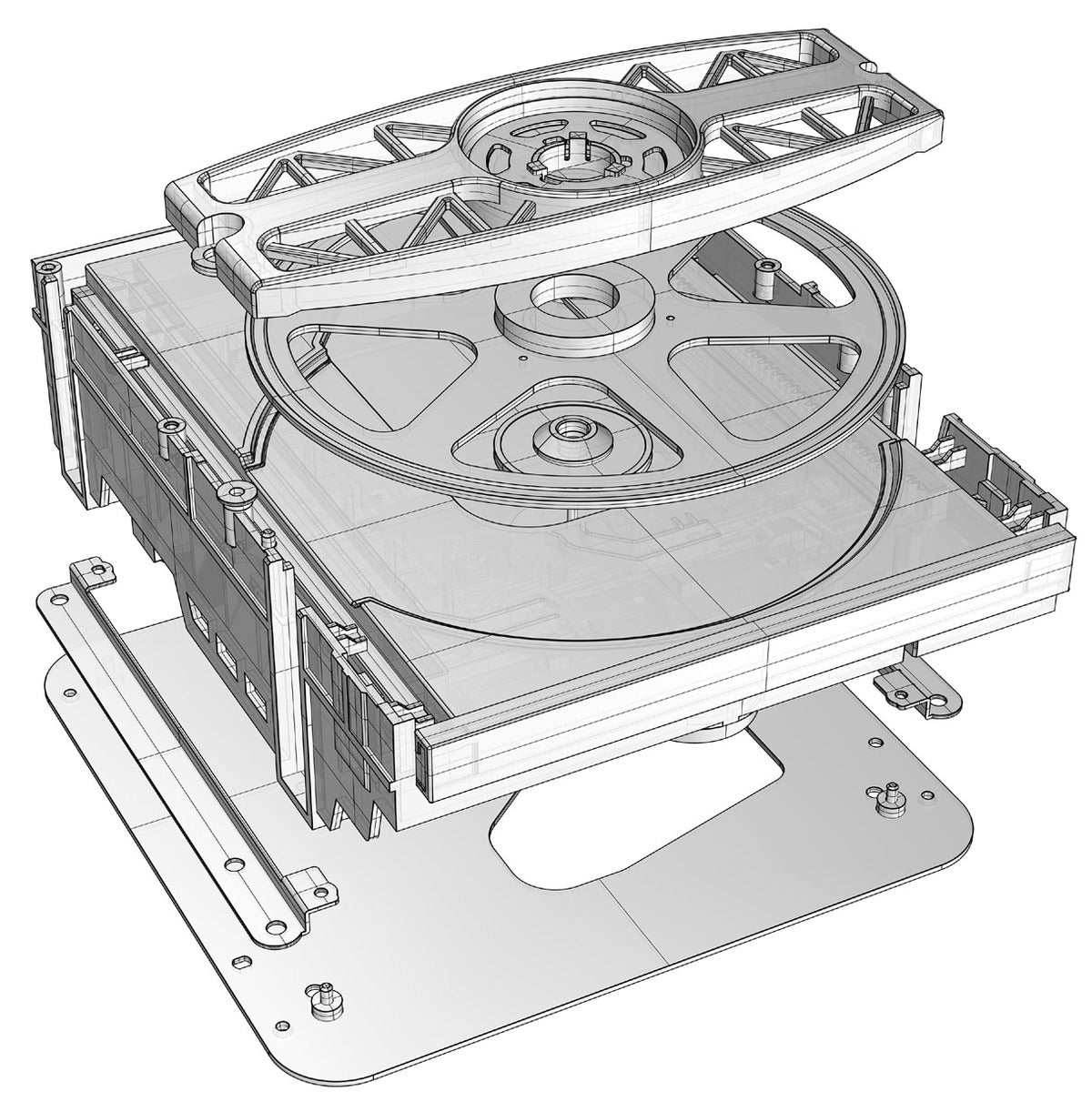

- Newly developed VRDS mechanism: Reduces rotational vibration by squeezing the CD to an aluminum plate with the same diameter.
- TEAC Δς (Delta Sigma) Discreet DAC: Specially developed discreet DAC that converts PCM signals to 1-bit output using FPGA algorithms.
- Double Mono Structure: Independent left and right circuits from power supply to analog output that eliminates interference and improves sound quality.
- Fully balanced transmission: From D/A conversion to final output, which improves the signal noise ratio and dynamic area.
- MQA Full Decoder: Enables playback of MQA CDs and MQA files via digital input.
- USB DAC functionality: supports 22.5MHz DSD and 384kHz/32-bit PCM formats via USB Type-C port.
- RDOT-NEO TECHNOLOGY: OP CONVERS PCM DIGITAL SIGNALS 2 ×, 4 × or 8 × for improved sound quality.
- HIGH CARECISION DUAL CLOCK: supports 44.1khz and 48khz frequencies with low phase noise.
- Three high capacity toroids Transformers: Provide stable power supply and improved sound linearity.
- Included Accessories: AC pipeline, remote control (RC-1338), AAA batteries x2, foot pads x3, manual.
- Available in black and silver.
Tekniske specifikationer
Tekniske specifikationer
- CD-formater: CD, CD-R, CD-RW, MQA-CD
- Strømforbrug: 0,4-40W

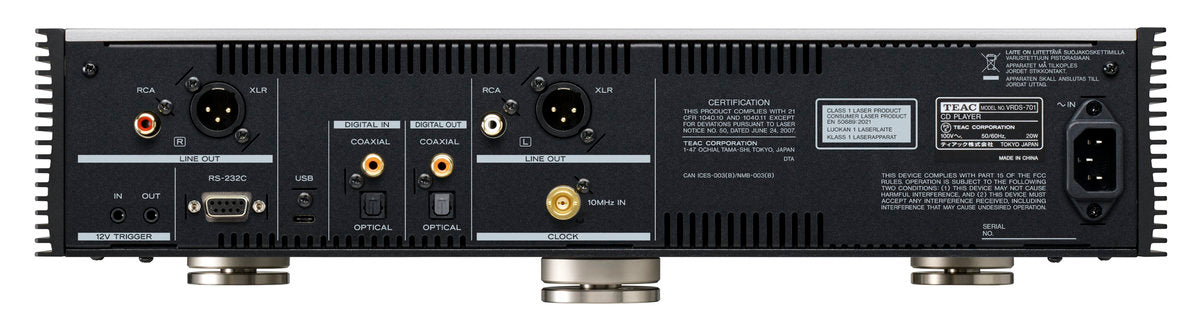

- AUDIO UDGANGE
- 6,3 mm jack: 1
- Effekt & impedans 6,3 mm jack: 500mW + 500mW (ved 32Ω)
- Koaksial: 1
- Udgangsniveau & impedans koaksial: 0,5Vp-p 75Ω
- Optisk/Toslink: 1
- Udgangsniveau optisk: –24,0 til –14,5dBm peak
- RCA: 1
- Udgangsniveau & impedans RCA: 2,0Vrms (1kHz fuld skala 10kΩ belastet FAST 0dB)
- 4,0Vrms (1kHz fuld skala 10kΩ belastet FAST +6dB)
- 6Vrms (1kHz fuld skala 10kΩ belastet VARIABEL)
- Udgangsimpedans: 180Ω
- XLR: 1
- Udgangsniveau & impedans XLR: 2,0Vrms (1kHz fuld skala 10kΩ belastet FAST 0dB)
- 4,0Vrms (1kHz fuld skala 10kΩ belastet FAST +6dB)
- 12Vrms (1kHz fuld skala 10kΩ belastet VARIABEL)
- Udgangsimpedans: 220Ω
- DIMENSIONER OG VÆGT
- Produkt højde: 11,1 cm
- Produkt bredde: 44,4 cm
- Produkt længde: 33,4 cm
- Produktvægt: 11,8 kg
- Inkl Fjernbetjening
- RS-232
