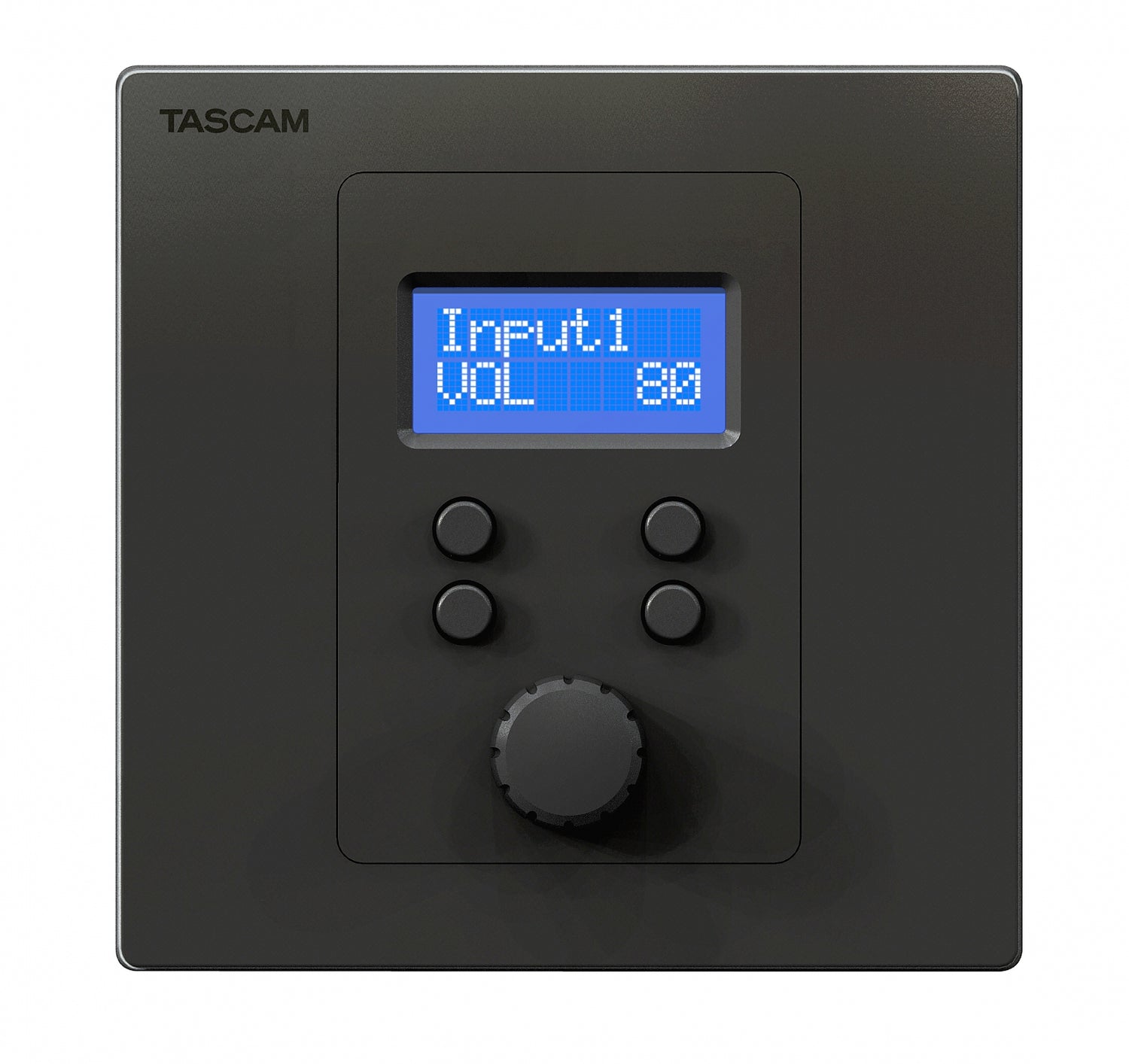

Tascam RC-W100 vægcontroller til MX-8A

Tascam RC-W100-R86

RC-W100 er en vægmonterbar programmerbar fjernbetjening til Tascam MX-8A Matrix Mixer eller andre kompatible produkter. Fire switch-knapper og en encoder med trykknapfunktion giver brugerne mulighed for at vælge mellem fire eller otte lydkilder, justere lydstyrkeniveauer og slå lyd fra i et permanent installeret lydsystem. Den letlæselige, belyste skærm giver information om den valgte lydkilde og den aktuelle lydstyrkeindstilling.

Op til otte styreenheder kan bruges med en mixer ved at kæde enhederne via en RS-485-forbindelse med en kabellængde på op til 200 meter. Slutbrugere kan forhindres i at begå fejl ved kun at tildele de nødvendige funktioner til koderen og switchene ved hjælp af Tascam MX Connect.

RC-W100 udvider komforten i ethvert lydforstærkningssystem, hvor MX-8A matrixmixer er i centrum.

Wall-mounted programmable controller for MX-8A and other compatible Tascam products
Encoder (with push switch) and four switches for adjusting volume, muting and switching audio sources
Functions can be assigned to the encoder and the switches using Tascam MX Connect
Prevents end-users from making mistakes by assigning only necessary functions to the controller
Two source switching modes available: 1: Sources can be selected directly by pushing switches (up to four sources can be assigned)
2: Sources can be selected from a screen (up to eight sources can be assigned)

Easy-to-read display Name of the selected source and current volume can be checked
Backlight turns off automatically
Daisy chaining of up to eight units is possible using Cat 5e cables (or better, maximum length 200 m)
Power can be supplied to the unit from the mixer via the RS-485 connection, reducing power construction and installation costs

Two different product variants available:
RC-W100-R120 is compatible with switch boxes commonly used mainly in the USA and Japan
RC-W100-R86 is compatible with switch boxes commonly used mainly in Europe

Connectors: Two RJ-45 (RS-485) connectors
Power consumption: 0.24 W
Overall dimensions (W × H × D):
RC-W100-R86: 87 mm × 87 mm × 54 mm

Weight: 140 g
Permissible operating temperature range: 0 - 40 °C
