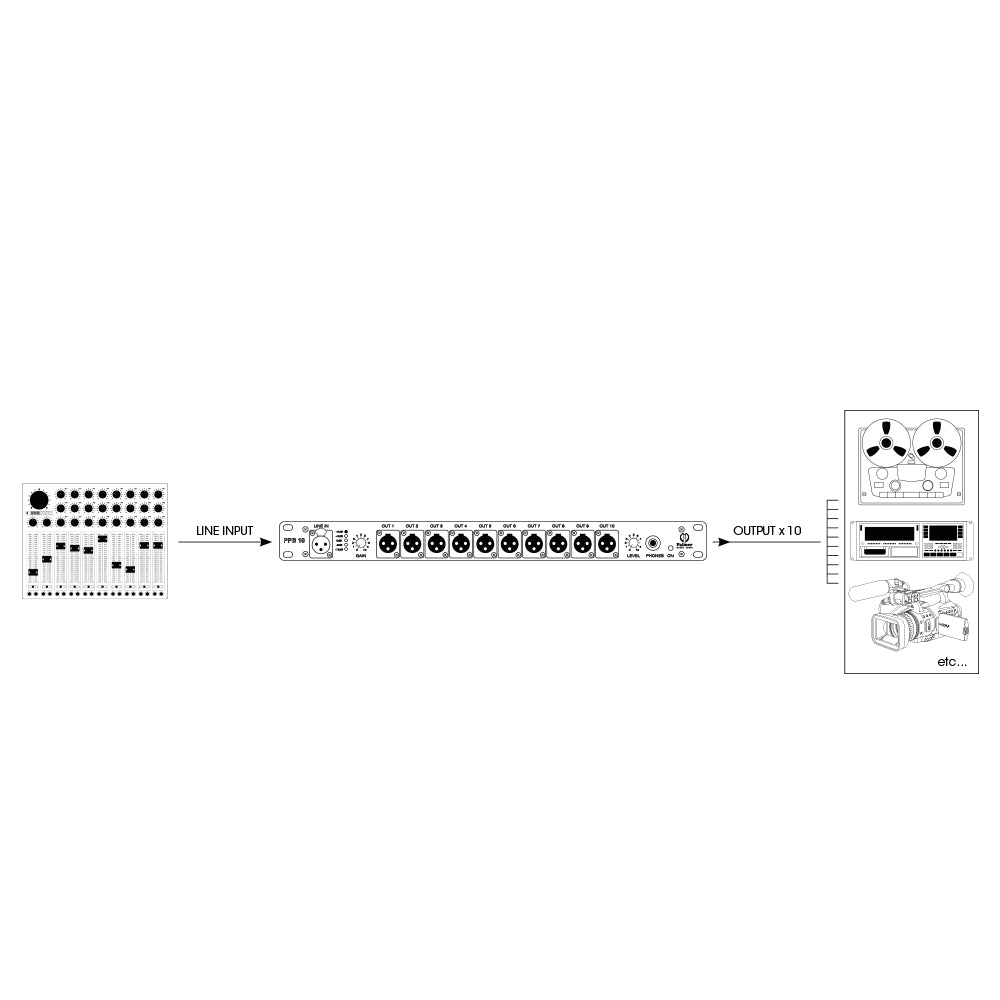

Le PPB10 est une version compacte du célèbre et éprouvé PPB20 de Palmer. Le PPB10 est un splitter audio 10 canaux pour les conférences de presse et d’autres applications. Basé sur un splitter à transformateurs, une entrée ligne est répartie vers dix sorties.
Spécifications techniques
Spécifications techniques
- All inputs and outputs are balanced transformer isolated
- Extremely reliable: Should one output be shorted, the other outputs remain unaffected
- Line input and outputs
- Adjustable input gain (-8 to +25dB)
- Level meter
- Headphone output to monitor the input level, headphone volume adjustable

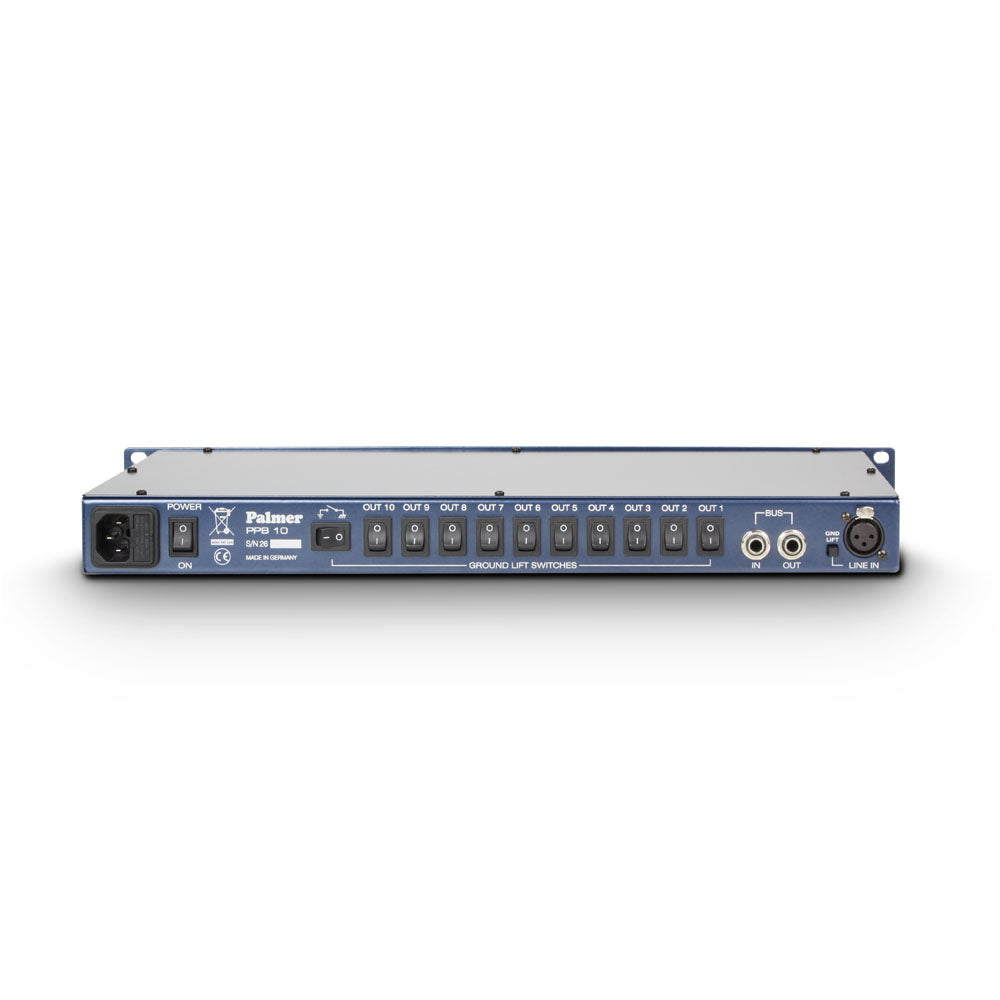

- Individual ground lift switches for each output
- Ground Lift switch for the input
- Expandable setup thanks to the Bus In/Out sockets - allowing you to cascade numerous PPB10 (or PPB20)
| Product type | Splitters |
| Type | line split |
| Split type | 1 in 10 |
| Channels | 1 |
| Number of inputs | 1 |
| Input connectors | XLR |
| Max. input level | + 20 dB |
| Adjustable input | Yes |
| Number of split-outputs per canal | 10 |
| THRU outputs/channel | 1 |
| Max. output level | + 4 dB |
| Nominal power consumption | 5 W |
| Maximum power consumption | 8 W |
| Output connectors | XLR |
| Adjustable output | No |
| Transformer isolated outputs | Yes |
| Controls | Power |
| Controls | ground lift |
| Controls | input gain |
| Controls | phones level |
| Power supply | integrated (115 / 230 V) |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 205 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 4,18 kg |
