Med MAUI 28 G3 SUB W subwooferen udvider du de kardioide egenskaber fra vores professionelle søjlehøjttalerserie helt ned i basområdet.
Hvad betyder det?Placer blot SUB’en ved siden af din MAUI® 28 G3 W med fronten vendt bagud, aktiver Cardioid-preset, og du får et mere afdæmpet og kontrolleret low-end bagtil, samtidig med at du bevarer slagkraften foran. Low-end-frekvenser bag systemet dæmpes med -15 dB. For ekstra bas kan du placere SUB’en i samme retning som din MAUI® 28 G3 W og deaktivere Cardioid-preset.
Opsætning af SUB’en sammen med din MAUI® 28 G3 W er enkel og hurtig. Takket være det automatiske opsætningsregistreringssystem skifter SUB’en straks til FOLLOWER-tilstand, så længe der ikke er monteret en søjle.
Det kan også anbefales at anvende beskyttelsesovertræk og hjulplade for at gøre transporten nem og holde SUB’en fri for turnéskader så længe som muligt.
MAUI® 28 G3 SUB W har samme design og konstruktion som MAUI® 28 G3 W-subwooferen og er den perfekte tilføjelse til at få kontrol over dit low-end.
- Powered 12" subwoofer with flow-optimised bass-reflex ports
- 12" custom-designed woofer with deep bass down to 37 Hz
- Preset for cardioid subwoofer configuration
- DynX® DSP (Gen.2) technology for distortion-free sound at maximum volume
- Automatic set-up detection (MAIN / FOLLOWER)
- Rugged subwoofer housing made out of polyurea-coated birch plywood

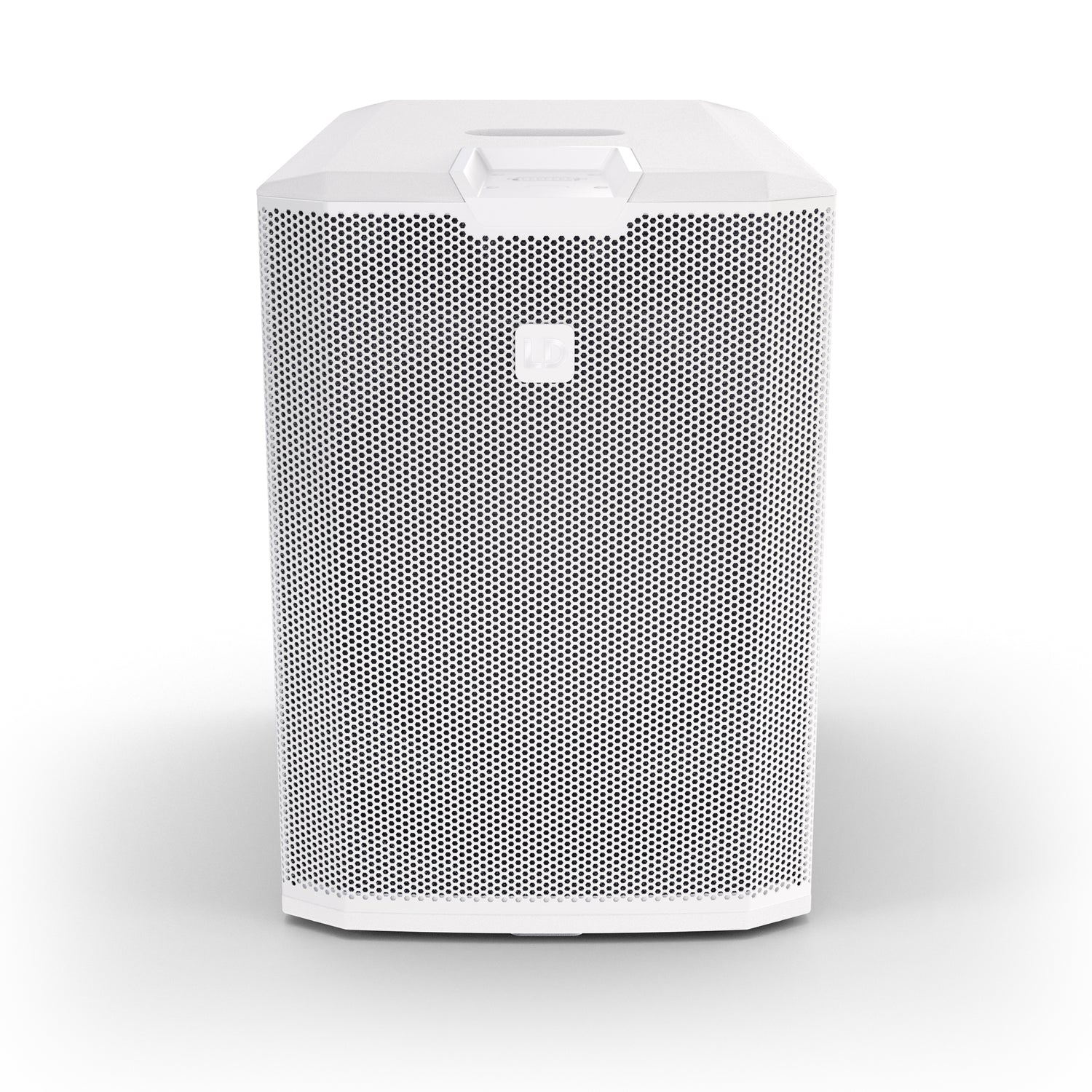

- Shockproof front grille for ultimate speaker protection
- Four ergonomic handles for easy handling
General
| Directivity | Cardioid |
| Peak output power | 2,060 W |
| RMS output power | 1,030 W |
| Amp class | Class D |
| Max. SPL peak | 127 dB |
| Frequency response (-10 dB, rel. Avg) | 37 - 20,000 Hz |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 3 |
| Output connector types | XLR combo socket |
| Protection features | Direct current |
| Protection features | Multiband Limiter |
| Protection features | Overheating |
| Protection features | Short circuit |
| Colour | White |
Bluetooth®
| Bluetooth® version | Bluetooth® 4.2 |
| Features | Audio Streaming (A2DP) |
| Features | TrueWireless™ Mirroring |
| Features | TrueWireless™ Stereo |
| Supported audio codecs | AAC |
| Supported audio codecs | SBC |
Outputs
| Number of speaker outputs | 1 |
| Speaker output connection type | XLR 3-pole male |
| Number of line outputs | 2 |
| Line outputs connector type | XLR 3-pole female |
Signal processing
| Mixer | Yes |
| Mixer channels | 3 |
| Audio processing | 3 band EQ (High, Mid, Low) |
| Audio processing | Presets |
| AD/DA converter bit depth | 24 Bit |
| AD/DA converter sampling rate | 48 kHz |
Bass driver
| Size | 12 " |
| Magnet | Ferrite |
| Voice coil | 3 " |
Mains operation
| Operation voltage | 100 V AC - 120 V AC / 50 - 60 Hz |
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 400 W |
| Mains connector | Mains socket indoor power in male & powerCON® |
| Mains fuse | T5AL/250 V |
Housing
| Design | Bass reflex |
| Number of handles | 4 |
| Chassis material | Birch multiplex |
| Material thickness | 15 mm |
| Front grille material | Aluminium |
Cooling
| Cooling system | Convection cooling |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 370 mm |
| Height | 527 mm |
| Depth | 472 mm |
| Weight | 22.8 kg |
Other properties
| Included accessories | Mains cable |
