Description
Description
RDM-capable DMX splitter, 1in/2out with signal boost
- DMX splitter for splitting one DMX input signal to 2 DMX outputs
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- Outputs galvanically isolated
- Each DMX output can be connected to 32 DMX devices
- Each DMX output with active signal processing
- Control via RDM
- RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - Built with NEUTRIK connector
- Made in Germany
Scope of delivery
- 1 x device
- 1 x external mains adapter
- 4 x foot
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 1.8 W |
| Power connection: | Fixed power supply cord with safety plug |

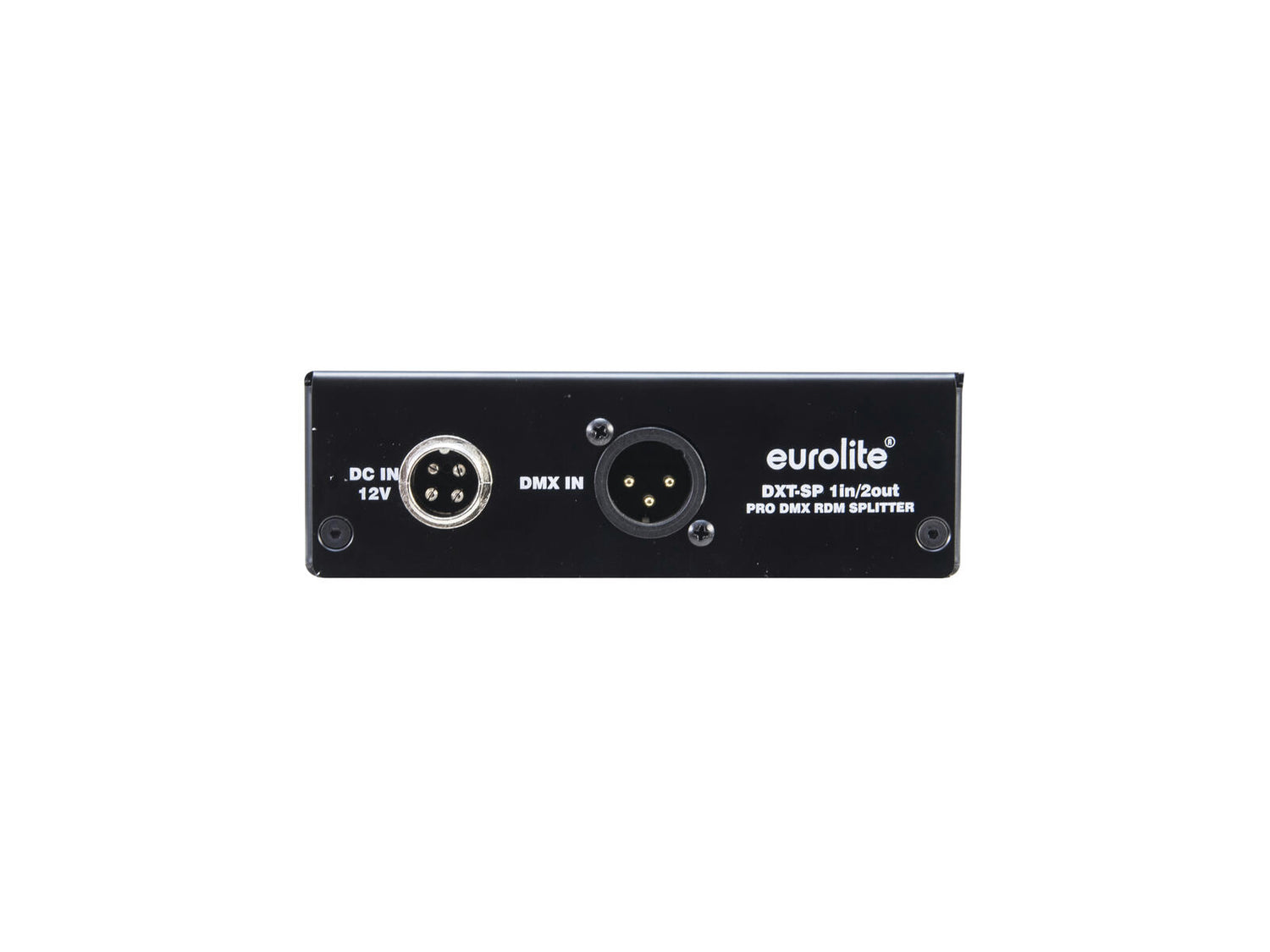

| DMX input: | 1 x 3-pin XLR (M) mounting version |

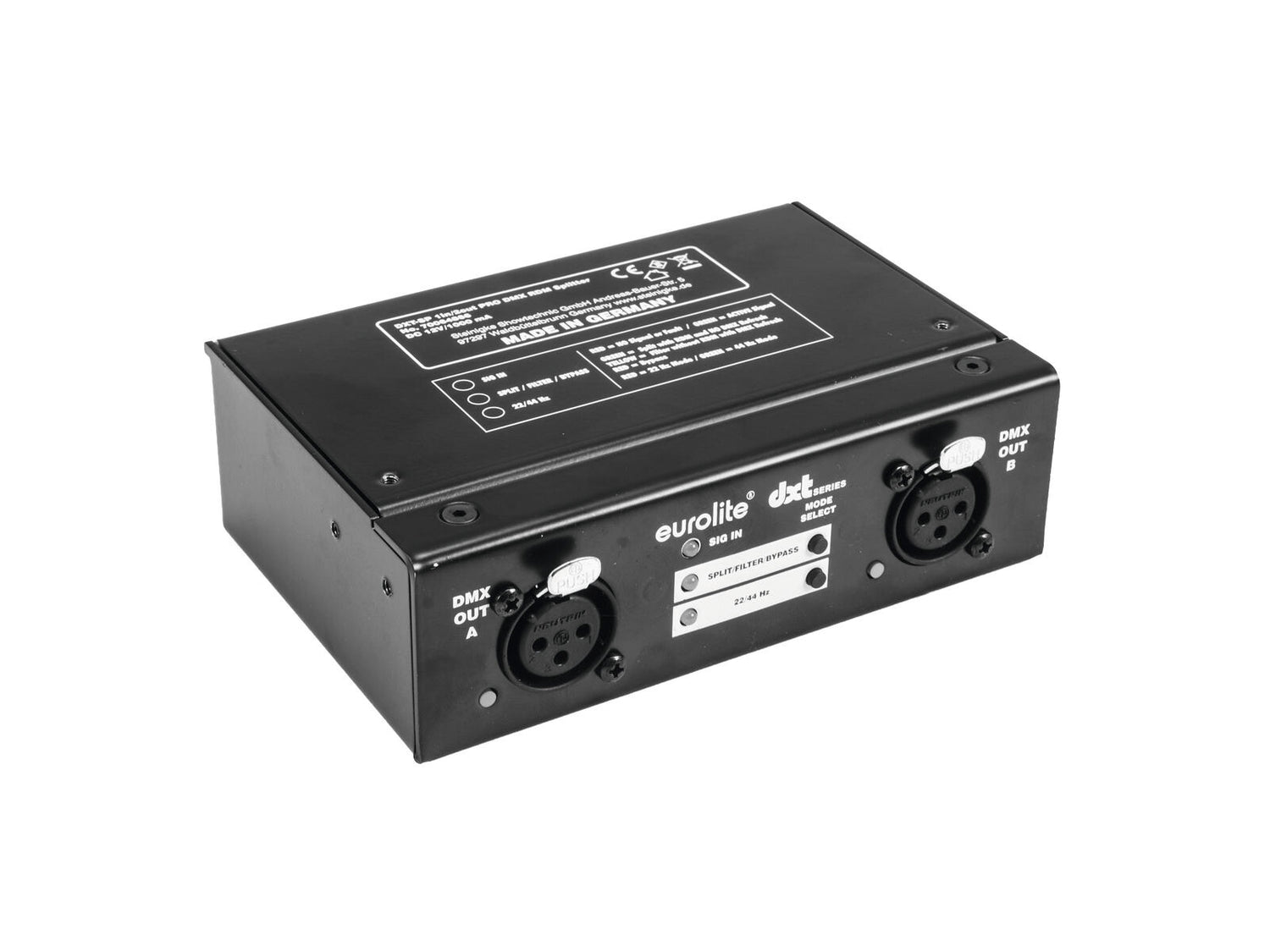

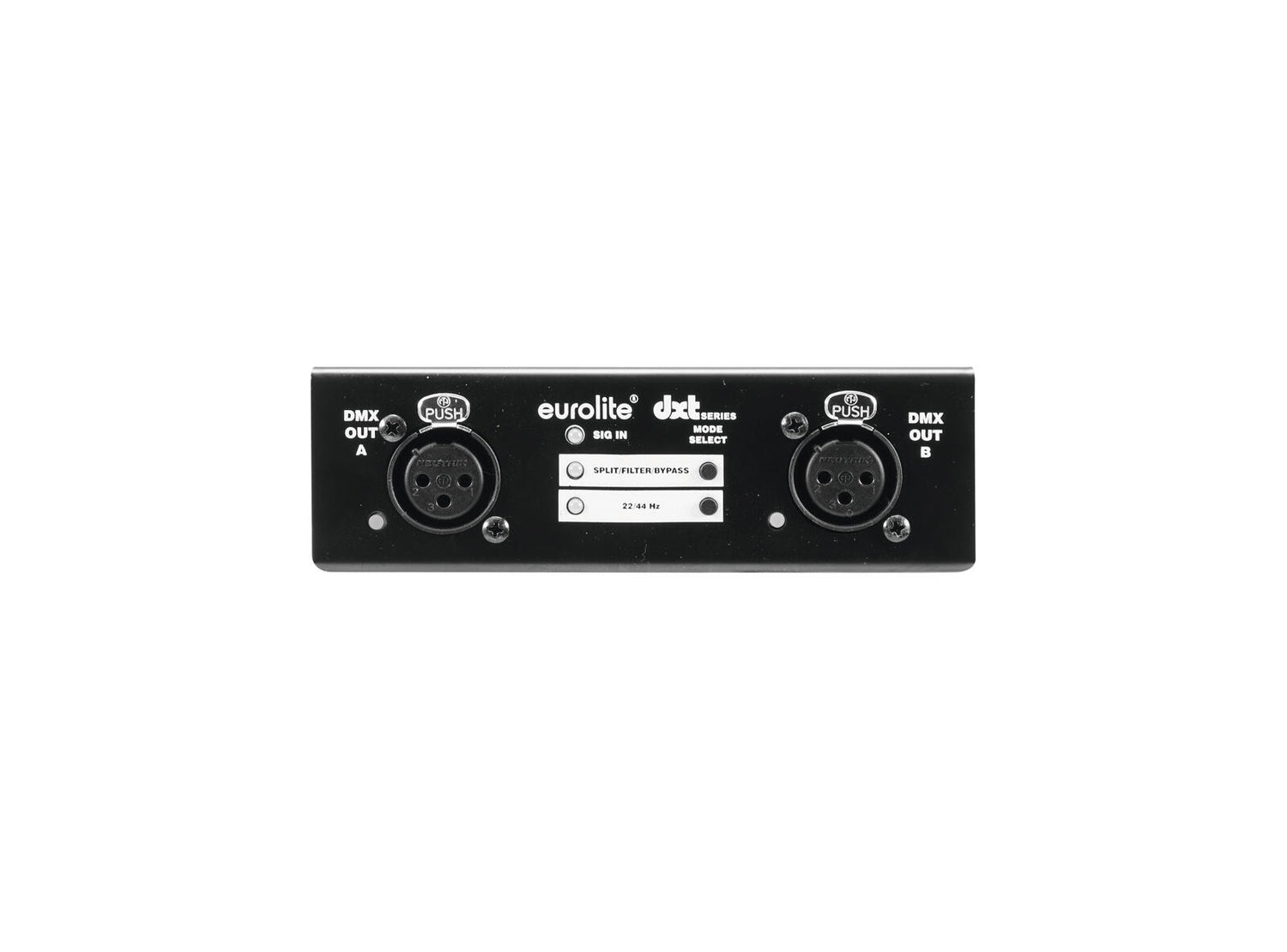

| DMX output: | 2 x 3-pin XLR (F) mounting version separate (galvanic) with active signal processing |
| Control: | RDM |
| DMX features: | RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM |
| DMX fail mode: | Hold; blackout; zero values |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 13 cm Depth: 10 cm Height: 4.1 cm |
| Weight: | 0.65 kg |
