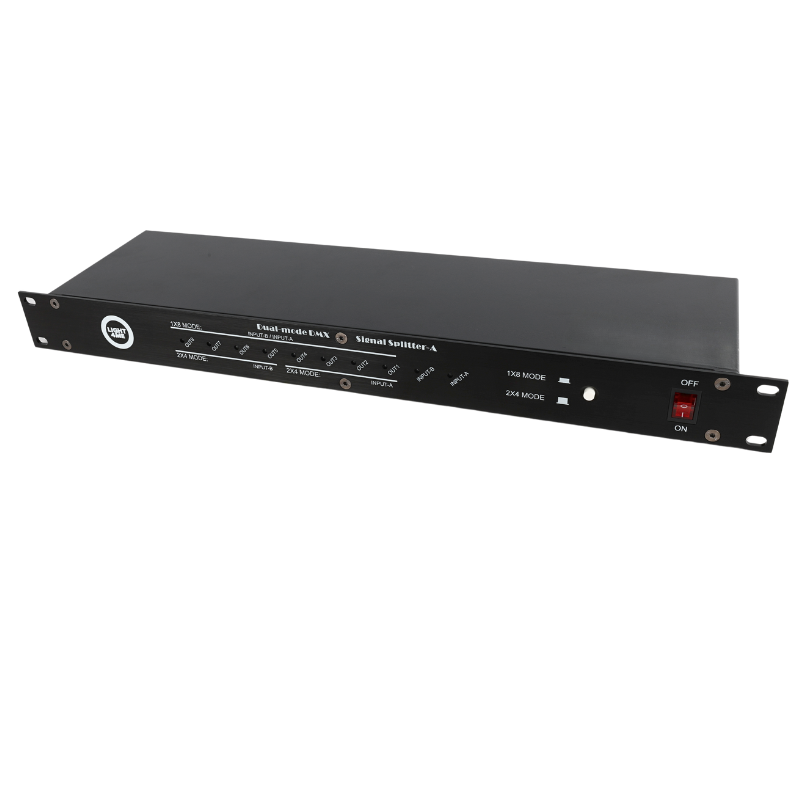

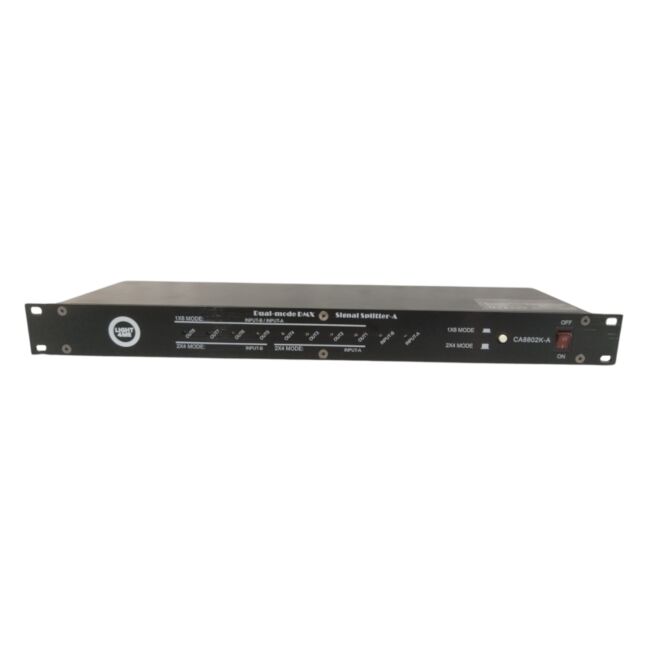

LIGHT4ME XSPLIT 2x4 DMX Splitter

LIGHT4ME XSPLIT 2x4 is a professional DMX signal splitter designed for safe and stable distribution of the DMX signal in both fixed installations and mobile setups. The unit combines two operating modes – 2x4 and 1x8 – in a compact and robust 19” 1U rack format, making it ideal for concert venues, theatres, cultural centres, clubs and event productions.

The splitter makes it possible to distribute the signal from one DMX input to eight outputs (1x8 mode) or route two separate DMX signals to four dedicated outputs each (2x4 mode). This provides maximum flexibility in the lighting setup and makes controlling multiple DMX devices simple and efficient.

The solid construction with an iron housing and aluminium front panel ensures high reliability and a long service life – even under demanding conditions. With a weight of just 1.8 kg and standard 19” rack mounting, installation is quick and hassle-free.

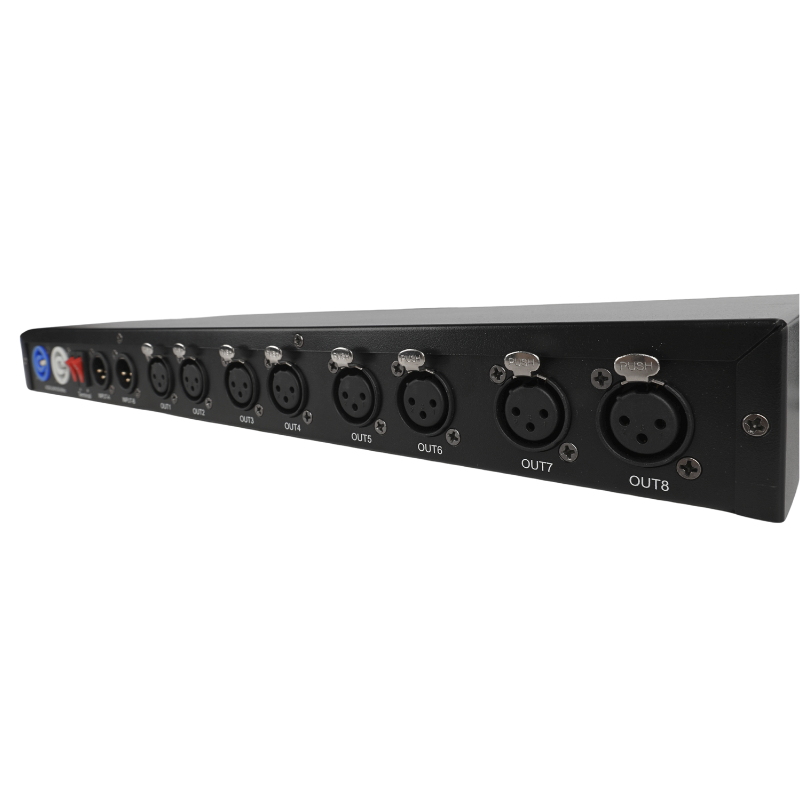

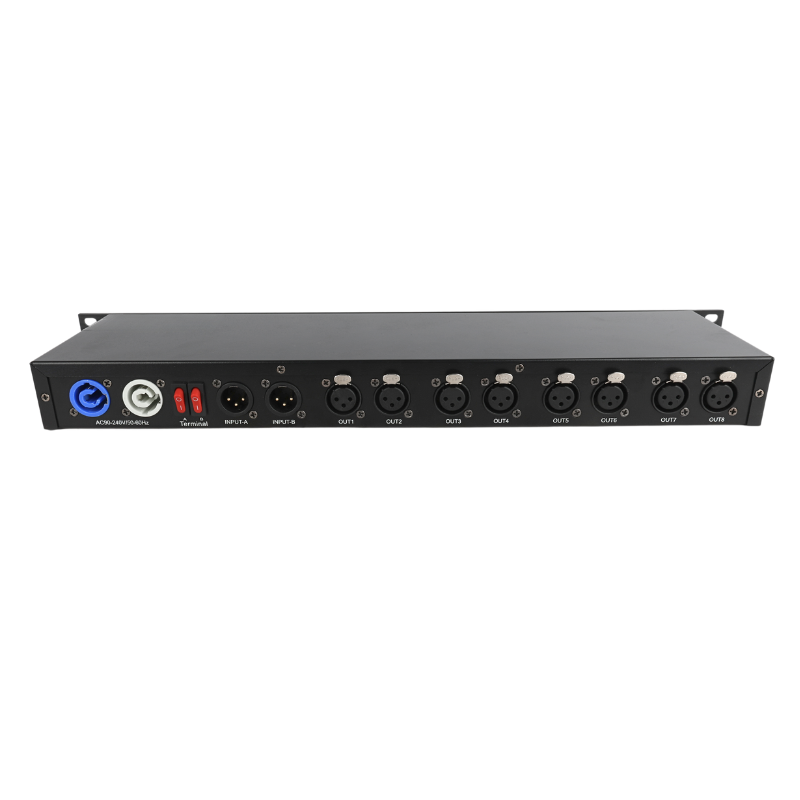

LIGHT4ME XSPLIT 2x4 features active signal indicators for both inputs and outputs, as well as termination resistors on each DMX input, ensuring stable signal transmission and easy troubleshooting. Powercon in/out power connection and 3-pin XLR connectors make the unit compatible with most professional lighting installations.

Perfect for stage technicians, installers and event organisers who require stability, safety and flexibility in their DMX setup.

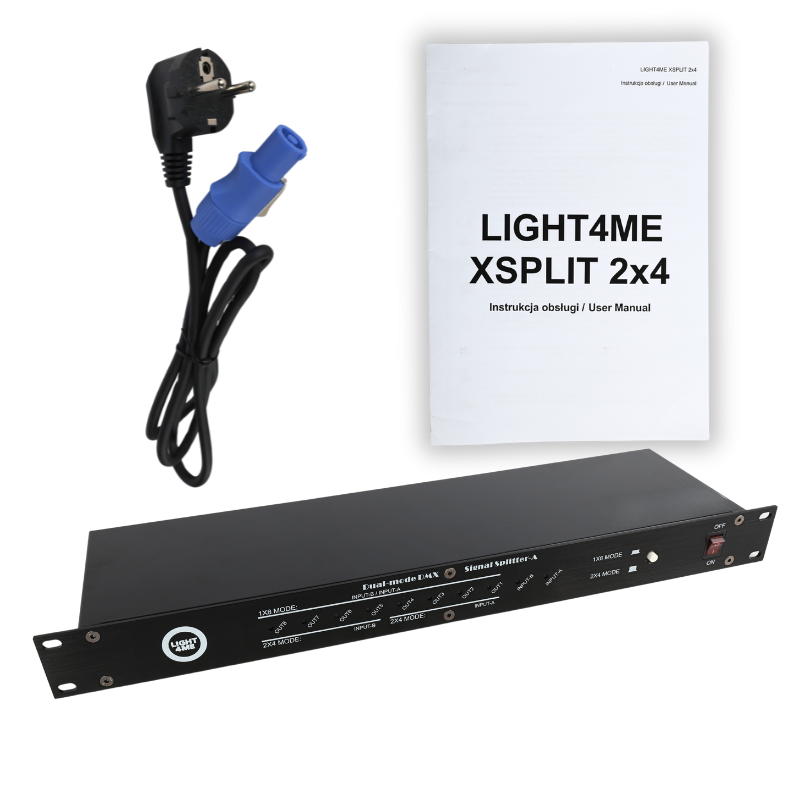

Included:

• LIGHT4ME XSPLIT 2x4 splitter

• Powercon power cable

• User manual (PL/EN)

• Strømforsyning: AC 90-240V, 50/60 Hz
• Strømforbrug: 2,4W
• Dataforbindelser: 3-pin XLR
• DMX indgange: 2
• DMX udgange: 8
• Kanaler: 8

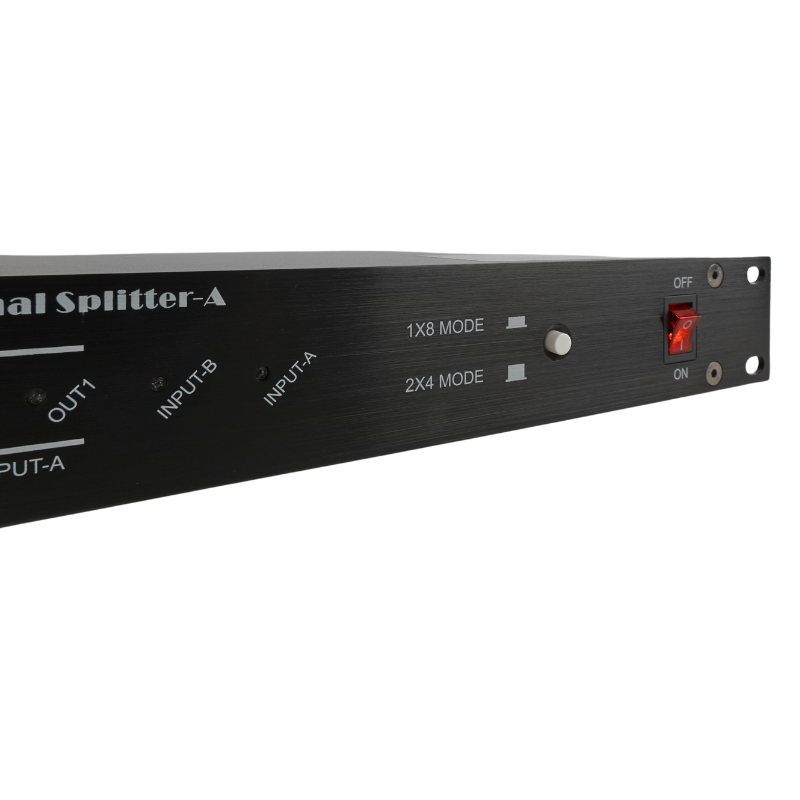

• Driftsformer: 2x4 / 1x8

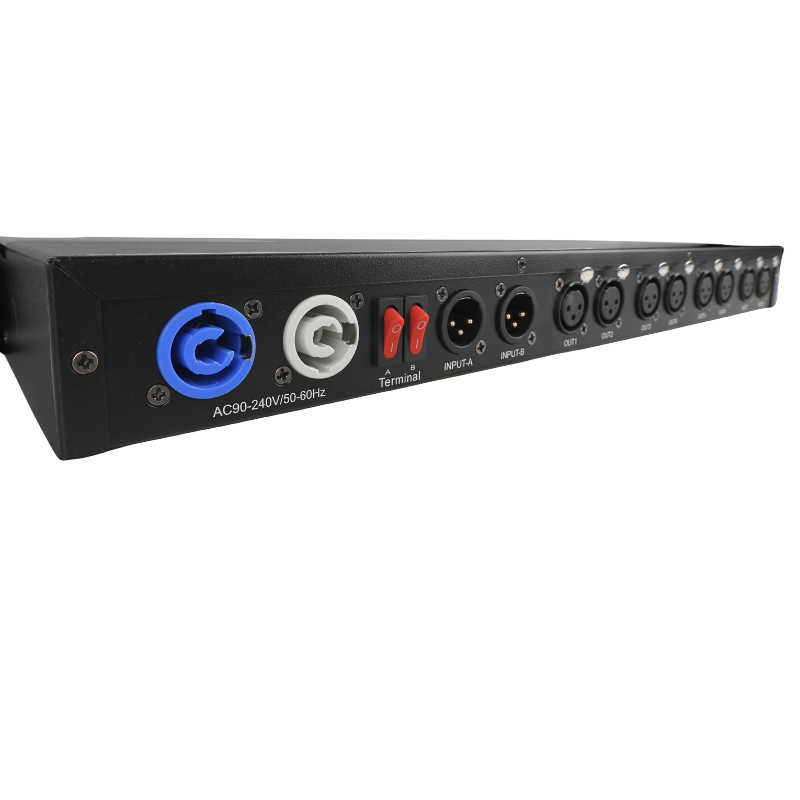

• Strømtilslutning: Powercon in/out
• Aktiv signalindikator for DMX indgange/udgange: Ja
• Termineringsmodstand for hver DMX indgang: Ja
• Tænd/sluk-knap: Ja
• Rackmontering: 19” 1U
• Kabinetfarve: Sort
• Materiale: Jern (kabinet), aluminium (front)
• Dimensioner (enhed): 48,3 x 12,5 x 4,5 cm
• Dimensioner (emballage): 56 x 16 x 8 cm
• Nettovægt: 1,8 kg
• Bruttovægt: 2,25 kg
