Cameo ROOT® BAR SMD - SMD-LED-bar
€593,95
Prix unitaire
/
Non disponible
Description
Description

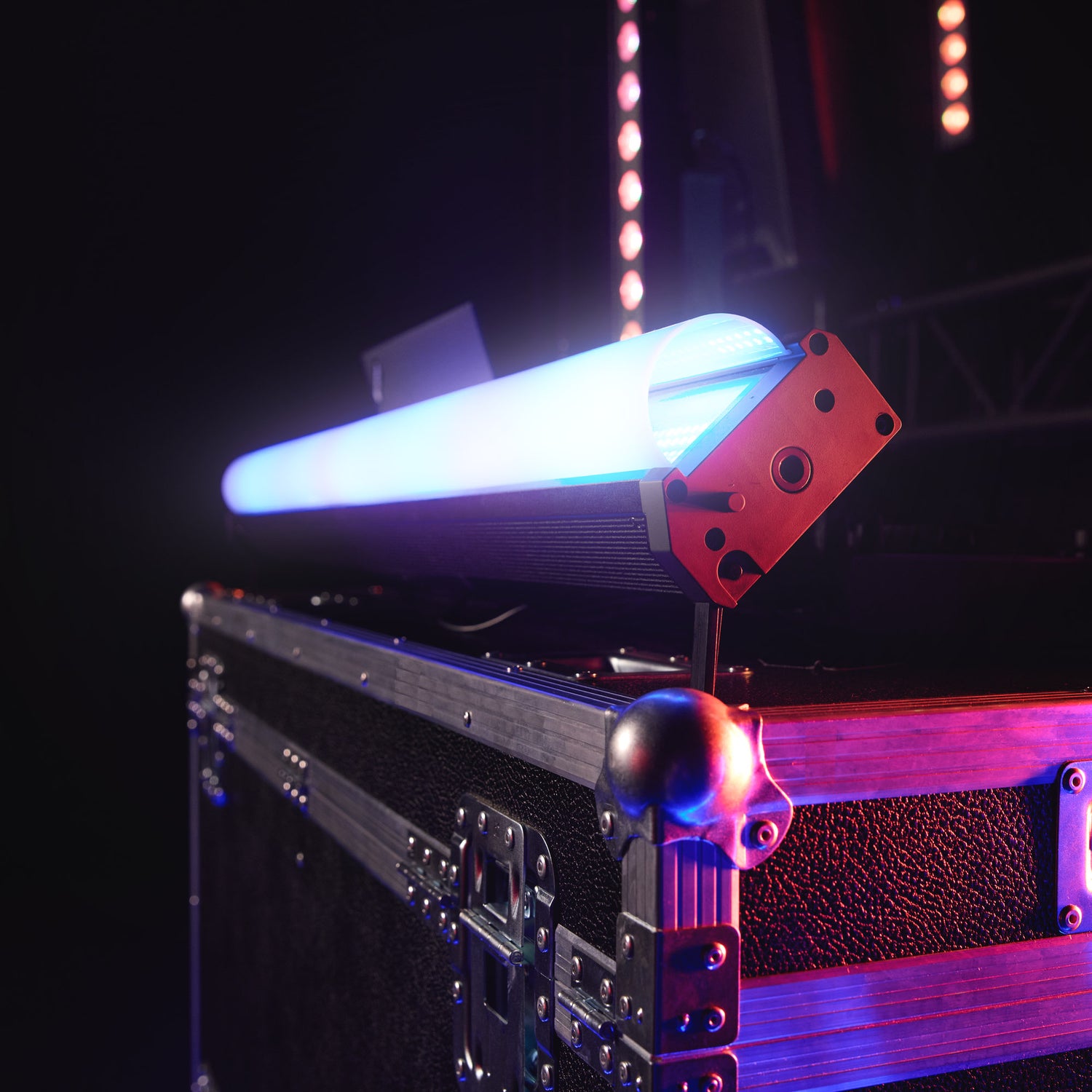

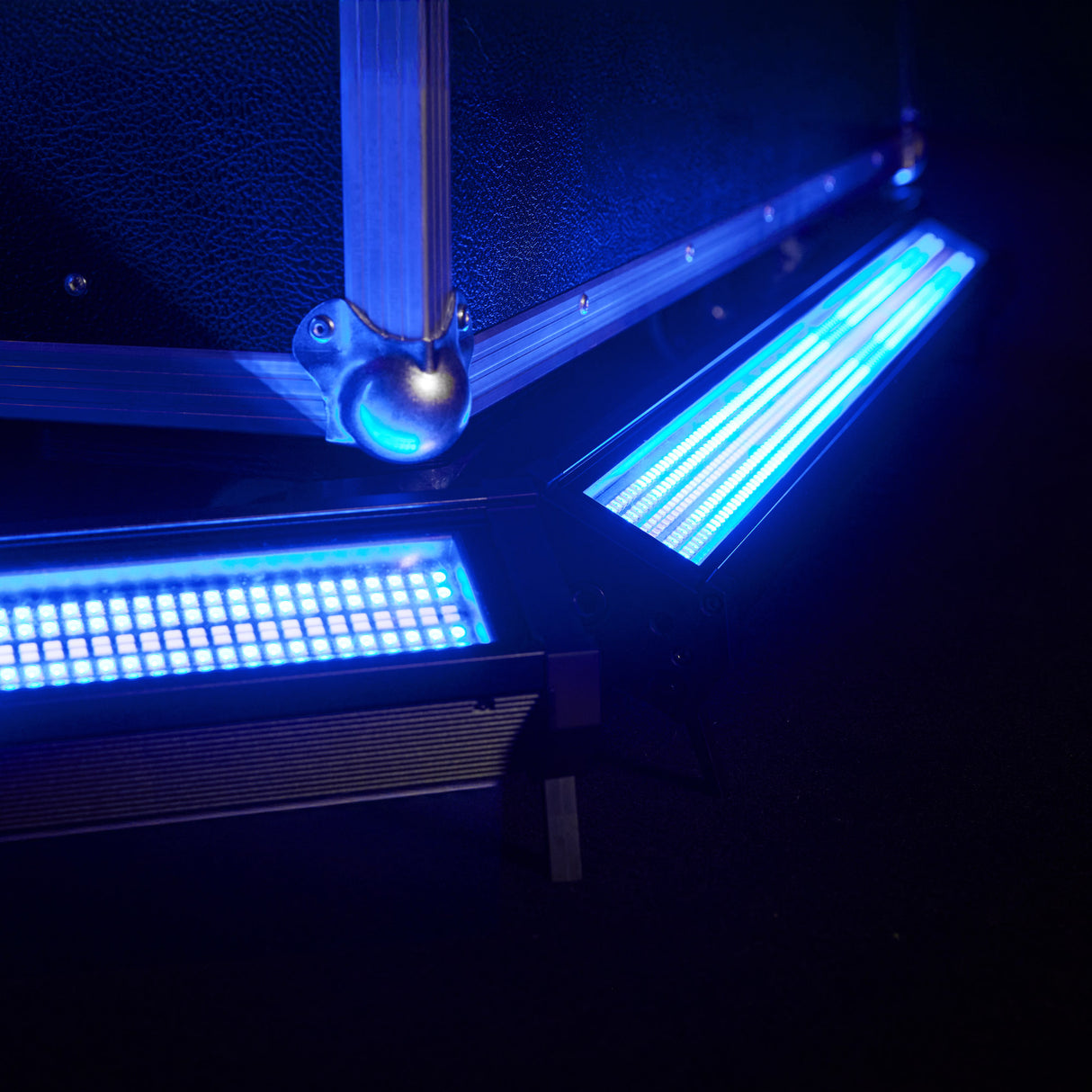

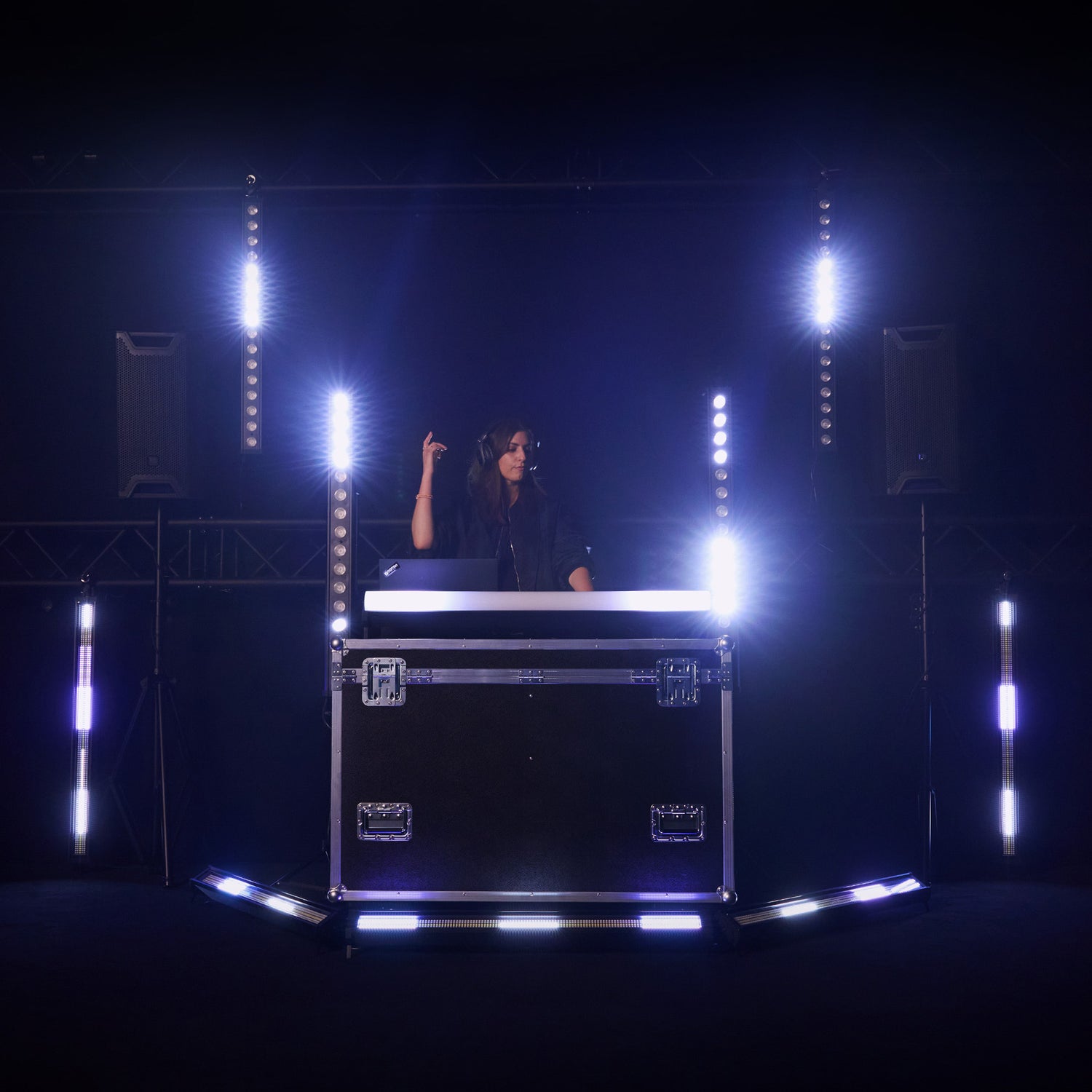

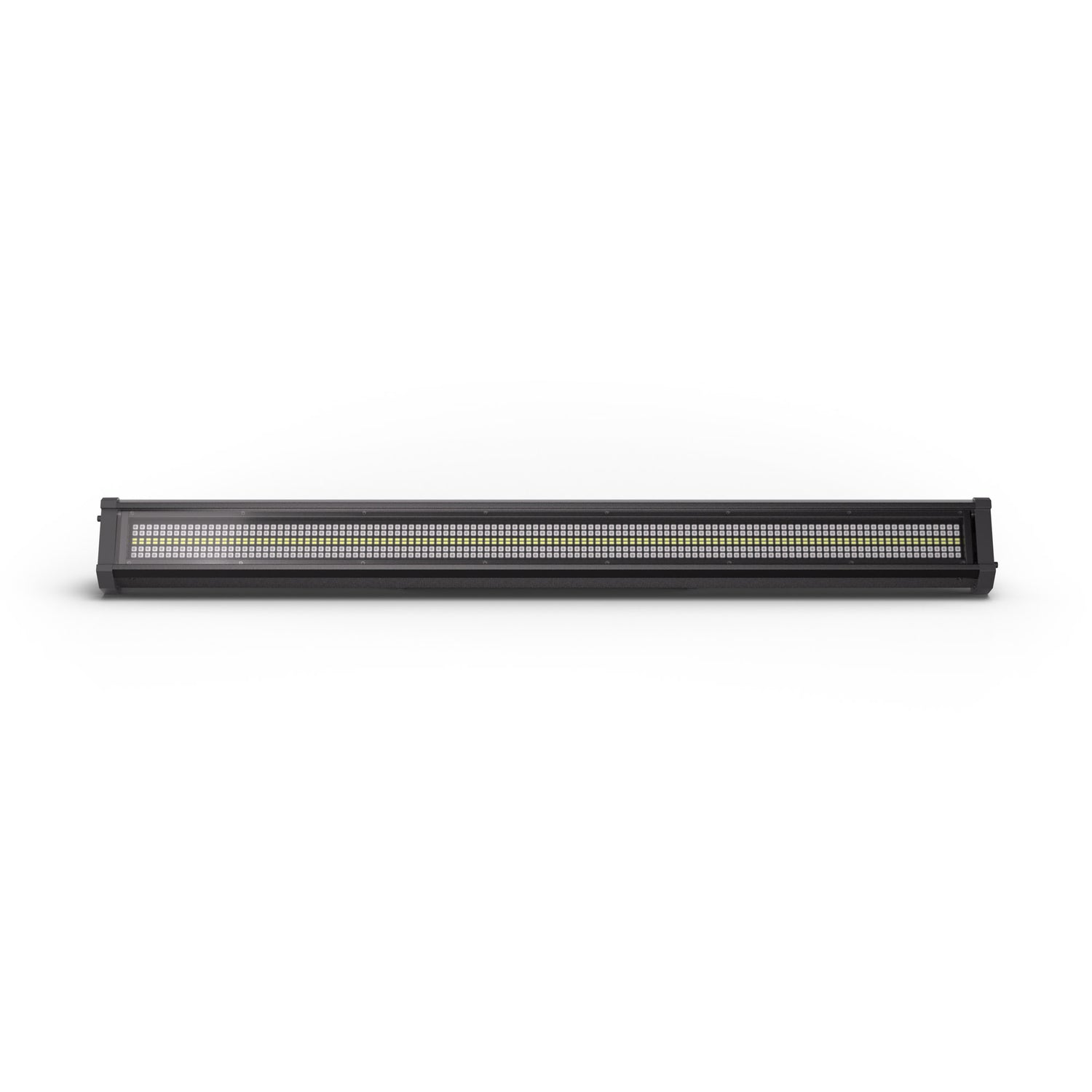

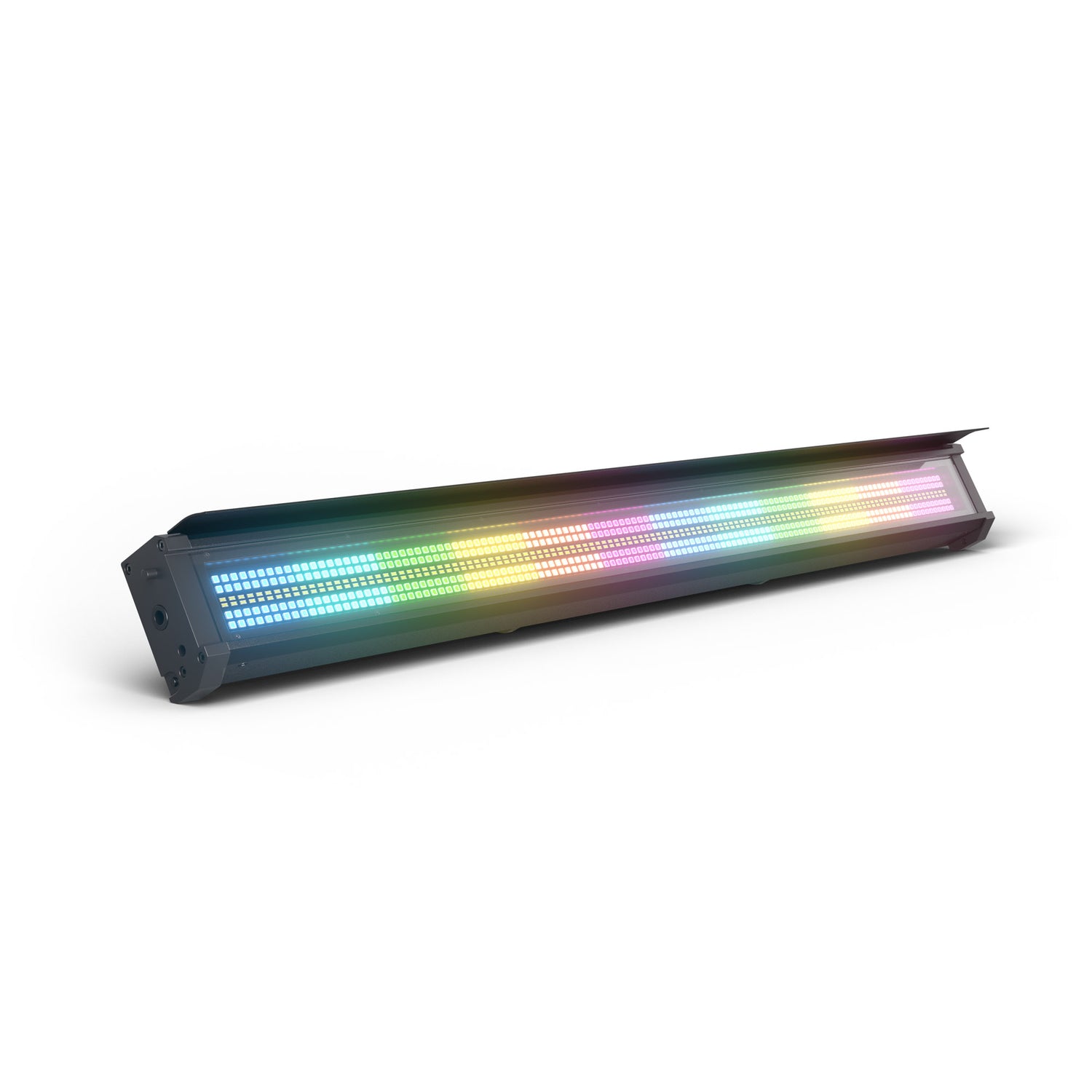

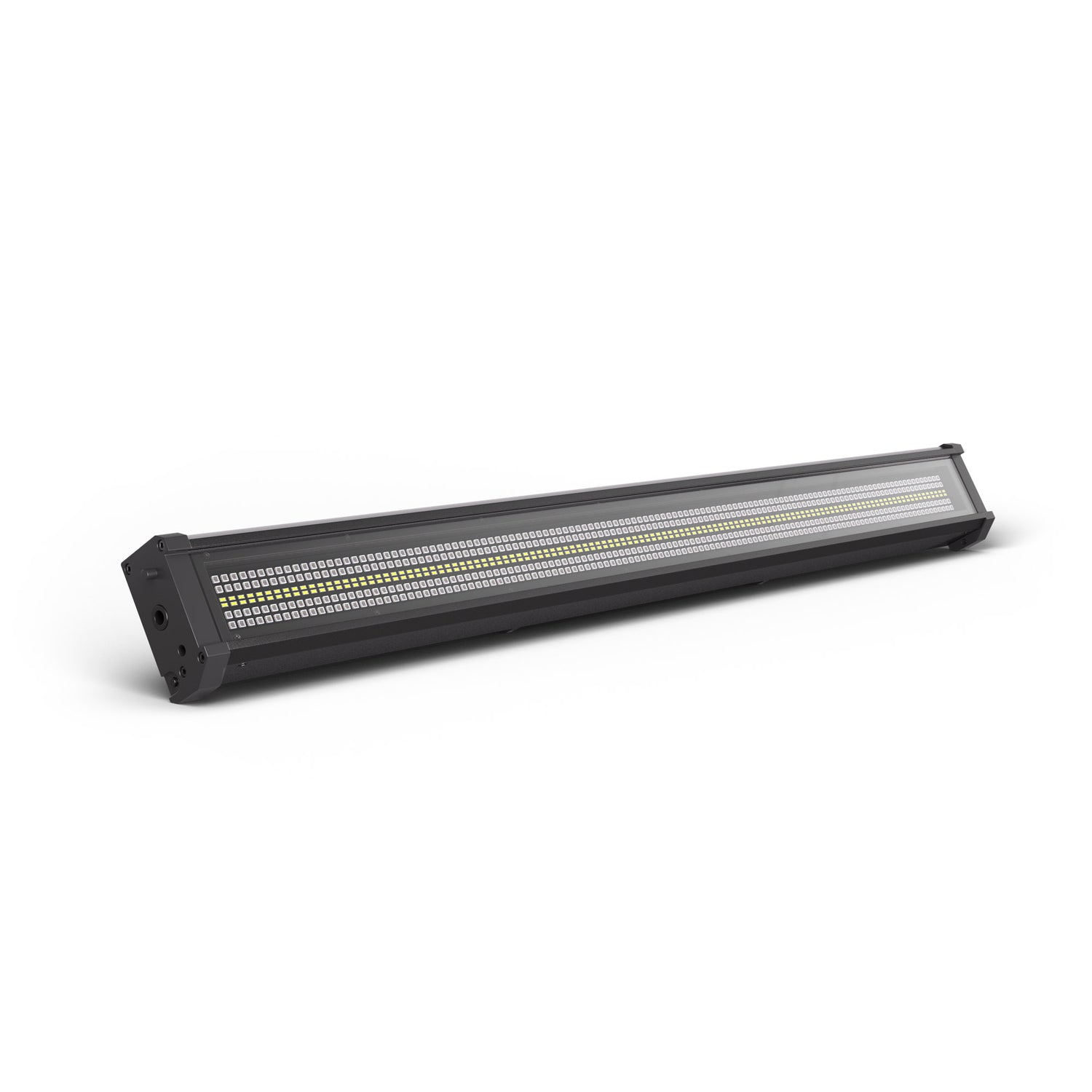

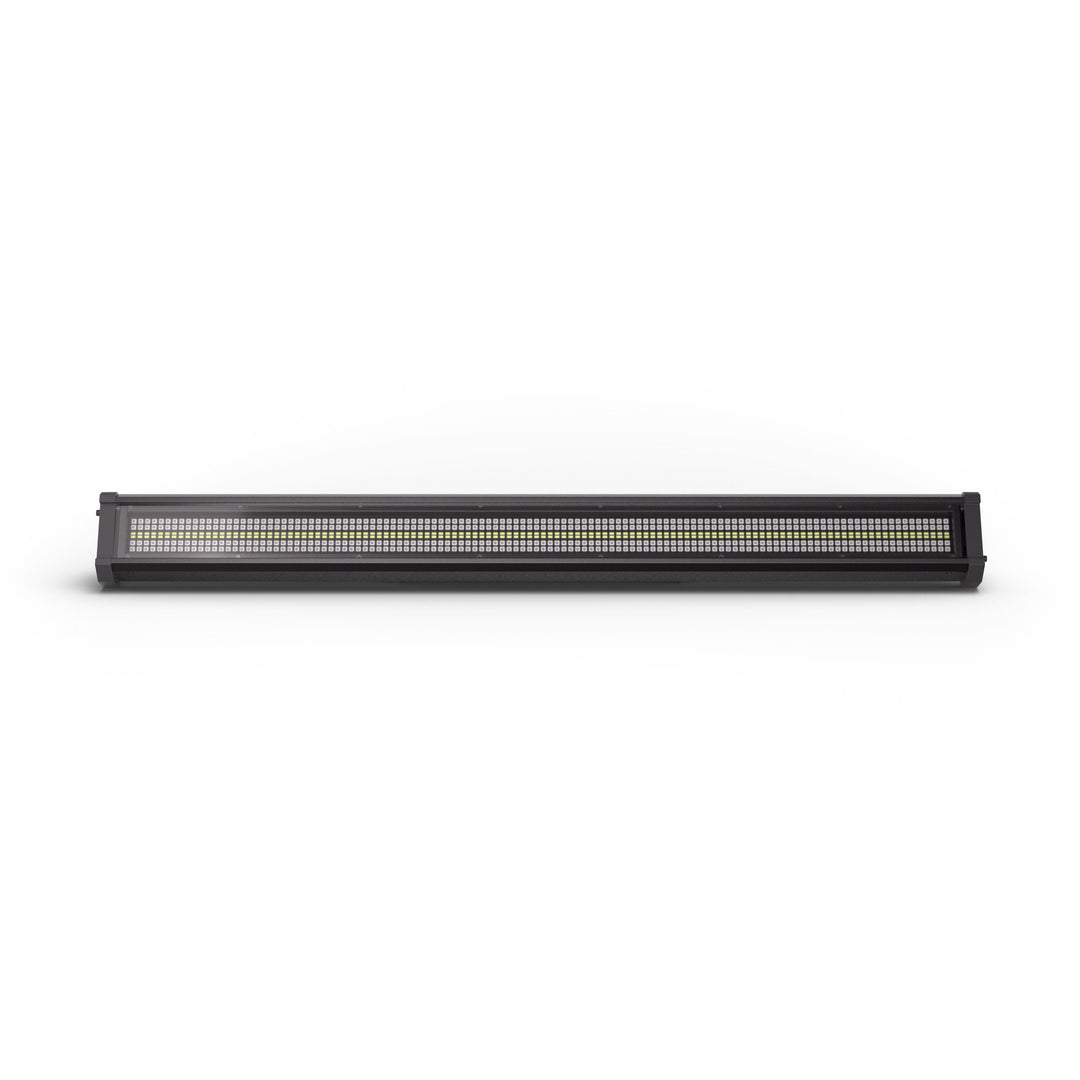

Cameo ROOT® BAR er en lineær LED-bar, der fås i tre versioner. Dens kompakte design og imponerende alsidighed gør den ideel til kreativ belysning i trendy klubber, små barer eller eksklusive events og leverer fantastiske lyseffekter i enhver setting.
Det intelligente design muliggør fleksibel placering i forskellige vinkler uden de medfølgende fødder. Det praktiske gevindbeslag understøtter både ophængt og stående brug, hvilket gør den nem at tilpasse til forskellige miljøer.

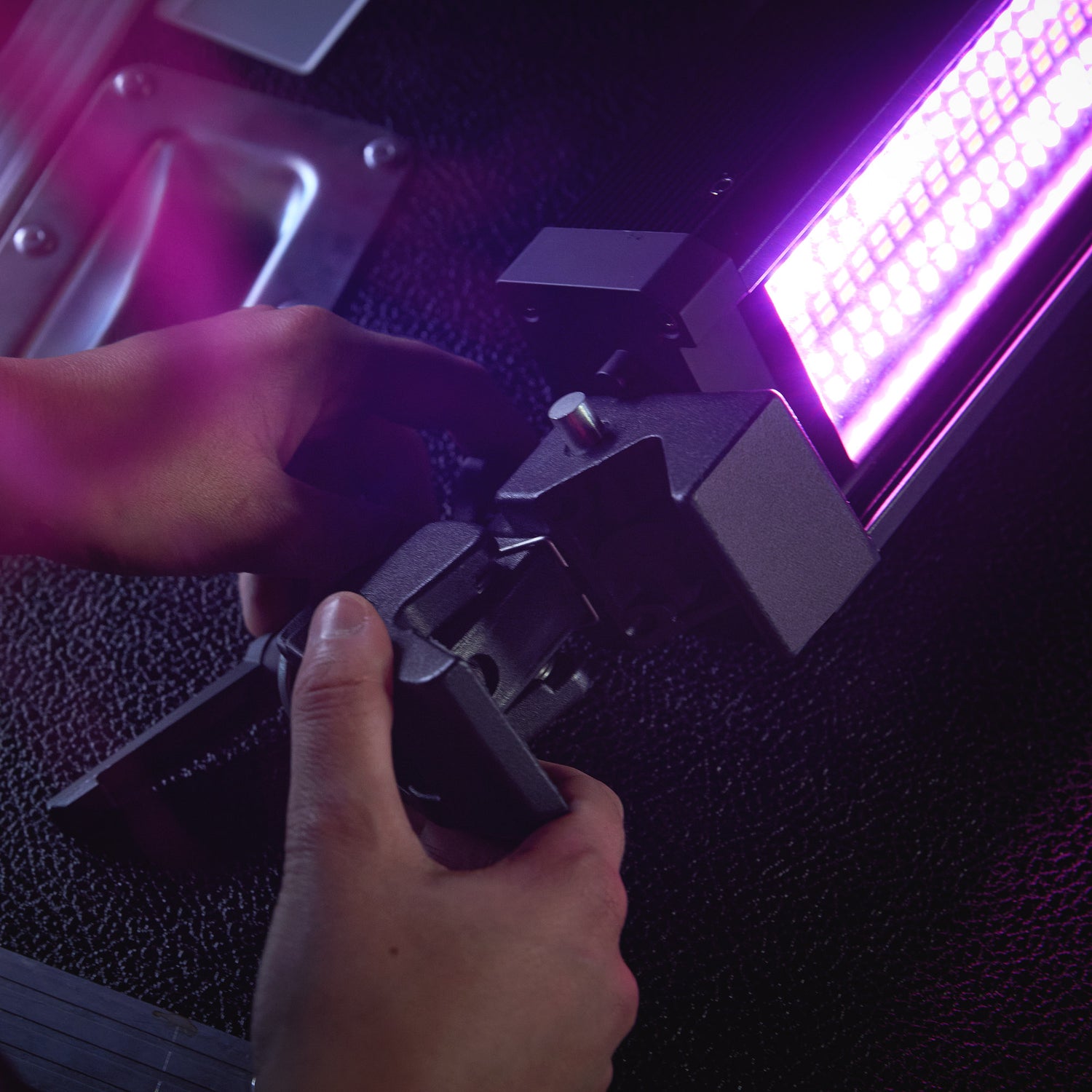

Det magnetiske Quick Alignment System, kombineret med forskellige Quick Lock-muligheder, muliggør hurtig og præcis justering af flere LED-barer, så der skabes sømløse overgange og spektakulære lysinstallationer. Det medfølgende neonrørsfilter og blændskærm giver talrige kreative muligheder og tilføjer imponerende visuelle accenter.
Ud over styring via DMX-protokol kan ROOT® BAR fjernstyres med den valgfrie IR-fjernbetjening. Til trådløs DMX-forbindelse via W-DMX™ har ROOT® BAR en USB-port til tilslutning af Cameo iDMX® Stick. Desuden gør den unikke patenterede EZchase® DMX-delay-funktion det muligt at skabe fængslende chase-mønstre og farveovergange med minimal programmeringsindsats.
Cameo ROOT® BAR står for høj kvalitet, pålidelighed og moderne design. Den sætter nye standarder inden for eventbelysning og forvandler ethvert venue til en uforglemmelig oplevelse.
Tekniske specifikationer
Tekniske specifikationer

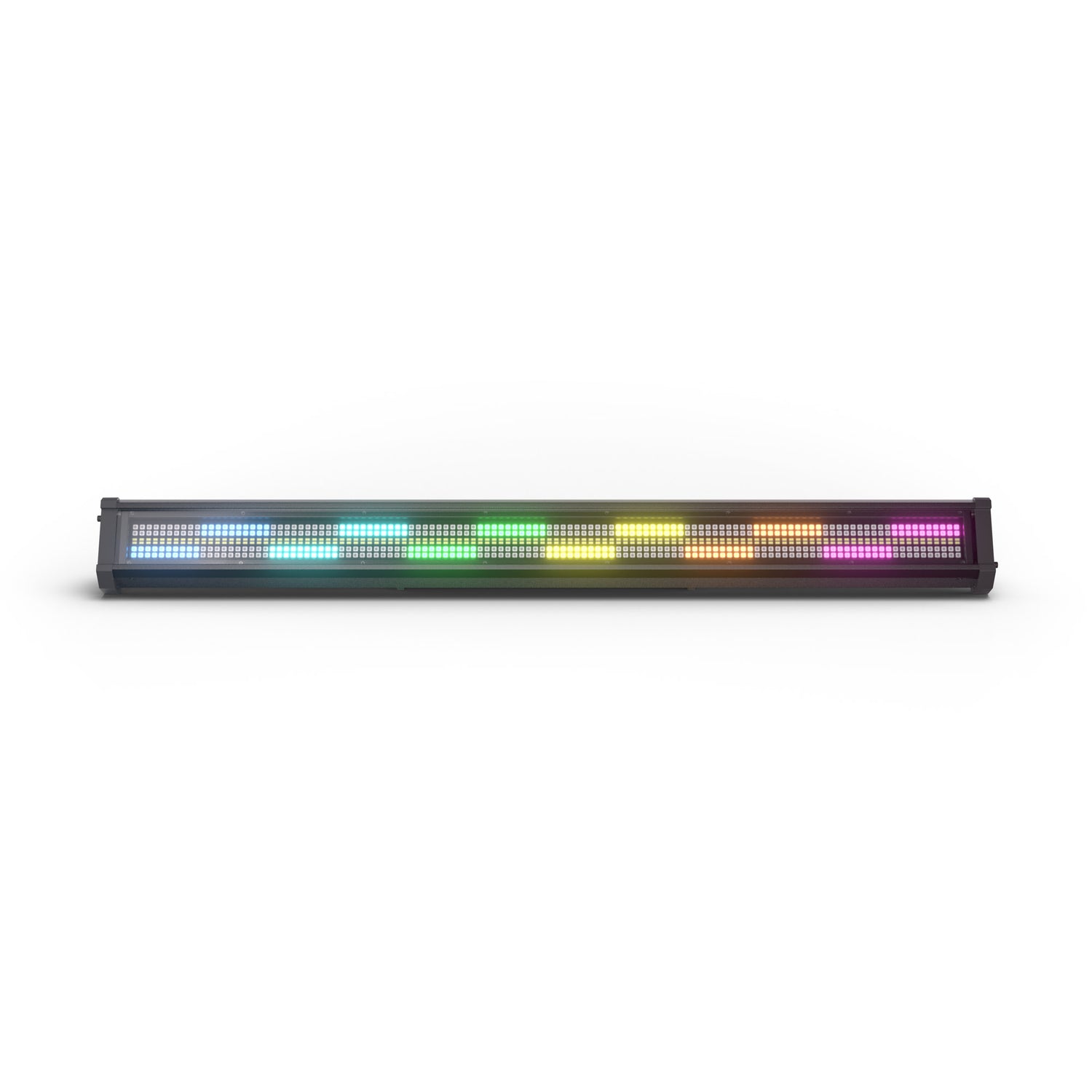

- Compact LED bar available in three versions

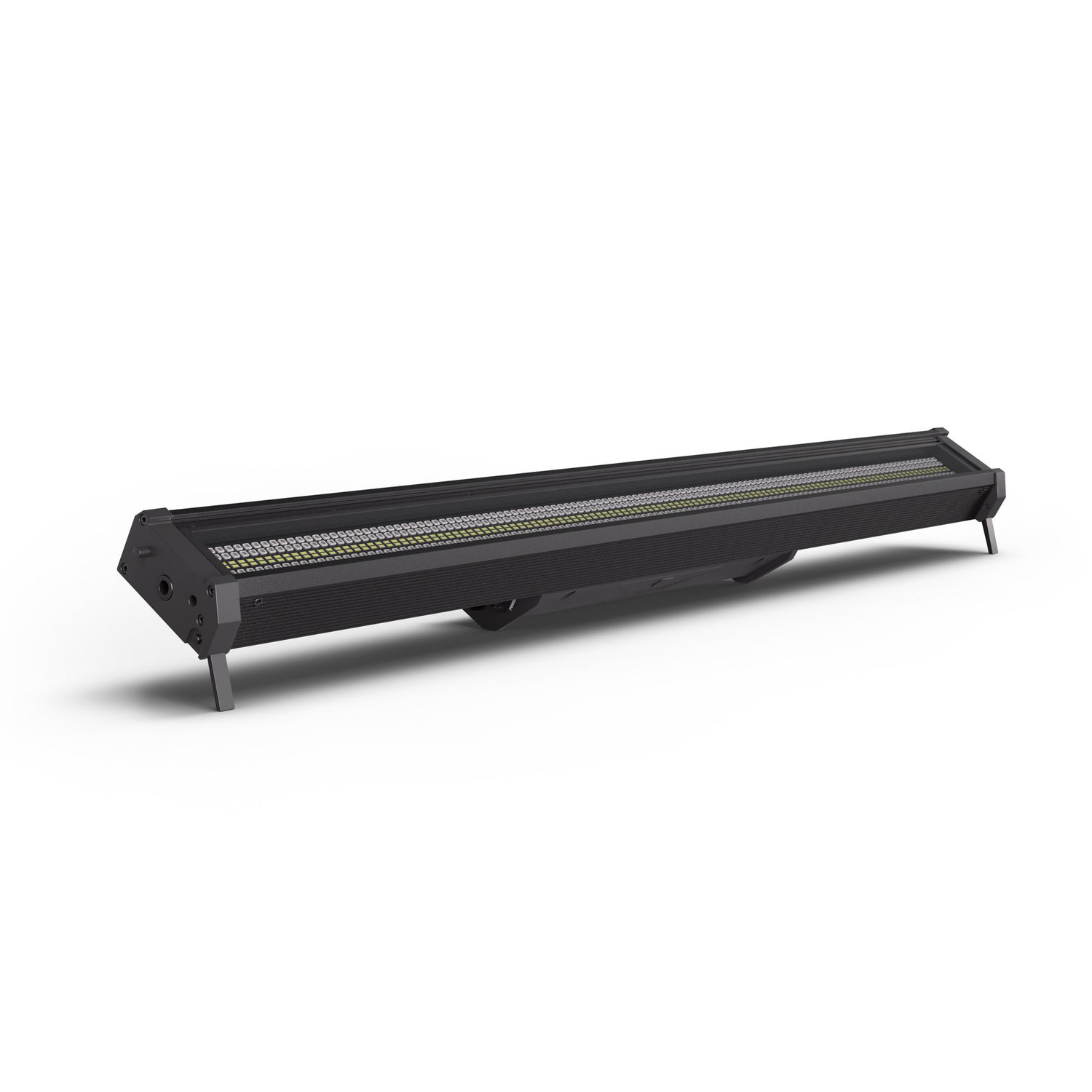

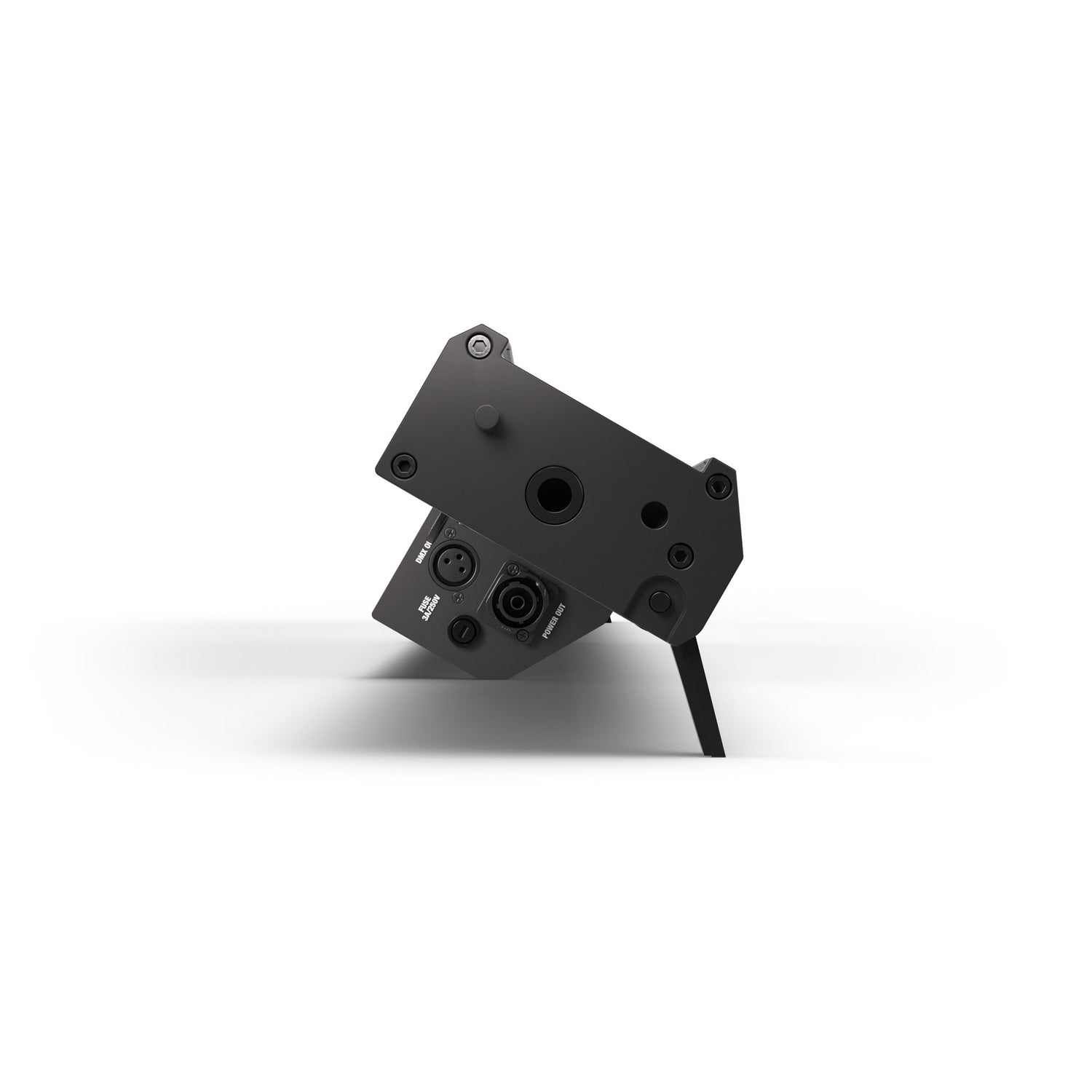

- Flexible positioning at various angles, with or without feet
- Magnetic Quick Alignment System for precise alignment of multiple units

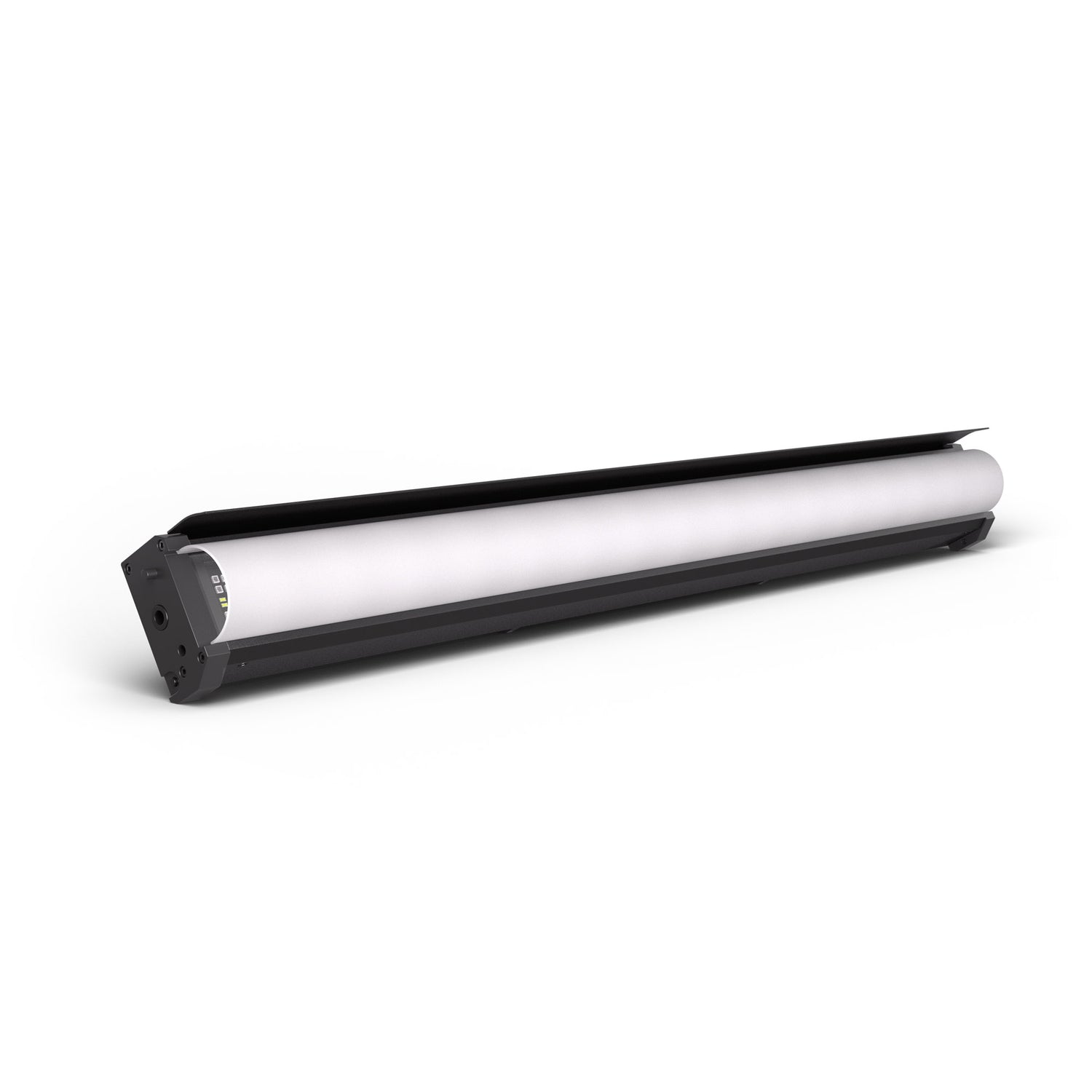

- Includes neon tube filter and glare shield for versatile lighting effects
- Control via DMX or W-DMX (with optional Cameo iDMX Stick)
- Patented EZchase® DMX delay function for chase effects
- 16-bit resolution for smooth dimming and high-performance RGBW LEDs

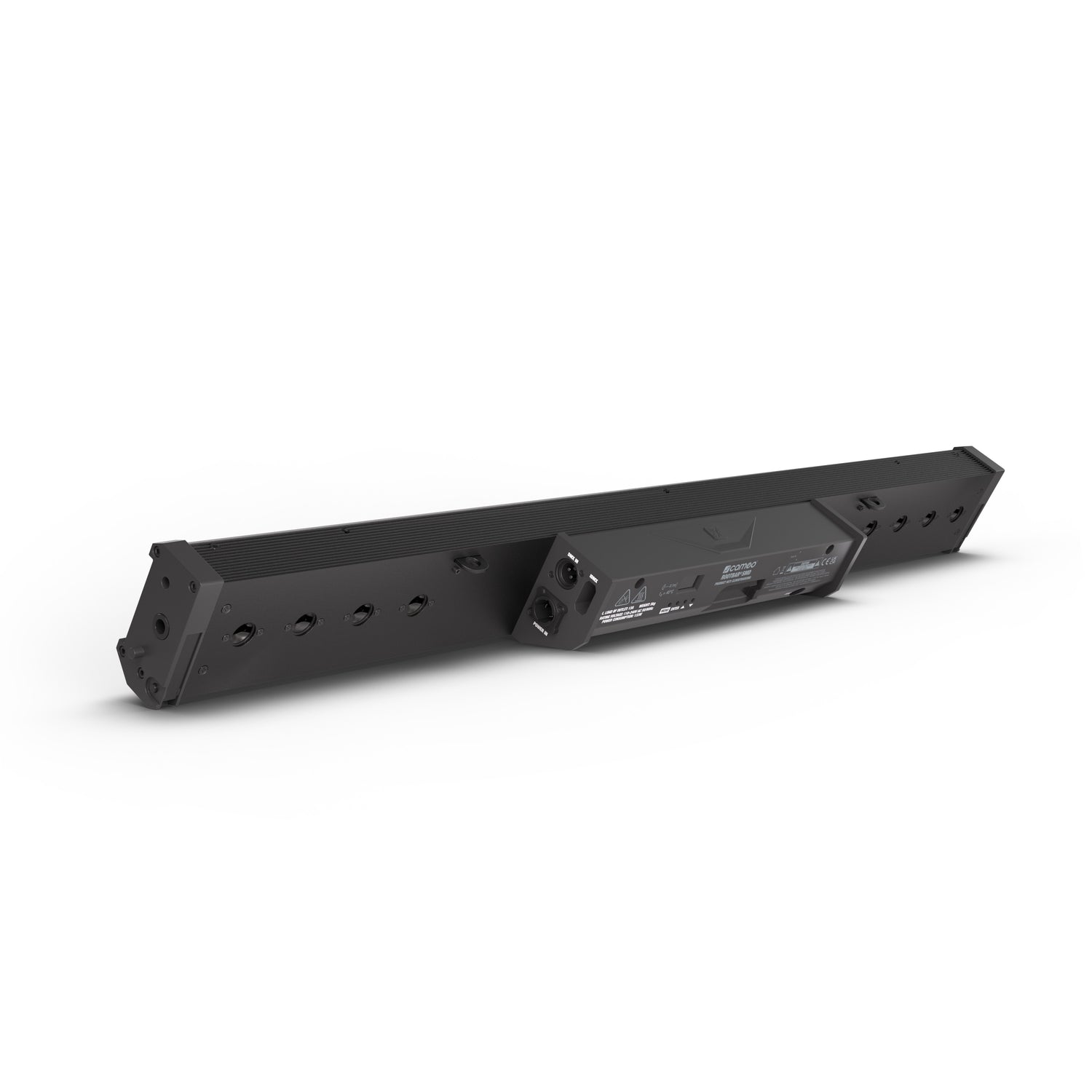

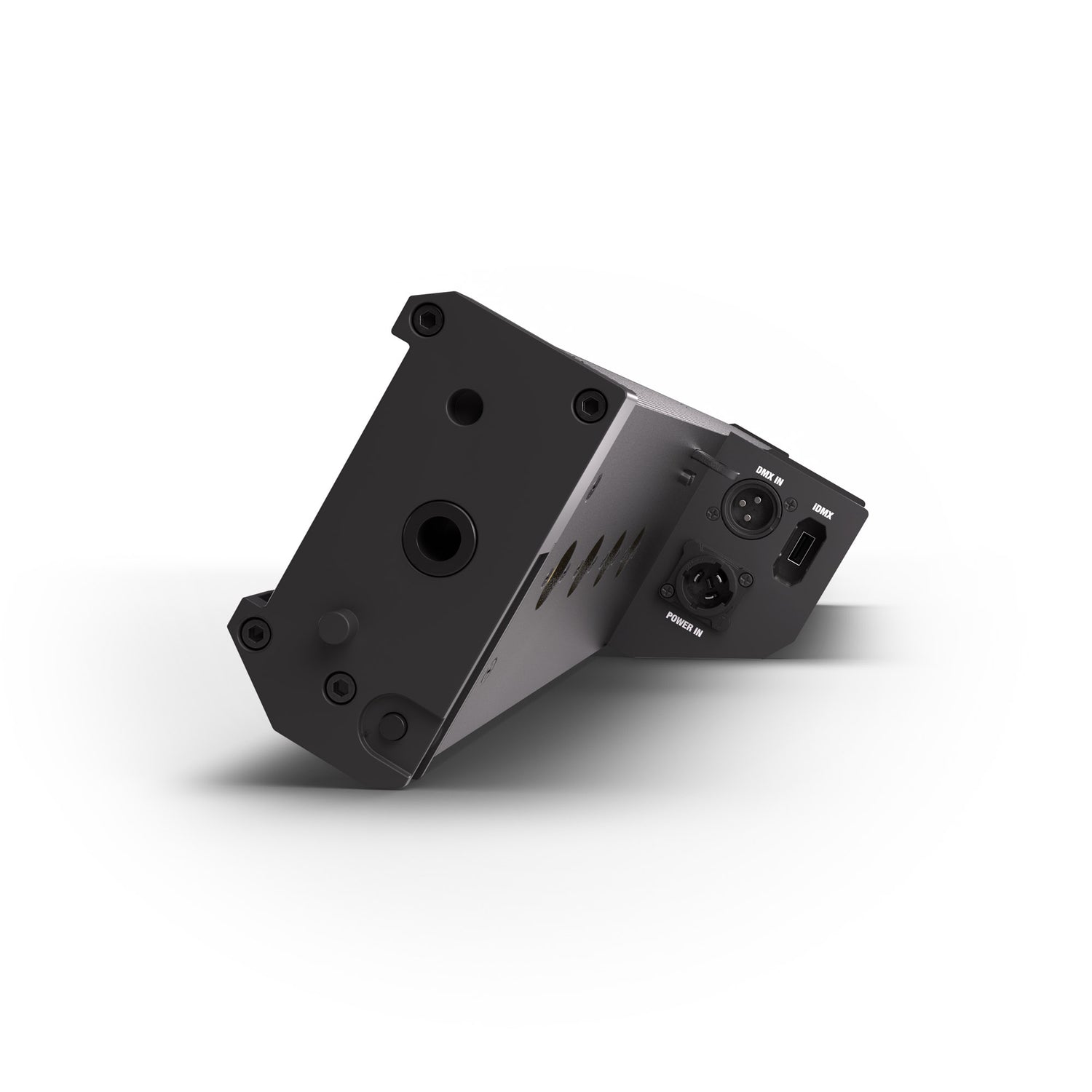

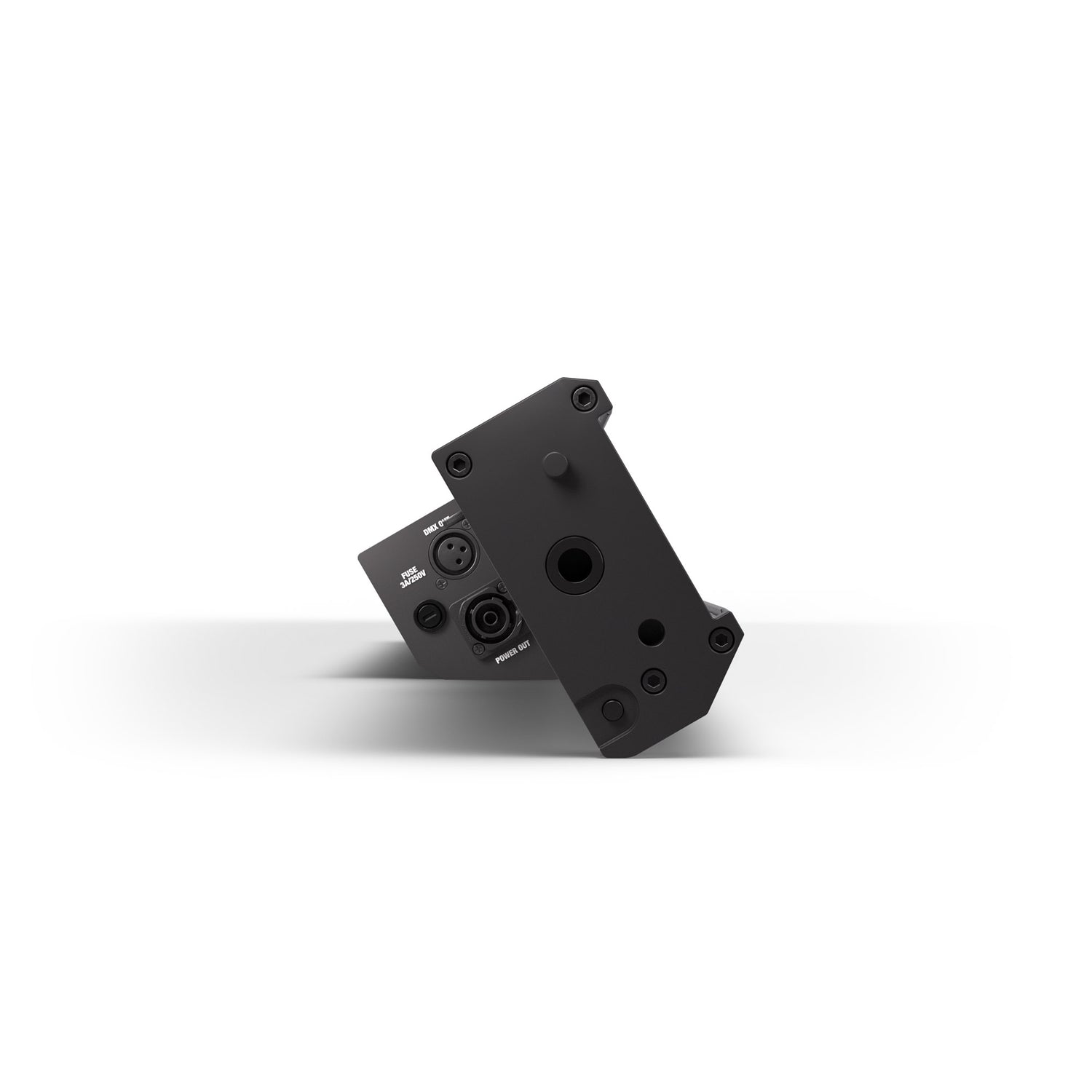

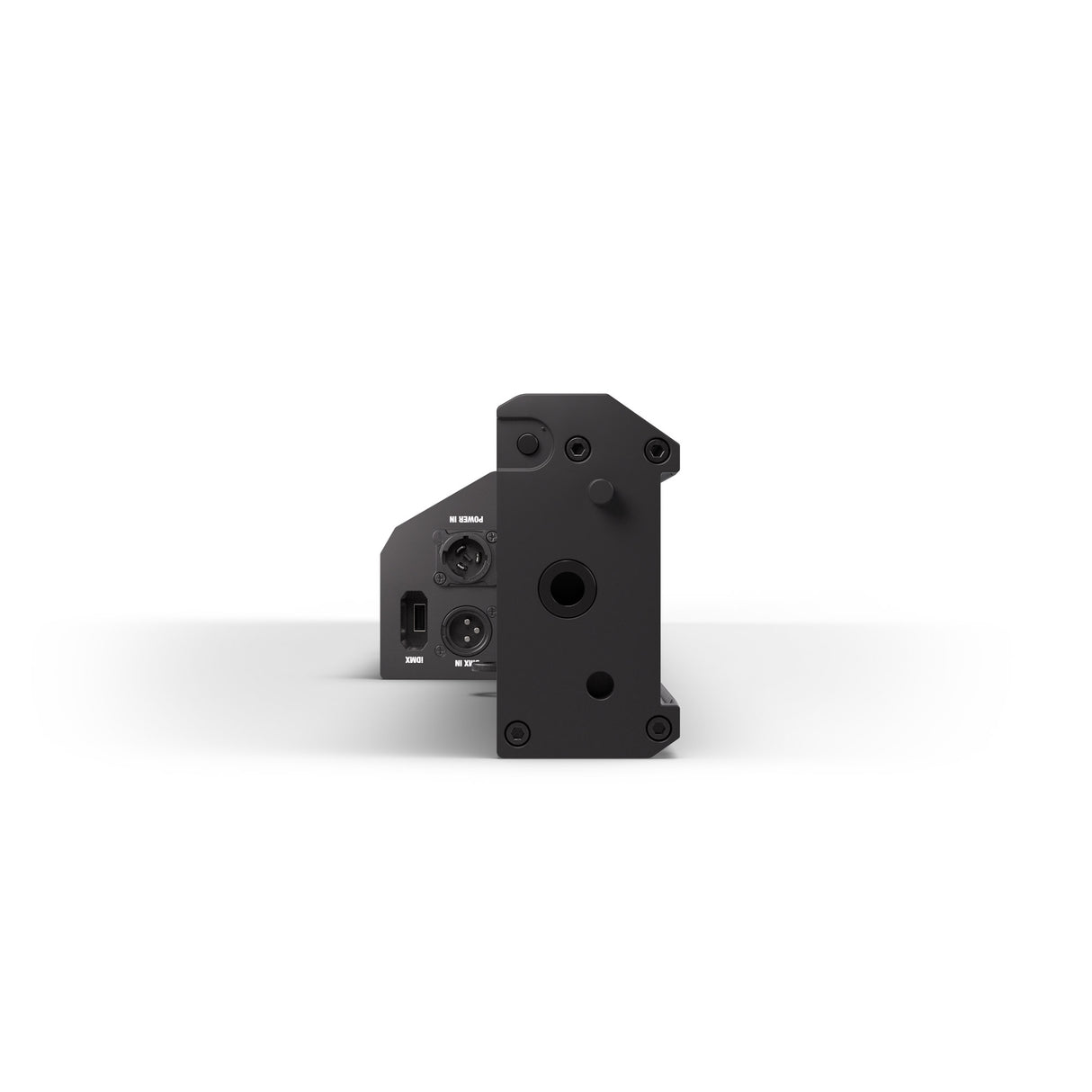

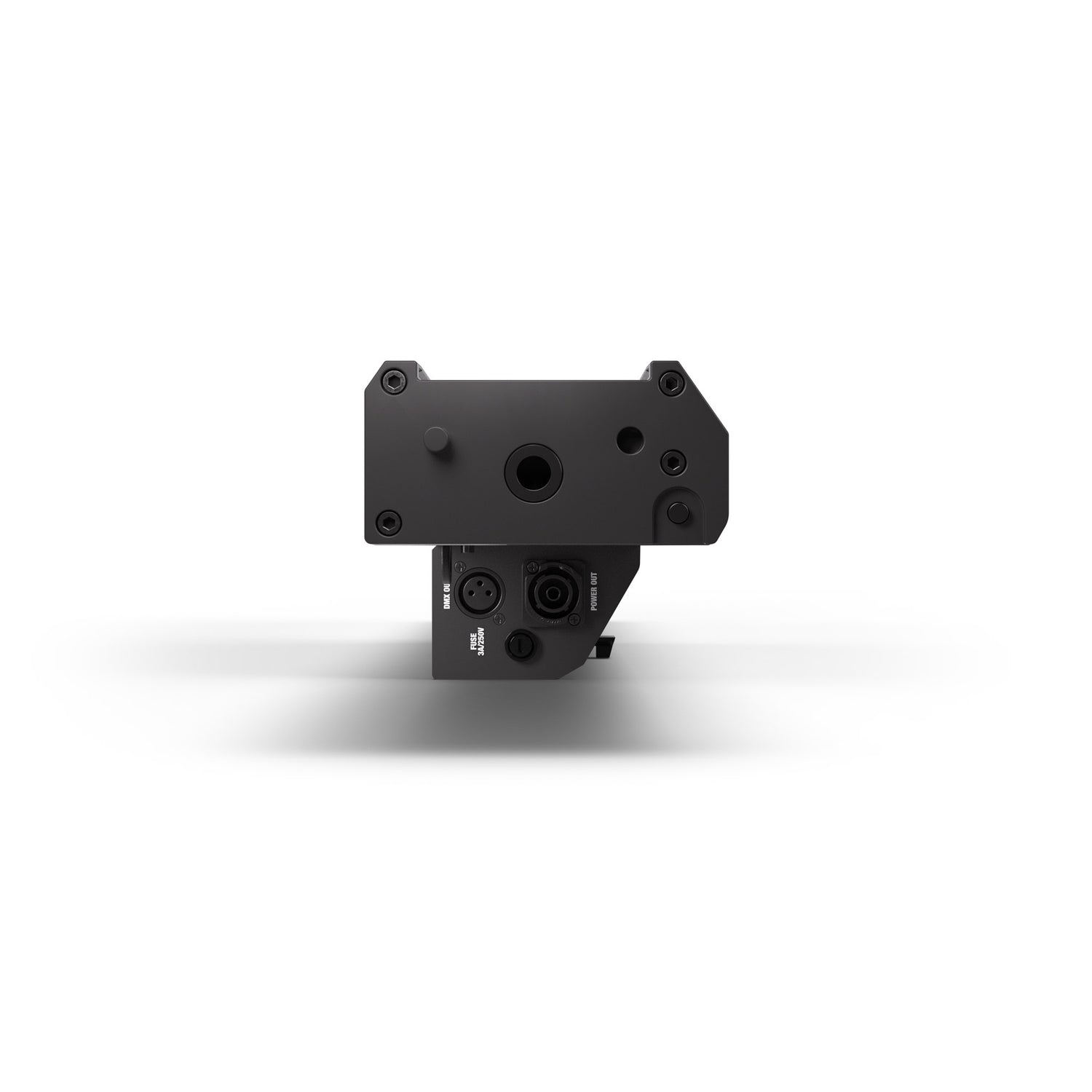

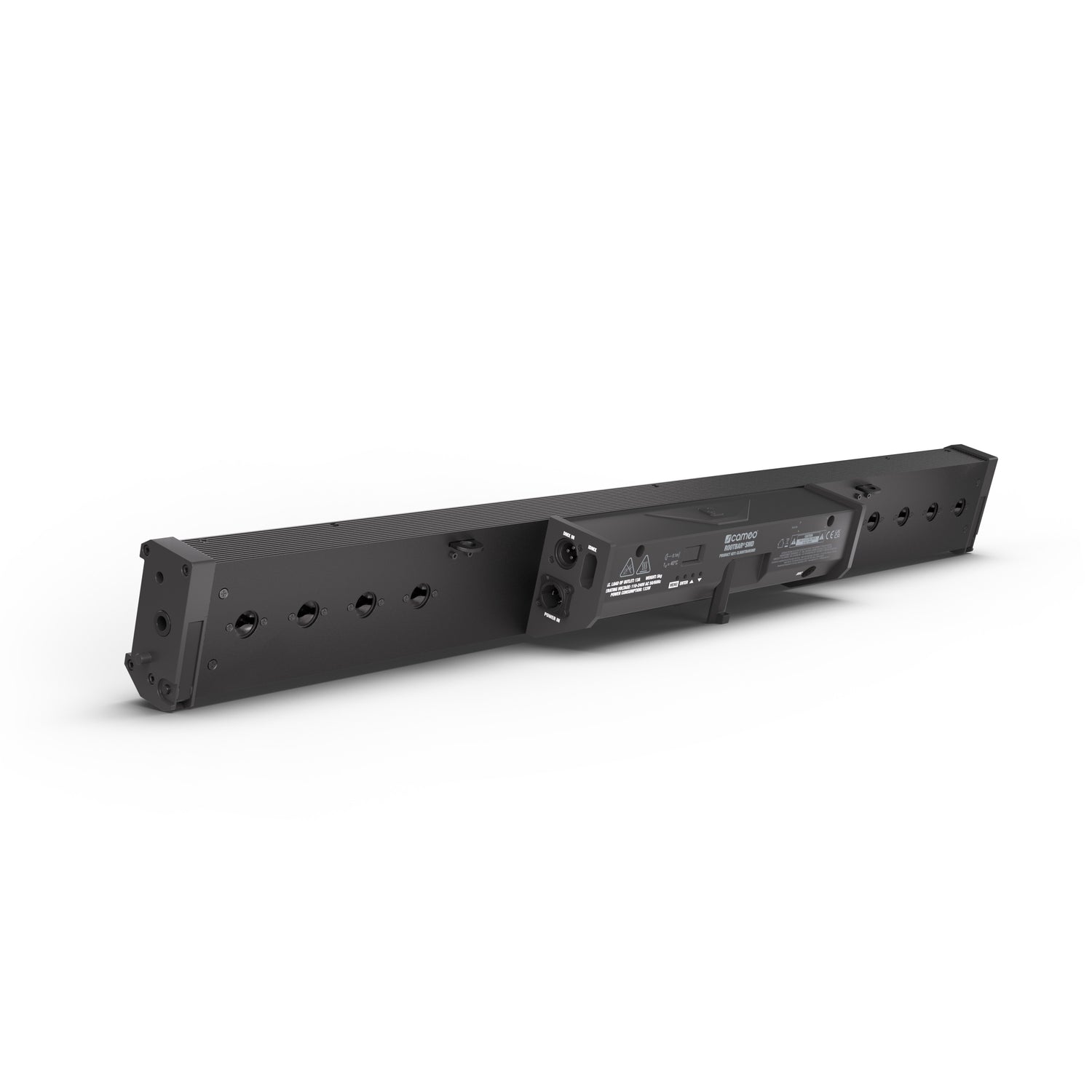

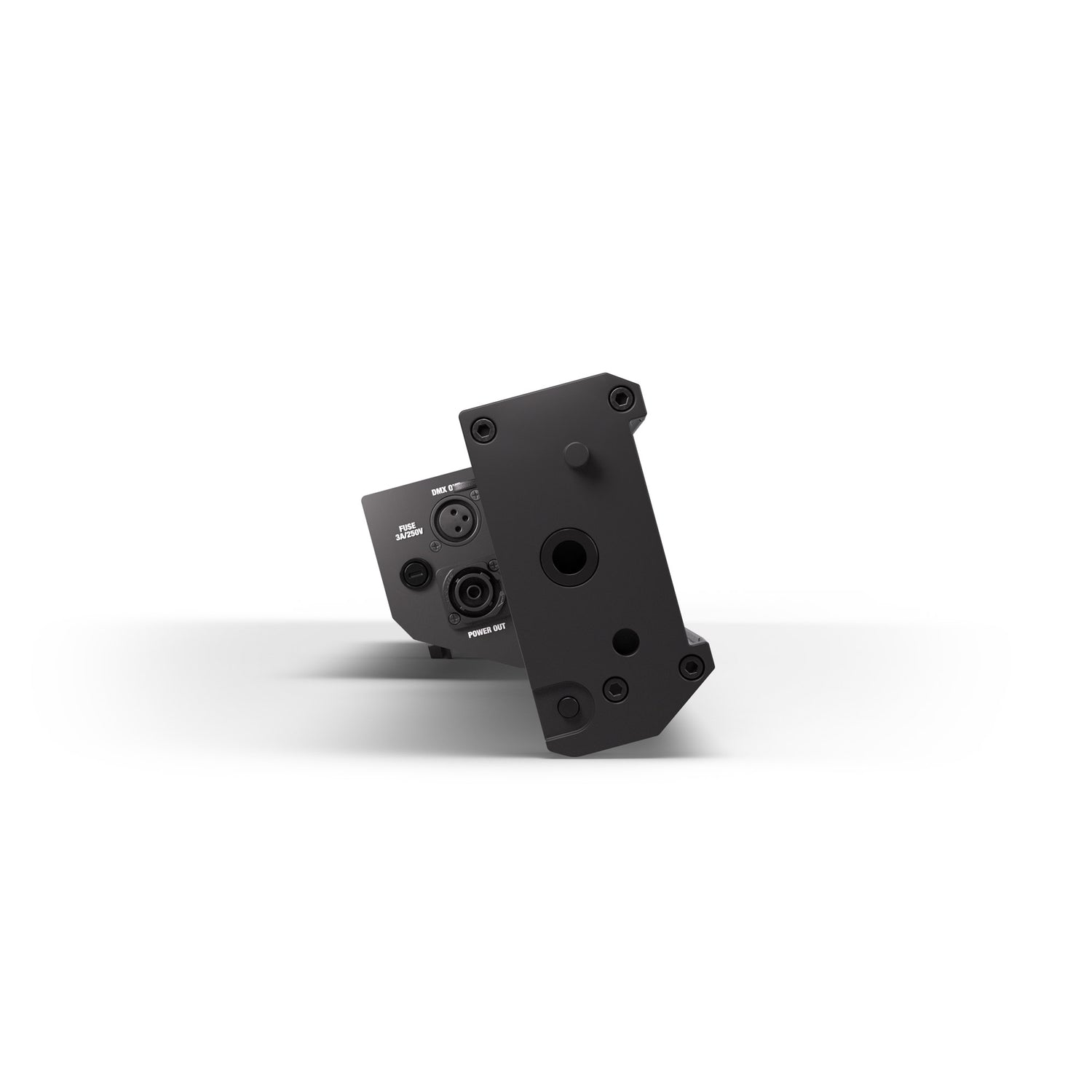

- Power input via Neutrik powerCON and DMX connectors for daisy-chaining multiple units
- Silent, fanless cooling design ideal for noise-sensitive environments
Photometric values
| Illuminant type | RGBW LED |
| LED data | 480 x 0.2 W RGB LED (24 x 20) | 240 x 0.5 W White LED |
| Luminous flux | 5,200 lm |
| Beam/Field angle | Beam: 102° / Field: 127° |
| LED PWM frequency | 12 kHz |
| Dimmer resolution | 16 Bit |
| Dimmer curves | Exponential |
| Dimmer curves | Linear |
| Dimmer curves | Logarithmic |
| Dimmer curves | S curve |
Colours
| Colour mix functions | RGB |
| LED colours | Blue |
| LED colours | Green |
| LED colours | Red |
| LED colours | White |
| Colour rendering index (CRI) | > 70 |
Effects
| Strobe | 0 - 20 Hz |
Control
| Controller protocols | DMX512 |
| Additional DMX features | DMX delay |
| Additional DMX features | LED segment dimmer |
| Additional DMX features | System settings |
| Stand alone operating modes | Autorun |
| Stand alone operating modes | Endless loop |
| Stand alone operating modes | Master/slave |
| Stand alone operating modes | Sound controlled |
| Stand alone operating modes | Static |
| Data in connector | XLR 3-pole male |
| Data out connector | XLR 3-pole female |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 135 W |
| Mains connector | Mains plug device outdoor male & TRUE1® |
| Mains fuse | F3AL/250 V |
| Power out connector | Mains plug device outdoor female & TRUE1® |
Housing
| Chassis material | Aluminium |
| Chassis material | Plastic |
| Colour | Black |
Cooling
| Cooling system | Convection cooling |
Environmental
| Protection class | IP20 |
| Noise level in operation | 0 dB |
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 1,024 mm |
| Height | 116 mm |
| Depth | 106 mm |
| Weight | 5 kg |
