• 6-color mixing (HCL RGBWA/UV) for perfect colors
• 7 powerful 10W LEDs with homogeneous color mixing
• Flicker-free and adjustable brightness
• DMX and power connections with intelligent design
• Various control options: stand-alone, DMX, sound-controlled, and remote control

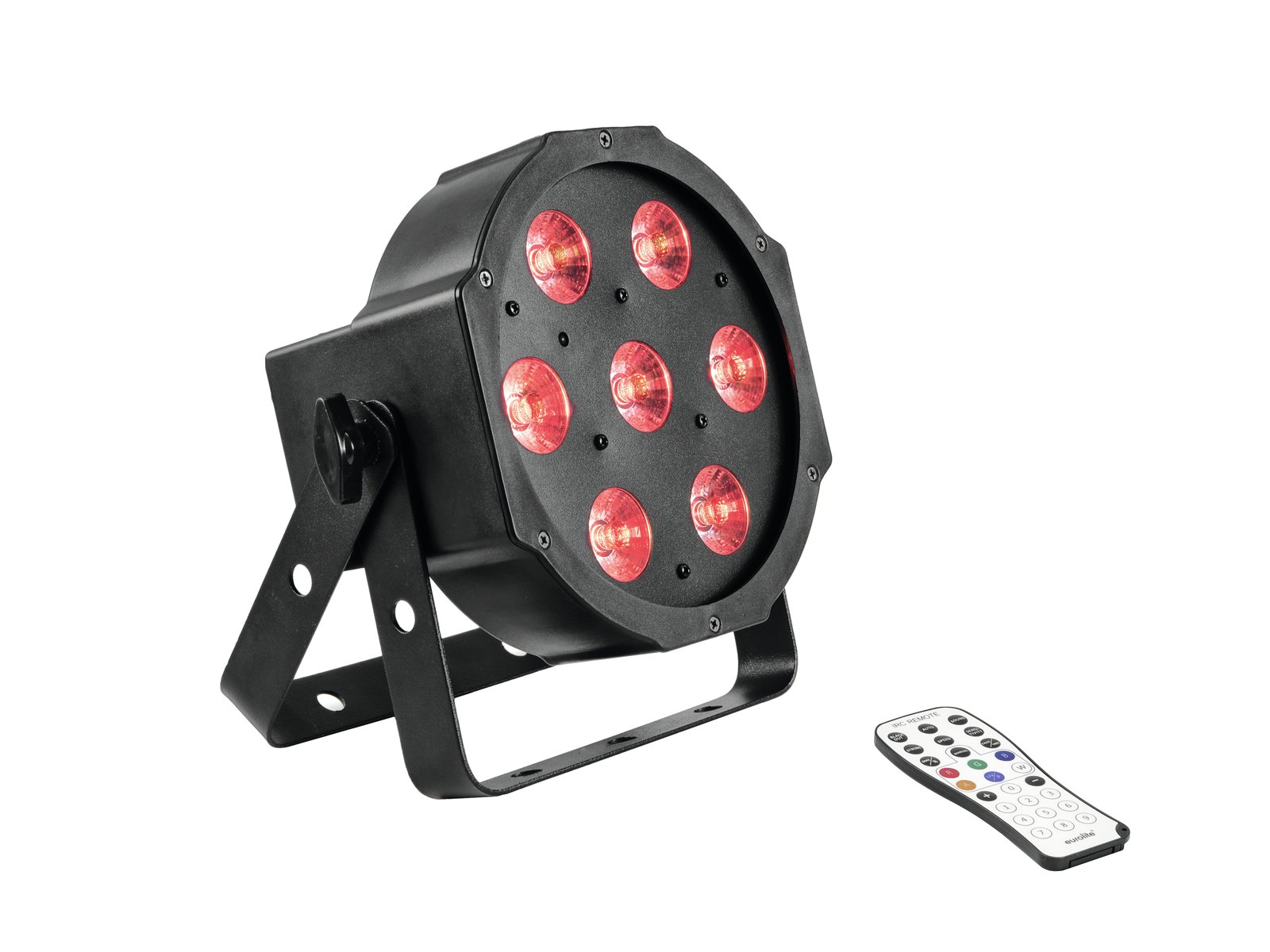

Eurolite Flatpar (7x10W)

• Compact design that saves space
• Perfect solid and pastel colors as well as ultraviolet with 6-color mixing
• DMX and power terminals are intelligently designed for easy cabling
• 7 powerful 10W LEDs, high-efficiency 6in1 HCL RGBWA/UV (uniform color mixing)
• Stepless color mixing; adjustable color change; adjustable color fade; electronic dimmer
• Strobe effect and UV effect
• 2 integrated show programs
• Direct color selection with 19 preset colors
• The unit is cooled with a fan
• Can be controlled via stand-alone; DMX; Sound to light via microphone; Master/slave function; IR remote control
• Flicker-free function
• Light beam angle of 17°
• With double bracket

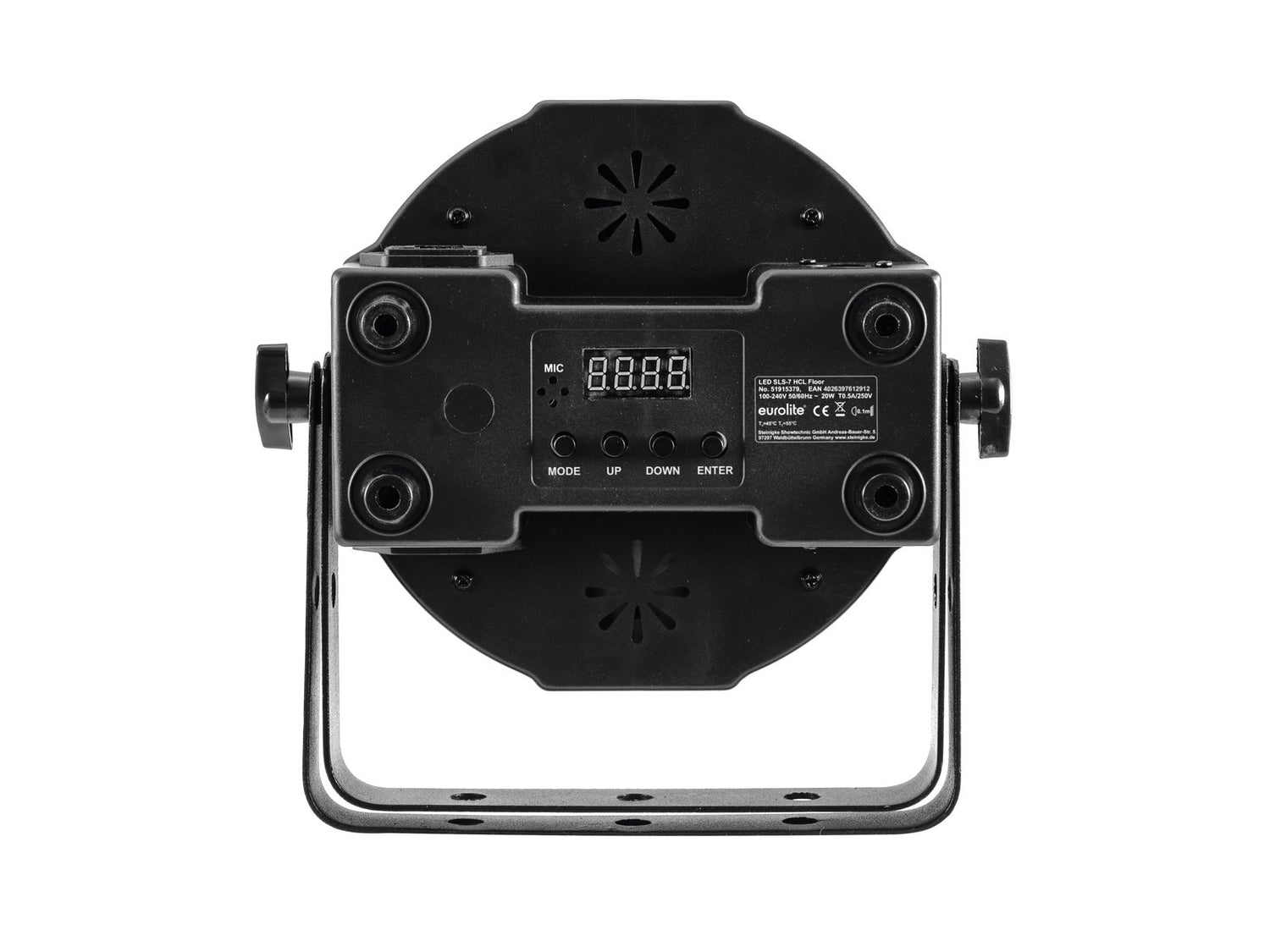

• Monochrome 4-digit 7-segment LED display
• Available in several colors
• Pre-programmed for Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
• Rubber feet
• Power input and output for daisy-chaining up to 8 units

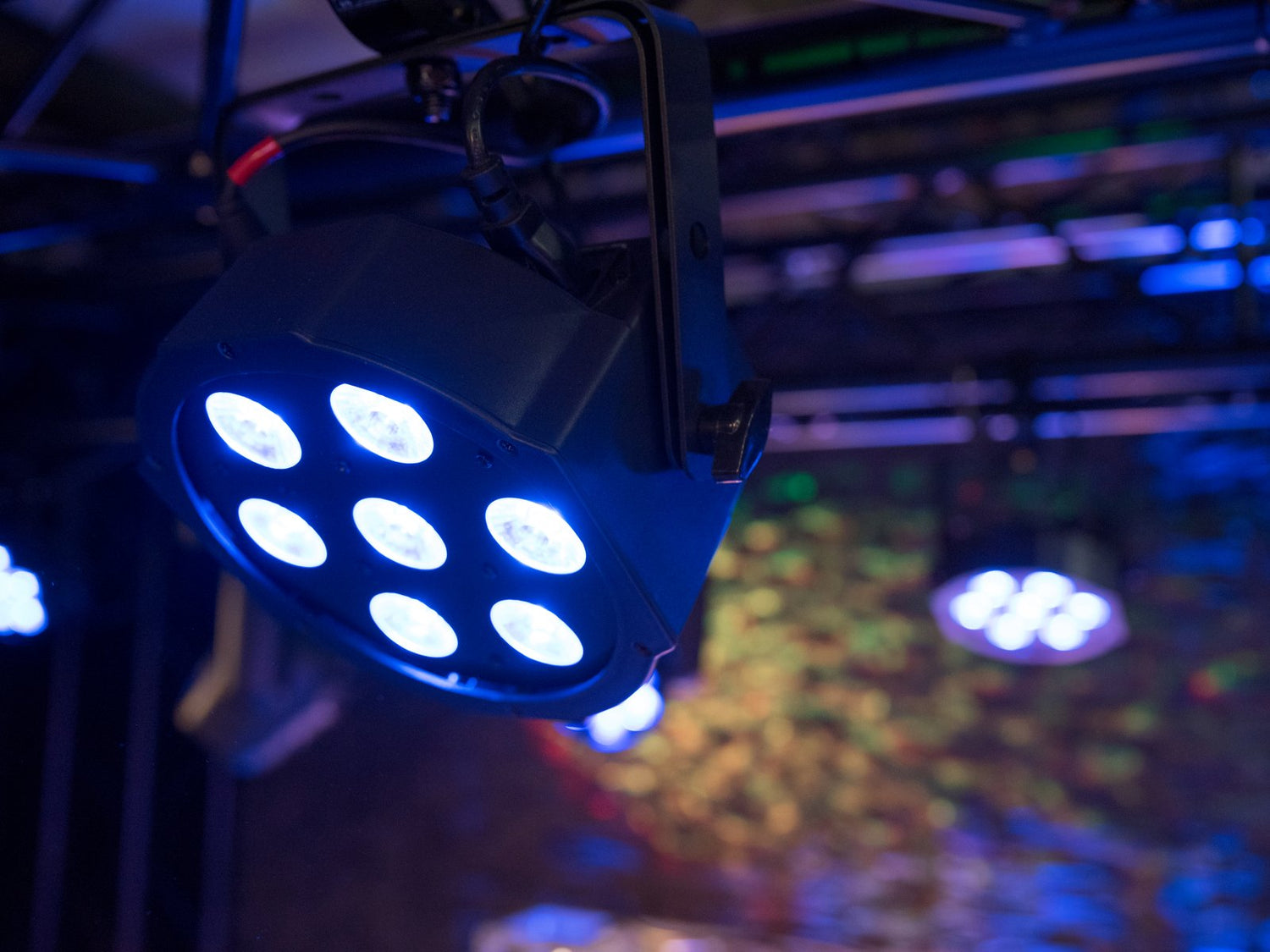

• Applications: Club/dance school; Wedding/gala/events; Party room; mobile DJs/entertainers
• Can be used standing, hanging, or on a stand

• Power Supply: 100-240 V AC, 50/60 Hz
• Power Consumption: 20 W
• IP Classification: IP20
• Protection Class: Protection class I

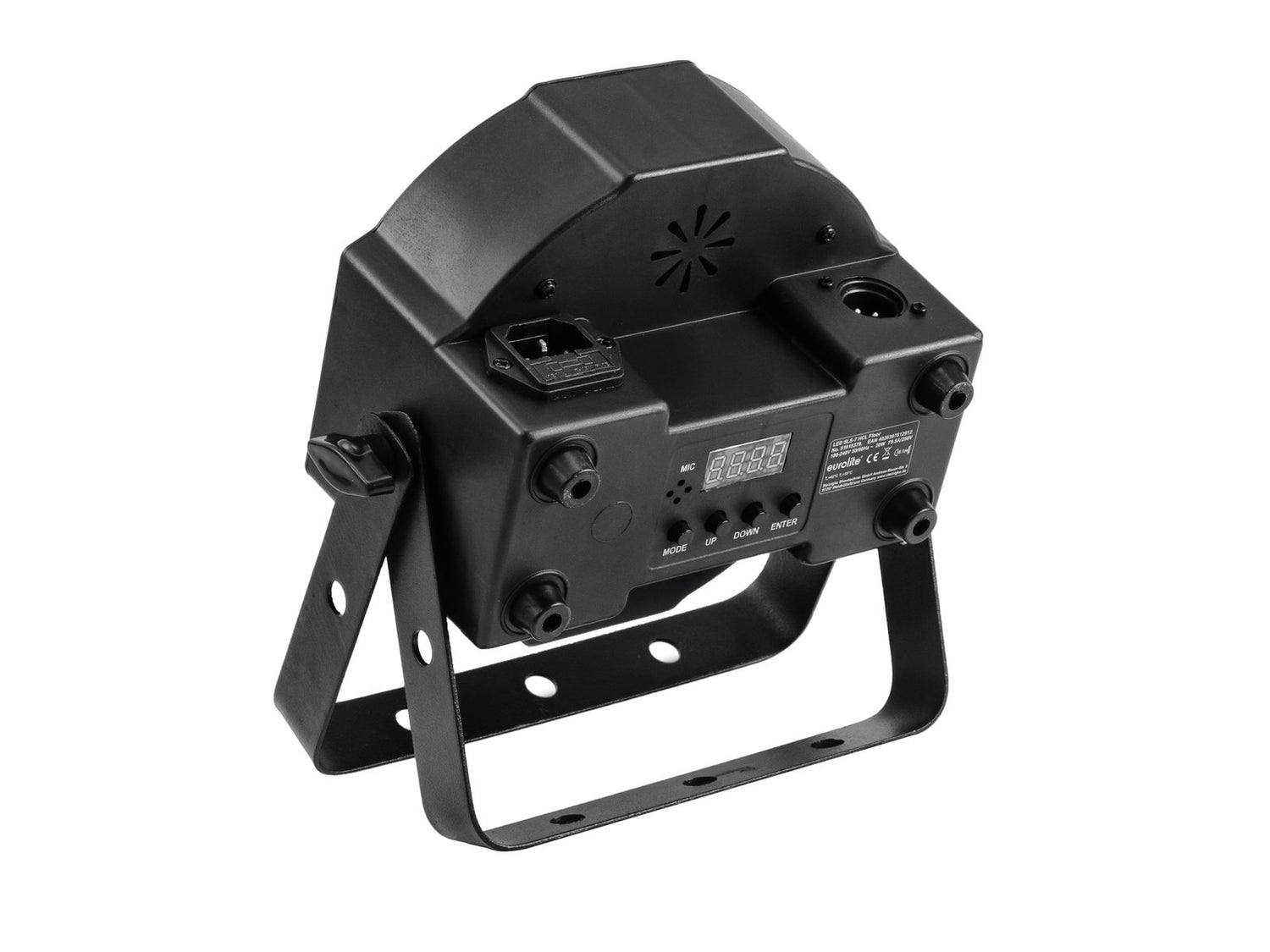

• Power Connection: Mains input via IEC connector (M), mounting version power supply cord with safety plug (provided)
• Power Output: 1 x IEC connector (F), mounting version
• Fuse: 5 x 20 mm, T 0.5 A replaceable fuse
• Lamp Type: LED lamp
• LED: 7 x 10 W high-power 6in1 HCL RGBWA/UV (homogeneous color mix)
• Flash Rate: 0 - 20 Hz
• DMX Channels: 2; 3; 4; 6; 10
• DMX Input: 3-pin XLR (M), mounting version
• DMX Output: 3-pin XLR (F), mounting version
• Cooling: 1 x cooling fan
• Control: Stand-alone, DMX, Sound to light via microphone, Master/slave function, IR remote control
• Preprogrammed In: Light´J, LED PC-Control 512, EASY SHOW 1, LED EASY OPERATOR 4x6, LED EASY OPERATOR DELUXE, Light Captain, EASY SHOW 2, EASY SHOW 3
• Projection: Flicker-free
• Beam Angle: 17°
• Beam Angle (1/2 Peak): 17°
• Beam Angle (1/10 Peak): 39°
• Wavelength: Ultra violet (UV) 400 nm
• Housing Color: Black
• Attachment System: Double bracket
• Display Type: Monochrome 4-digit 7-segment LED display
• Transport Aid: Rubber feet
• Material: ABS Acrylonitrile butadiene styrene, metal
• Dimensions:
  • Width: 22 cm
  • Depth: 11 cm
  • Height: 21 cm
• Weight: 1.38 kg
• Noise Classification: Class 2 (slight noise)
• Photobiological Safety: Risk Group 0

Power Cord

• Cable Construction: 3 x 0.75 mm² H05VV-F
• Cable Length: Approx. 1.2 m

Mounting Bracket

• Diameter Mounting Holes: 5 x Ø11 mm
• Material: Metal, 2 mm
• Color: Black

Remote Control

• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese (built-in)
