Pioneer DJ TORAIZ AS-1 Synthesizer

• Fabriqué avec Dave Smith
• Sonorités analogiques Prophet-6
• 2 VCO, 2 VCF, VGA, 2 EG et 1 LFO
• 496 presets
• Effets Prophet 6
• Mode clavier et échelle

Pioneer TORAIZ AS-1 Synthétiseur Analogique Monophonique

Pioneer TORAIZ AS-1 Synthétiseur Analogique Monophonique est le dernier contrôleur de Pioneer qui offre des possibilités créatives tant en studio que sur scène en direct. Synthétiseur analogique fabriqué selon le synthétiseur "Dave Smith Prophet 6"

Specifikationer

Synthesis Parameters
Oscillator 1

• Frequency

• Pulse Width

• Sync (Off, On)

Oscillator 1 Waveshapes (continuously variable)

• Triangle

• Sawtooth

• Variable-width Pulse

Oscillator 2

• Frequency

• Fine

• Pulse Width

• Key Follow (Off, On)

• Low Frequency (Off, On)

Oscillator 2 Waveshapes (continuously variable)

• Triangle

• Sawtooth

• Variable-width Pulse

Oscillators
Slop
Mixer

• Oscillator 1 Level

• Oscillator 2 Level

• Sub Level

• Noise Level

Low-pass Filter

• Cutoff

• Resonance

• Key Amount (Off, Half, Full)

• Velocity (Off, On)

High-pass Filter

• Cutoff

• Resonance

• Key Amount (Off, Half, Full)

• Velocity (Off, On)

Filter Envelope

• Low-pass Filter Amount

• High-pass Filter Amount

• Attack

• Decay

• Sustain

• Release

AMP Envelope

• Amount

• Velocity (Off, On)

• Attack

• Decay

• Sustain

• Release

Glide

• Rate

• Off, On

• Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A)

LFO

• Frequency

• Sync (Off, On)

• Initial Amount

LFO Shapes

• Triangle

• Reverse Sawtooth

• Sawtooth

• Square

• Random

LFO Destination

• Oscillator 1 Frequency

• Oscillator 2 Frequency

• Oscillator 1 and 2 Pulse Width

• Low-pass Filter Cutoff

• High-pass Filter Cutoff

• VCA

Modulation Source

• Filter Envelope

• Oscillator 2 Amount

Modulation Destination

• Oscillator 1 Frequency

• Oscillator 1 Shape

• Oscillator 1 Pulse Width

• Low-pass Filter Cutoff

• High-pass Filter Cutoff

Effects
FX 1 Types

• Bucket-brigade Delay

• Distortion

• Ring Modulation

FX 2 Types

• Chorus

• Low Resonance Phaser

• High Resonance Phaser

• Maestro Phaser

Parameters
Each effect has 2 adjustable parameters
Sequencer
Step Length
Up to 64 steps
Parameters

• Key, Velocity, Slew (Off, On) for each step

• BPM (shared with arpeggiator)

• Time Divide (shared with arpeggiator)

Arpeggiator
Mode

• Up

• Down

• Up + Down

• Random

• Assign

Range
1 ~ 3 octaves
Parameters

• BPM (shared with sequencer)

• Time Divide (shared with sequencer)

Performance Controls
Keyboard

• 13-key touch keyboard

• 22 preset scales

• 9 octaves: C0 ~ C9 (use with Oscillator 1 and 2 frequency parameters)

Slider Parameters (multi assignable)

• Oscillator 1 Frequency

• Oscillator 2 Frequency

• Low-pass Filter Amount

• High-pass Filter Amount

• LFO Amount

• FX 1 Mix

• FX 2 Mix

OLED Display
Able to access all parameters
MIDI Controllable Parameters
Aftertouch
Amount
Aftertouch Destination

• Oscillator 1 Frequency

• Oscillator 2 Frequency

• Low-pass Filter Cutoff

• High-pass Filter Cutoff

• VCA

• LFO Amount

Pitch Bend Range
Up to -/+ 12 semitones
Miscellaneous
Key Mode

• Low

• High

• Last

• Low Retrigger

• High Retrigger

• Last Retrigger

Alternative Tuning
17 preset tunings

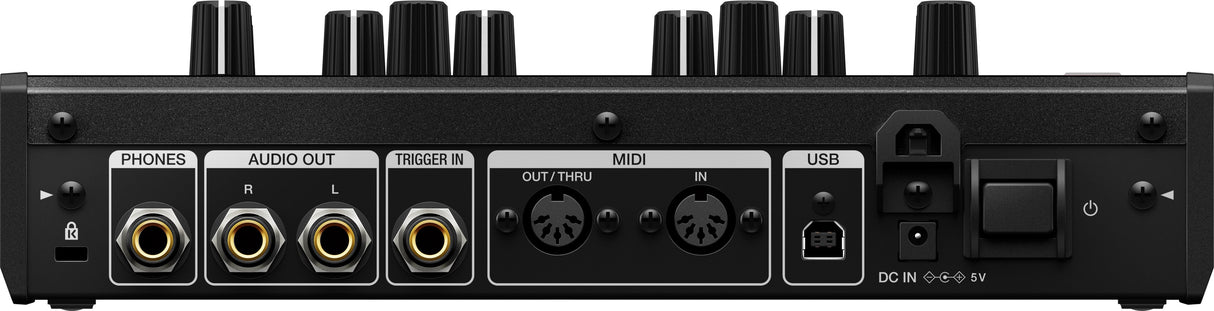

Terminals
Outputs

• 1 AUDIO OUT L/R (1/4 inch TS Jacks)

• 1 PHONES (1/4 inch stereo phone Jack)

MIDI

• 1 MIDI IN (5P DIN)

• 1 MIDI OUT/THRU (5P DIN)

USB
1 USB B port
Others
1 TRIGGER IN (1/4 inch TS jack)
Trigger Input

• Able to connect a general foot switch or input audio signals

• Able to set the operation from 4 types:

• Pedal

• Trigger

• Gate

• Trigger-Gate

Power Supply
Included Accessories

• AC adaptor

• Power cord

• Quick Start Guide

• warranty
