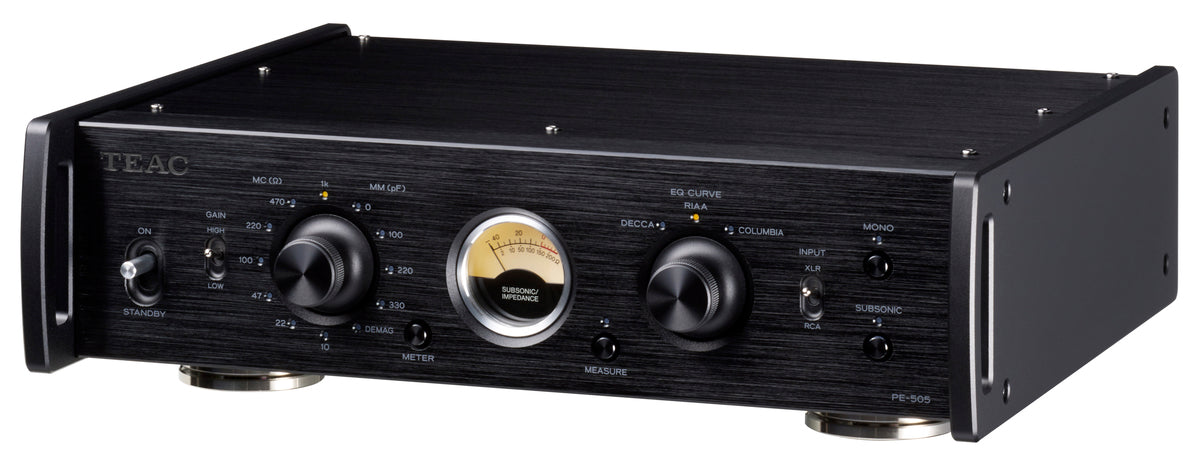

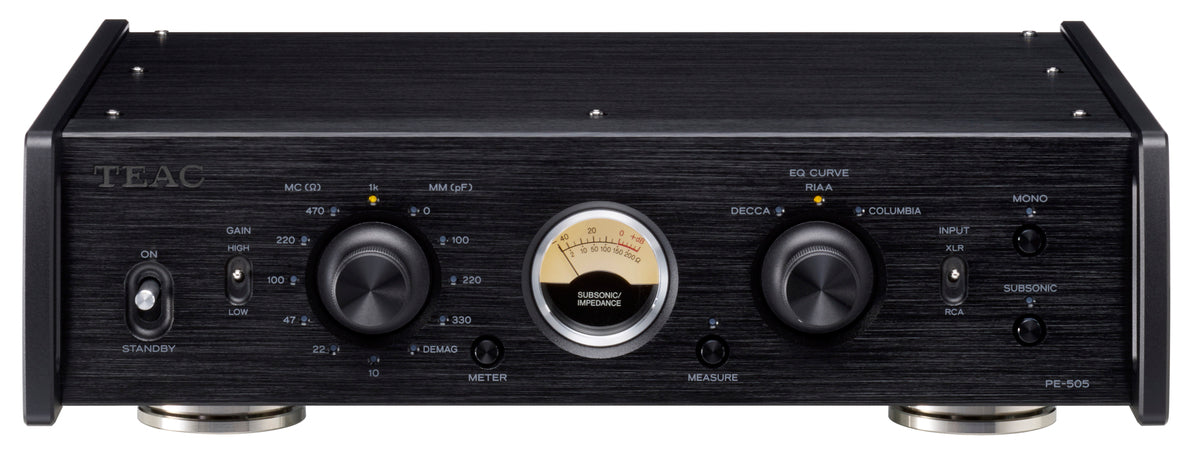

TEAC PE-505 Phono Pre-amplifier (Black)

• Dual mono phono preamplifier
• MM and MC input
• Fully balanced circuit design ensures the cleanest signal
• High-precision RIAA circuitry
• High S/N ratio
• Cool custom RIAA EQ curve options
• Many features

TEAC PE-505 Phono Pre-amplifier (Black)

• Excellent dual mono phono pre-amplifier with fully balanced inputs and outputs.
• Supports MC input.
• Fully balanced circuit design ensures the cleanest signal.
• Differential output equalizing ensures a more accurate audio signal.
• High-precision RIAA circuitry - newly developed NF-type eq amplifier with ±0.05dB RIAA deviation (20Hz - 20kHz).
• High S/N ratio - 106dB on RCA input (MM), 86dB on XLR input (MC).
• The residual noise voltage reaches 10V on MM and 85V on MC (XLR Input).
• Cool custom RIAA EQ curve options tailored to old mono records from Decca and Columbia from before the current RIAA curve was invented.
• Selectable load capacity for MM pickups and selectable load resistance for MC pickups.
• Measure button for easy load resistance selection.
• SubSonic function displays signals less than 6Hz, and the subsonic filter removes completely low unnecessary frequencies.
• DEMAG - demagnetization function for the pickup and step-up transformer.
• Includes power supply, 3 feet pads, manual.
• Available in black and silver.

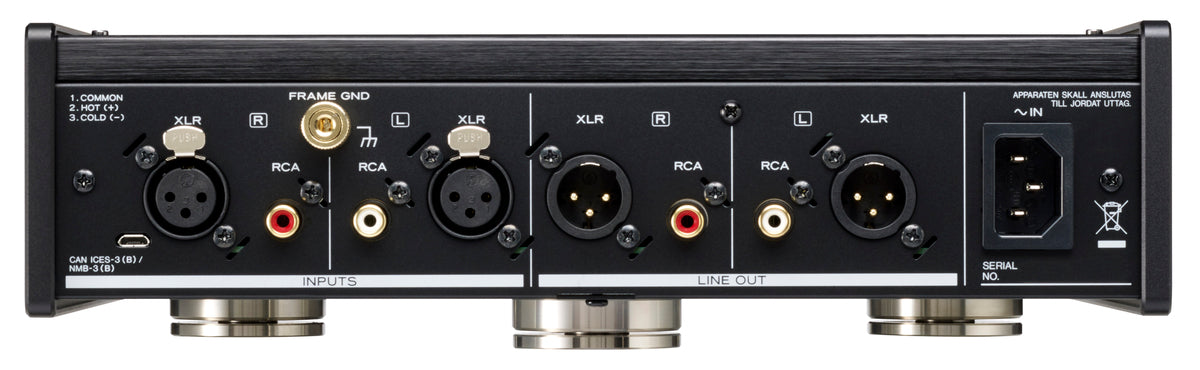

• Full differential inputs/outputs circuits
• High-precision RIAA EQ circuit achieves less than 0.05dB of deviation
• Individual EQ curves for monaural records and ones with EQ from DECCA and COLUMBIA
• Balanced MC input
• Switchable MC impedance (10, 22, 47, 100, 220, 470, 1kΩΩ)
• Switchable MM load-impedance capacity (0, 100, 220, 330pF)
• MC load-impedance measurement function
• Switchable MM/MC gain (High/Low)
• Subsonic detection
• Subsonic filter (17Hz, -24dB/oct.)
• MONO function that mixes left and right channels as a monaural channel
• DEMAG function that de-magnetizes cartridge
• 3-position pin-point feet
• GND terminal
• RoHS compliant
