• All-round network DAC Pre-amp from the top shelf
• Newly developed discreet TEAC Delta Sigma DAC
• USB DAC functions, network player, analog preamp, headphone amplifier
• Dual mono, fully balanced circuitry
• Playback of 22.5 MHz DSD and 384 kHz/32-bit PCM via USB DAC and network player
• Pre-amp with fire digital inputs and two pairs of RCA/XLR line inputs
• 4-pin XLR headphone amplifier, Bluetooth receiver
• MQA full decoder function
• Up-conversion to 2/4/8 sampling frequencies using RDOT-NEO
• Supports a wide range of streaming services

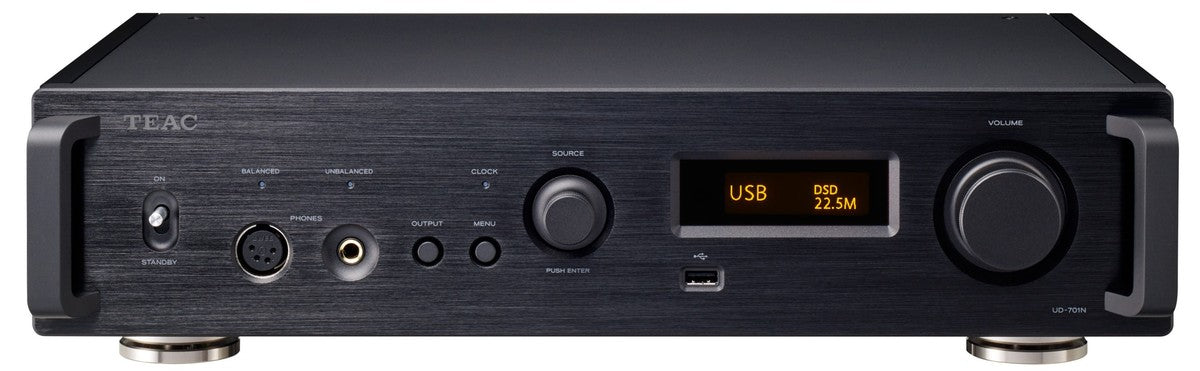

TEAC UD-701N Network DAC Pre-Amp (Black)

• High-sounding all-round network DAC Pre-amp with excellent specs.
• A flagship with a newly developed discrete TEAC Delta Sigma DAC for the audiophile hifi enthusiast.
• USB DAC functions, network player, analog preamp, headphone amplifier.
• All in one device.
• Dual mono, fully balanced circuitry. Excellent separation.
• Playback of 22.5 MHz DSD and 384 kHz/32-bit PCM via USB DAC and network player.
• Pre-amp with fire digital inputs and two pairs of RCA/XLR line inputs.
• 4-pin XLR headphone amplifier - switchable between balanced and active ground.
• MQA full decoder function, also supporting digital inputs from CD player.
• Up-conversion to 2/4/8 sampling frequencies using RDOT-NEO.
• Bluetooth Receiver supports LDAC, aptX HD and multiple high-resolution codecs.
• Complies with OpenHome standards and supports Roon Ready.
• Supports Spotify Connect, Tidal Connect, Qobuz and TuneIn (internet radio).
• TEAC-HCLD2 buffer circuitry with optimized current output.
• High resolution analog preamp circuits via TEAC-QVCS.
• Incl. power cable, remote control, 2xAAA batteries, manual.
• Available in black and silver.

Product weight: 11.8 kilograms

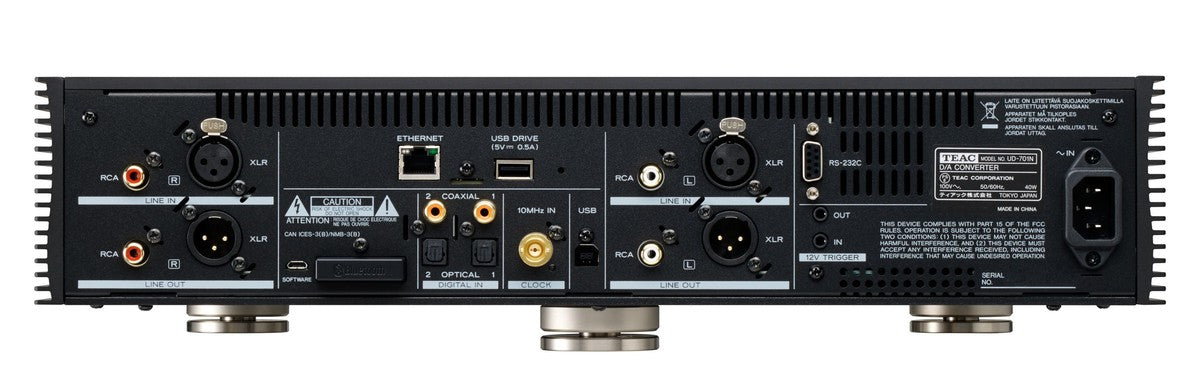

AUDIO INPUTS:
Coaxial: 2 Input level & impedance coaxial: 0.5Vp-p & 75
Optical/Toslink: 2 Input level optical: -24.0 to -14.5dBm peak
RCA: 1 Input level & impedance RCA: 2.5Vrms & 25k
XLR: 1 Input level & impedance XLR: 5Vrms & 50k
Music streaming services:
Spotify, Qobuz, Tidal, TuneIn
BNC: 1 Impedance & frequency BNC: 50 & 10MHz
Ethernet: 1
USB 2.0: 2
USB-B: 1
Wireless: Bluetooth
AMPLIFICATION
THD: 0.002
S/N ratio: 108dB
Frequency response: 5-80000Hz
Channels: 2
12 volt trigger: In & Out
AUDIO OUTPUTS
6.3mm jack: 1
Power & impedance 6.3mm jack:
500mW + 500mW (32 × 1 loaded). 16 to 600
XLR (headphones): 1
Power & impedance XLR (headphones): 700mW + 700mW (32 loaded). 16 to 600
RCA: 1
Output level & impedance RCA:
2.0Vrms (1kHz, Full-scale, 10k loaded, FIxed at 0dB)
4.0Vrms (1kHz, Full-scale, 10k loaded, Fixed at +6dB)
6.0Vrms (1kHz, Full-scale, 10k loaded, Variable)
XLR: 1
Output level & impedance XLR:
2.0Vrms (1kHz, Full-scale, 10k loaded, FIxed at 0dB)
4.0Vrms (1kHz, Full-scale, 10k loaded, FIxed at +6dB)
12Vrms (1kHz, Full-scale, 10k loaded, Variable)
AUDIO CODECS & FORMATS
Supported file formats:
MP3, AAC, ALAC, FLAC, MQA, DSD, WAV, AIFF
Bluetooth codecs:
AAC, LDAC, LHDC, SBC, aptX, aptX HD
Bluetooth version: 4.2
ENERGY MANAGEMENT
Power consumption: 0.4-40W
DIMENSIONS AND WEIGHT
Product height:11.1cm
Product width:44.4cm
Product length:33.4cm
Product weight:11.8kg
CONTROL METHODS
Controls:On Device
App Controlled
Remote Control
RS-232
Controller app:Roon Ready
Proprietary App
