Palmer PB 20 S - Press Patch Box 10-kanals stereo / 20-kanals mono
1
de
6
Chargement...
€3.651,95
Prix unitaire
/
Non disponible
TTC • B2B HT
Livraison gratuite
Description
Description
En stereoversion af PPB20 er tilgængelig ud over den standard monoversion. I stedet for en mikrofon- og linjeindgang er stereoversionen udstyret med to linjeindgange.

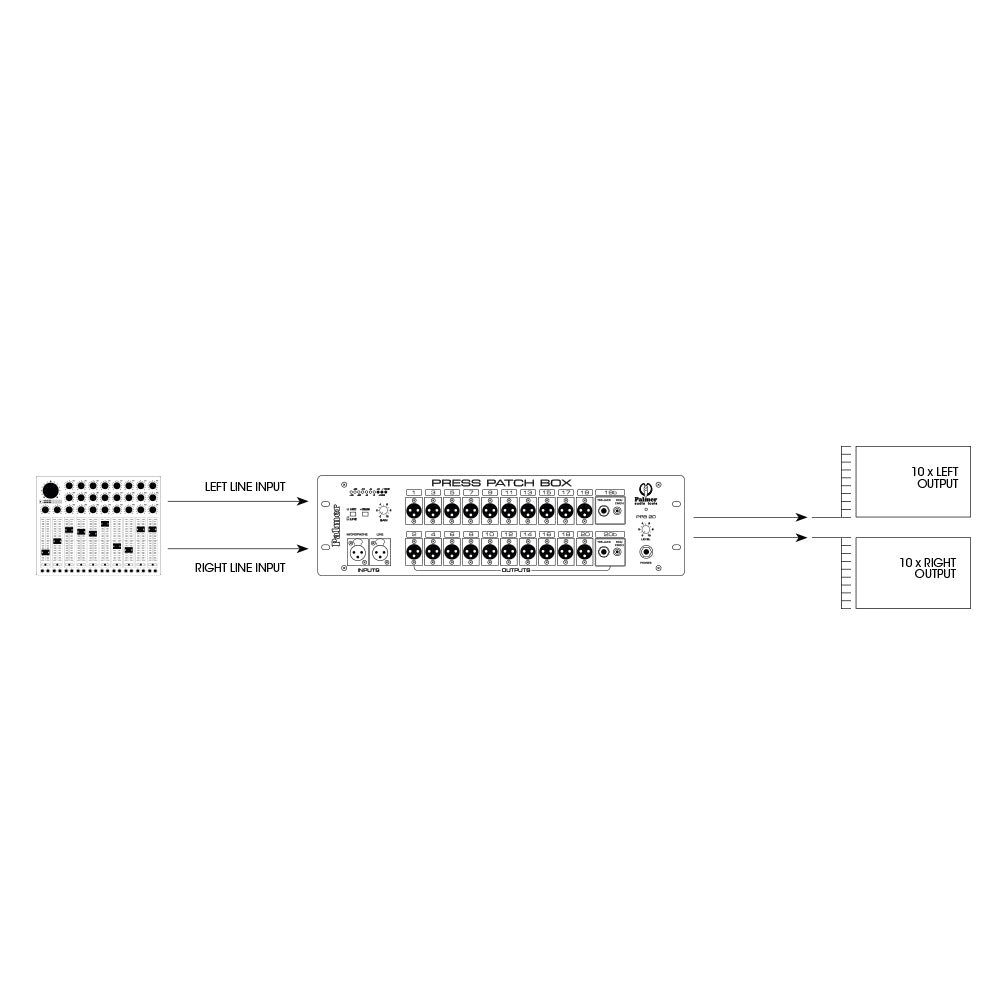

Den første linjeindgang fordeles til den øverste række af udgange (dvs. de ulige kanaler), mens den anden linjeindgang fordeles til de lige kanaler (dvs. den nederste række af udgange).
Spécifications techniques
Spécifications techniques
- Signal distributor with 2 x 10 outputs
- Isolated transformer-balanced XLR inputs for line level signals
- High-quality input amplifier with gain control
- 10 LEDs for level display from -40 to +10 dB
- 2 x 10 transformer-balanced XLR outputs with paired driver circuitry and individual ground lift switches on the rear
- 2 additional 6.35mm stereo jacks and RCA outputs
- Nominal output Level +4 dBu/600 Ohms, jack and RCA outputs -10 dBu
- Mono switch provides one input to the 20 outputs
- Adjustable 6.35 mm headphone output
- Summed input and cascaded output
- Integrated shielded power supply
- DC input for emergency power supply
| Product type | Splitters |
| Type | mic & line split |
| Split type | 2 in 10 + 10 |
| Channels | 2 |
| Number of inputs | 2 |
| Input connectors | XLR |
| Max. input level | + 20 dB |
| Adjustable input | Yes |
| Number of split-outputs per canal | 10 |
| THRU outputs/channel | 1 |
| Max. output level | + 20 dB |
| Nominal power consumption | 12 W |
| Maximum power consumption | 17 W |
| Output connectors | 6.3 mm jack |
| Output connectors | RCA |
| Output connectors | XLR |
| Adjustable output | No |
| Transformer isolated outputs | Yes |
| Controls | Power |
| Controls | attenuator |
| Controls | ground lift |
| Controls | input gain |
| Controls | mic/line switch |
| Controls | phones level |
| Power supply | integrated (115 / 230 V) |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 200 mm |
| Height | 135 mm |
| Height | 3 U |
| Weight | 9,09 kg |
