OMNITRONIC ODX-206T Installation Speaker 100V white
1
de
5
Chargement...
€231,95
Prix unitaire
/
Non disponible
TTC • B2B HT
Livraison gratuite
Description
Description

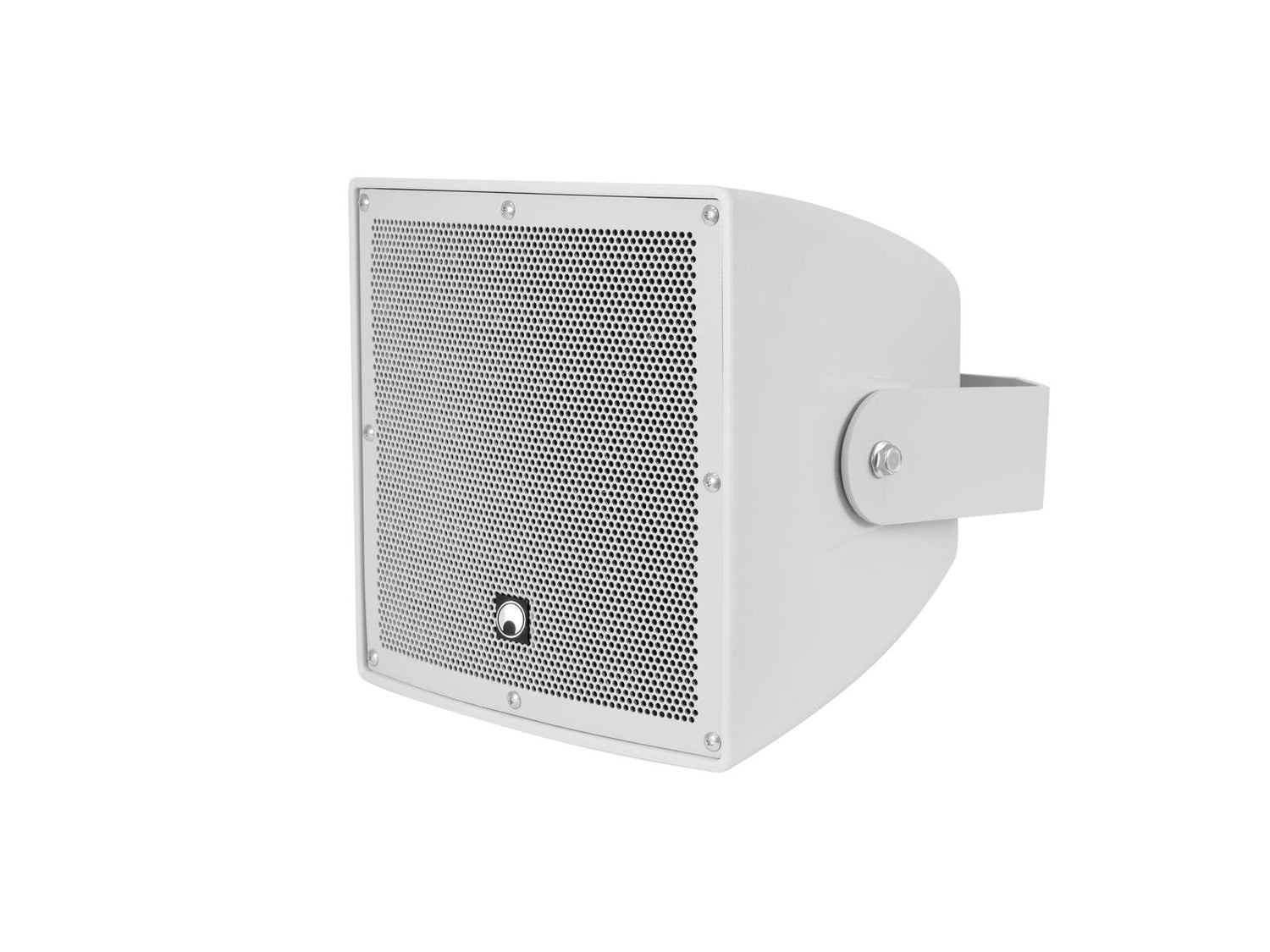

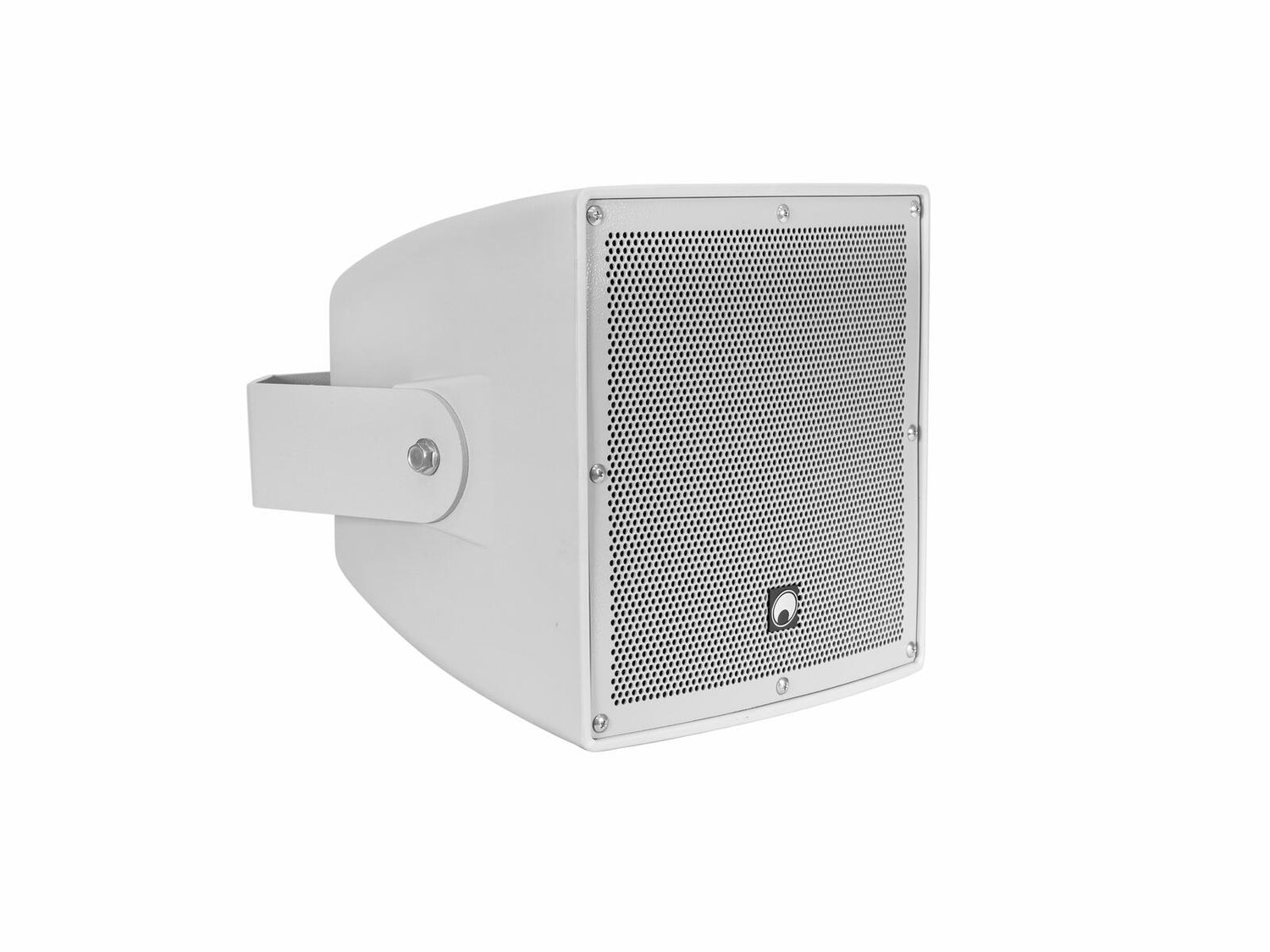

Weather-proof 6.5" wall speaker (IP56) with mount, 100 W RMS
- 2-way coaxial system
- Durable plastic cabinet with metal grille
- Power selector switch with 8 ohms operating position

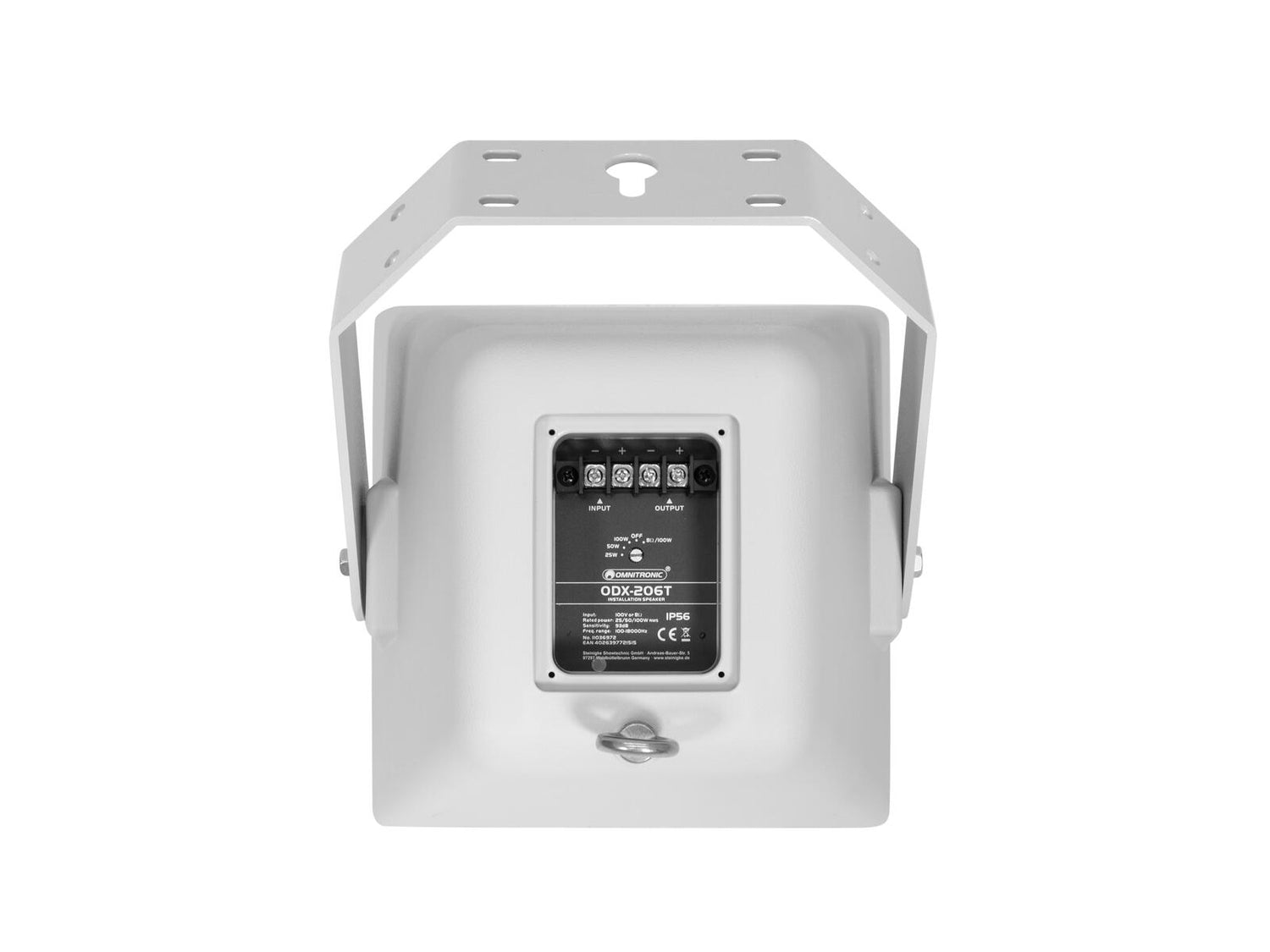

- Screw terminals for parallel connection

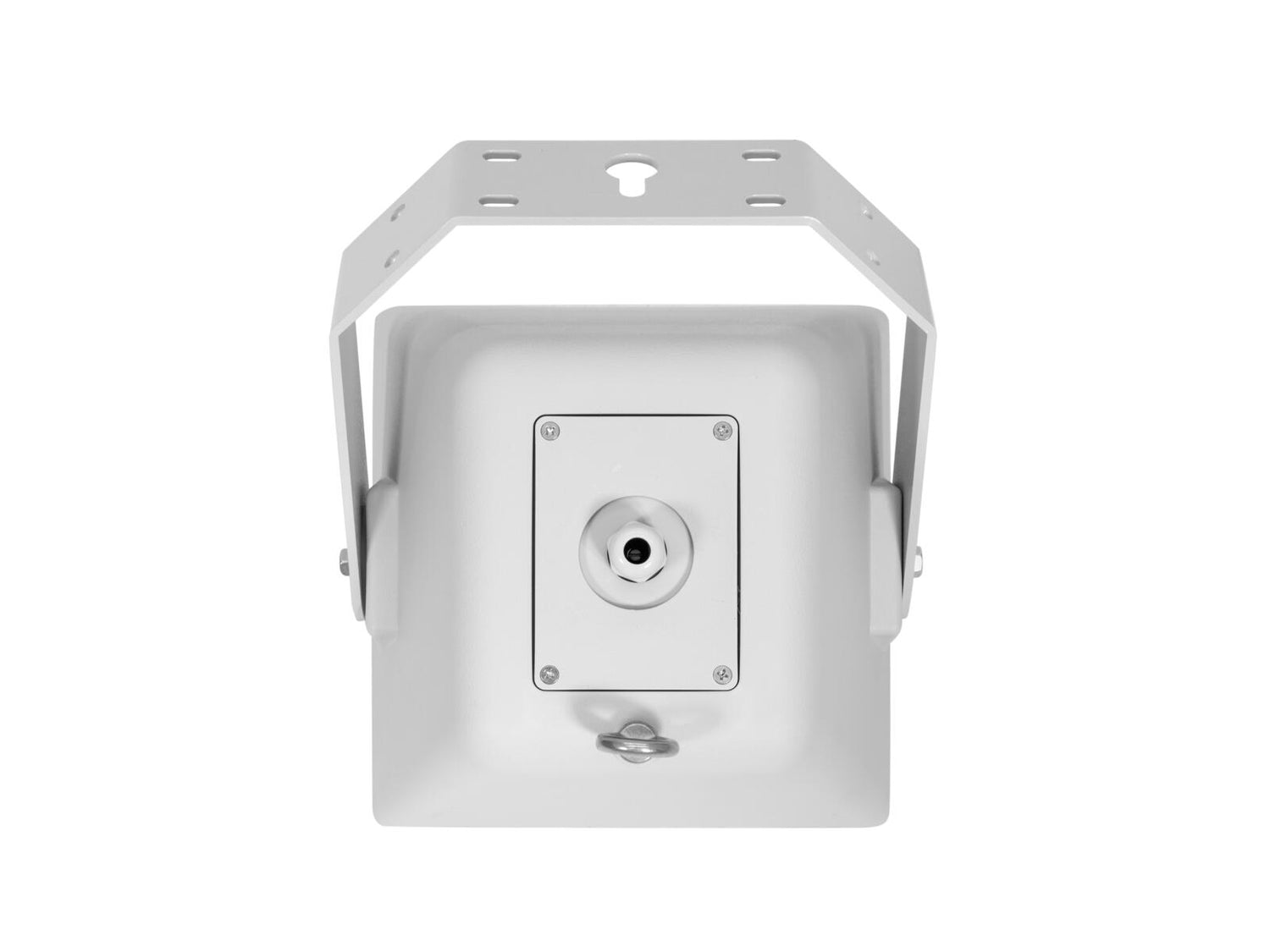

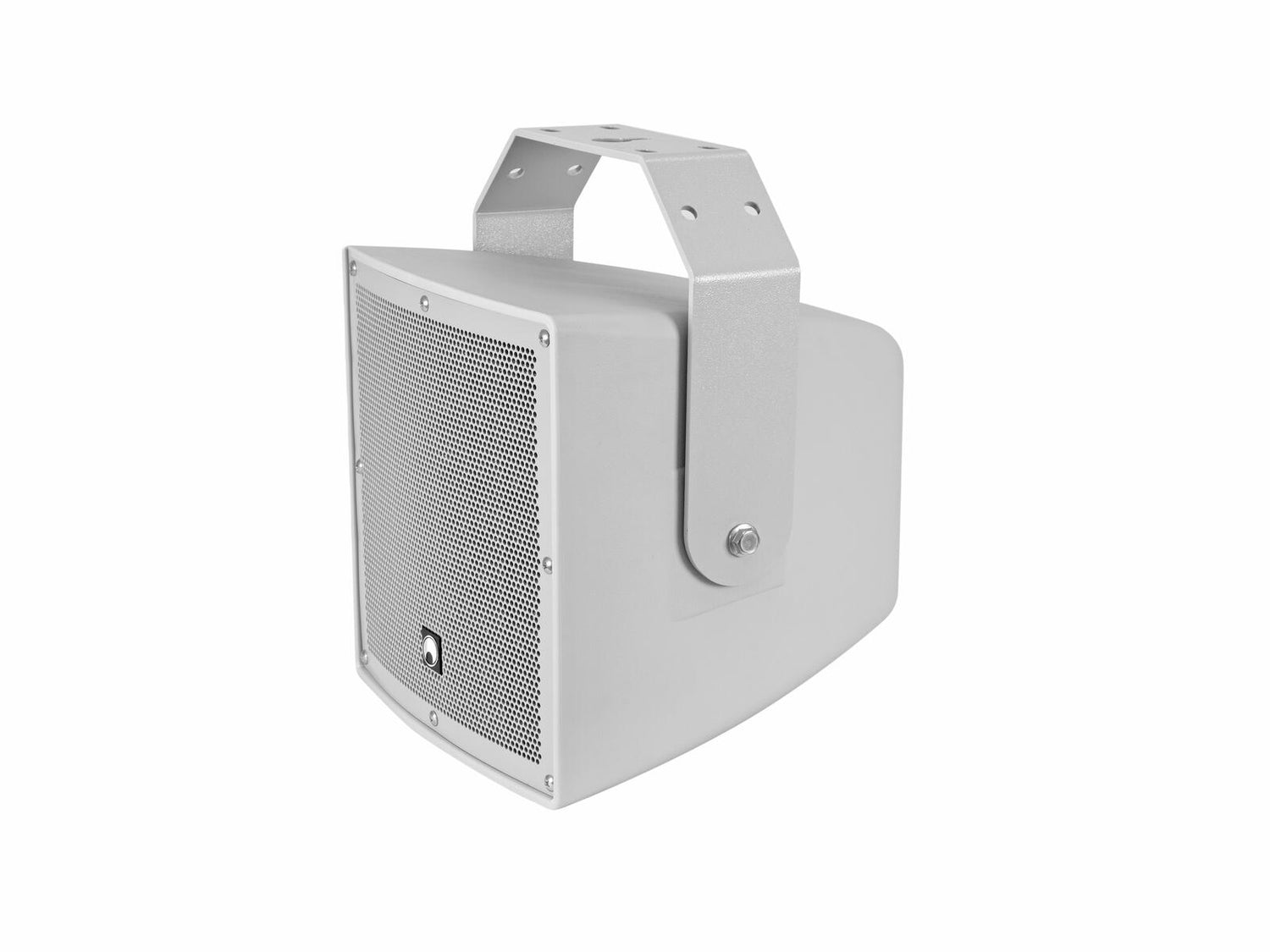

- With mounting bracket
- White metal grille
- Suitable for outdoor use IP56
- For application areas such as: Installation; sports centres/gyms; multi-purpose hall
Scope of delivery
- 1 x user manual
- 1 x top
- 1 x mounting bracket
- 5 x screw
- 1 x safety eyelet
- 1 x lid
- 2 x washer
- 1 x screwing
| IP classification: | IP56 |
| Power: | Program: 200W (8 ohms) Rated: 100W RMS (8 ohms) |
| Frequency range: | 100 - 18000 Hz |
| Sensitivity: | 93 dB (1W/1m) |
| Max. SPL: | 116 dB |
| Dispersion angle: | 100° x 100° conical |
| Impedance: | 8 ohms; public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 25W; 50W; 100W RMS via selector switch switchable |
| Connections: | Screw terminal |
| Crossover frequency: | 2800 Hz |
| Speaker: | 1 x woofer 6.5" with ferrit magnet Voice coil lows 1.4" 1 x compression tweeter highs 0.8" Voice coil compression tweeter highs 1" |
| Type of speaker: | On ceiling/on wall speaker |
| Type of construction: | Vented |
| Color: | White |
| Dimensions: | Width: 25.65 cm Depth: 27.3 cm Height: 25.85 cm |
| Weight: | 7.20 kg |
