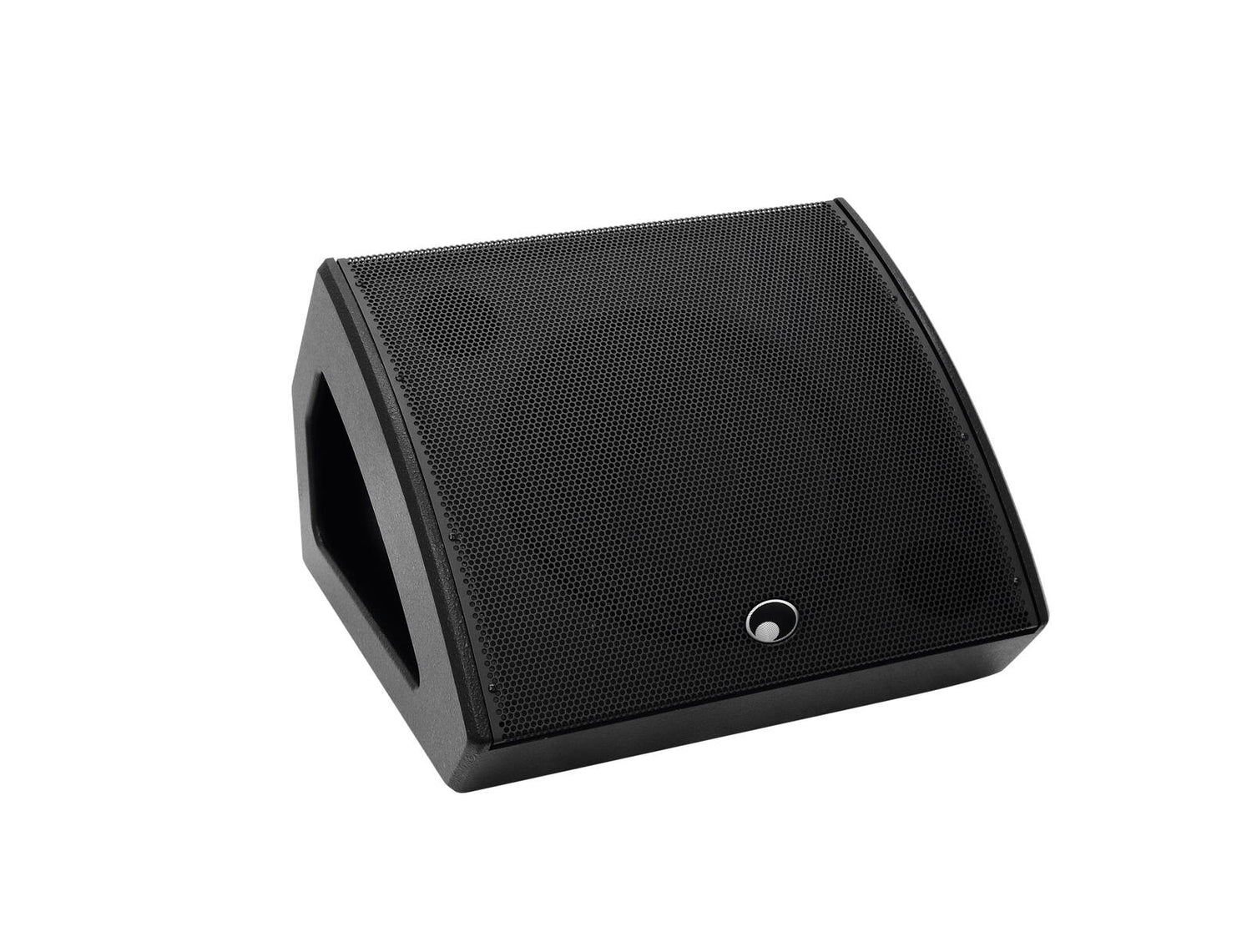

OMNITRONIC KM-112A Active Stage Monitor, coaxial
1
de
5
Chargement...
€349,95
Prix unitaire
/
Non disponible
TTC • B2B HT
Livraison gratuite
Description
Description
Monitor, 12" woofer, 1.35" driver, 250 W RMS LF, 50 W RMS HF
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- 30 cm bass speaker (12") and 3.5 cm compression driver (1.35")
- Bassreflex cabinet provides deep bass and high SPL
- Line input (XLR/6.3 mm jack)
- Low cut, volume control
- Black metal grille
- 2 recessed carrying handles
- For application areas such as: Stage; mobile use; band/rehearsal room
- Application possibility: Monitoring; on stand; standing
Scope of delivery
- 1 x compact cabinet speaker
- 1 x user manual
- 1 x power cord
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 180 W 1/8 power |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Power: | Program: 500W Rated: 50W RMS HF Rated: 250W RMS LF |
| Frequency range: | 50 - 20000 Hz |
| Max. SPL: | 123 dB |
| Dispersion angle: | 80° x 80° |

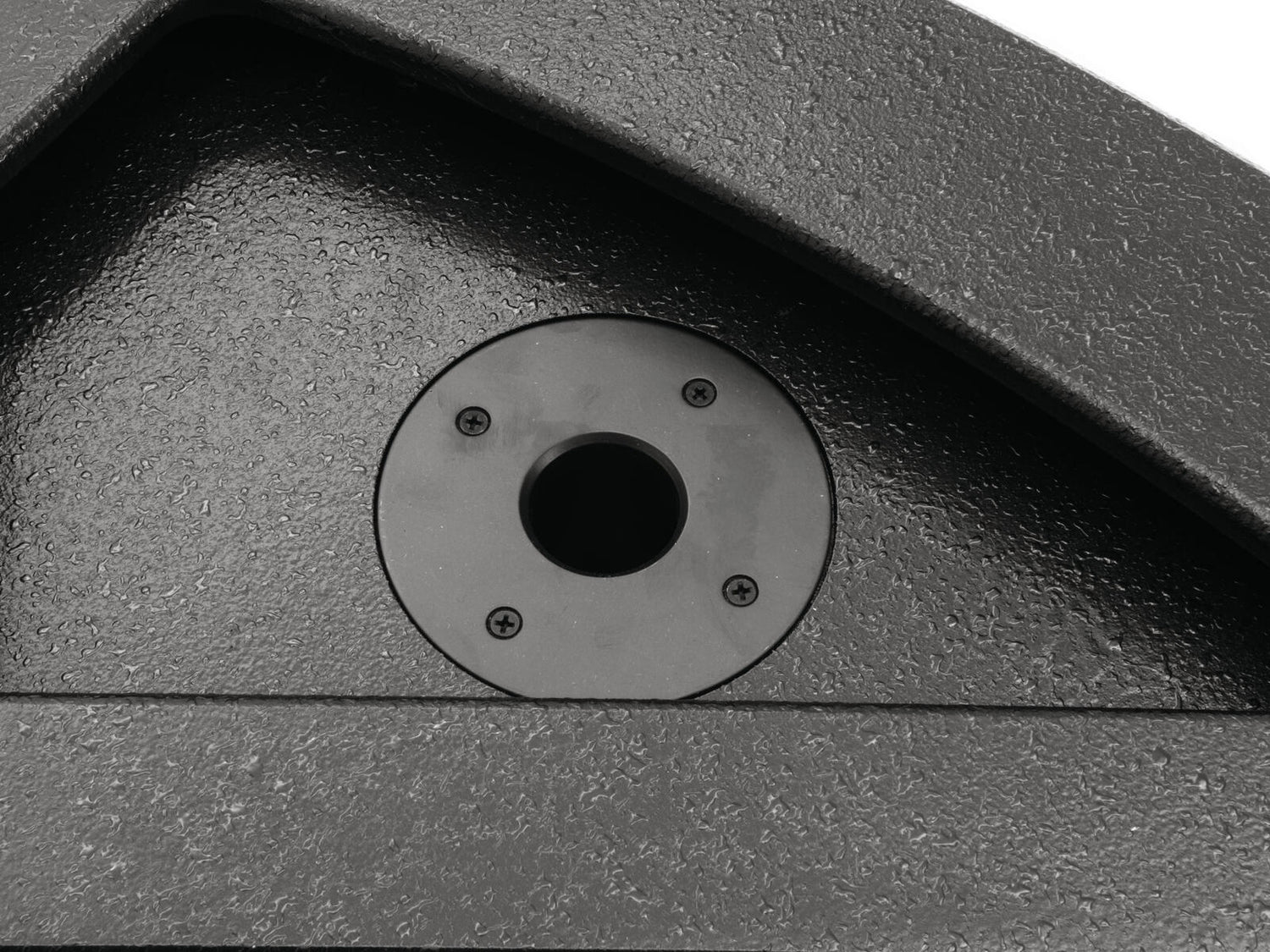

| Attachment system: | Flange: |
| Control elements: | Level control, groundlift selector, tone control, power switch |
| Controls: | Limiter; overload |
| Status LED: | Power, limit |

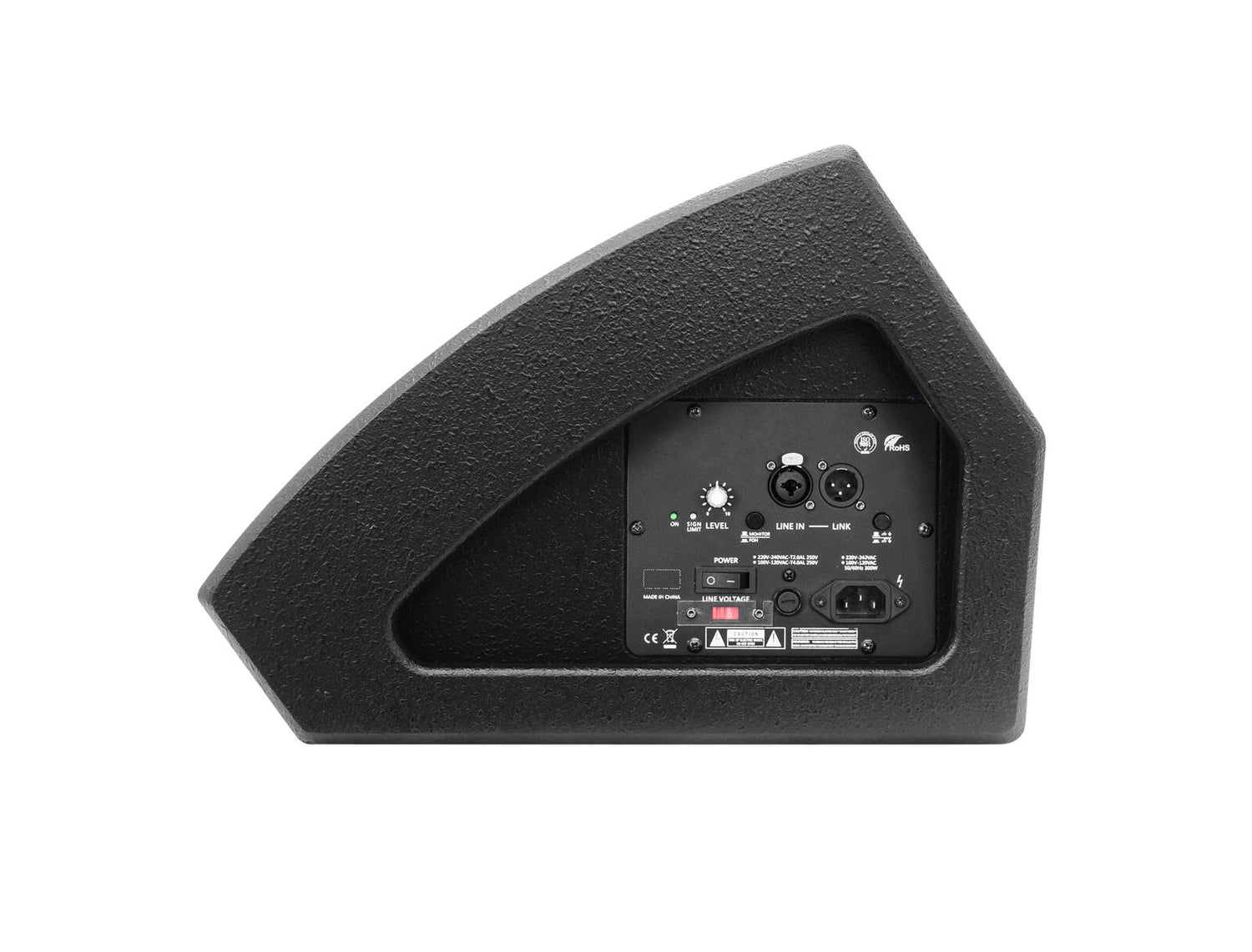

| Connections: | Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono via XLR or jack, channel control via rotary dial |
| Speaker: | 1 x woofer 12" with ferrit magnet Basket material: steel Conematerial: cardboard/paper 1 x voice coil compression tweeter highs 1.35" |
| Type of speaker: | Compact cabinet speaker; coaxial speaker; stage monitor |
| Type of construction: | Vented |
| Recessed carrying handle: | 2 pc/pcs |
| Material: | MDF (medium density fiberboard) |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 50 cm Depth: 34 cm Height: 46 cm |
| Weight: | 16.70 kg |
