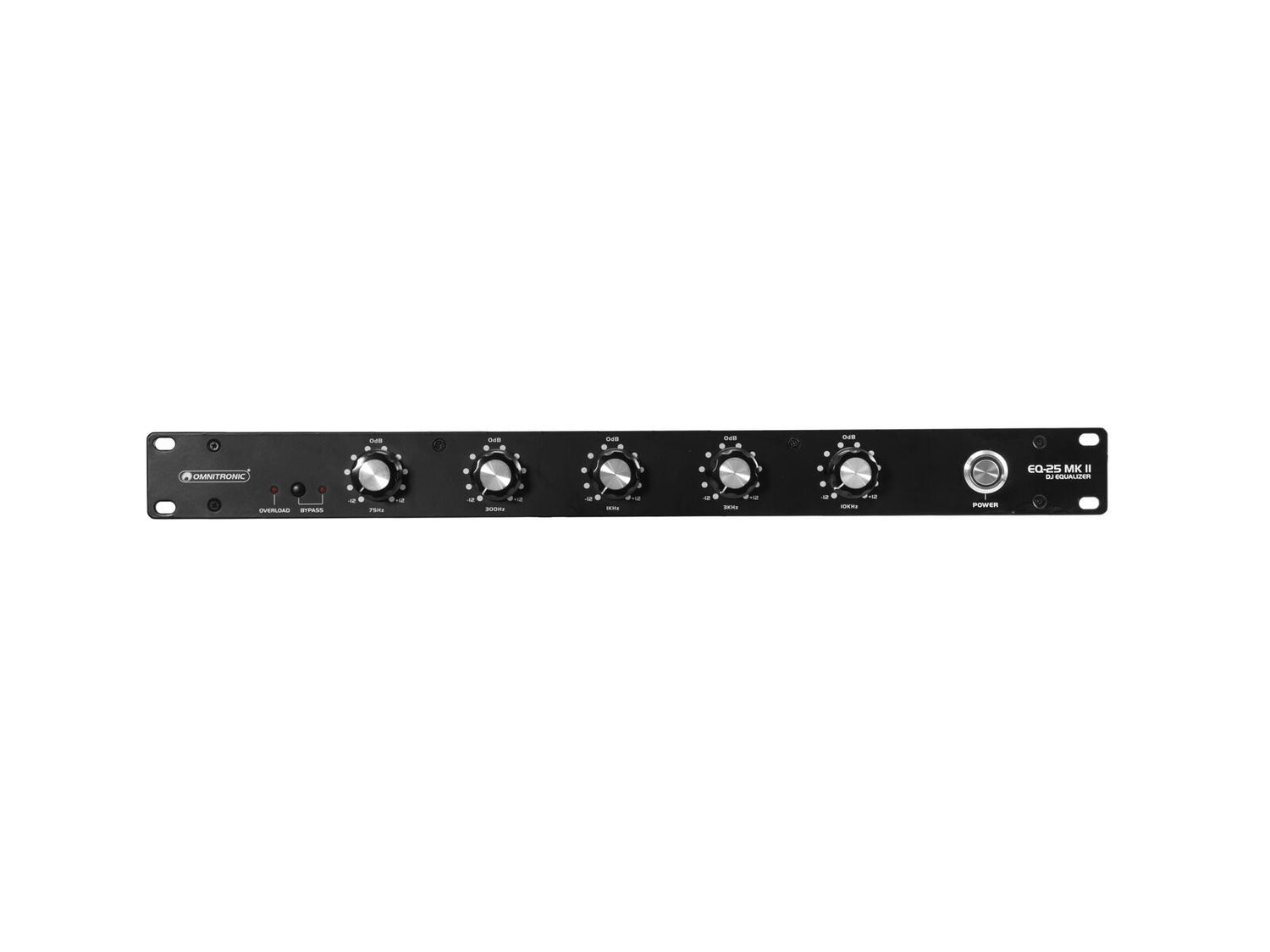

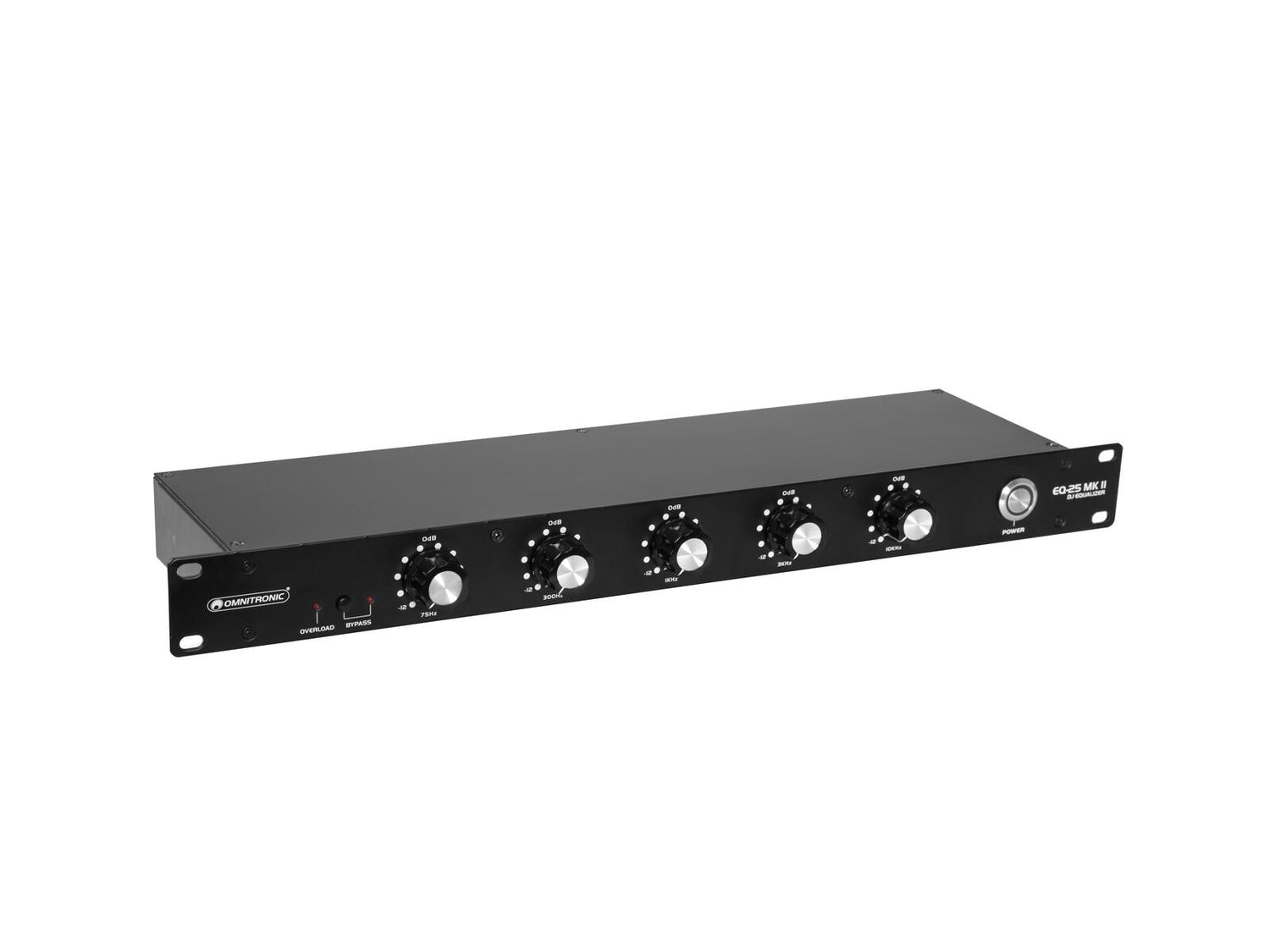

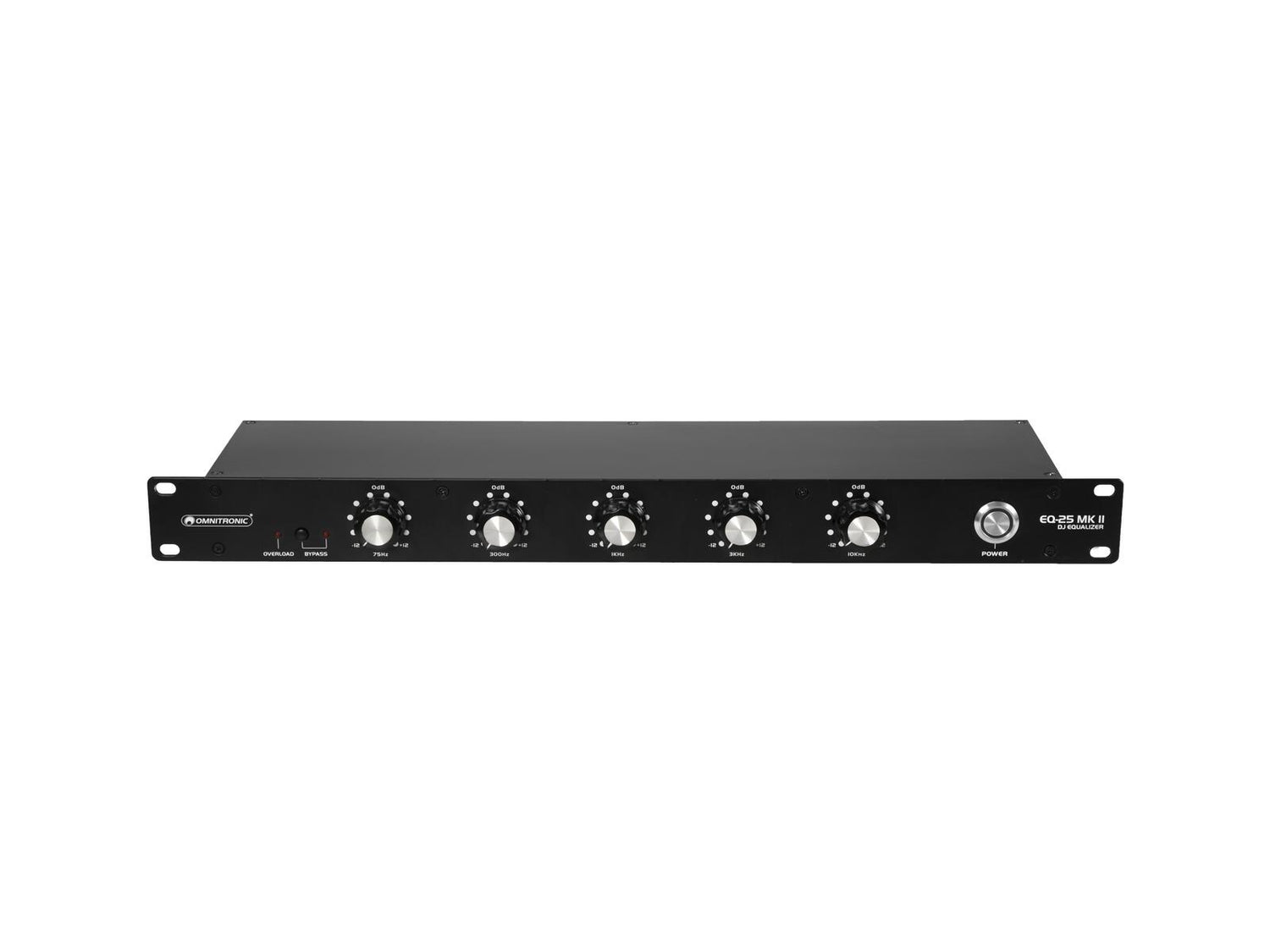

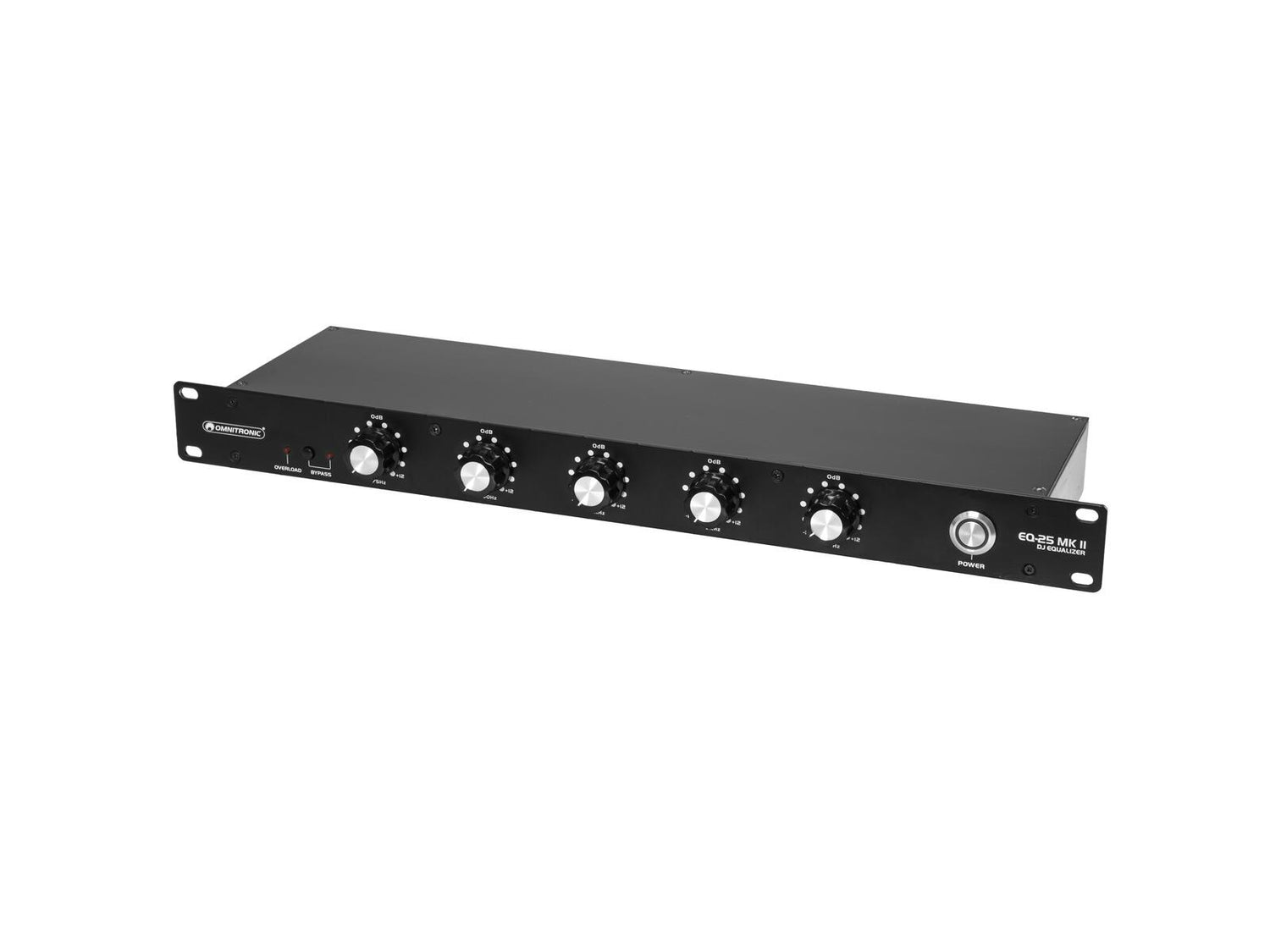

OMNITRONIC EQ-25 MK2 DJ Equalizer

5-band equalizer with vintage rotary knobs for DJsThe Omnitronic EQ-25 MK2 is an analog 5-band equalizer for DJs in a 1-channel stereo unit. Using high-grade, long-life ALPS RK27 potentiometers, the rack-mounted equalizer has excellent sound characteristics. With the large, smooth rotary knobs DJs get an effective tool for creative sound shaping in the club or studio. The equalizer provides XLR and RCA connectors and features a bypass switch for bridging.

5-band stereo equalizer for DJs

• Allows smooth control for adjusting the overall tonal quality
• 5 graphic bands: 75/300 Hz, 1/3/10 kHz
• Control range ±12 dB
• Classic ALPS potentiometers (Blue Velvet RK27)
• Bypass switch allows instant comparison of original sound with processed sound
• Overload indication
• Balanced and unbalanced inputs/outputs (XLR/RCA)
• (19") 48.3 cm rack installation 1 U
• For application areas such as: Mobile djs / entertainer; mobile use; homerecording and studios

Scope of delivery

• 1 x device
• 4 x foot
• 1 x power cord

Power consumption:	12 W
S/N ratio:	>97 dB
Control range:	±12dB,

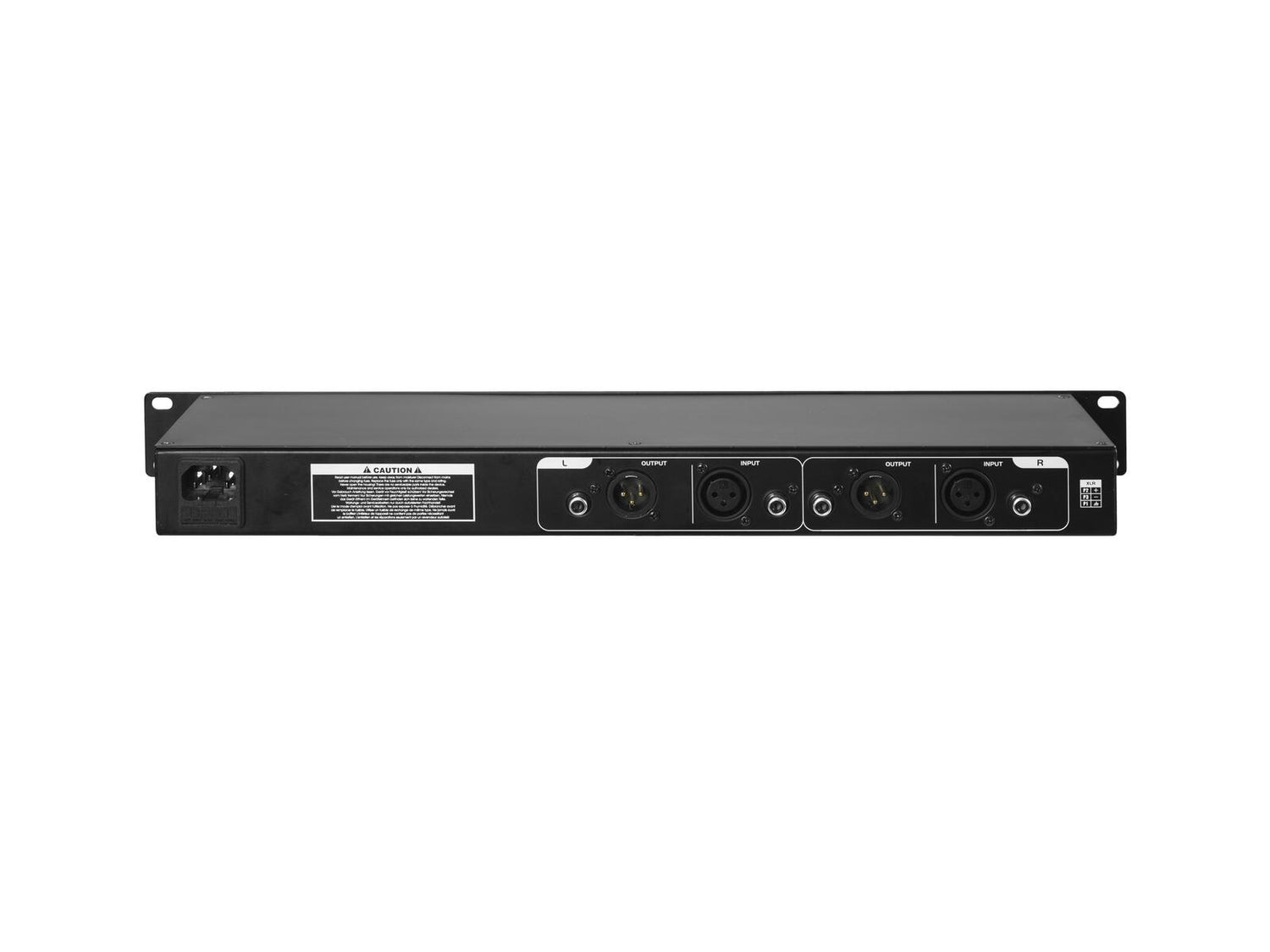

Connections:	Input: line via 2 x 3-pin XLR Input: line via 2 x RCA (F) mounting version Output: line via 2 x 3-pin XLR Output: line via 2 x RCA (F) mounting version
Equalizer:	Master: 2 x 5-band tone control stereo Centre frequency: 75/300 Hz, 1/3/10 kHz
Max. level:	Input: +22 dBu Output: +22 dBu
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48.3 cm Depth: 14.5 cm Height: 4.45 cm
Weight:	2.20 kg
