OMNITRONIC EP-220PR Preamplifier with MP3 Player and FM Radio
1
de
5
Chargement...
€130,95
Prix unitaire
/
Non disponible
TTC • B2B HT
Livraison €10 (gratuite au-dessus de €199)
Description
Description
Universal 19" preamplifier with audio player, Bluetooth and FM radio
- Built-in audio player with Bluetooth receiver
- SD card slot and USB port
- 5 stereo line inputs

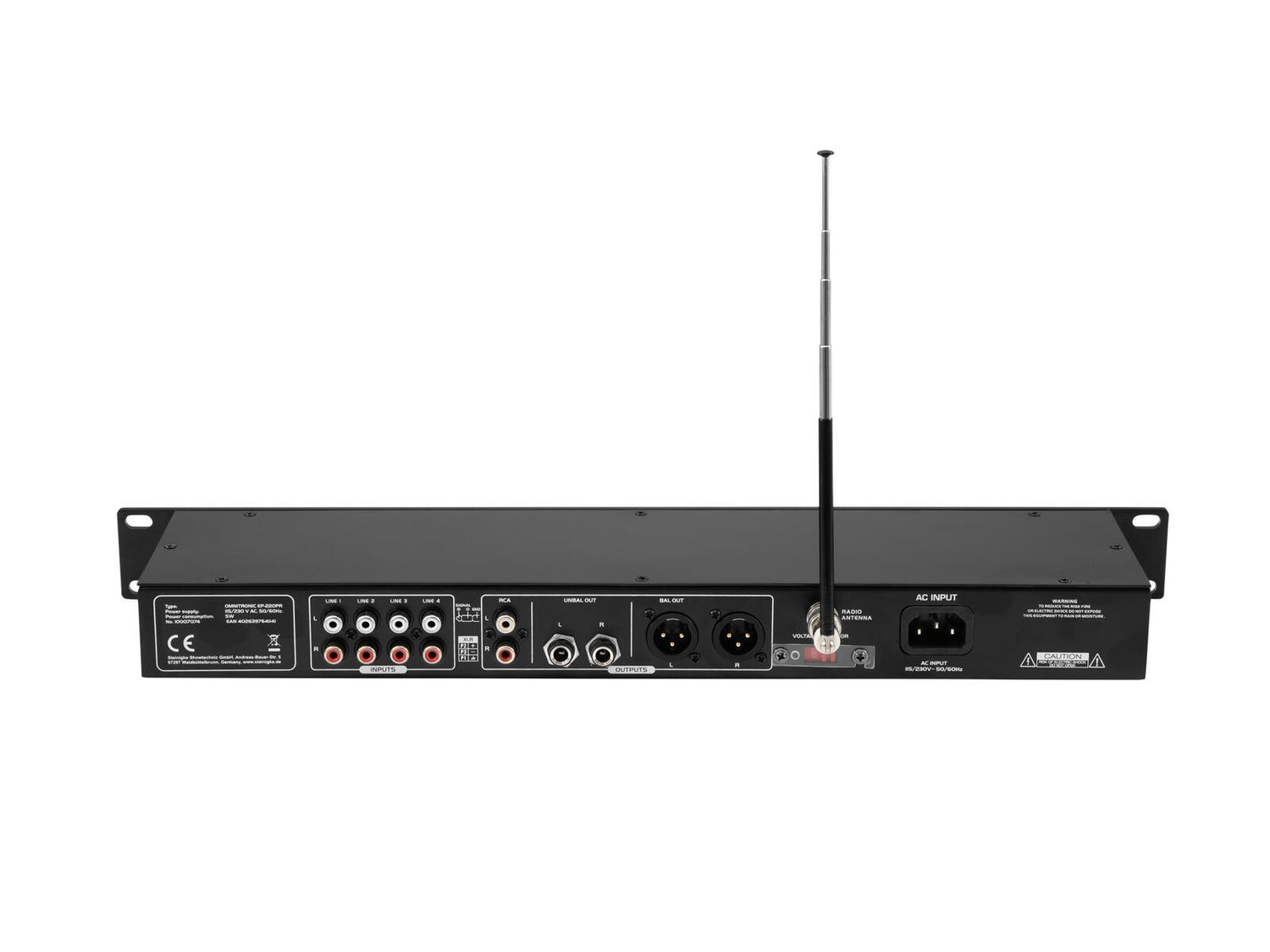

- 4 RCA L/R connectors on the back panel and 3.5 mm connector on the front panel
- Audio source selector
- Controls for volume, bass and treble
- 1 microphone input with controls for volume, bass and treble on the front panel
- 3 stereo master outputs
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Sports centres/gyms; Trade fair and shop fitting; restaurants, bars and hotels; installation
audio player
- Control via Bluetooth
- Bluetooth: operating range up to 10m
- Monochrome 4 digit 7-segment LED display
Scope of delivery
- 1 x amplifier
- 1 x user manual
- 1 x declaration of conformity
- 1 x power cord
- 1 x antenna
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.1 % at 1 kHz |
| Impedance: | Input: 10 kOhm , unbal. Input: 20 kOhm , bal. |
| Housing color: | Black |
| Status LED: | Power |
| Connections: | Input: line via 4 x RCA (F) mounting version Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR Output: line via 1 x 6.3 mm jack socket (stereo) mounting version |
| Input channels: | 5 x stereo via RCA or jack plug or player, channel control via rotary dial 1 x mono via XLR or jack, channel control via rotary dial |
| Equalizer: | Master: 1 x 2-band tone control stereo |
| Input sensitivity: | 1 V |
| Material: | Metal |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48.3 cm Depth: 12.8 cm Height: 4.45 cm |
| Weight: | 1.87 kg |
| Audio player | |
| Control: | Bluetooth |
| Bluetooth device name: | BLUETOOTH |
| Audio player: | USB + SD + Bluetooth + FM radio |
| Range: | Bluetooth: range up to 10m |
| Carrier frequency: | 2.4 GHz |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Tuner frequency range: | FM 87-108 MHz |
| Music format: | WAV; MP3; WMA |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 16/32) |
