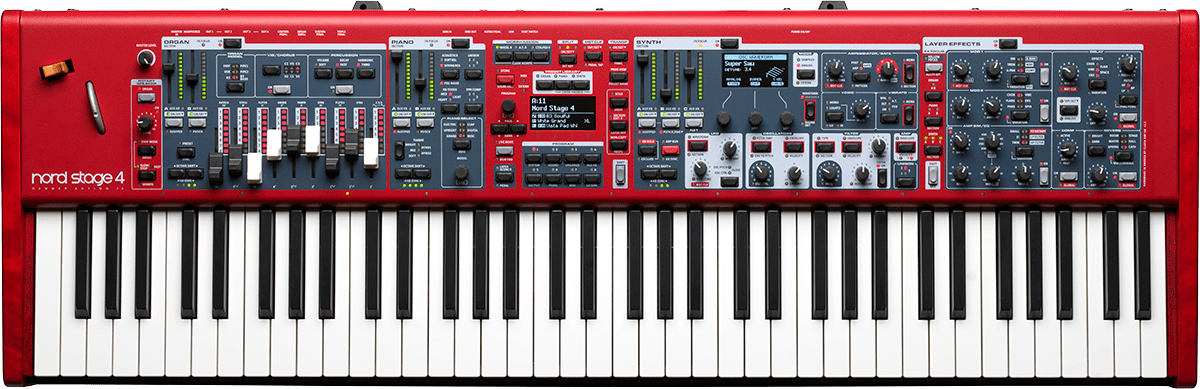

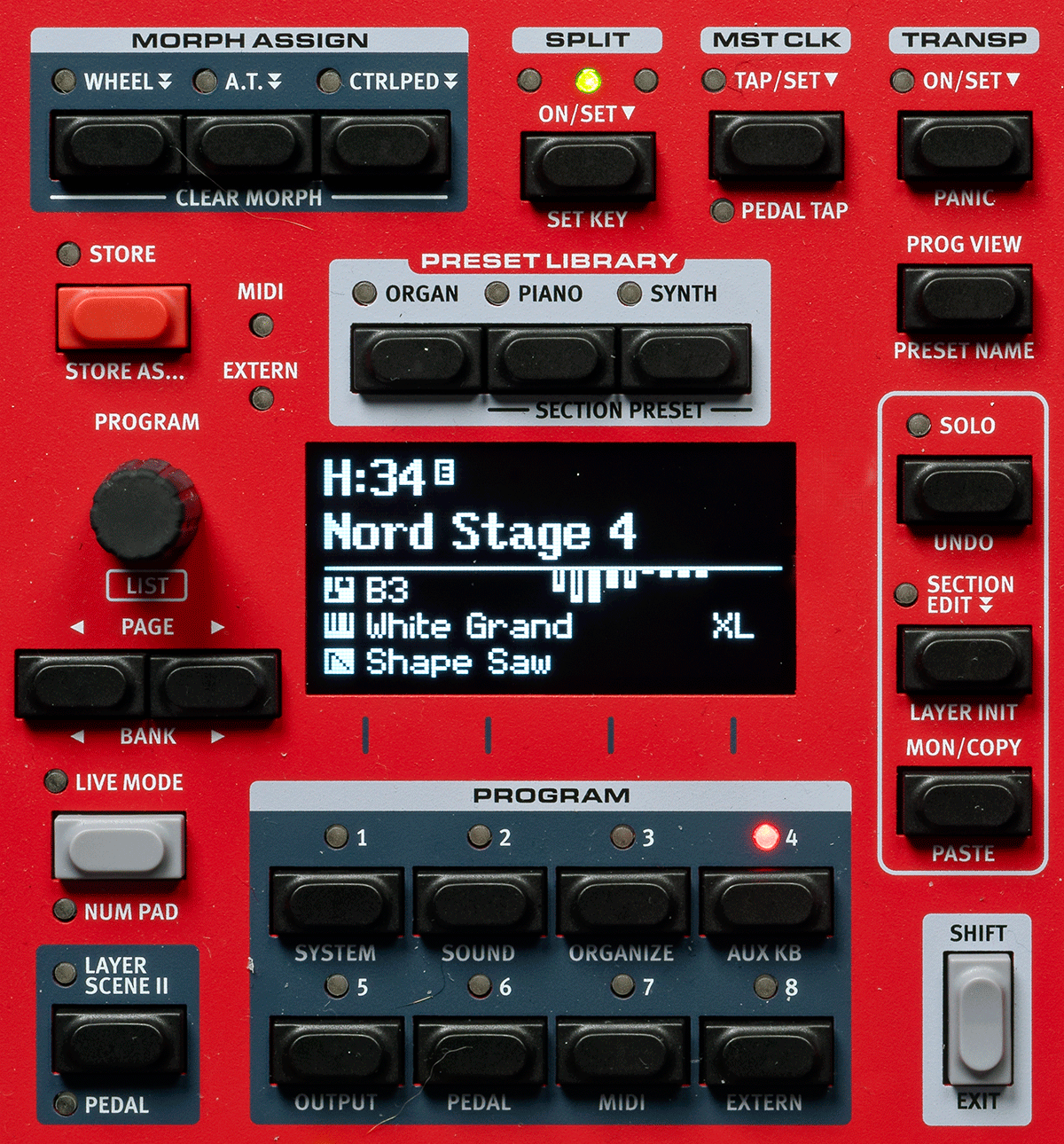

Nord Stage 4 73 Piano électrique

General:

• Tangent: 73
• Weight: 16,7 KG
• Size: 1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")
• Wooden Pitch Stick
• Modulation wheel
• 512 programs
• 2x64 Organ Preset locations, 2x64 Piano Preset locations and 8x64 Synth Preset locations.
• 8 Live Programs
• 2 individual layer scene setups
• 3 Morph sources: Modulation Wheel (can also be controlled with Swell pedal), Control pedal, Aftertouch
• Stereo and Mono output routing options
• Programmable Transpose +/- 6 semitones
• Master Clock functionality with manual, external and tap tempo control
• Internal and MIDI clock source
• MIDI over USB functionality
• Level control
• Aftertouch
• Up to 3 split points (4 keyboard zones) with visual LED indication between zones
• 3 Split Point width (crossfade) options: Lrg, Sml or Off

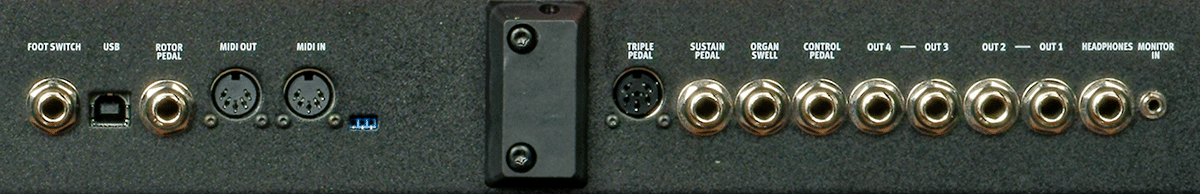

Connections:

• 4 dedicated audio outputs - ¼", 6.35 mm jack, unbalanced
• Stereo headphone output - ¼", 6.35 mm stereo jack
• 1 monitor input - 1/8", 3.5 mm stereo jack
• Sustain pedal - ¼", 6.35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch-type pedals
• Triple Pedal - 5 pin DIN connector.
• Rotor pedal - ¼", 6.35 mm jack. Use a momentary pedal or a switch type pedal.
• Organ Swell Pedal - ¼", 6.35 mm TRS stereo jack.
• Control pedal - ¼", 6.35 mm TRS stereo jack.
• Footswitch input - ¼", 6.35 mm jack.
• MIDI In - 5 pin DIN connector
• MIDI Out - 5 pin DIN connector
• USB - type B connector for USB MIDI, software update and audio transfer
• Power cable with IEC C14 connector

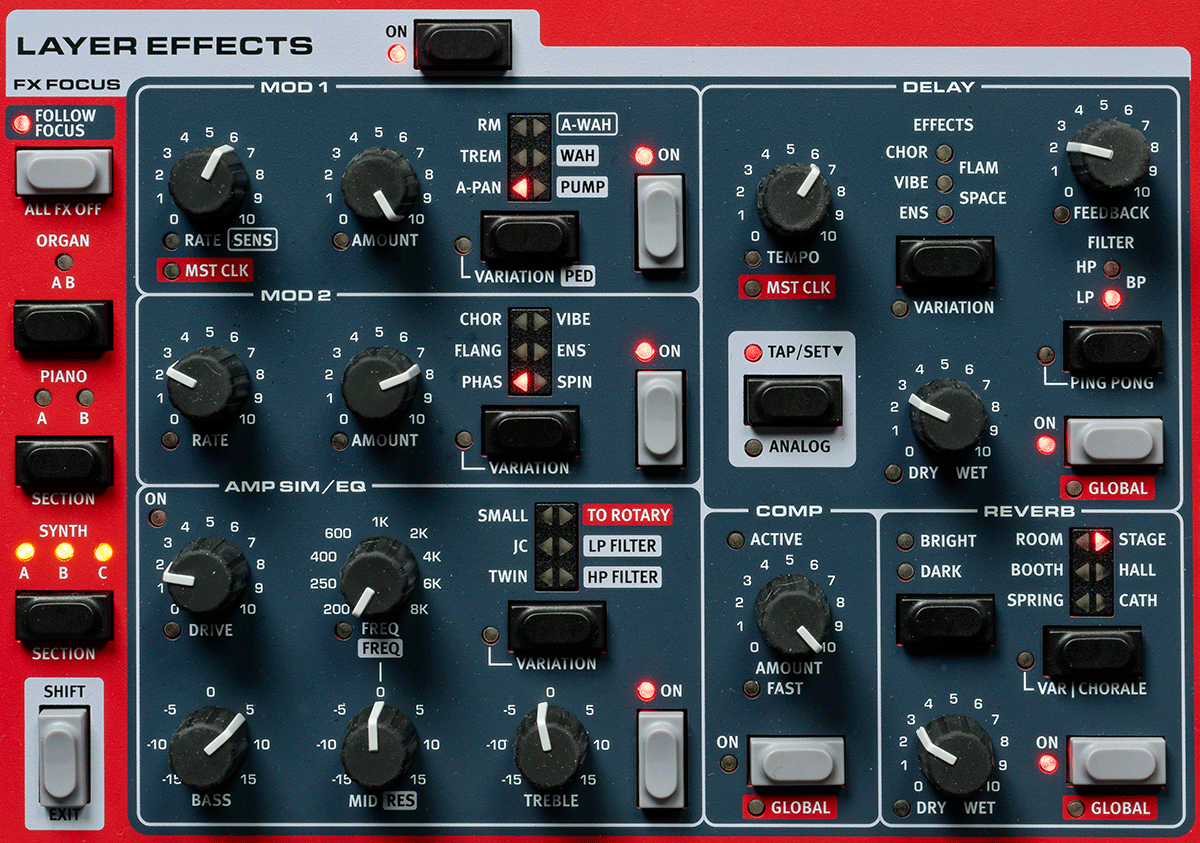

Effects:

• Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
• Mode 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
• Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo tap), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable analog mode.
• 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
• Filter mode (HP24/LP24) with Cut-off, Resonance and Mix controls
• Tube amp simulation with adjustable overdrive
• 3-band equalizer with sweep bar center. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
• Rotary speaker: selectable speed (stop, slow and fast) and separate overdrive
• Effect speeds/tempo can be synchronised to Master Clock
• Compressor with fast mode
• Reverb: 6 algorithms (spring, stand, room, stage, hall and cathedral) with dark/light modes and variation/choral settings

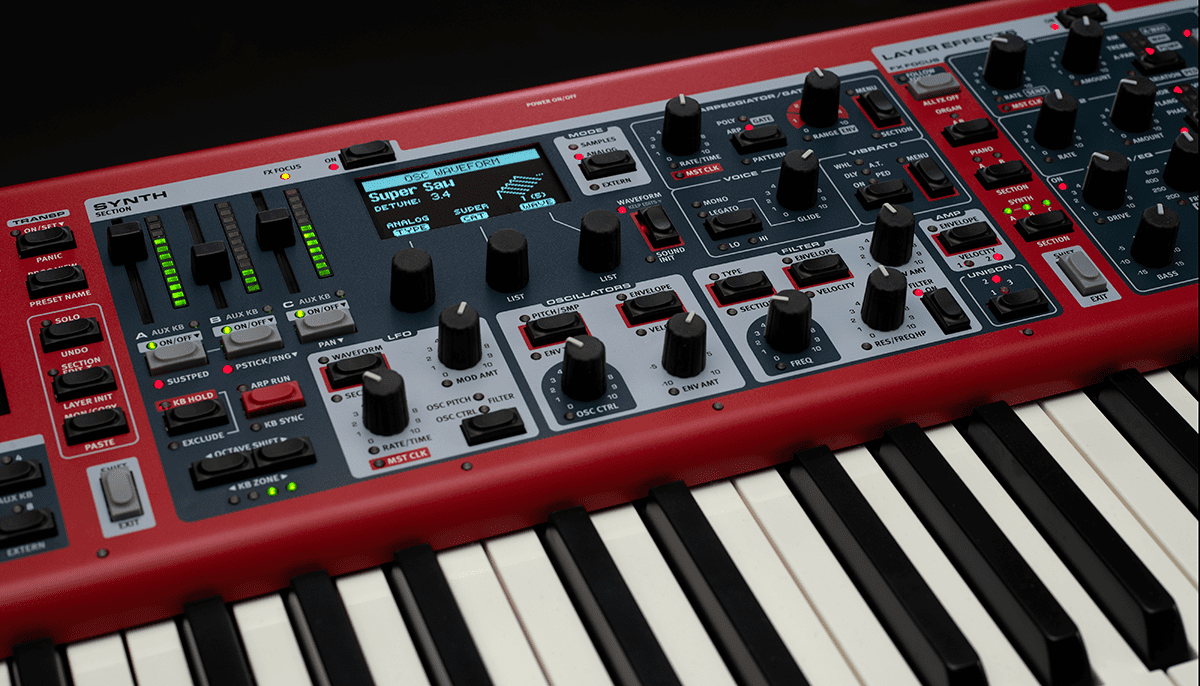

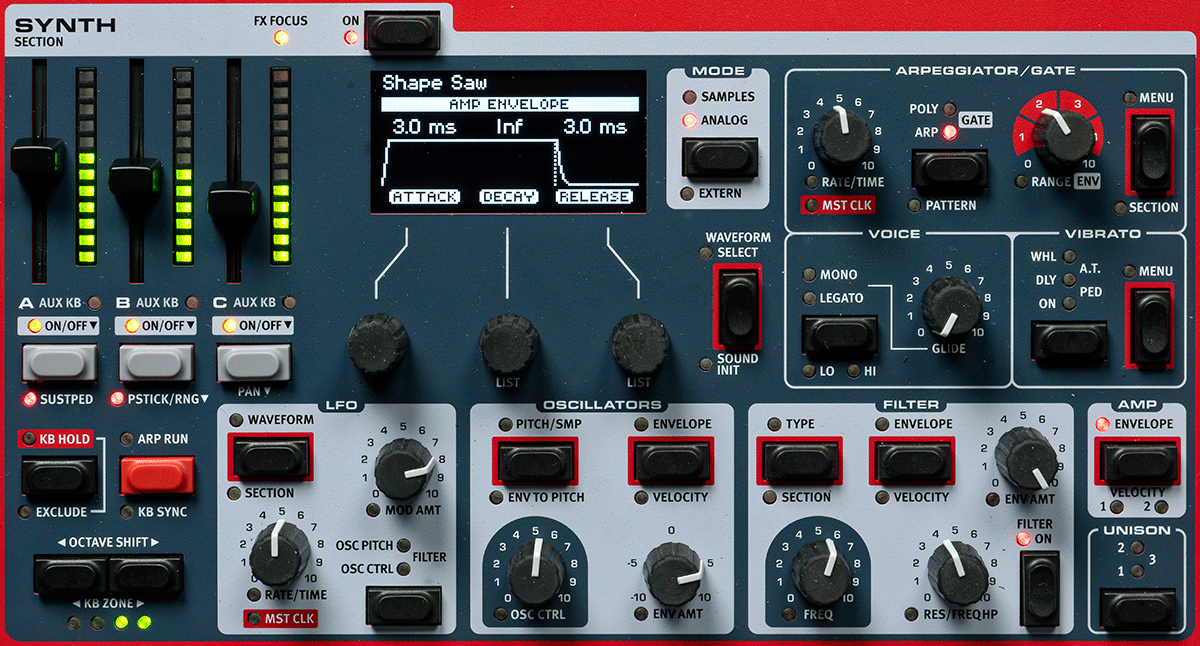

Synth:

• Nord Wave 2 Synth Engine with Sample Playback
• Dedicated OLED screen for waveform/sample selection and parameter editing
• 1 GB memory for Nord Sample Library
• All samples interchangeable with Nord Sound Manager (Mac/Win)
• 46 Voice polyphony
• Oscillator types: analog (incl. super, noise and various waveforms), digital waves, FM and sample
• Analog Waveform Options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Miscellaneous (Noise)
• Classic transistor ladder filter (LP M), 12 & 24 dB low pass, high pass, band pass and combined low pass/band pass (LP+BP) filter
• Filter Drives: Off, 1, 2 and 3
• Filter tracking: From, 1/3, 2/3 and full
• 3 Unison modes
• Vibrato modes can be controlled from Mod Wheel, Aftertouch and Pedal.
• Filter envelope (Attack, Decay, Sustain) with speed control
• Amplitude envelope (Attack, Decay, Sustain) with velocity control
• Oscillator envelope (Attack, Decay, Sustain) with speed control
• LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
• Advanced Arpeggiator with Arp, Polyphonic and Gate modes
• Arpeggiator patterns for all modes with accent and panning options
• LFO and Arpeggiator can be synchronized with Master Clock
• 3 layers (3-piece multitimbral)
