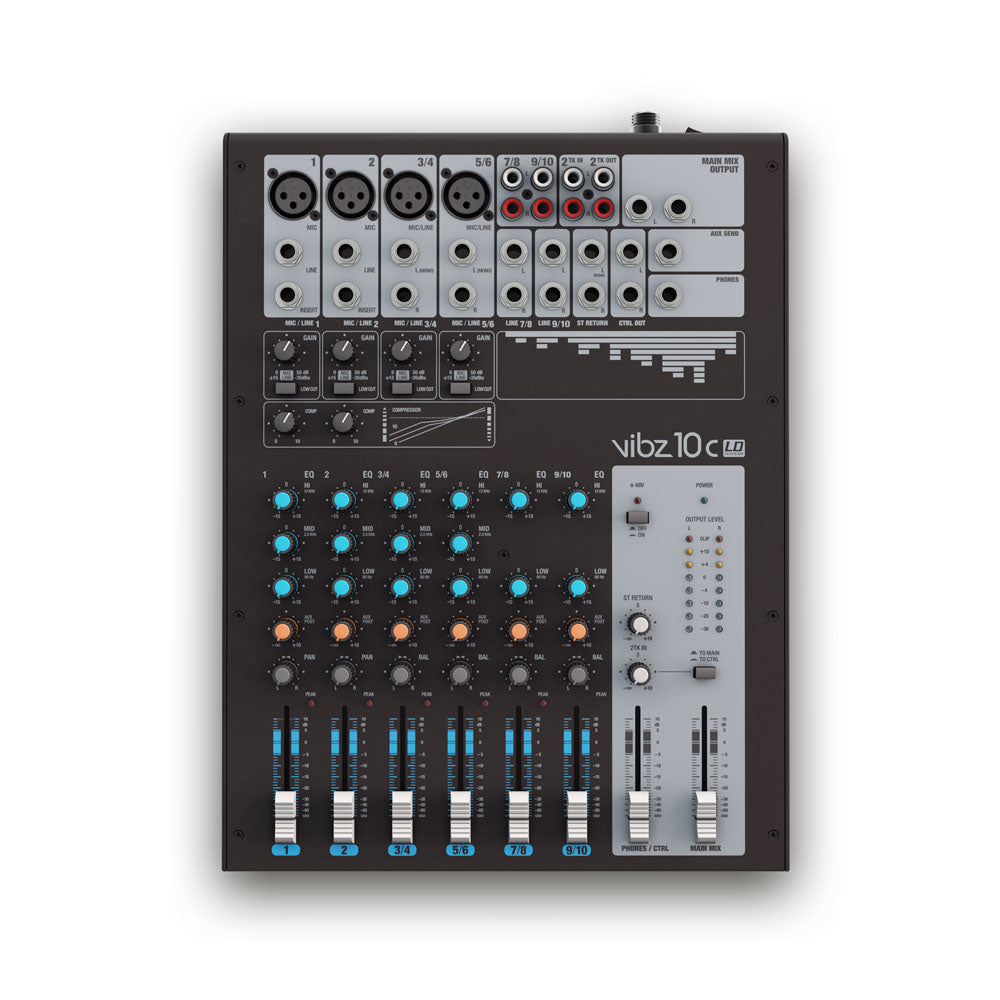

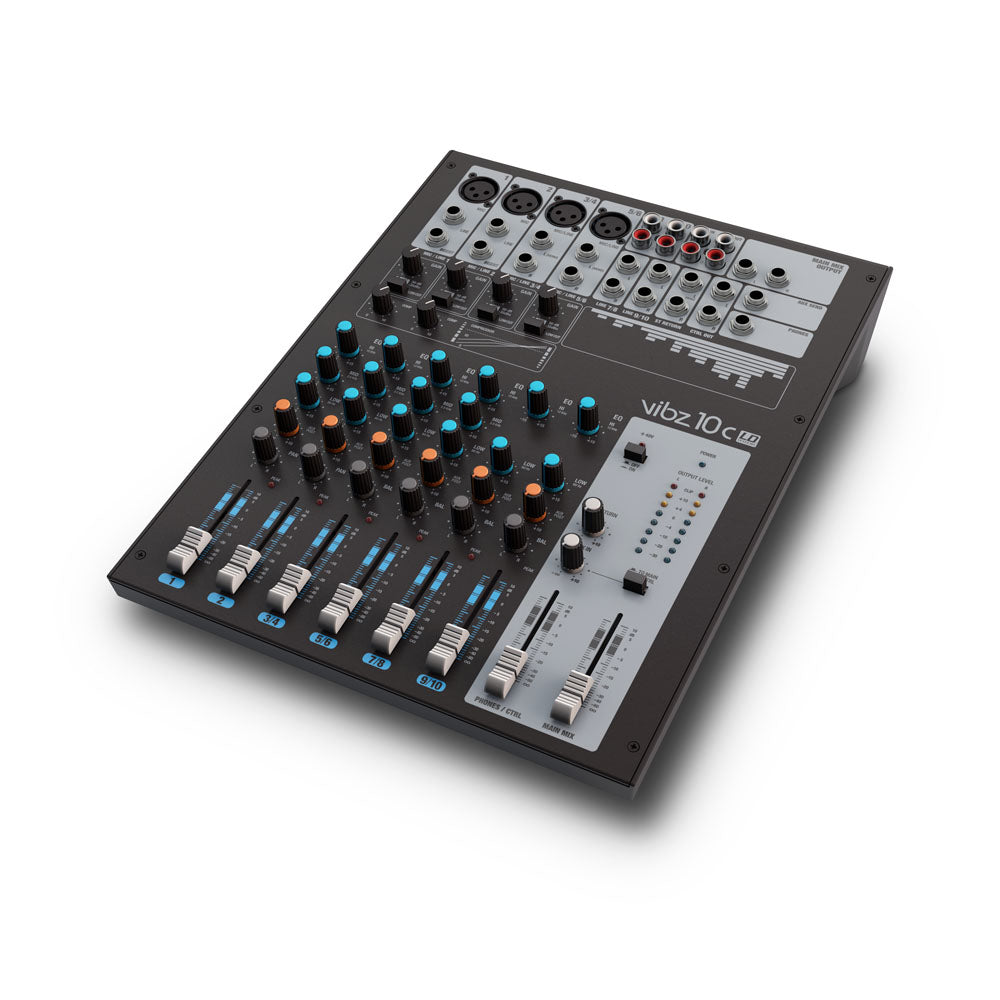

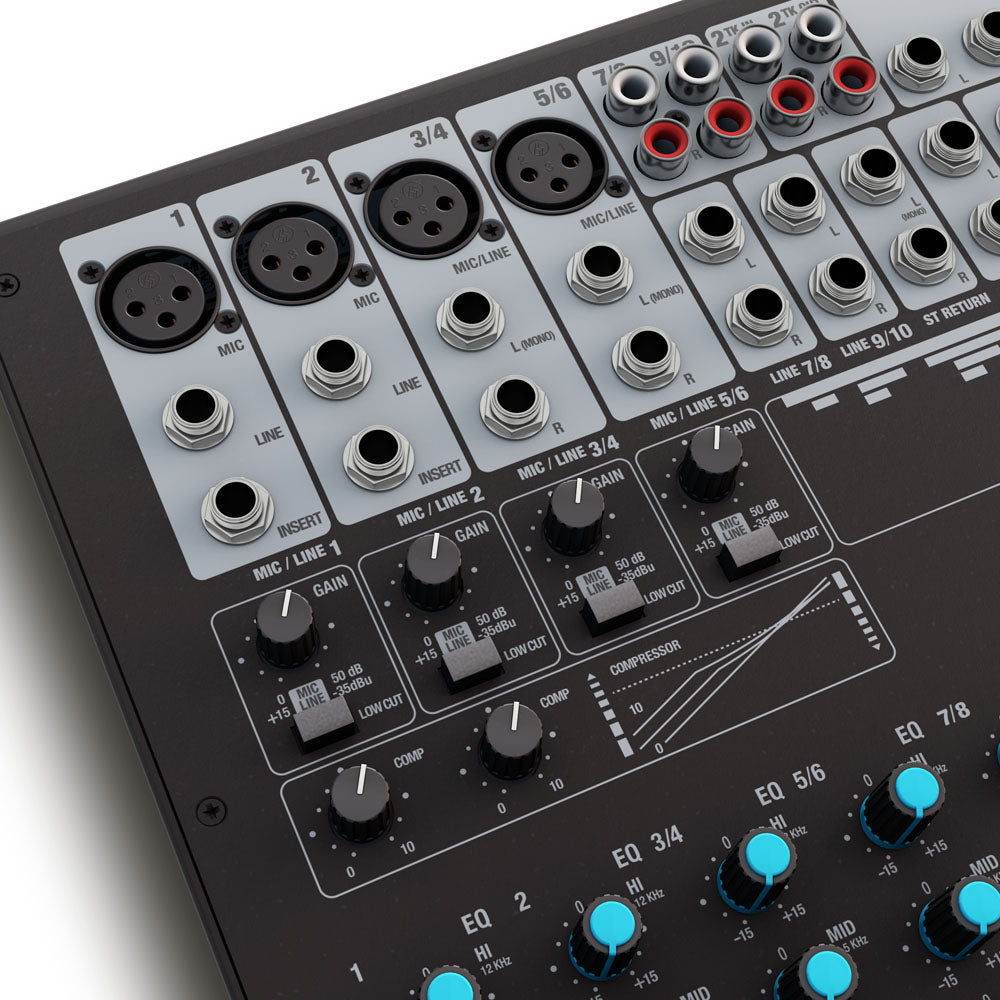

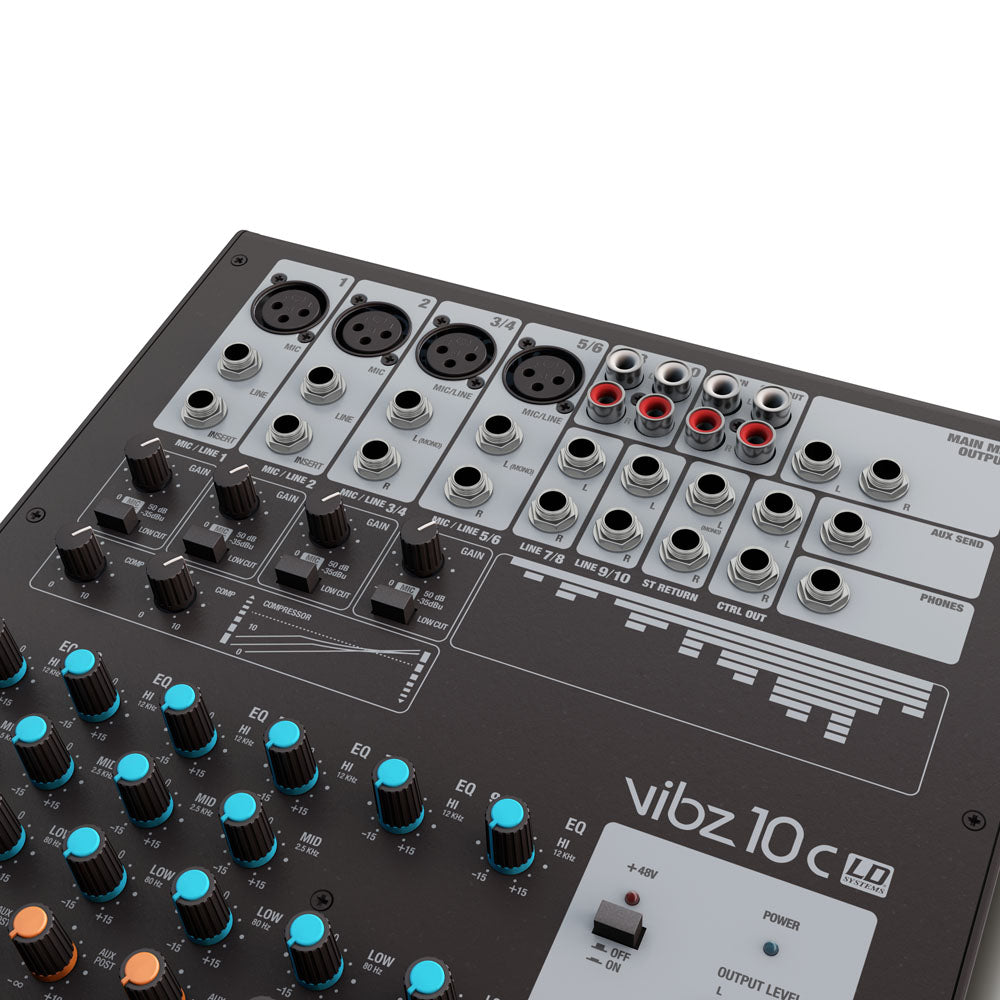

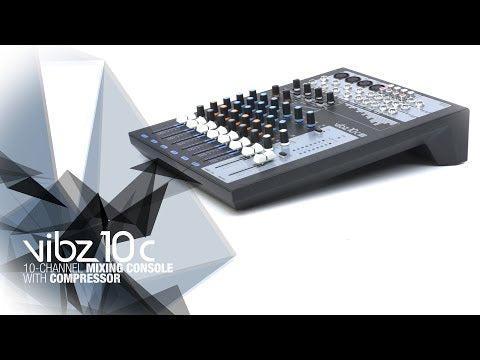

VIBZ 10 est une table de mixage polyvalente avec quatre entrées micro symétriques dotées de préamplis haute qualité, d’un filtre coupe-bas et d’une alimentation fantôme commutable. Deux entrées micro sont équipées d’inserts pour un traitement individuel du signal, et deux autres peuvent également être utilisées comme canaux ligne stéréo.
Pour un réglage sonore efficace, VIBZ 10 dispose d’EQ 3 bandes très précises avec des fréquences médiums judicieusement sélectionnées ; deux canaux stéréo se règlent via des EQ 2 bandes. Le compresseur intégré se règle en continu pour un traitement efficace de la dynamique.

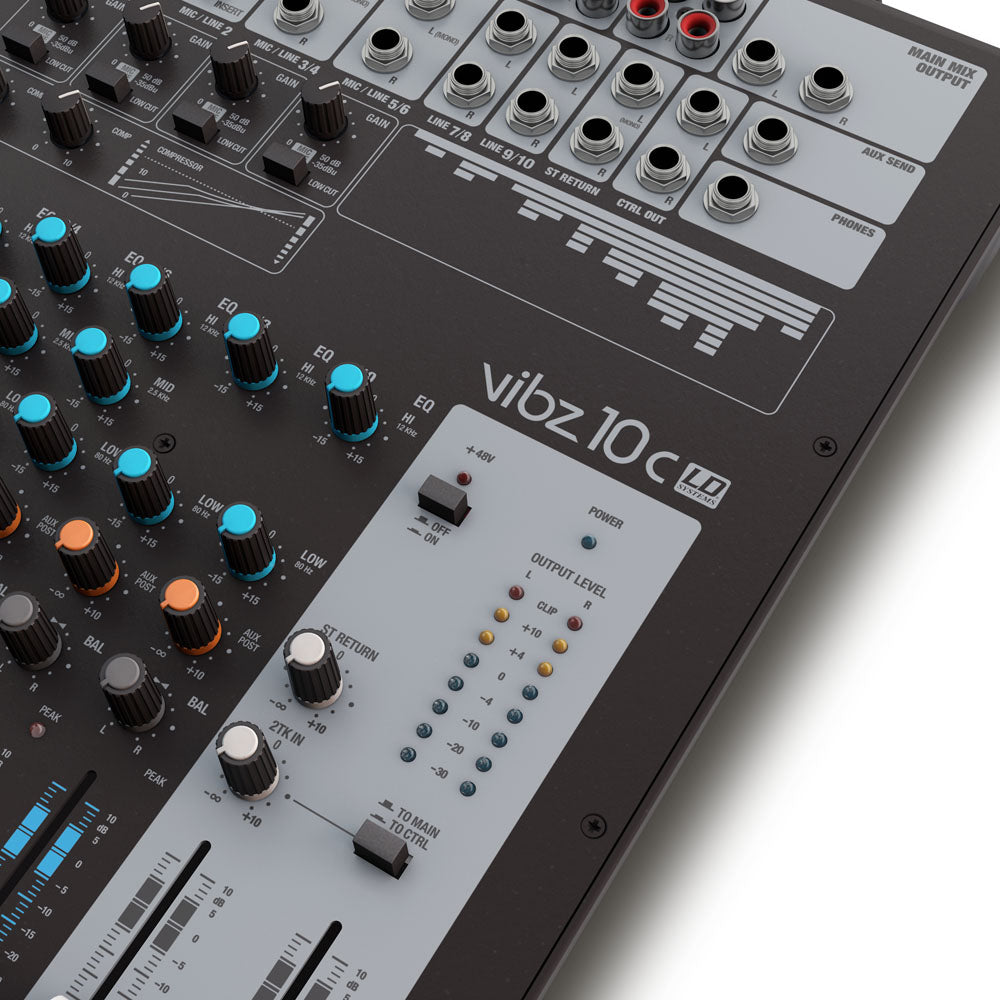

La section master de la table de mixage comprend une boucle d’effets, des sorties monitor réglables et une prise casque. VIBZ 10 propose également des entrées et sorties pour les appareils d’enregistrement et de lecture ; le signal d’entrée peut être routé vers la sortie master ou la sortie monitor, avec un niveau réglable.
Avec son son transparent et détaillé, ainsi que sa prise en main simple, VIBZ 10 est le choix idéal pour les petits groupes, les installations et l’enregistrement à domicile, ou comme table de mixage secondaire. Il est livré avec une alimentation externe pouvant être fixée en toute sécurité à la table. Une pédale pour la section effets et un adaptateur pour monter VIBZ 10 sur des pieds de micro sont disponibles en option.
- 10-channel mixer with 4 microphone channels
- 4 stereo line inputs
- Effective 3-band EQ
- 2 stereo channels with 2-band EQ
- Sliding adjustable compressor
- Master, Monitor and headphone outputs

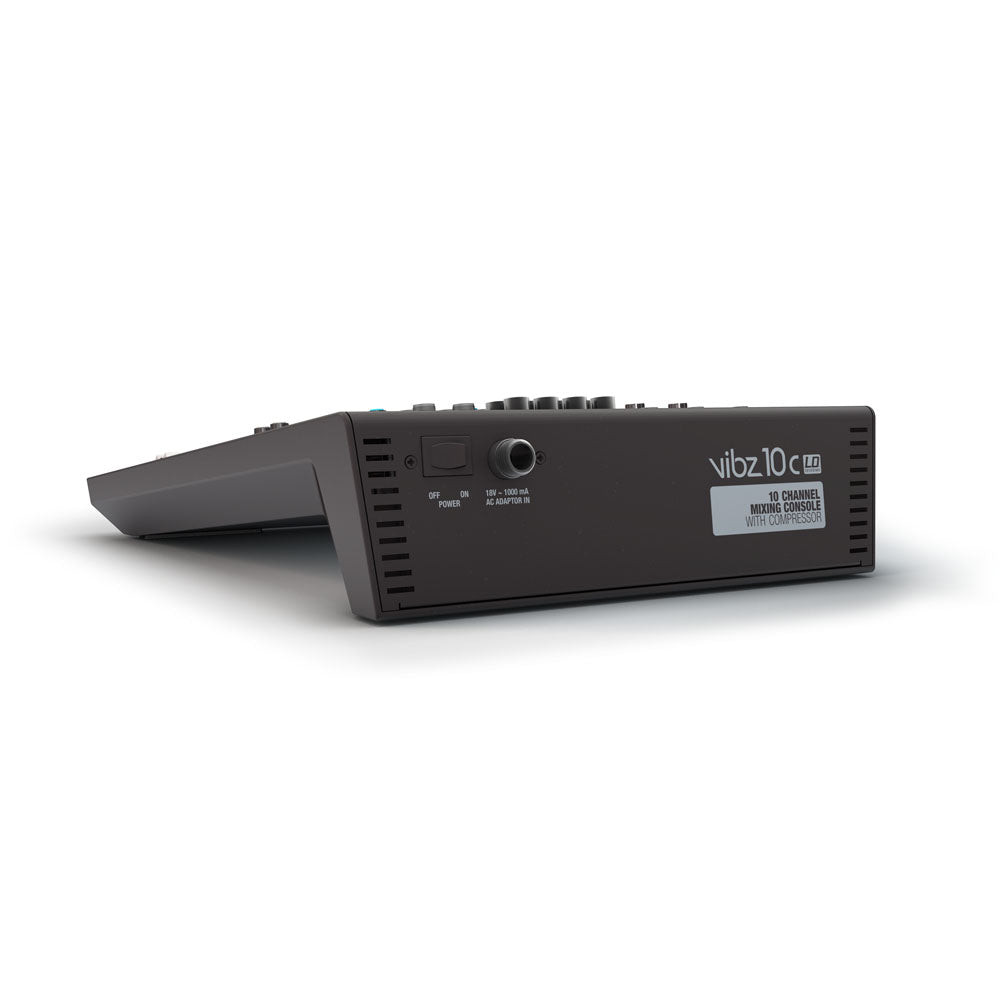

- Securely fastening external power supply
| Product type | Mixers |
| Type | Live |
| Channels | 10 |
Mono Channels:
| Mono Mic and Line Input Channels | 4 |
| Mono Mic input connectors | 6.3 mm TRS |
| Mono Mic input connectors | XLR |
| Channel Inserts | 2 |
| Channel Insert Connectors | 6.3 mm TRS |
| Mono Mic Input Type | Electronically balanced |
| Mono Mic Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4k Ohm(s) |
| Mono Mic Input S/N Ratio | 113 dB |
| Mono Line Input Type | Electronically balanced |
| Mono Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21k Ohm(s) |
| Mono Line Input S/N Ratio | 116 dB |
| Mono Channel Equalizer High | +/- 15 dB @ 12000 Hz |
| Mono Channel Equalizer Mid | +/- 15 dB @ 2500 Hz |
| Mono Channel Equalizer Low | +/- 15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Mono Mic and Line Input Channels | AUX (DFX) Post |
| Controls Mono Mic and Line Input Channels | Channel Volume |
| Controls Mono Mic and Line Input Channels | Compressor |
| Controls Mono Mic and Line Input Channels | Gain |
| Controls Mono Mic and Line Input Channels | Low Cut (75 Hz) |
| Controls Mono Mic and Line Input Channels | pan |
| Phantom power | 48 V DC switchable |
Stereo Channels:
| Stereo Line Input Channels | 4 |
| Stereo Line Input Connectors | 6.3 mm TRS |
| Stereo Line Input Type | Electronically balanced |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range stereo Line Input | 0 - 50 dB |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 3,7k Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/- 15 dB @ 12000 Hz |
| Stereo channel equalizer mids | +/- 15 dB @ 2500 Hz |
| Stereo channel equalizer bass | +/- 15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | 2-band EQ (High,Low) |
| Controls Stereo Line Input Channels | 3-band EQ (High, Mid, Low) |
| Controls Stereo Line Input Channels | AUX Post |
| Controls Stereo Line Input Channels | Balance |
| Controls Stereo Line Input Channels | Channel Volume |
| Controls Stereo Line Input Channels | Gain |
| Controls Stereo Line Input Channels | Low Cut |
Main Section:
| AUX / Effects Send Channels | 1 |
| AUX / Effects Send Connectors | 6.3 mm stereo jack unbalanced |
| Stereo AUX Return Channels | 1 x stereo |
| Stereo AUX Return Connectors | 6.3 mm TRS |
| Stereo Tape Out Channel | 1 x stereo |
| Stereo Tape Out Connectors | 2 x RCA (Cinch) |
| Stereo Tape In Channel | 1 x stereo |
| Stereo Tape In Connenctors | 2 x RCA (Cinch) |
| Unbalanced stereo Main Outputs | 1 |
| Unbalanced stereo Main Output Connections | 6.3 mm TRS |
| Unbalanced Stereo Main Out Impedance | 120 Ohm(s) |
| Max. Unbalanced Stereo Main Out Level | 20 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 6.3 mm TRS |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | No |
| Main section controls | 2-track Assignment (Main, Contr. Room) |
| Main section controls | 2-track In Volume |
| Main section controls | Master Volume |
| Main section controls | Phantom Power |
| Main section controls | Phones / Control Room Volume |
| Main section controls | Stereo Return Volume |
| Indicators | Phantom Power |
| Indicators | Power |
| Power supply | 18V DC - 1 A, External PSU |
| Power supply | 230 V |
| Width | 265 mm |
| Height | 78 mm |
| Depth | 352 mm |
| Weight | 2,3 kg |
