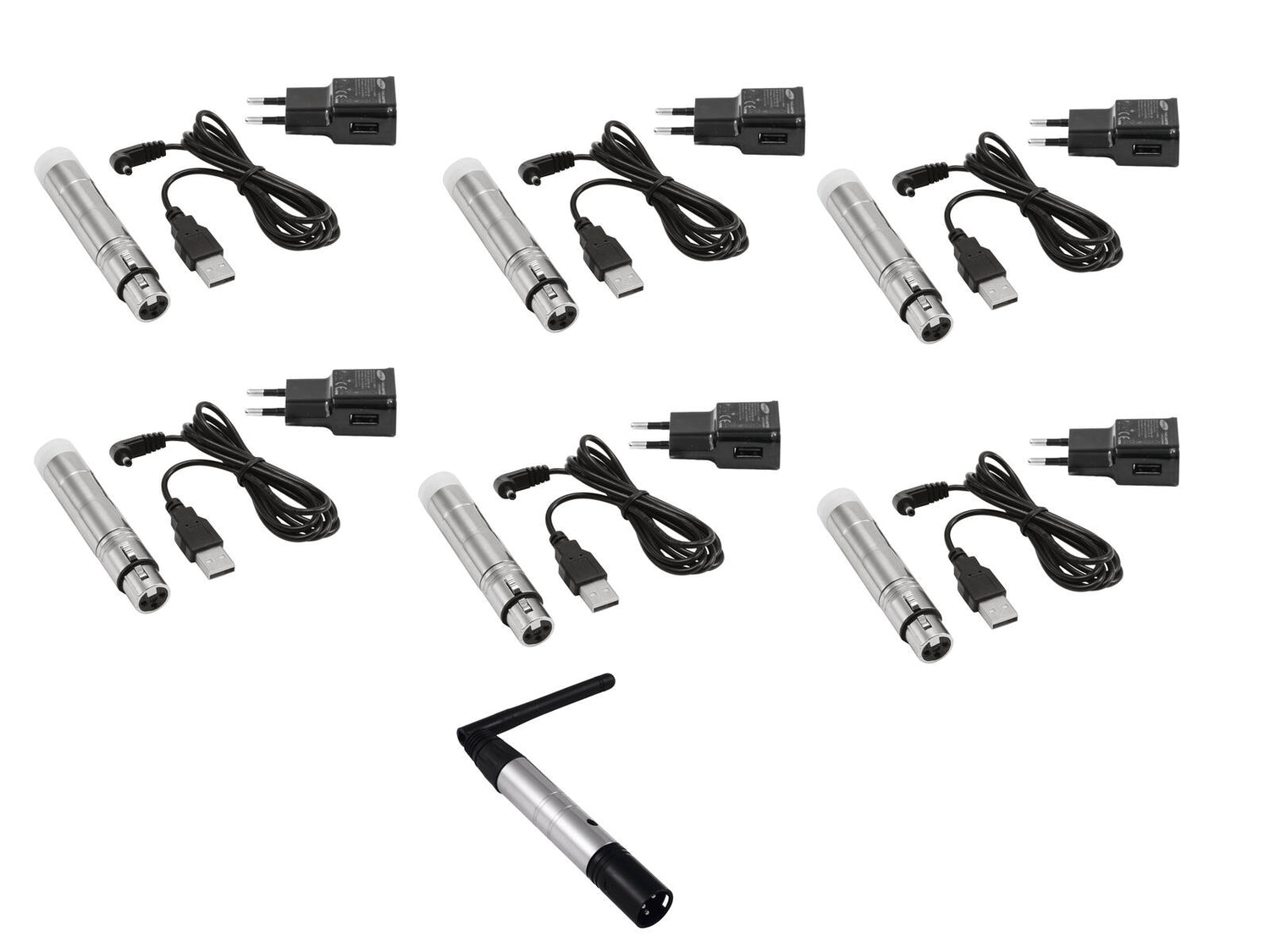

EUROLITE Set QuickDMX 1x Transmitter + 6x AKKU Receiver

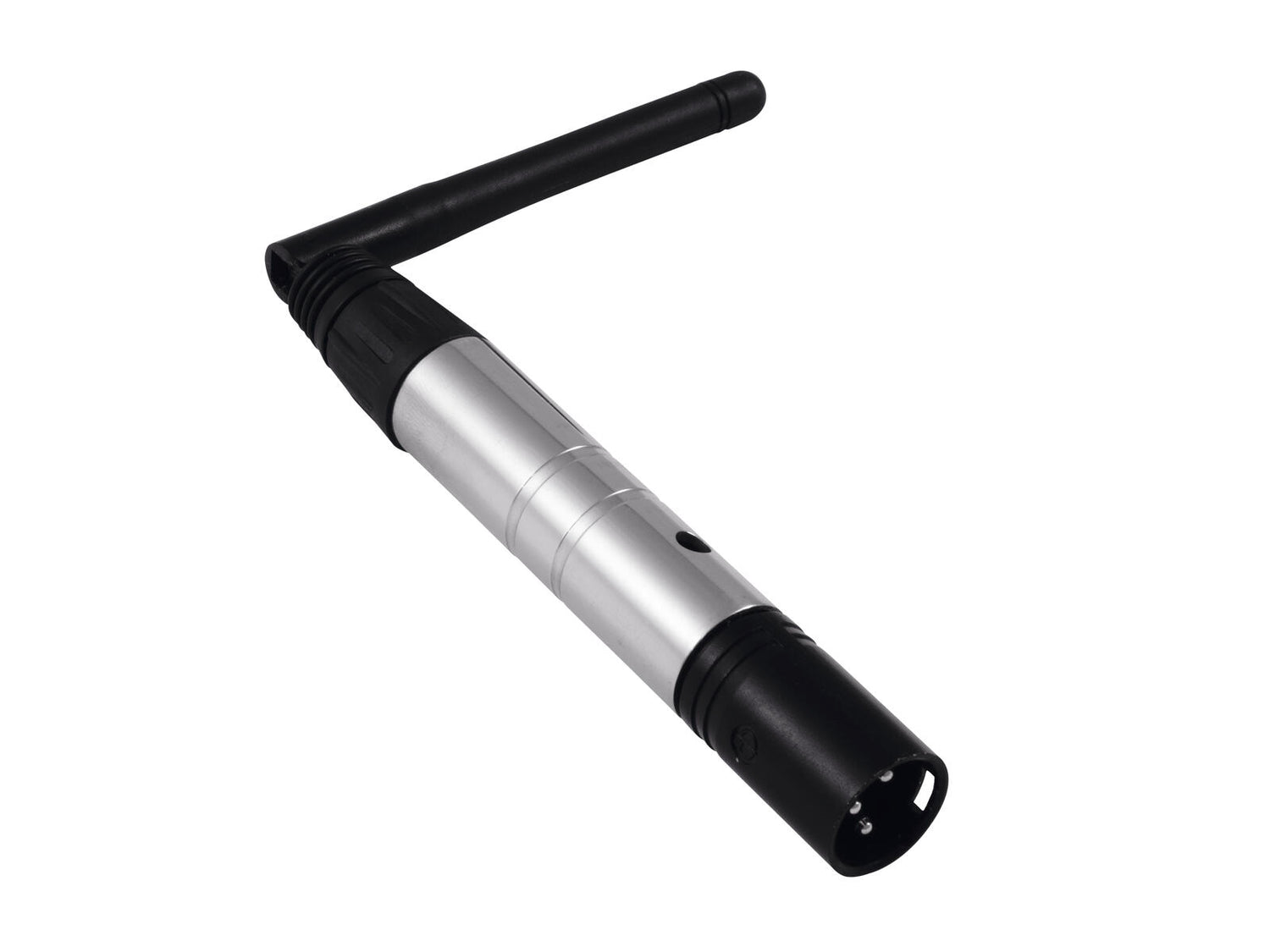

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR adapter (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Can transmit up to 512 DMX channels
• Control via QuickDMX; DMX; plug and play
• Operating range up to 400m
• Up to 6 transmitters can be operated in parallel without interference

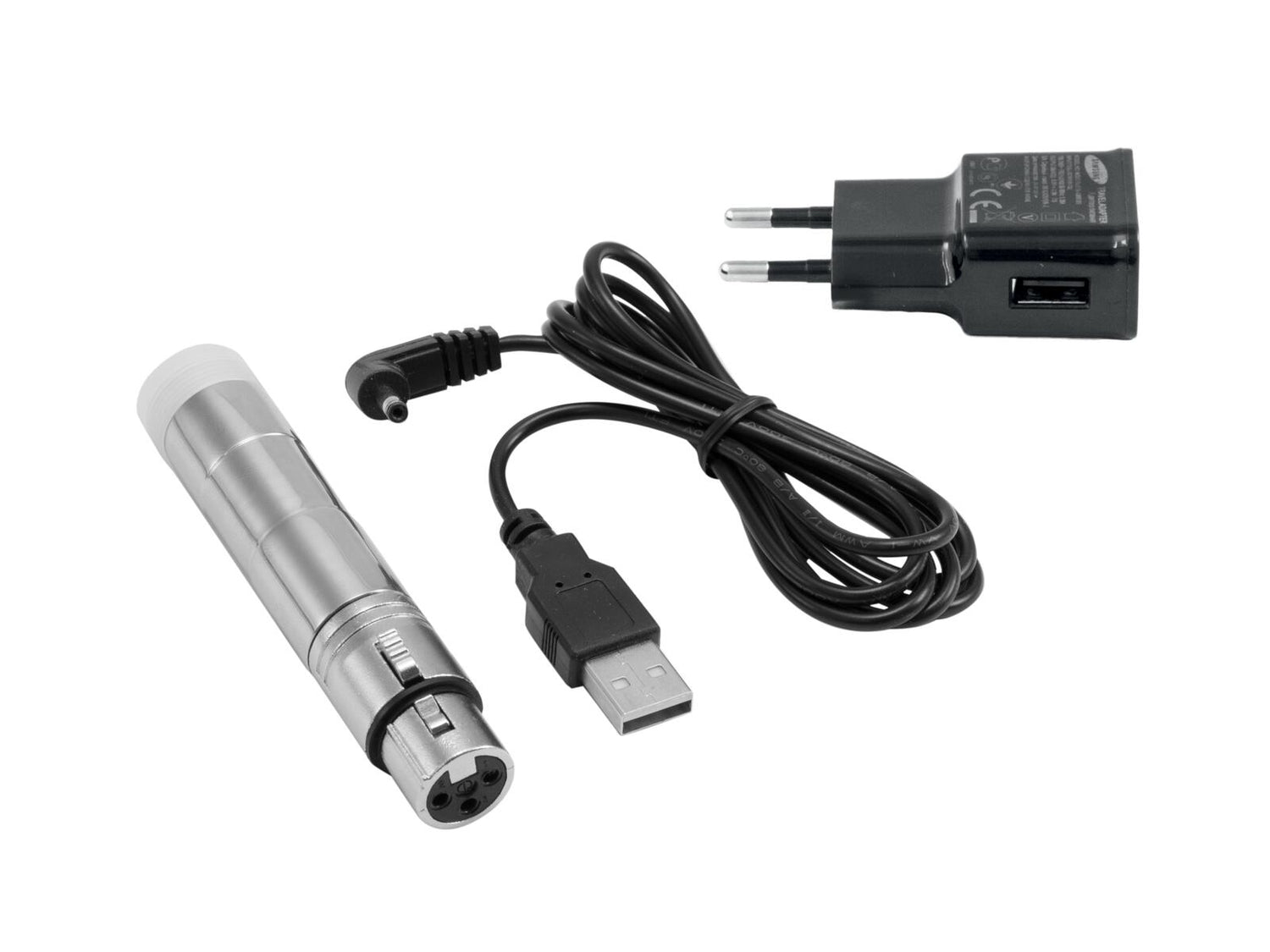

EUROLITE AKKU QuickDMX Wireless Receiver

Battery-powered wireless DMX receiver 2.4 GHz

• Compact 3-pin XLR adapter (female) with built-in antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• 32-bit ARM processor for delay-free transmission
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Group mode
• Multicolored LED indicator
• Cordless, flexible and versatile
• Battery operation up to 20h
• Control via QuickDMX; plug and play
• Operating range up to 400m
• Up to 6 transmitters can be operated in parallel without interference

1 x EUROLITE QuickDMX Wireless Transmitter

• 1 x device
• 1 x user manual
• 1 x declaration of conformity
• 1 x external mains adapter
• 1 x USB cable

6 x EUROLITE AKKU QuickDMX Wireless Receiver

• 1 x device
• 1 x user manual
• 1 x declaration of conformity
• 1 x external mains adapter
• 1 x USB cable
