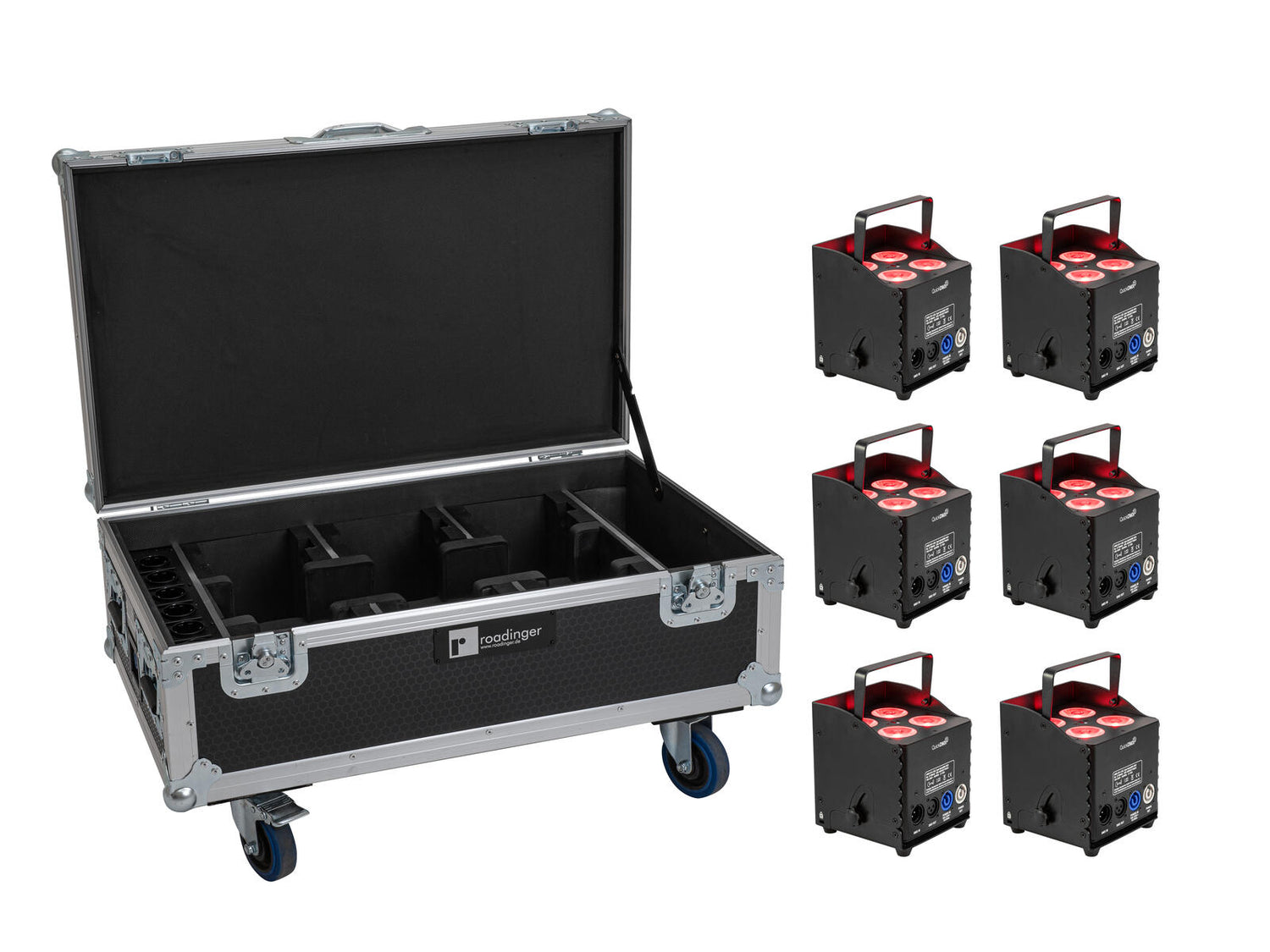

EUROLITE Set 6x AKKU UP-4 QCL Spot QuickDMX MK2 + Flightcase with wheels and charging function
1
de
3
Chargement...
€2.208,95
Prix unitaire
/
Non disponible
TTC • B2B HT
Livraison €10
Description
Description

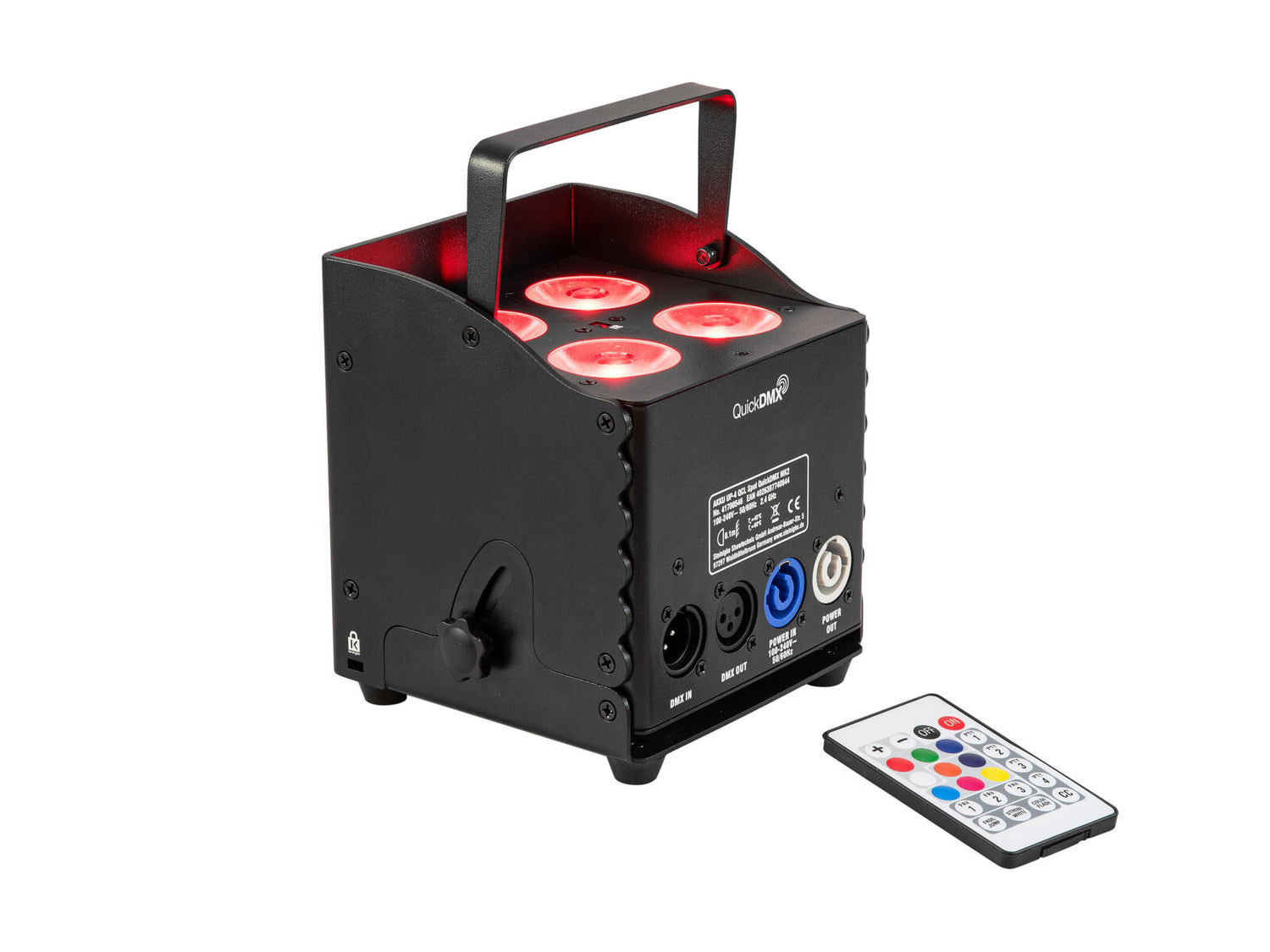

EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2
Bright battery powered LED uplight with 10 W 4in1 LEDs and QuickDMX
- Integrated QuickDMX transceiver for wireless DMX control
- Cordless, flexible and versatile
- Battery operation up to 9h depending on program used
- Integrated automatic charging of the battery and status indicator
- 4 LEDs 10 W SMD 5050 4in1 RGBW (homogenous color mix)
- Dimmer electronic; Dimmer speed (step response) adjustable; color fade adjustable speed; color change adjustable speed; white balance adjustable; color blend adjustable; frost filter; color selection manual; program selection manual; pulse-width modulation; Energy-saving mode; Emergency lighting function in case of power failure
- Multi beam effect; spot effect; wash effect; strobe effect
- 36 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
- Flicker-free
- QuickDMX: operating range up to 600m in the open air
- Up to 6 transmitters can be operated in parallel without interference
- With a beam angle of 7°
- With bracket for floor use
- Monochrome OLED display
- Display of the remaining battery life for the current setting
- Charge status indicator
- Mains input and output for power linking up to 8 units
- With a KENSINGTON LOCK theft protection
- For application areas such as: Decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental; advertisement/Shop window
- Silent operation
- Application possibility: Standing; suspended
- 3 buttons on the remote control for saving your own settings

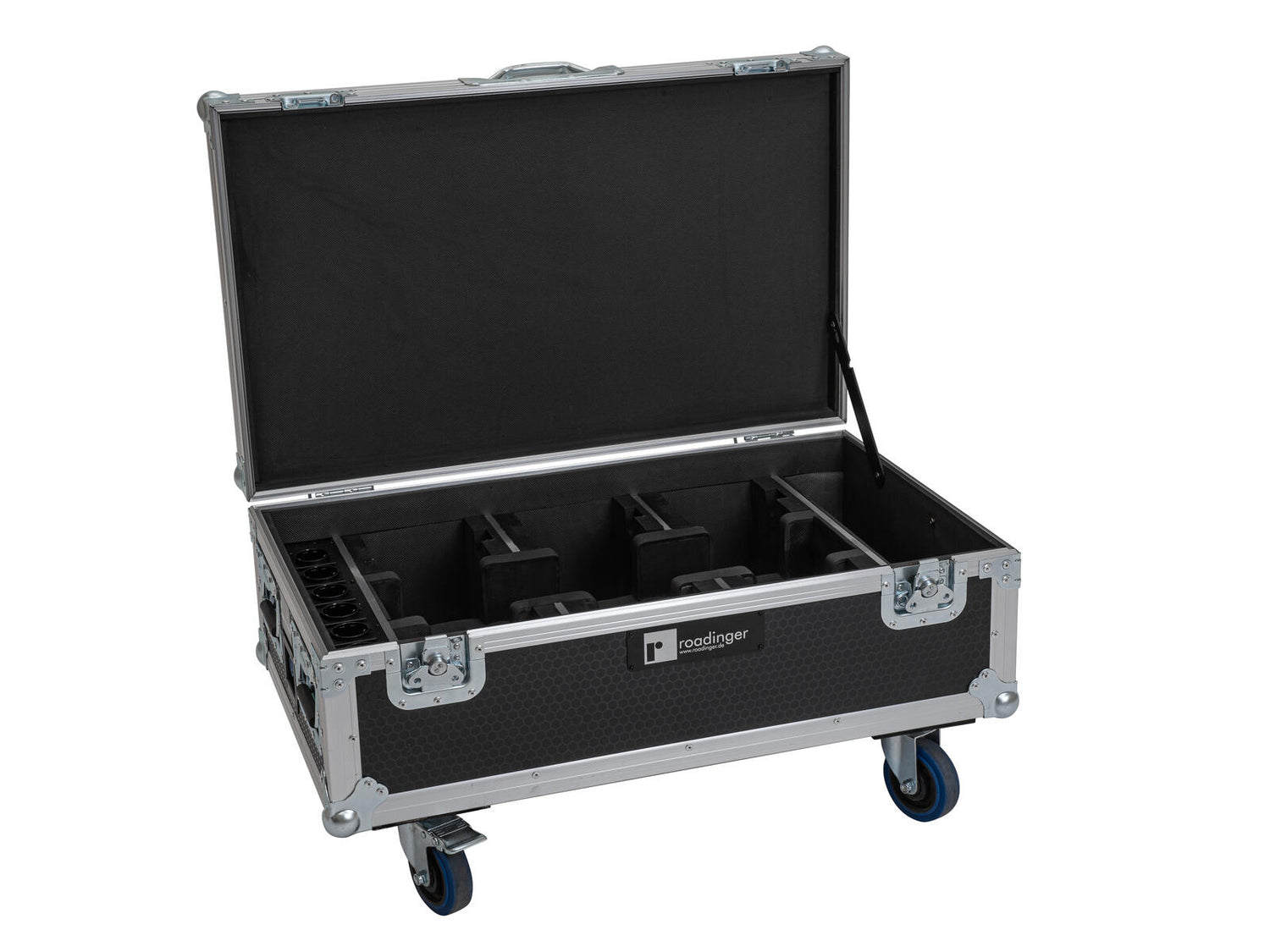

ROADINGER Flightcase 6x AKKU UP-4 QCL Spot QuickDMX MK2 with charging function and wheels
Trunk case with castors
- With 6 device compartments
- With 1 accessory compartment
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 35mm with rounded edges
- 4 hinged, chromium plated case handles
- Edge mounting handle
- 2 chrome tip-over locks
- 2 high-quality butterfly locks with shut-off function
- 4 x castors with 2 locking brakes
Scope of delivery
6 x EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2
- 1 x spotlight
- 1 x user manual
- 1 x declaration of conformity
- 1 x power cord
- 1 x remote control
- 1 x battery
- 1 x frost filter
- 1 x knurled screw
1 x ROADINGER Flightcase 6x AKKU UP-4 QCL Spot QuickDMX MK2 with charging function and wheels
- 1 x case
- 1 x power cord
- 1 x user manual
- 4 x castors
- 16 x screw
- 1 x key
| Weight: | 40.08 kg |
| EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2 | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Battery pack type: | 1 x lithium ion 14.8 V, 6600 mAh, 97.68 Wh |
| Battery pack: | Battery operation up to 9h depending on program used Recharging time 3h |
| Lamp type: | LED lamp |
| LED type: | 4 x 10 W SMD 5050 4in1 RGBW (homogenous color mix) |
| Flash rate: | 0.8 - 27 Hz |
| DMX channels: | 3; 4; 6; 8; 11 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM |
| Fixtures available for: | Light Captain; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 3000 Hz |
| Range: | QuickDMX: range up to 600m in the open air |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 6 transmitter |
| Modulation: | GFSK |
| DMX fail mode: | Blackout; hold; static; full on |
| Beam angle: | 7° |
| Beam angle (1/2 peak): | 7° Frost filter 20° |
| Beam angle (1/10 peak): | 18° Frost filter 42° |
| Attachment system: | Bracket for floor use |
| Display type: | Monochrome OLED display |
| Display: | Battery runtime calculation , charge status indicator |
| Material: | Metal, painted |
| Theft protection: | KENSINGTON LOCK |
| Dimensions: | Length: 15.4 cm Width: 13.3 cm Height: 15.8 cm |
| Weight: | 2.93 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 6x AKKU UP-4 QCL Spot QuickDMX MK2 with charging function and wheels | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 1.2 m |
| Device fuse: | 5 x 20 mm, F 5 A fuse replaceable |
| Aluminum profile frames: | 35 mm |
| Case handle: | 4 pc/pcs |
| Edge mounting handle: | 1 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Device compartment: | 13.5 cm x 14 cm x 20 cm |
| Accessory compartment: | 8.5 cm x 44 cm x 20 cm |
| Inside dimensions: | 76 cm x 44 cm x 20 cm |
| Dimensions: | Length: 84.00 cm Depth: 52.00 cm Height: 34.20 cm |
| Weight: | 22.40 kg |
