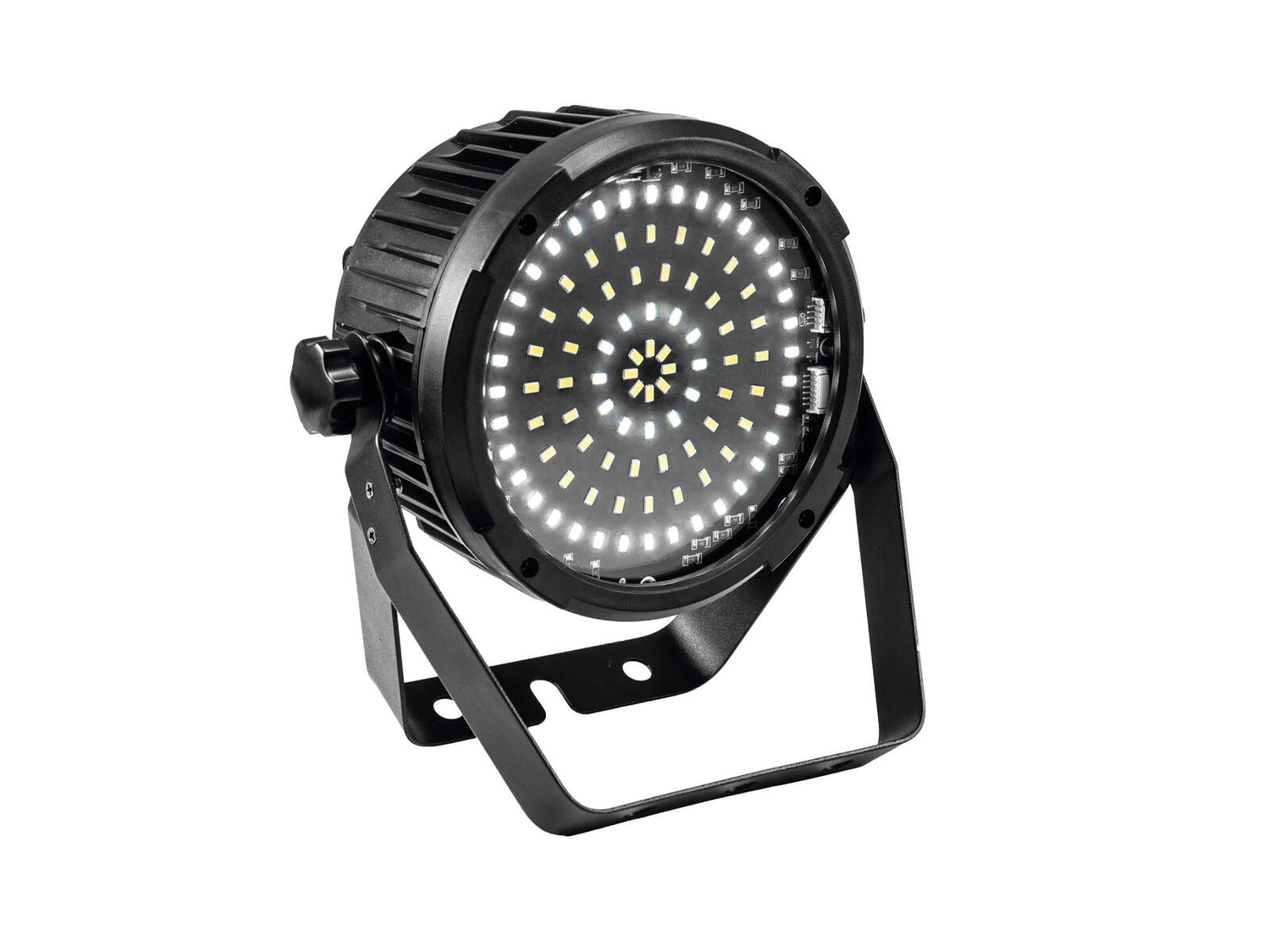

EUROLITE LED SLS-98 Strobe SMD

This compact strobe light in a slim-line design is equipped with a total of 98 flicker-free SMD 5030 LEDs and offers you both strobe and blinder effects. The flash frequency is 1-20 flashes per second. The strobe can be operated in stand-alone mode, with a DMX controller or by sound control via the built-in microphone. Delivery includes an IR remote control for convenient operation from a distance. In DMX mode, the 5 ring-shaped LED segments can be controlled individually or in groups. You can choose from two DMX modes with 4 or 9 channels respectively. The fixture has 3-pin DMX connectors as well as an IEC input to connect it to the mains and a feed-through output for daisy-chaining up to 8 units.

Compact strobe with 98 SMD LEDs & DMX, each ring individually controlable

• Flat version requires minimal space when mounting
• 98 LEDs SMD 5730 cold white (CW) (homogenous color mix)
  5 segments controlled separately
• Dimmer electronic
• Strobe effect; Blinder effect
• The device is cooled by cooling fan
• Control via stand-alone; DMX; sound to light via microphone; IR remote control
• Flicker-free
• With double bracket
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; small rental
• Very quiet working noise
• Application possibility: Standing; suspended

Scope of delivery

• 1 x light effect
• 1 x power cord

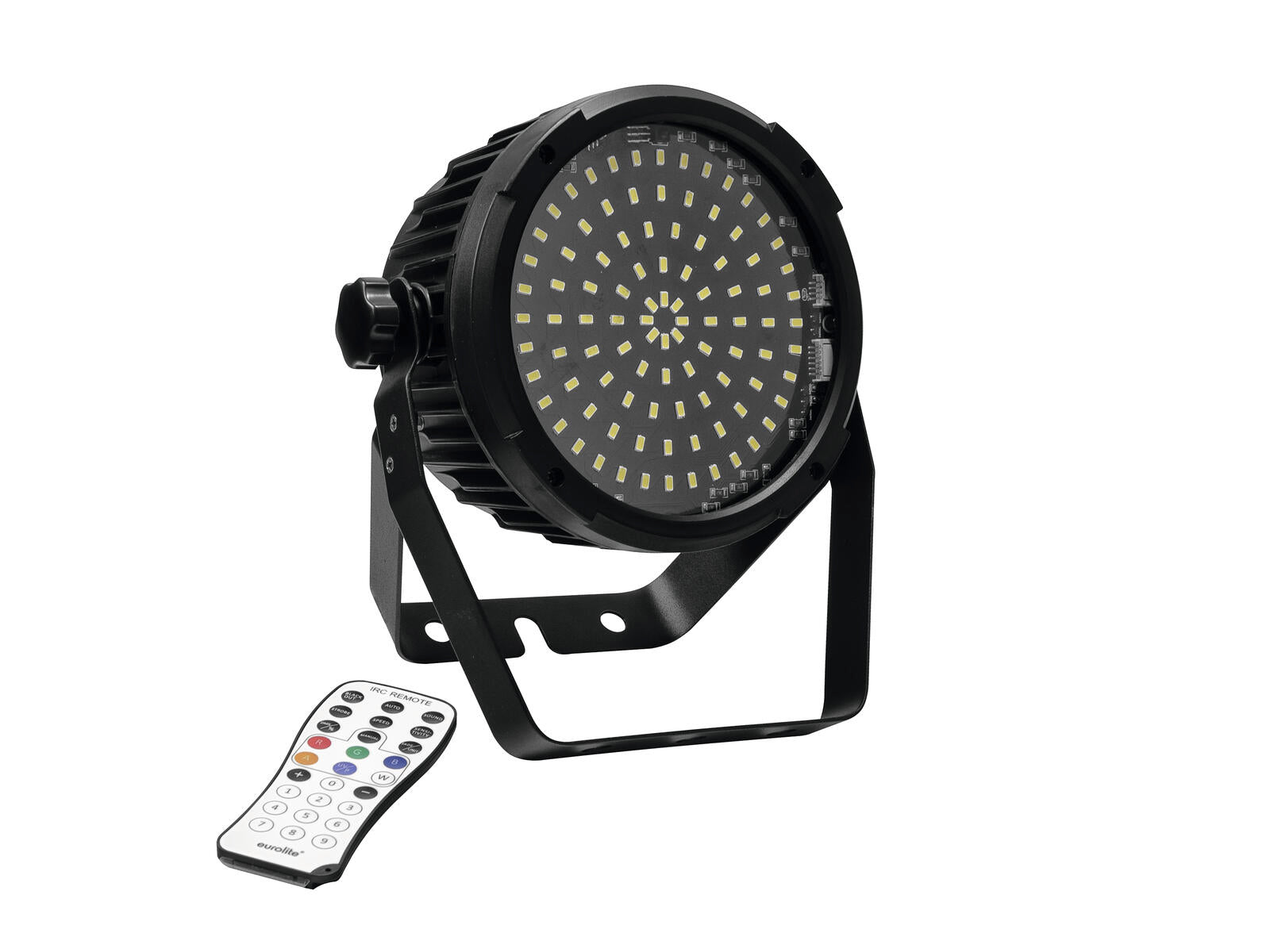

• 1 x remote control
• 1 x battery
• 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	24 W
Protection class:	Protection class II
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Fuse:	5 x 20 mm, F 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	98 x SMD 5730 cold white (CW) (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	4; 9

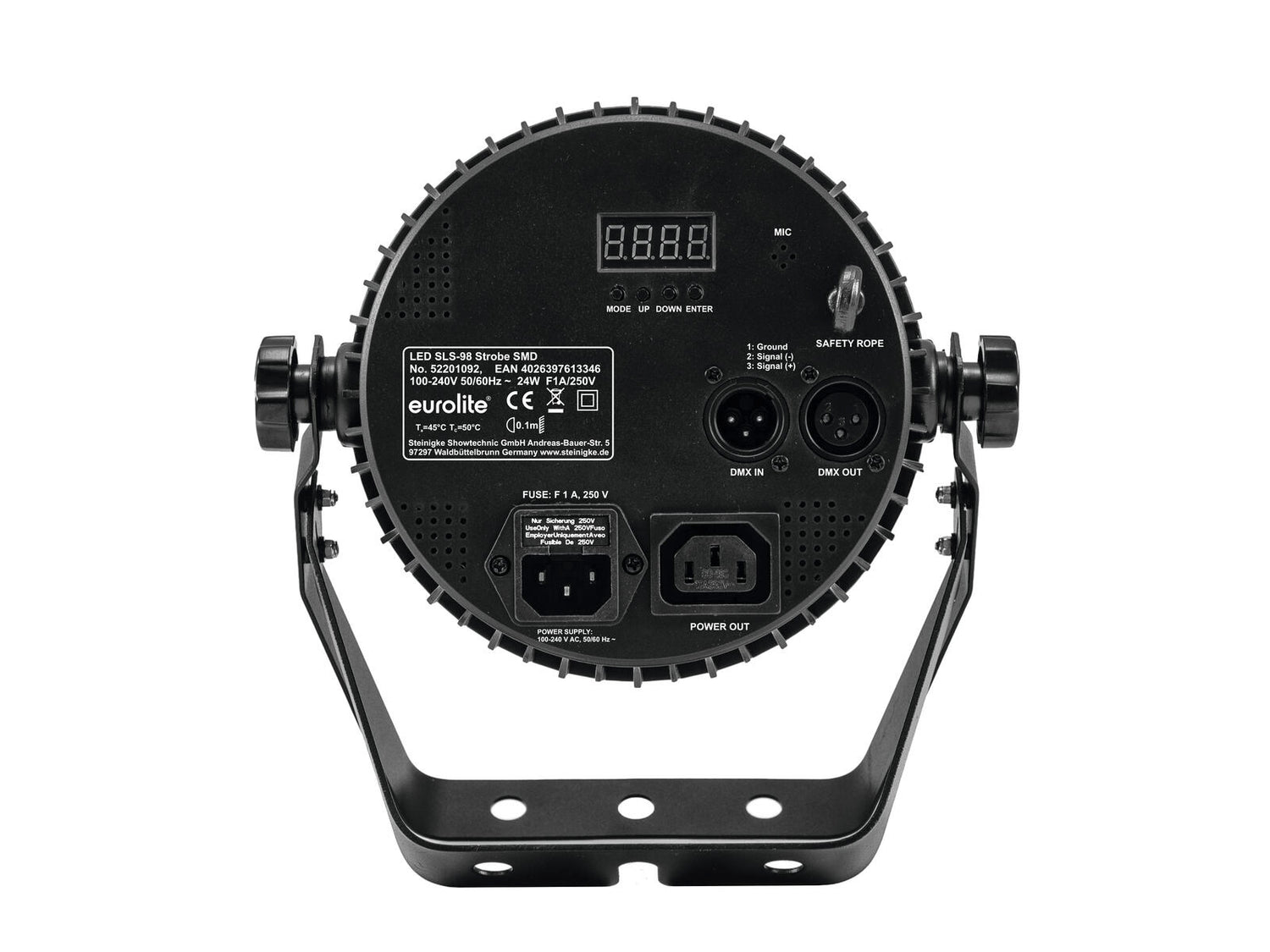

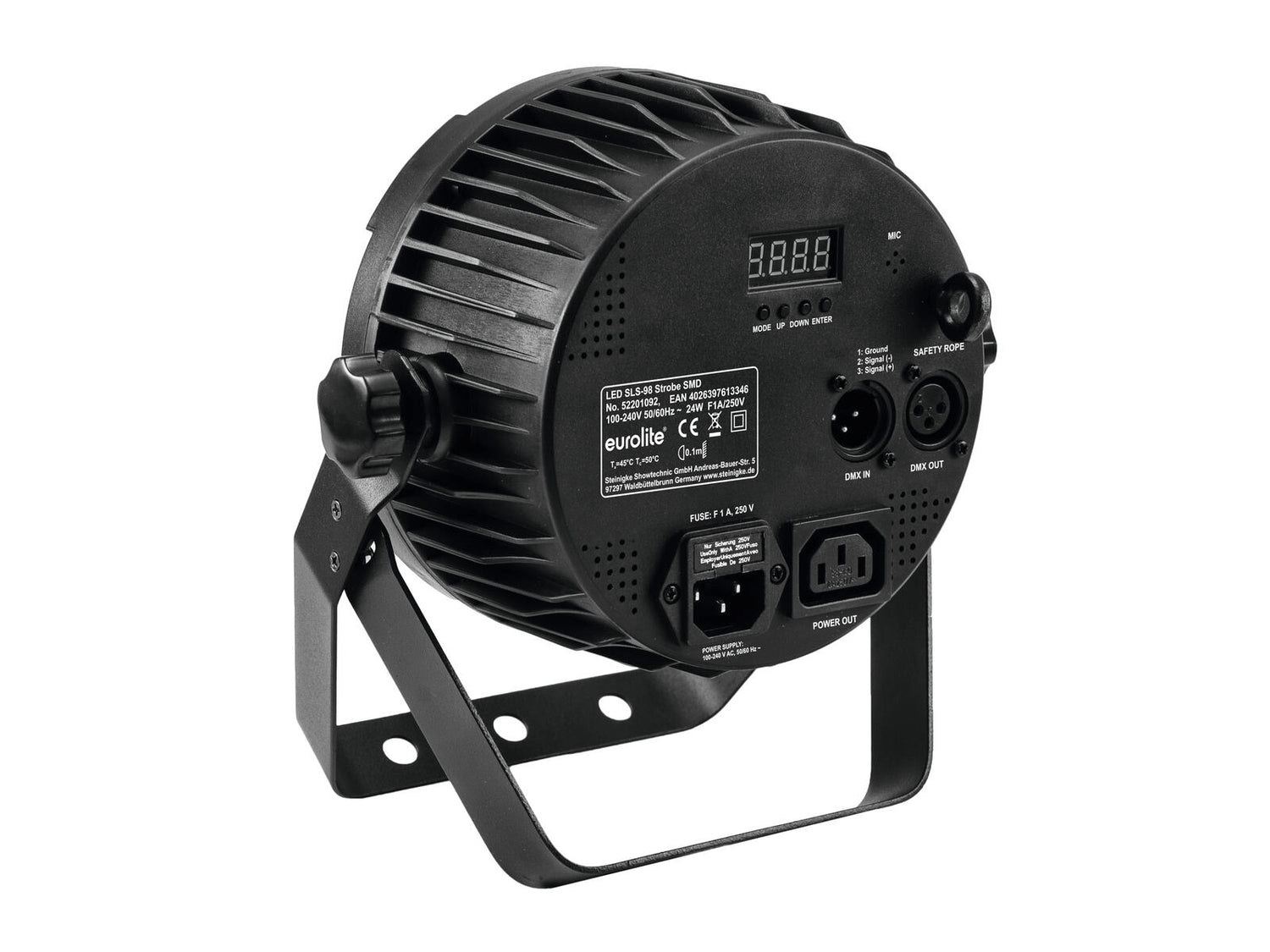

DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone; IR remote control
Fixtures available for:	LED PC-Control 512; Light Captain
Projection:	Flicker-free
Attachment system:	Double bracket
Material:	Plastic
Dimensions:	Width: 21.5 cm Depth: 12 cm Height: 24.5 cm
Weight:	1.20 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Mounting bracket
Diameter mounting holes:	3 x Ø11mm
Material:	Metal, 2 mm
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.2 m
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
