Professional gobo projector with additional color wheel
- 1 LED 100 W COB (chip-on-board) cold white (CW)
- Gobos rotating; zoom manual; focus manual
- Dimmer electronic; color selection direct; Rotation speed adjustable; Rotation direction adjustable; program selection manual
- Gobo effect; spot effect
- Color wheel with 5 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos
gobos changeable - Gobo indexable
- 3 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 12° - 25°

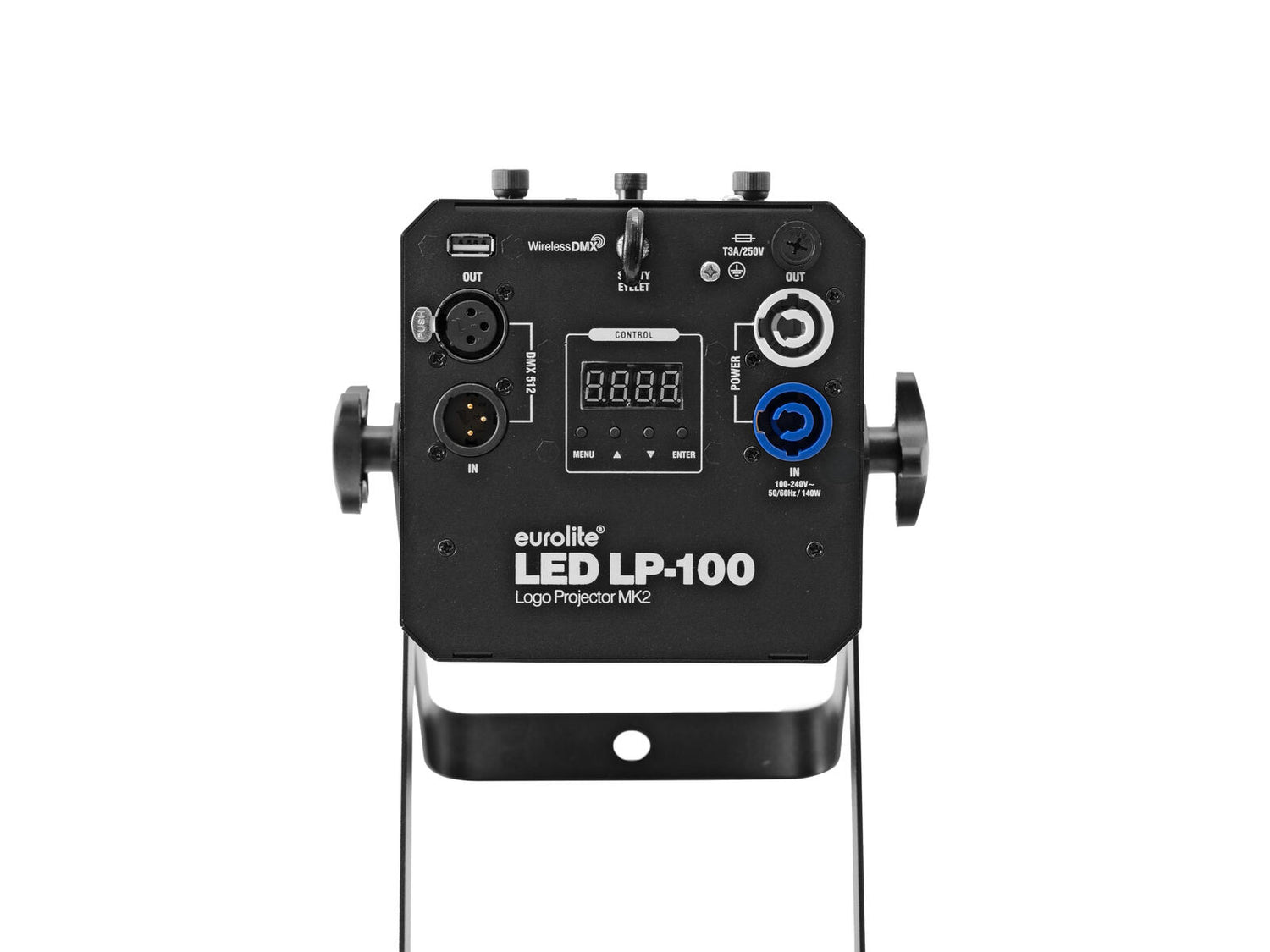

- Monochrome 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels; theater; rental; video and photography; advertisement/Shop window
- Application possibility: Standing; suspended; on stand
mounting bracket
- With double bracket
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x gobo holder
- 3 x gobos
- 2 x mounting bracket
- 2 x knurled screw
- 4 x washer
| Power supply: | 100-240 V AC, 50/60 Hz 230V AC 1000 mA |
| Power consumption: | 100 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version Bypass |
| Device fuse: | 5 x 20 mm, T 3 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 100 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 0.4 - 24 Hz |
| Equipment: | Gobos rotating; zoom manual; focus manual |
| Color generation: | Color wheel with 5 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos Outside diameter 32.6mm Image diameter 21mm Gobos changeable Gobo indexable |
| DMX channels: | 5 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: | 2 x temperature-controlled fan |
| Control: | Stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 24000 Hz |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 12° - 25° |
| Beam angle (1/2 peak): | Spot 12 - 14° |
| Beam angle (1/10 peak): | Spot 12 - 25° |
| Illuminance in Lux (lx): | Narrow cold white (CW) 1m: 133020 lx, 3m: 14449 lx, 6m: 3622 lx Wide cold white (CW) 1m: 43370 lx, 3m: 4970 lx, 6m: 1328 lx |
| Housing color: | Black matte |
| Display type: | 1 x monochrome 4 digit 7-segment LED display |
| USB port: | 1 x type A |
| Material: | Metal, painted |
| Dimensions: | Length: 31 cm Width: 20 cm Height: 29 cm |
| Weight: | 4.67 kg |
| Noise classification: | Class 2 (slight noise) |
| Power cord | |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Mounting bracket | |
| Attachment system: | Ø 12mm Double bracket |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
