ART Patchbay 8 kanaler med Isolator, Balanceret jack
TTC • B2B HT
Description
Description

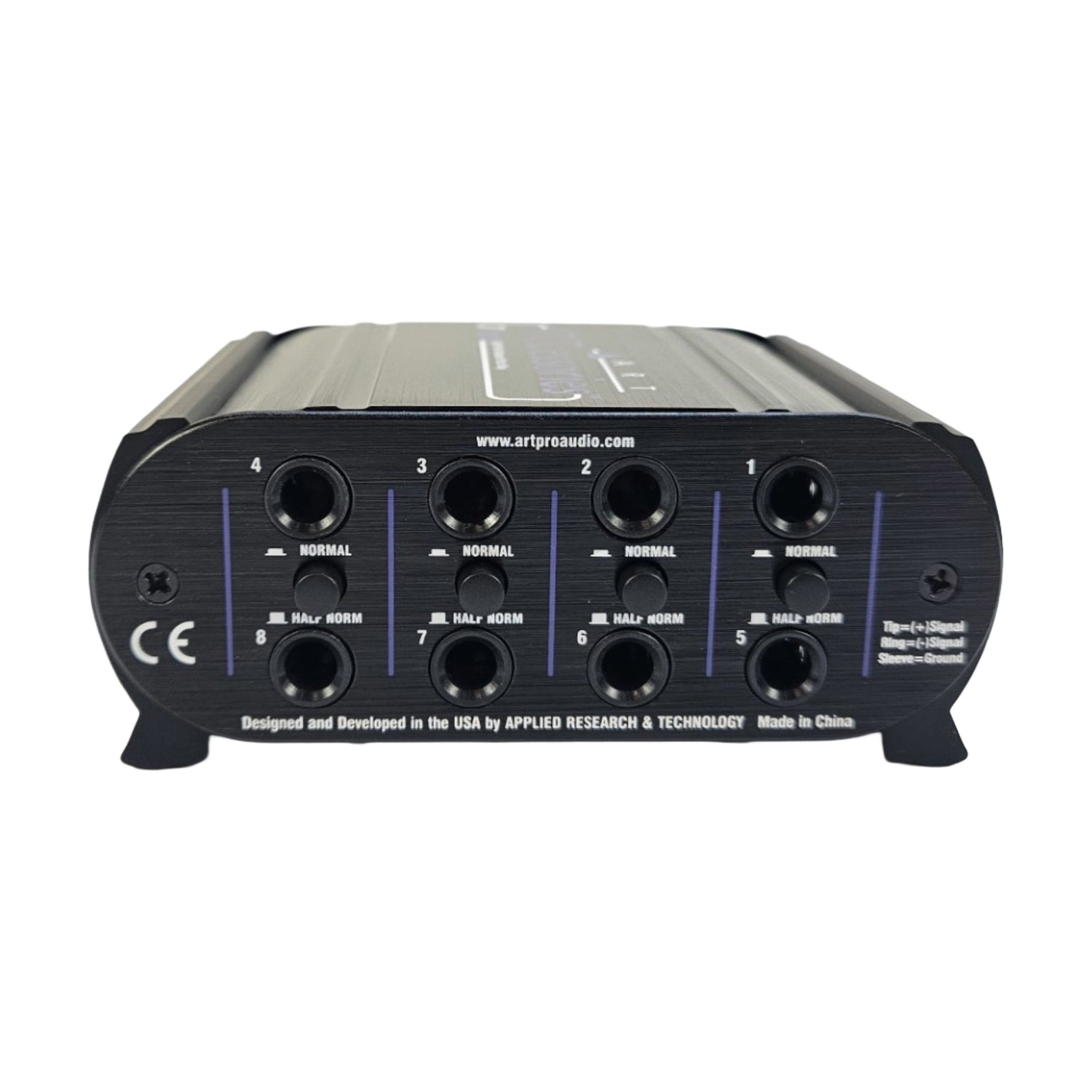

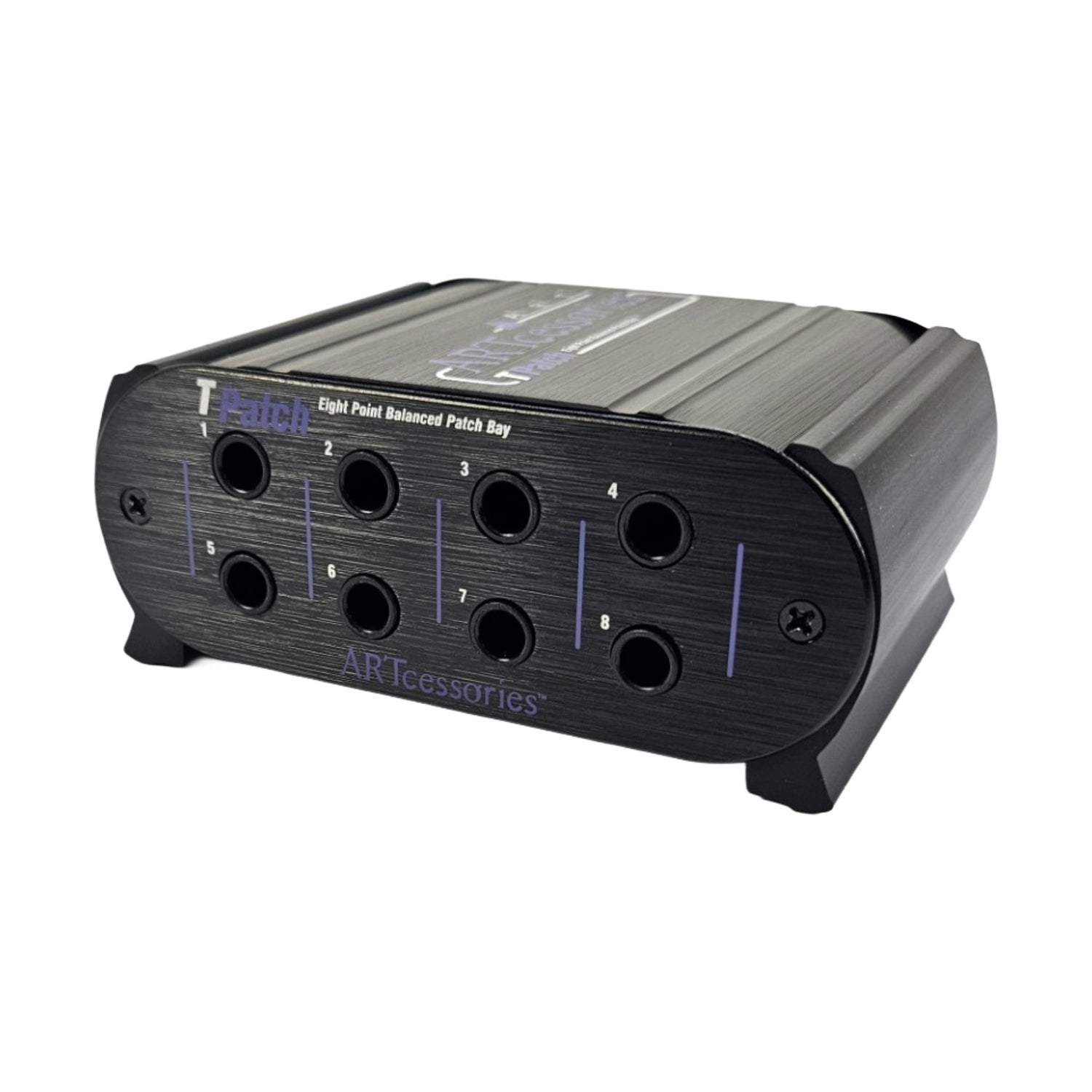

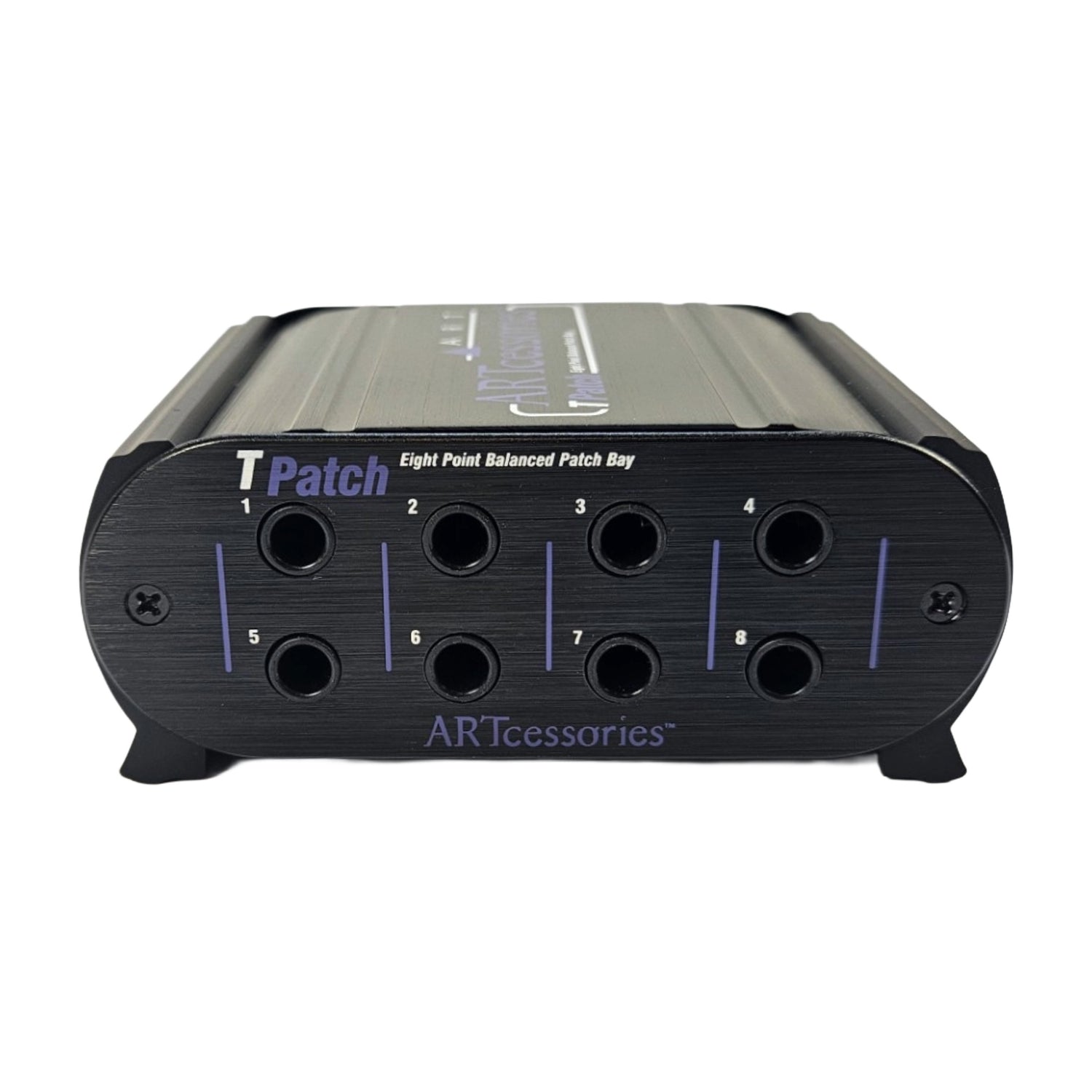

ART TPATCH Patchbay 8 kanaler med Isolator, Balanceret jack
TPatch er en kompakt 8-point balanceret patchbay som organiserer kabler så de ligger i en praktisk, central lokation på f.eks. studioets skrivebord. Den er designet til maksimal fleksibilitet og tilbyder 1/4" TRS phone-stik og har valgbare normale eller halv-normale tilstande. TPatch tilbyder også en sort, anodiseret aluminiumskasse.
Eight Points of Balanced Direct Signals
Four Channels of Linked Input/Output Pairs
Switchable Half Normal And Normal Modes of Operation (With Through Type Connections)
¼-inch TRS Phone Jack Connectors
Rugged Extruded Aluminum CaseCMRR: > -90dB (typical)
Connectors: 1/4-inch TRS Balanced Phone Jacks
Isolation: > -80dB (typical)
Dimensions: 1.85"H x 4.6"W x 3.9"D (47mm x 117mm x 99mm)
Weight: 0.84 lbs (0.38 kg)
