ART Bluetooth direct box med balancerede udgange (ART-BT-DI)
TTC • B2B HT
Description
Description
Bluetooth Direct Box With Isolated Outputs
Gør dine professionelle lydenheder Bluetooth-kompatible med ART BT-DI, en robust og fleksibel Bluetooth Audio DAC. BT-DI er designet til at give et pålideligt Bluetooth-interface fra computere, telefoner og ældre Bluetooth-enheder til enhver installation. BT-DI fungerer som en fjernudvidelse af din mixer- og mikrofonudgange, og bruger fantomstrøm, så en ekstern strømforsyning er ikke påkrævet.
• Bluetooth 5.0 receiver
• External antenna for long-range operation
• Transformer isolated XLR outputs
• Headphone out
• Selectable fixed/external USB supply OR Phantom Power
• Headphone can be summed Mono
• Compact rugged package, extruded chassis
• Designed and developed in the USA
Specifications

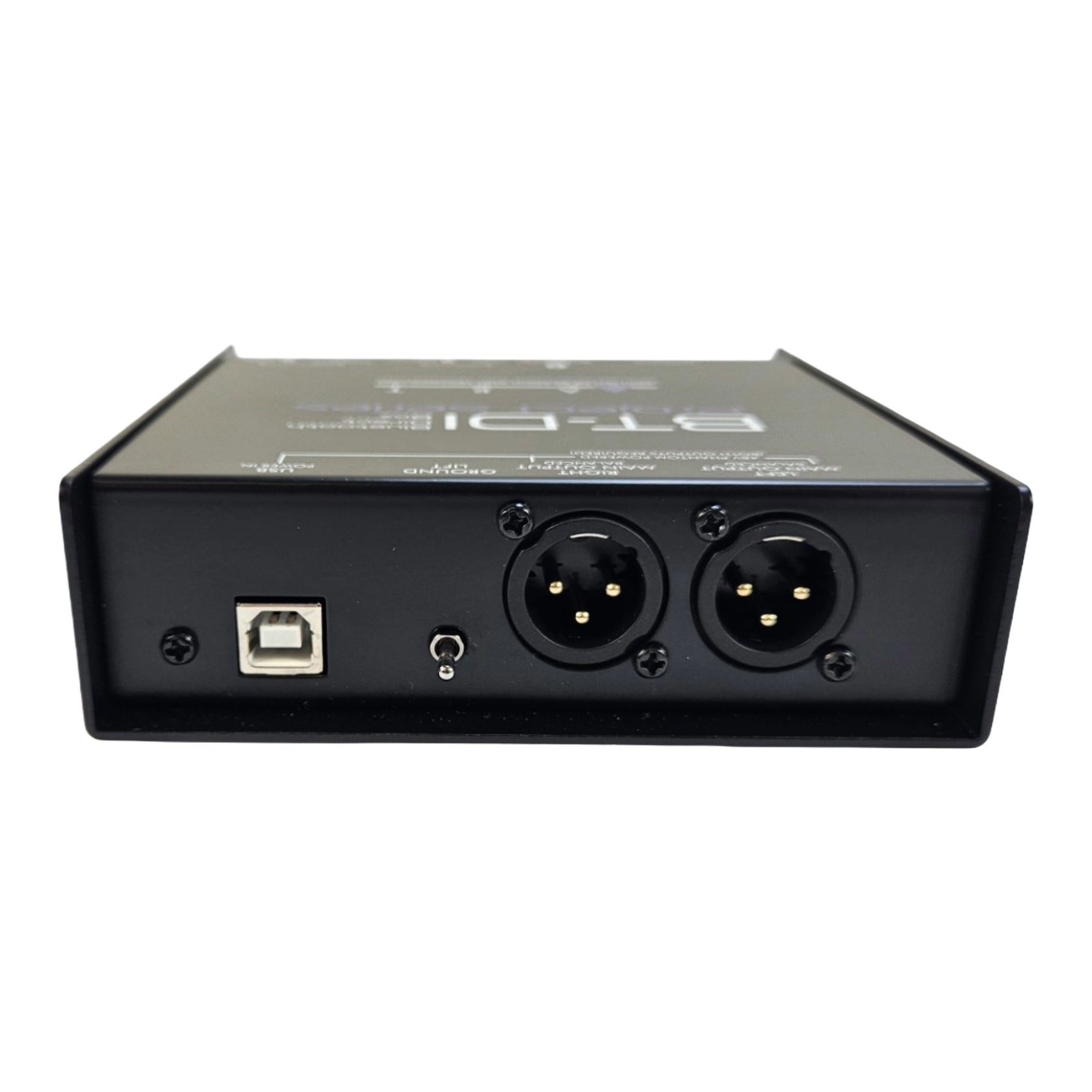

Main Output Connections XLR (2) main output, transformer
coupled, switchable ground.
Main Output Impedance 300 Ohms.
Maximum Output Level 30 dBu balanced Main output,
0 dBu Headphone output.
Signal to Noise Ratio -90dB unweighted typical.
THD <0.05% typical
Bluetooth Version 5.0, up to 50m, Class 2 device (BDR/EDR)
Supported Audio CODEC’s SBC, AAC
Power Requirements 5V USB (80ma) or +48V
Phantom power w/both XLR’s connected.
