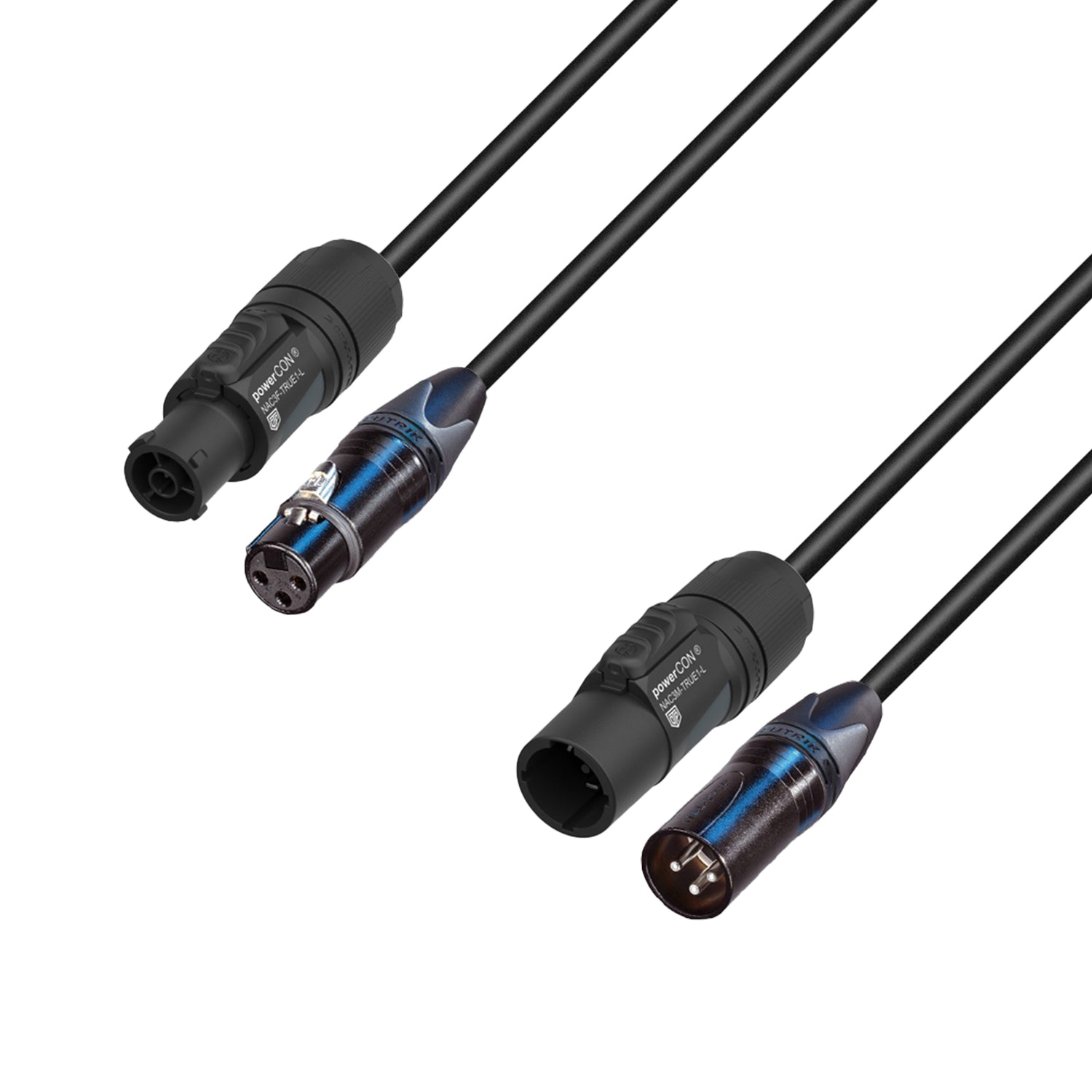

Adam Hall-kabler 5 STAR H TCON D 0150 - Hybridkabel | Strøm og DMX | Neutrik® XLR 3-polet x TRUE1® | 1,5 m
Inkl. moms
Løft din lysopsætning med vores banebrydende Hybrid DMX- & strømkabel fra vores 5 STAR SERIES. Dette alsidige kabel er udviklet til professionelle lysteknikere og muliggør samtidig transmission af DMX-signaler og strøm, så du kan strømline dit setup og sikre en problemfri afvikling.
Effektive og ryddelige opsætninger kræver dette smarte kabel, som er perfekt til f.eks. at forbinde to Cameo OTOS® S5. Udstyret med originale Neutrik®-premiumstik, kendt for deres holdbarhed og fremragende signaloverførsel, hvilket minimerer signaltab og spændingsfald.
Uanset om du sætter op til en koncert, teaterproduktion eller et arrangement, der kræver avanceret lysstyring, er vores hybridkabel til DMX- og strømtransmission den ultimative løsning til effektivitet og driftssikkerhed. Stol på dets europæiske håndværk og kvalitet, så dit show kører gnidningsfrit.
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use 3-pole XLR for the DMX line and the power line will be provided by the Neutrik TRUE1® connectors
- The TRUE1 connectors are IP rated and pluggable under load. Furthermore, they are compliant to the highest standards
- The line with 0.34 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 1.5 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole female |
| Model name plug 1 | Neutrik NC3FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole male |
| Model name plug 2 | Neutrik NC3MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1 |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1 |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 430 g |
