Adam Hall Cables 5 STAR H PCON 5D 0300 - Hybridkabel | Strøm og DMX | Neutrik® 5-polet XLR x powerCON® | 3 m
Inkl. moms
Opgrader din lysopsætning med vores banebrydende Hybrid DMX- & strømkabel fra vores 5 STAR SERIES. Dette alsidige kabel er designet til professionelle lysingeniører og muliggør samtidig transmission af DMX-signaler og strøm, hvilket strømliner din rig og sikrer en problemfri performance.
Effektive og ryddelige opsætninger kræver dette smarte kabel, som er perfekt til at forbinde to Cameo AURO® SPOT Z300 f.eks. Udstyret med originale Neutrik® premiumstik, kendt for deres holdbarhed og overlegne signaltransmissionsværdier, som minimerer signaltab og spændingsfald.
Uanset om du sætter op til en koncert, en teaterproduktion eller et arrangement, der kræver avanceret lysstyring, er vores Hybrid DMX- og strømtransmissionskabel den ultimative løsning til effektivitet og pålidelighed. Stol på dets europæiske håndværk og kvalitet for at holde dit show kørende problemfrit.
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU

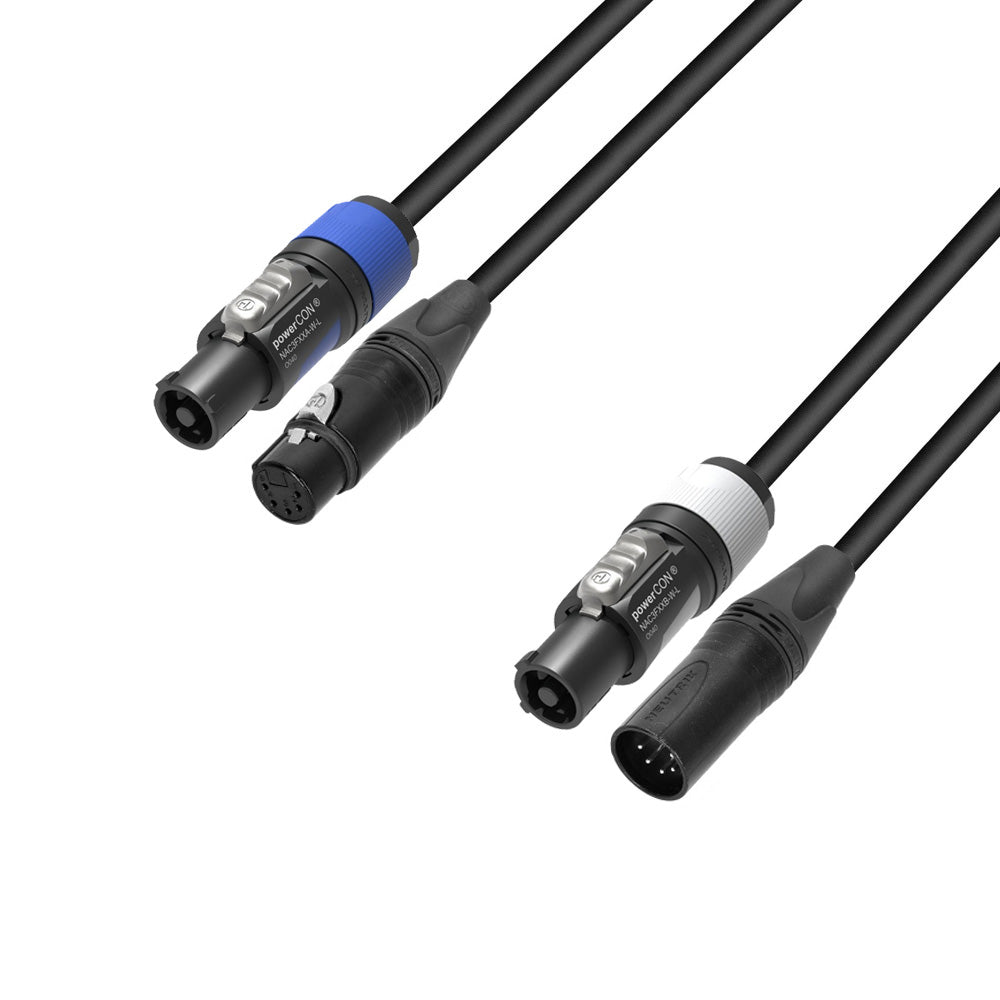

- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use NC5FXX-BAG & NC5MXX-BAG for the DMX line and the power line will be provided by the Neutrik powerCON® connectors NAC3FXXA-W & NAC3FXXB-W
- The powerCON® connectors are pluggable under load, and are therefore compliant to the highest standards
- The line with 0.22 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 3 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 5-pole female |
| Model name plug 1 | Neutrik NC5FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 5-pole male |
| Model name plug 2 | NC5MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,22 mm² |
| AWG | 24 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug indoor power in female & powerCON® |
| Model name connector 1 | Neutrik NAC3FXXA-W-L |
| Plug type connector 2 | Mains plug indoor power out female & powerCON® |
| Model name connector 2 | Neutrik NAC3FXXB-W-L |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 830 g |
