• Equipped with a white 200 W COB LED
• Narrow beam angle of 10°
• Stand-alone, master/slave and DMX mode
• Internal programs
• Rotating 3-facet prism
• Exact positioning via 16 bit PAN/TILT movement resolution
• Strobe effect 0-18 Hz
• Random strobe effect
• Electronic dimmer (0-100%)
• Motorized focus
• Automatic position correction
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)

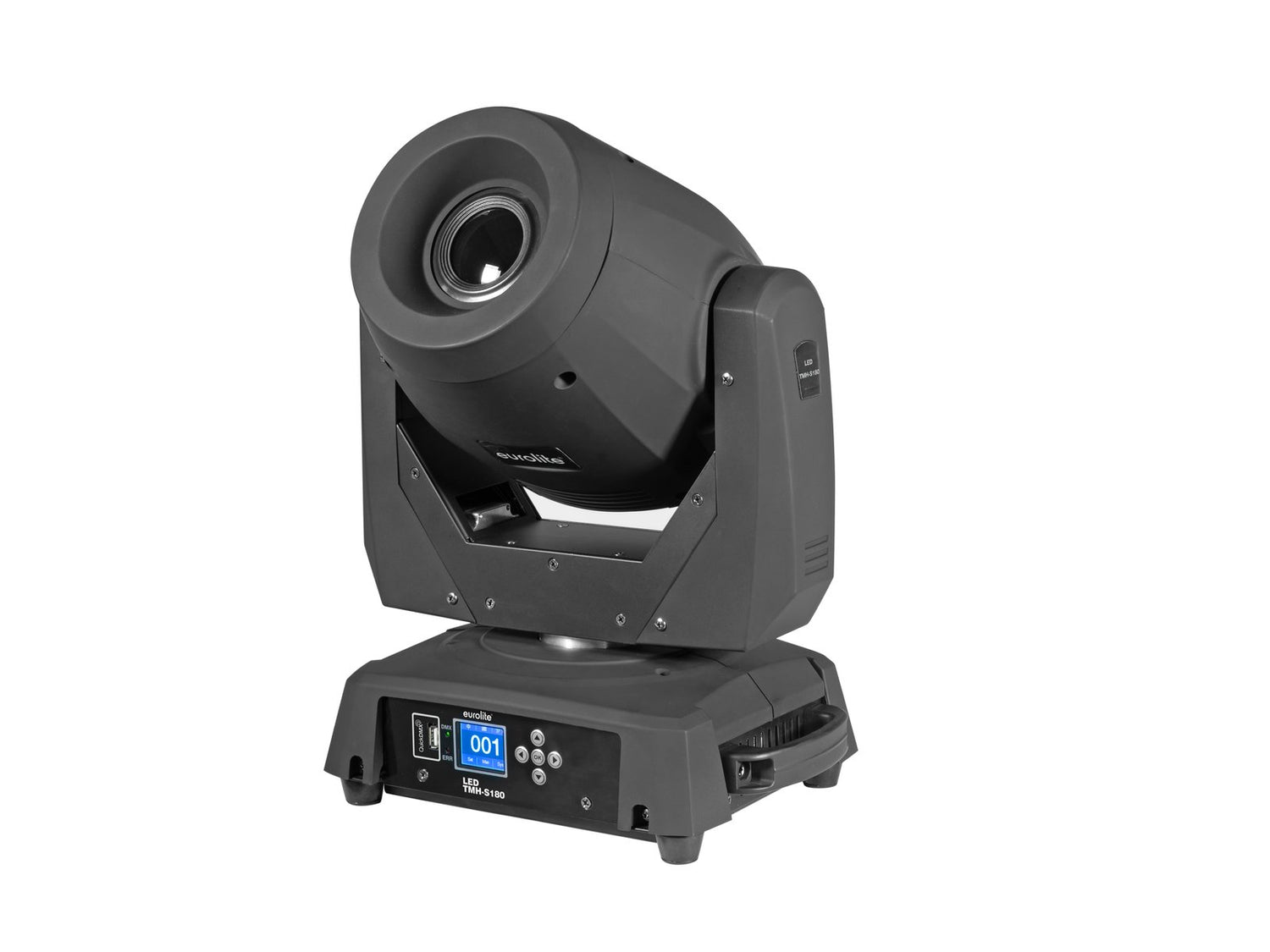

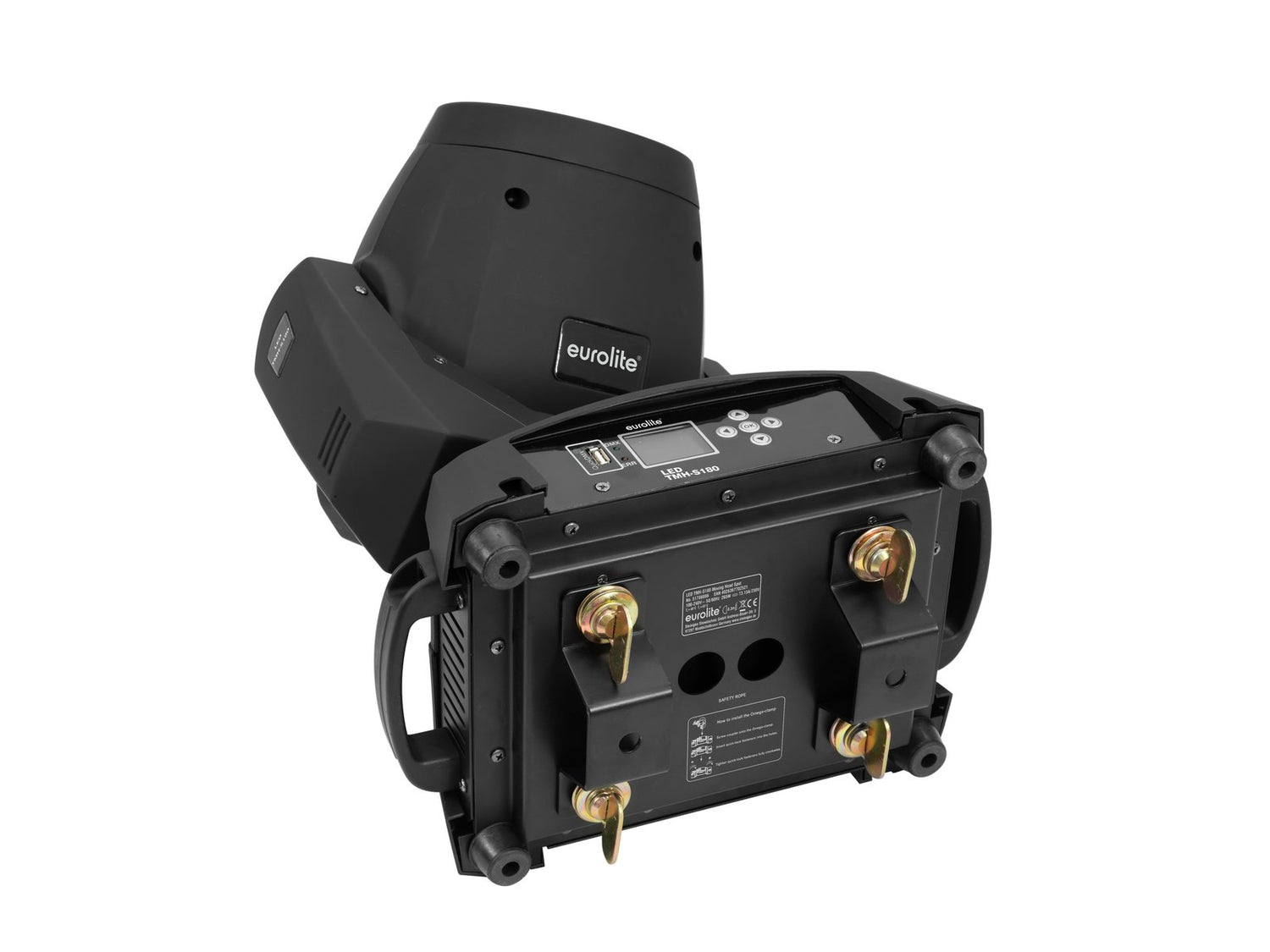

• Control panel with LC display for easy configuration
• Mains input and output for power linking up to 8 units
• LED: 1 x COB (chip-on-board) 200 W cold white (CW)

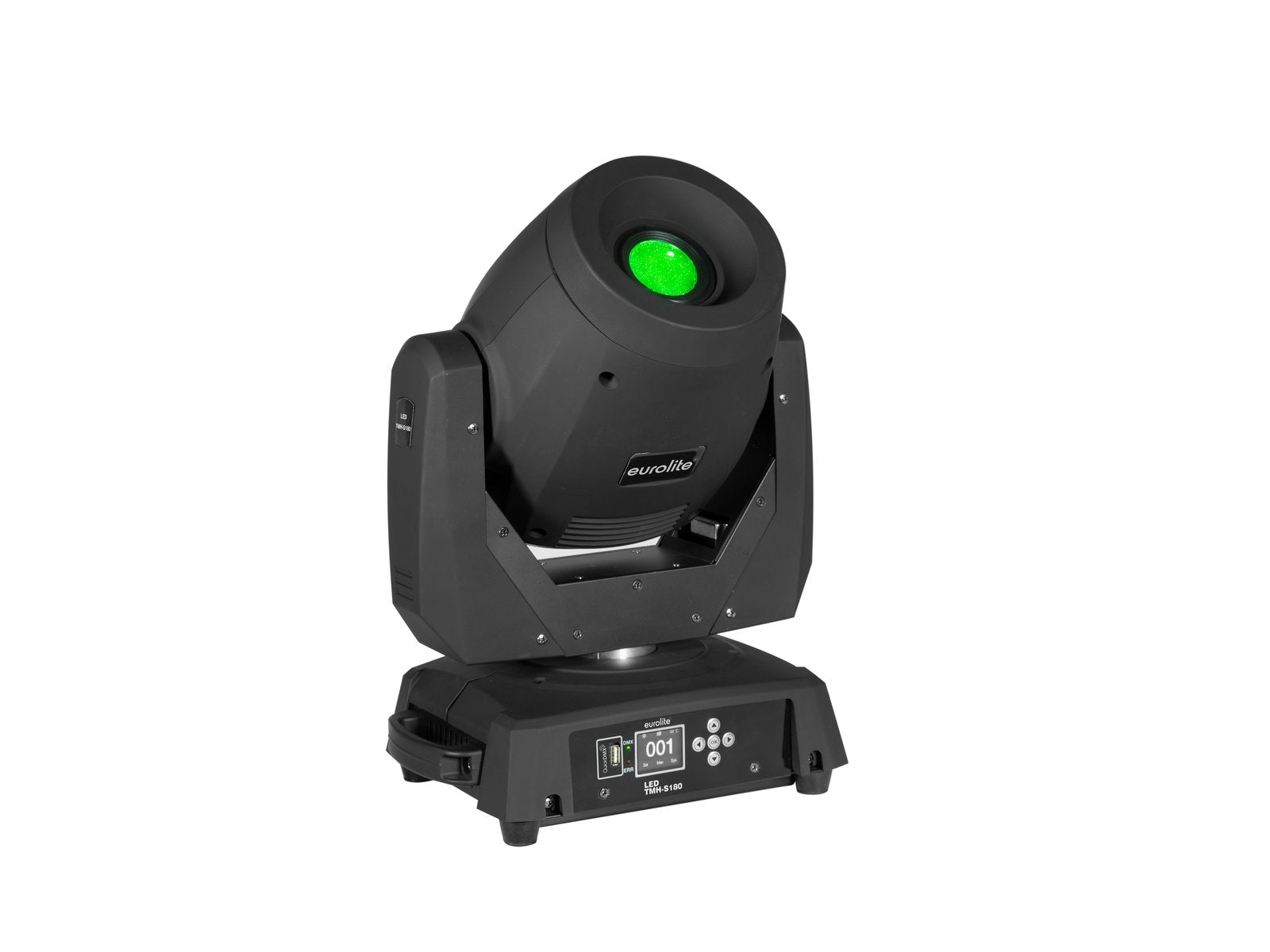

• Color wheel 8 dichroic filters plus open
  Rainbow effect with adjustable speed
• Gobo wheel with rotating gobos, 7 gobos and open
  shake effect
• Gobos changeable
• Slot-in gobo system for exchanging gobos without tools
• Can be operated in 13; 15 CH mode
• The device is cooled by cooling fan
• Controlling by stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
• Preprogrammed in Light´J; LED PC-Control 512; Light Captain
• Flicker-free projection
• Effect: Multi beam effect; gobo effect

Technical:

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 265 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output: P-Con (gray), mounting version
• Fuse: 5 x 20 mm, T 3,15 A Fuse replaceable
• Lamp type: LED lamp
• LED: 1 x 200 W COB (chip-on-board) cold white (CW)
• Max. TILT movement: 270° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Max. PAN movement: 540° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Flash rate: 0 - 18 Hz
• Equipment: Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
• Color generation: Color wheel with 8 dichroic filters plus open
• Half colors selectable, Rainbow effect with adjustable speedDMX channels: 13; 15

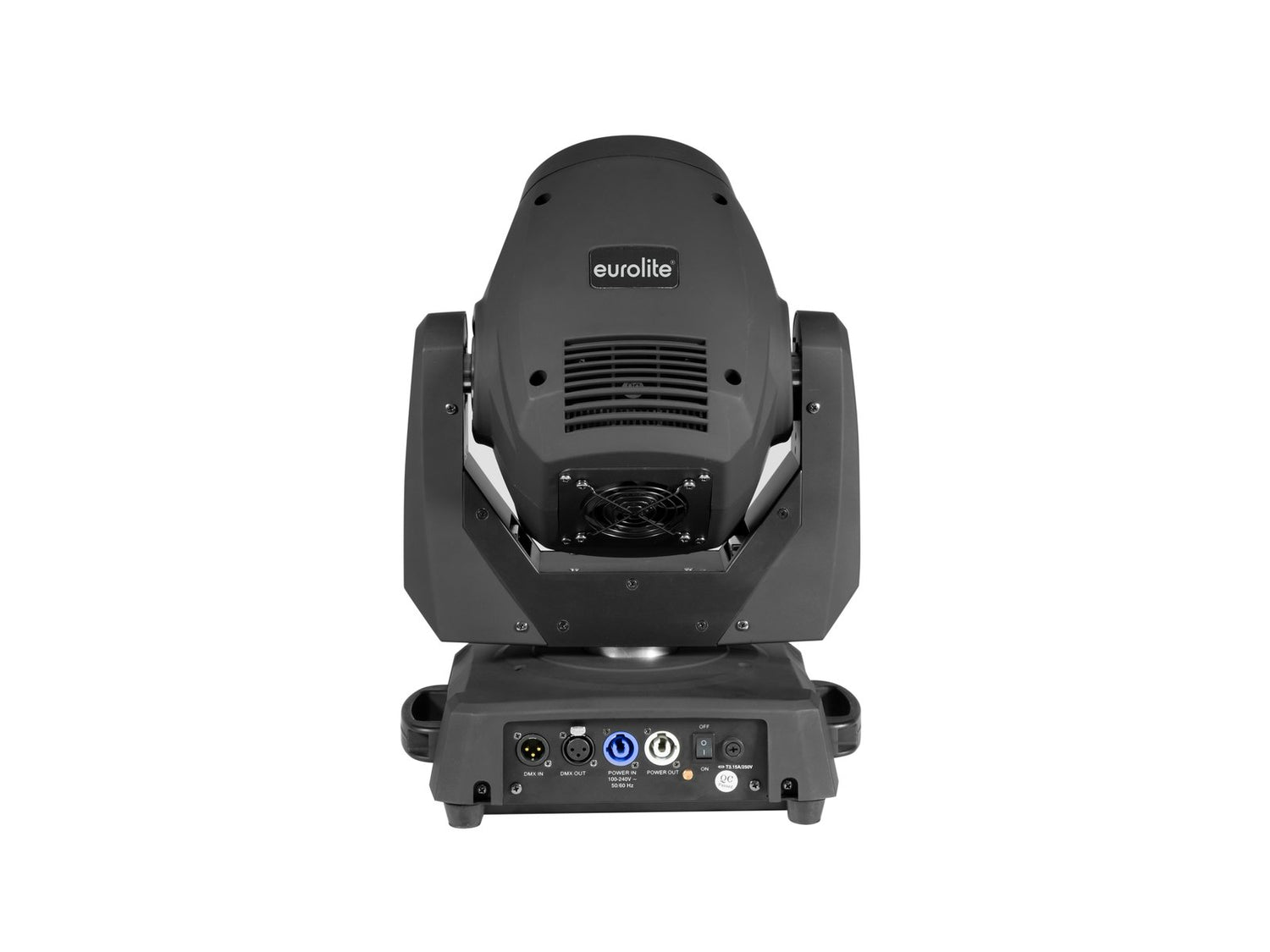

• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
• Preprogrammed in: LED PC-Control 512; Light Captain
• Projection: Flicker-free
• Beam angle: 10°
• Beam angle (1/2 peak): 10°
• Illuminance in Lux (lx): Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
• Housing color: Black
• Display type: LCD display
• Noise classification: Class 3 (clearly perceptible sounds)

Gobos:

• Gobo wheel with rotating gobos, 7 gobos and open
• Outside diameter 23,5mm
• Image diameter 15mm
• Shake effect
• Gobos changeable
• Slot-in gobo system for easy gobo replacement

Dimensions:

• Width: 32,5 cm
• Depth: 27,0 cm
• Height: 45,5 cm
• Weight: 11,35 kg

Legal specifications

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting

Downloads

• Eurolite LED TMH-S180 Moving Head Spot manual
