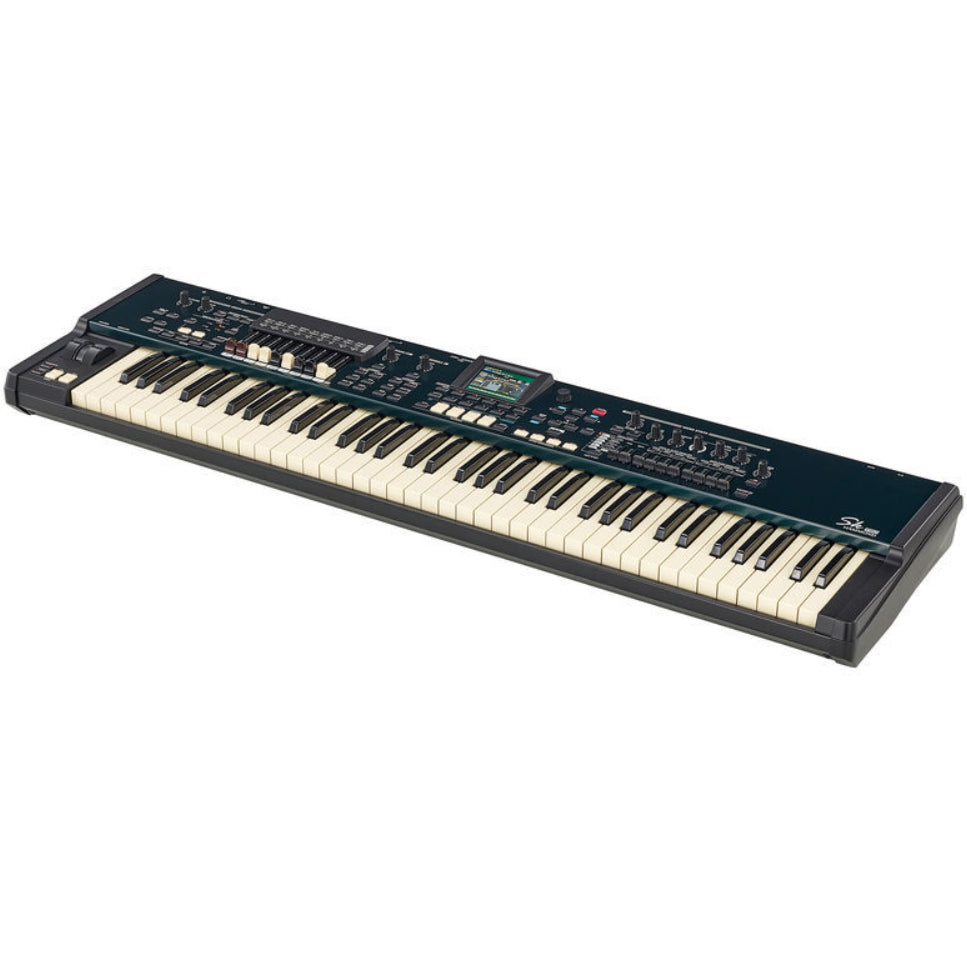

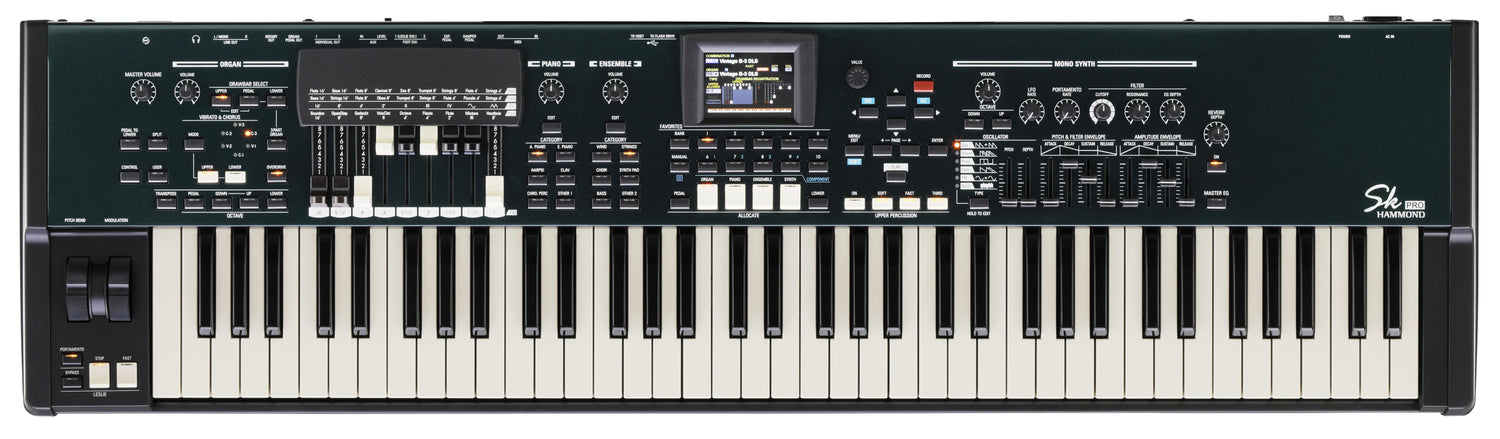

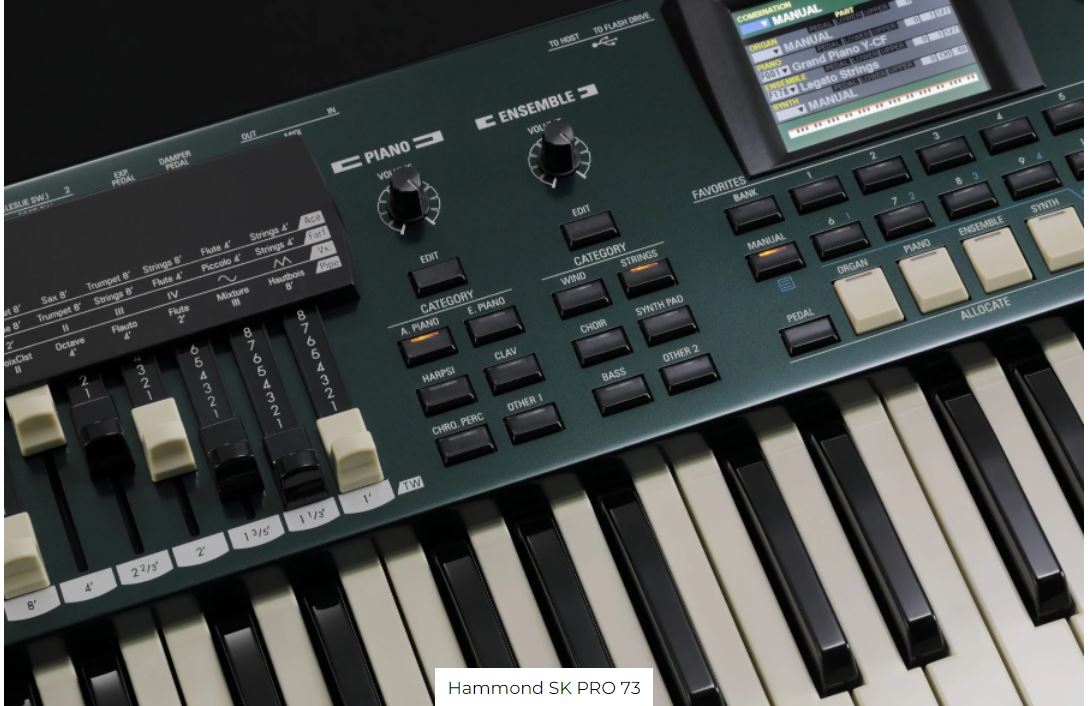

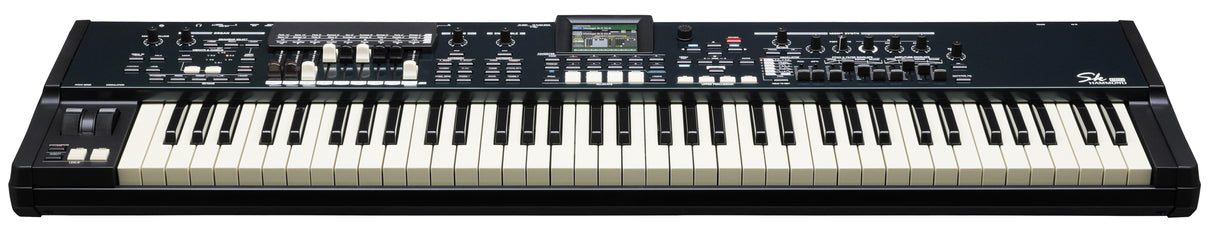

Hammond SK PRO 73 Stage Keyboard

• Top quality Hammond keyboard organ
• Huge sound bank
• 73 lifelike 'Hammond' Waterfall keys
• Model Tone Wheel 1
• Drawbar organ section from the XK-5
• 4 sound motors
• Mono synthesizer

Hammond SK PRO 73

• The latest generation of organ-centric, all-in-one keyboards from Hammond.
• Packed with hundreds of high-resolution sound samples, including the hyper-realistic drawbar organ section from the flagship XK-5.
• Equipped with the powerful Model Tone Wheel 1 sound engine that houses entire fire unique sound modules that can be activated individually or in concert.
• In addition, the SK PRO comes with an accomplished analog Mono Synthesizer module so you can create and play wild synth leads, basses, arpeggios, etc. in real time.
• 6 individual VCOs (duo, unison, pulse, sync, FM, noise) and 3 LFOs (piano/ensemble and mono synth)
• 73 semi-weighted velocity-sensitive keys set up in classic Hammond waterfall style.
• On-board Digital Leslie module that recreates the classic tone character.
• Lots of effects including vibrato, chorus, overdrive, Leslie, EQ and reverb.
• MIDI connectivity over USB and ability to send audio over USB to a computer.

SOUND ENGINE    [Organ Section] : MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ)
[Piano/Ensemble Section] : Sampling Sound Engine, Polyphony: 128
[Mono Synth Section] : Analog Modeling Synthesizer, Monophonic
KEYBOARDS    SK PRO: C1 to C6 61-keys  /  SK PRO-73: F1 to F7 73-keys, velocity, semi-weighted, Square-front ("Waterfall"-style)
ORGAN SECTION    [Parts] : 3 (Upper, Lower, Pedal)
[Drawbars] : 1 set, 9 pitches
[Voicing] : Upper & Lower: 8 (A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe)  Pedal: 3 (Normal, Muted, Pipe)
[Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic
PIANO/ENSEMBLE SECTION    Component: 4, LFO: 2
MONO SYNTH SECTION    [Oscillator] : 6 types (Duo, Unison, Pulse, Sync, FM, Noise)
[Filter] : 4 types (LP12, LP24, HP12, HP24), Resonance, Drive
[Modulator] : LFO: 1, EG: 2 (Pitch & Filter, Amplitude
EFFECTS    [Organ Section] : Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer & Tone Control
[Piano/Ensemble Section] : For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
[Mono Synth Section] : Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
[Master] : Equalizer, Reverb
KEY MAP    [Internal zone] : Transpose, Octave, Split, Pedal To Lower, Allocate, Pedal Sustain
[External Zones] : 3 Zones (assignable to each keyboard)
CONTROLLERS    Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast)
MEMORY    [Favorites] : 10 banks x 10 numbers (Combination), 10 numbers (Page)
[Combination] : Factory: 100, User: 100, Bundle: 100, Manual
[Organ Patch] : Factory: 100, User: 100, Bundle: 100
[Piano/Ensemble Path] : Factory: 300, User: 400
[Mono Synth Patch] : Factory: 100, User: 100, Bundle: 100
[Custom Tone Wheel] : Factory: 4 x 3, User: 4 x 3
[Custom Pedal Registration] : Factory: 3, User: 3
[Custom Pipe] : Factory: 3, User: 3
[Custom Cabinet] : Factory: 8, User: 8
STORAGE    Internal Memory, USB Flash Drive
DISPLAY    320 x 240 pixel
CONNECTIONS    [MIDI] : IN, OUT
[USB] : To Host
[Audio] : Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control)
[Leslie] : 11-pin, 1 and 3 channels available
[Others] : Foot Switch 1, Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal
RATED POWER CONSUMPTION    22W
DIMENSIONS    SK PRO: 1004mm(W) x 322mm(D) x 109mm(H)  /  SK PRO-73: 1170mm(W) x 322mm(D) x 109mm(H)
WEIGHT    SK PRO: 9,3 kg  /  SK PRO-73: 11 kg
ACCESSORY    Power Cord

Manual tilgængelig online: Engelsk, tysk, hollandsk og fransk
