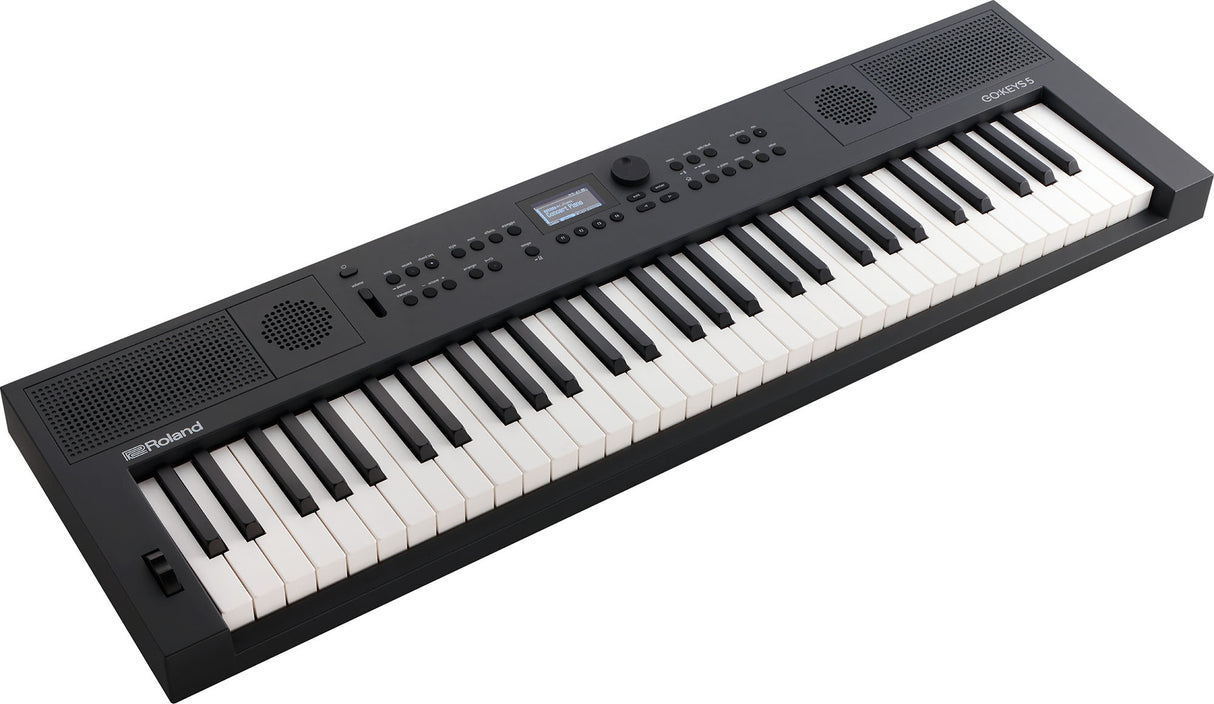

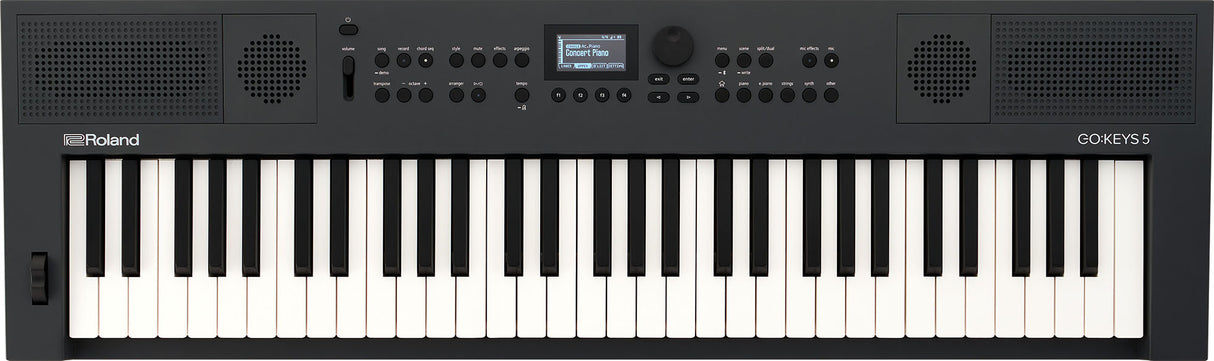

Roland GO:KEYS 5 Craviers (Graphite)

[Sound Generator]
-Sound Generator
ZEN-Core
-Tones
1,154 tones
Sound packs and Wave Expansion from Roland Cloud are available
-Effects
Tone MFX: 2 systems, 93 types
Total MFX: 1 system, 15 types
Reverb: 1 system, 4 types

[Keyboard]
-Keyboard
61 keys(Box-shape Keys with velocity)
-Touch Sensitivity
Key Touch: 9 types, fixed touch
[Speaker System]
-Speaker
Speaker: 5 cm (2 inches) x 2 (with speaker box)
Passive Radiator x 2

[Bluetooth]
Bluetooth Ver 5.0
Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
CODEC: SBC (Supports SCMS-T content protection)

[Auto Accompaniment]
-Style
Preset: 203 styles
Z-Style packs from Roland Cloud are available
-Functions

Start, Stop, Intro, Ending, Sync Start, Variation1, Variation2, Variation3,
Variation4, Part Mute
-Chord Sequencer
Preset Chord Pattern: 304 types

[Scene]
-User Scene
Scene: 256
*Import / export possible

[Data Playback]
-Playable Software
Proprietary MIDI format
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64--
320 kbps, requires USB flash drive)

[Recorder]
-Recordable Software
Proprietary MIDI format (99 songs, Approx. 70,000 notes memory per
song)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash
drive)
-Master Tuning
415.3--466.2 Hz (Adjustable in increments of 0.1 Hz)
-Mic Effects
Auto Harmony (9 types)
Voice Transformer (Octave: -1--+1, Formant: -12--+12 semitones)
Compressor (Type: Soft, Normal, Hard)
Noise Suppressor (Threshold: -96--0 dB)

[Convenient Functions]
Metronome (Adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Transpose (Keyboard/Style: in semitones)
Octave Shift
Dual

Split (Split point adjustable)
Center Cancel
Arpeggiator
Auto Off

[Other]
-Display
Graphic LCD 128 x 64 dots
-Control
Master Volume slider
Pitch Bend Wheel
-Connectors
DC In jack
Hold pedal jack (Capable of continuous detection when optional pedal
connected)
Control pedal jack (Capable of continuous detection when optional
pedal connected)
Input Stereo jack: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
Mic Input jack: 1/4-inch phone type
USB COMPUTER port: USB Type-C (R) (Class Compliant for Audio
and MIDI)
USB MEMORY port: USB A (Mass Storage)
EXT DEVICE port: USB A (Roland Cloud Connect WC-1)
Phones jack: Stereo miniature phone type
-Power Supply
AC adaptor or Alkaline battery (AA, LR6) / Rechargeable Ni-MH
battery (AA, HR6) x 8
*Carbon-zinc batteries cannot be used.
-Power Consumption
9 W (When using the included AC adaptor)
-Battery Life for Continuous Use
Rechargeable Ni-MH batteries (AA, HR6): Approximately 6 hours
(When using batteries having a capacity of 1,900 mAh.)
Alkaline batteries (AA, LR6): Approximately 5 hours
*This figure will vary depending on the actual conditions of use.

[Dimensions]
Detached music rest:
950 (W) x 286 (D) x 87 (H) mm
37-7/16 (W) x 11-5/16 (D) x 3-7/16 (H) inches
GO:KEYS 5 with music rest:
950 (W) x 395 (D) x 245 (H) mm
37-7/16 (W) x 15-9/16 (D) x 9-11/16 (H) inches

[Weight]
4.9 kg, 10 lbs 13 oz
5.5 kg, 12 lbs 3 oz (GO:KEYS 5 with music rest)

[Accessories]
Quick Start
Leaflet USING THE UNIT SAFELY
AC Adaptor
Power Cord

[Option (Sold separately]
Dedicated music rest: MRGKS3/5
Keyboard stand: KS-10Z, KS-12, KS-20X
Damper pedal: DP series
Expression pedal: EV-5
Wireless adapter: WC-1
