Description
Description
- Cette aiguille est une aiguille 2M Red interchangeable qui convient à la cellule Ortofon 2m Red et 2M Red Verso
- Elle est équipée d'un diamant elliptique conique et d'un fil de cuivre

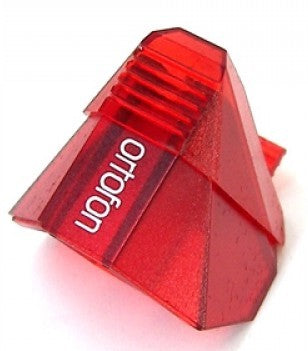

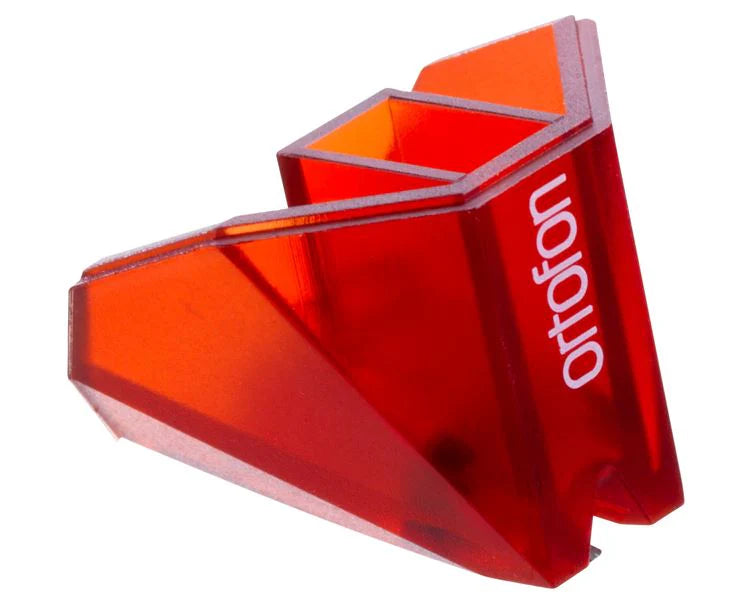

Ortofon 2M Red Nål
La pointe de remplacement 2M Red est une pièce de rechange authentique pour les cartouches Ortofon 2M Red et 2M Red Verso
CARACTÉRISTIQUES :
? Diamant elliptique
? Fil de cuivre
Tekniske specifikationer
Tekniske specifikationer
• Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
• Channel balance at 1 kHz: 1,5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at - 3dB: 20-22.000 Hz
• Frequency response: 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force: 70 µm
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1,6-2,0g (16-20 mN)
• Tracking force, recommended: 1,8 g (18 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 1,3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF
