• Synth with fast workflow and superb sound quality
• In-depth composition tool, easy re-call of creative environments
• Deep computer integration
• 76 semi-weighted keys with aftertouch
• Sound engine with realistic electronic and acoustic sounds
• Hybrid sounds, V-piano technology, Scenes, Multitrack sequencer
• TR-REC sequencer

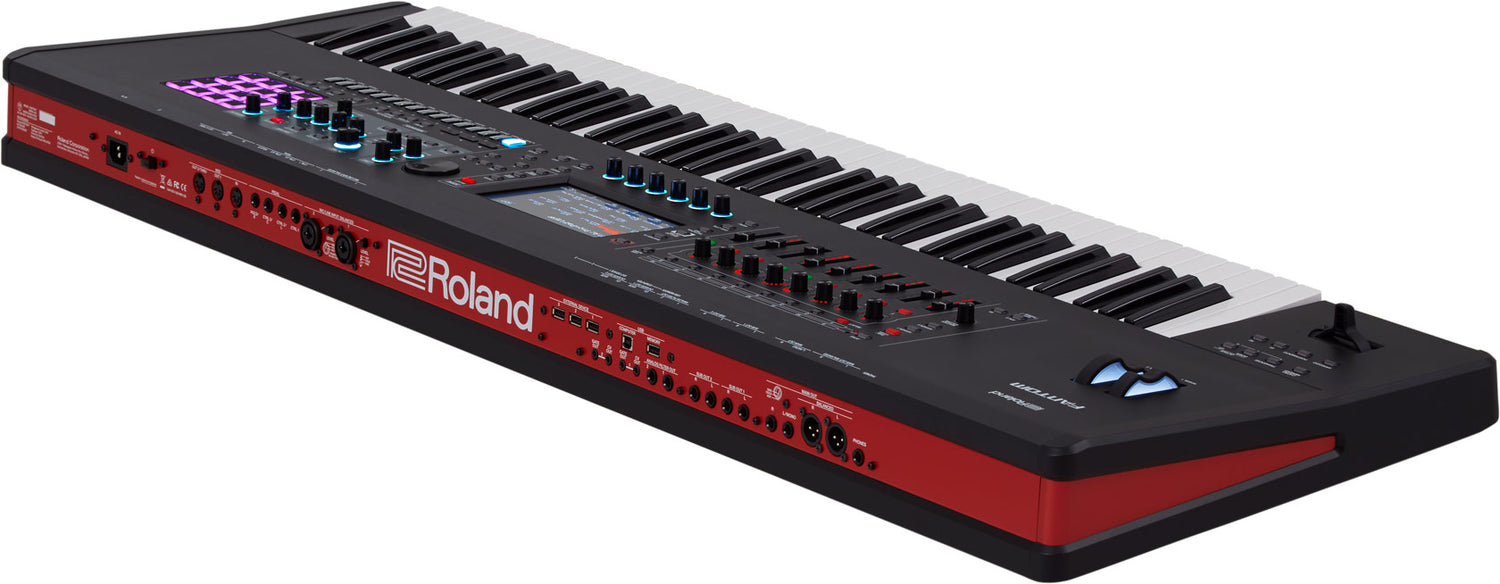

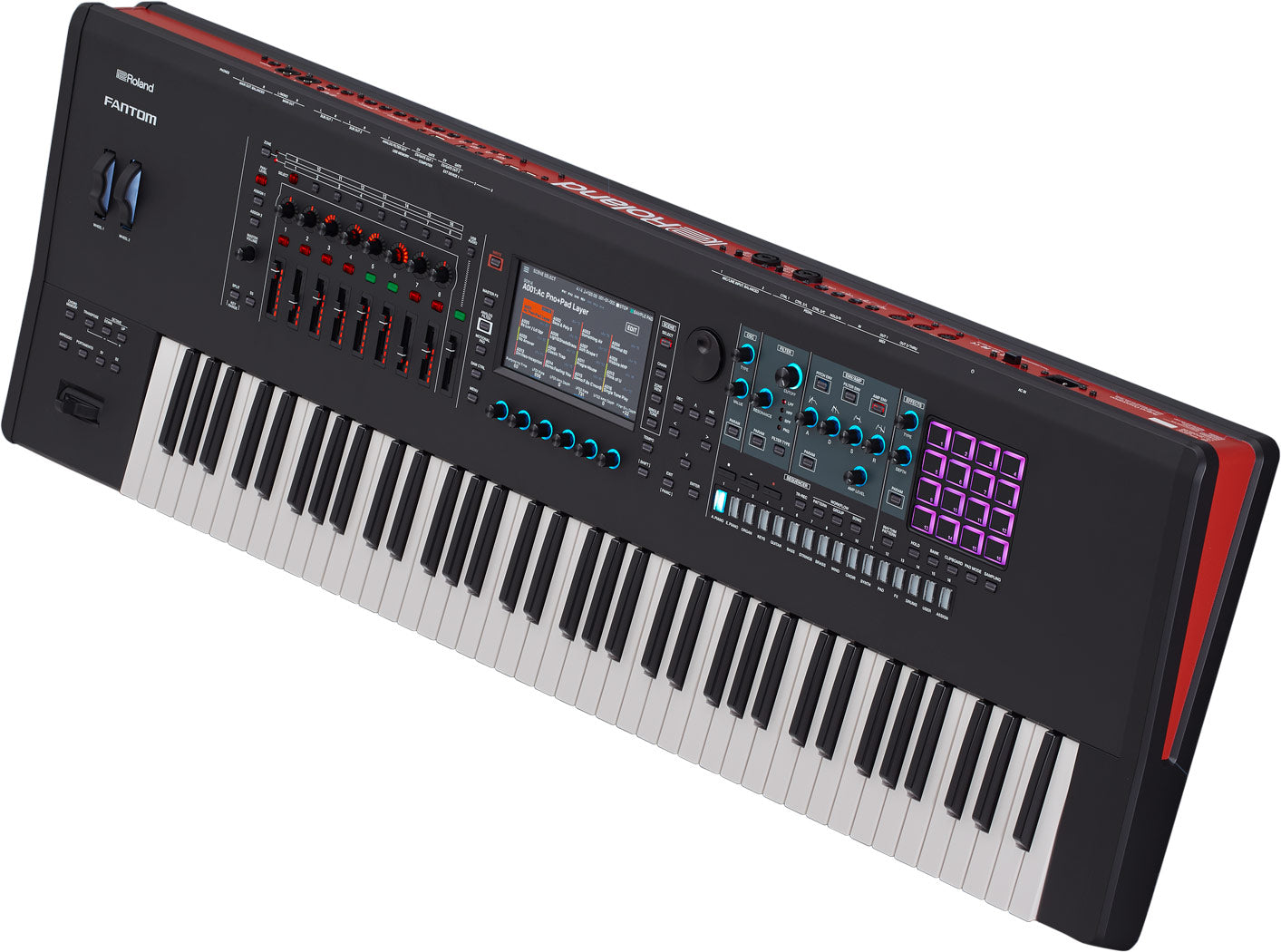

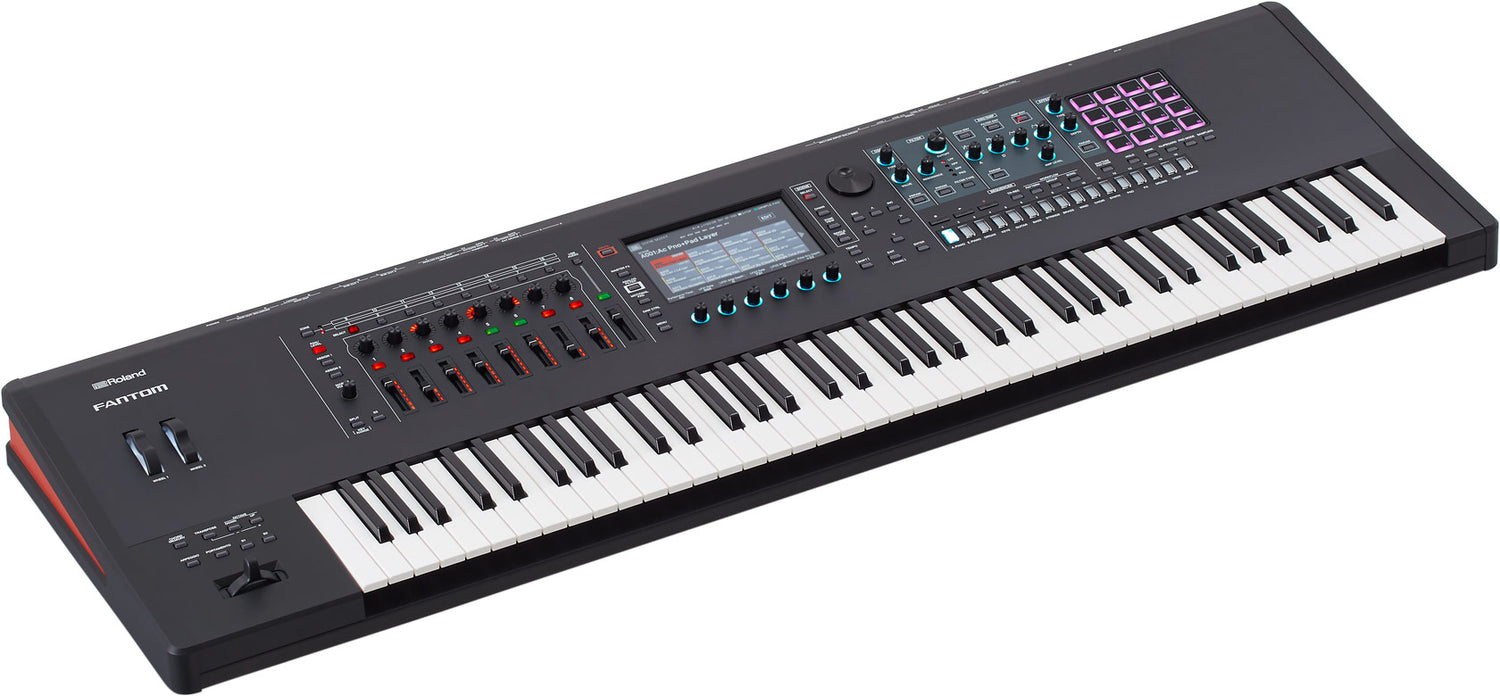

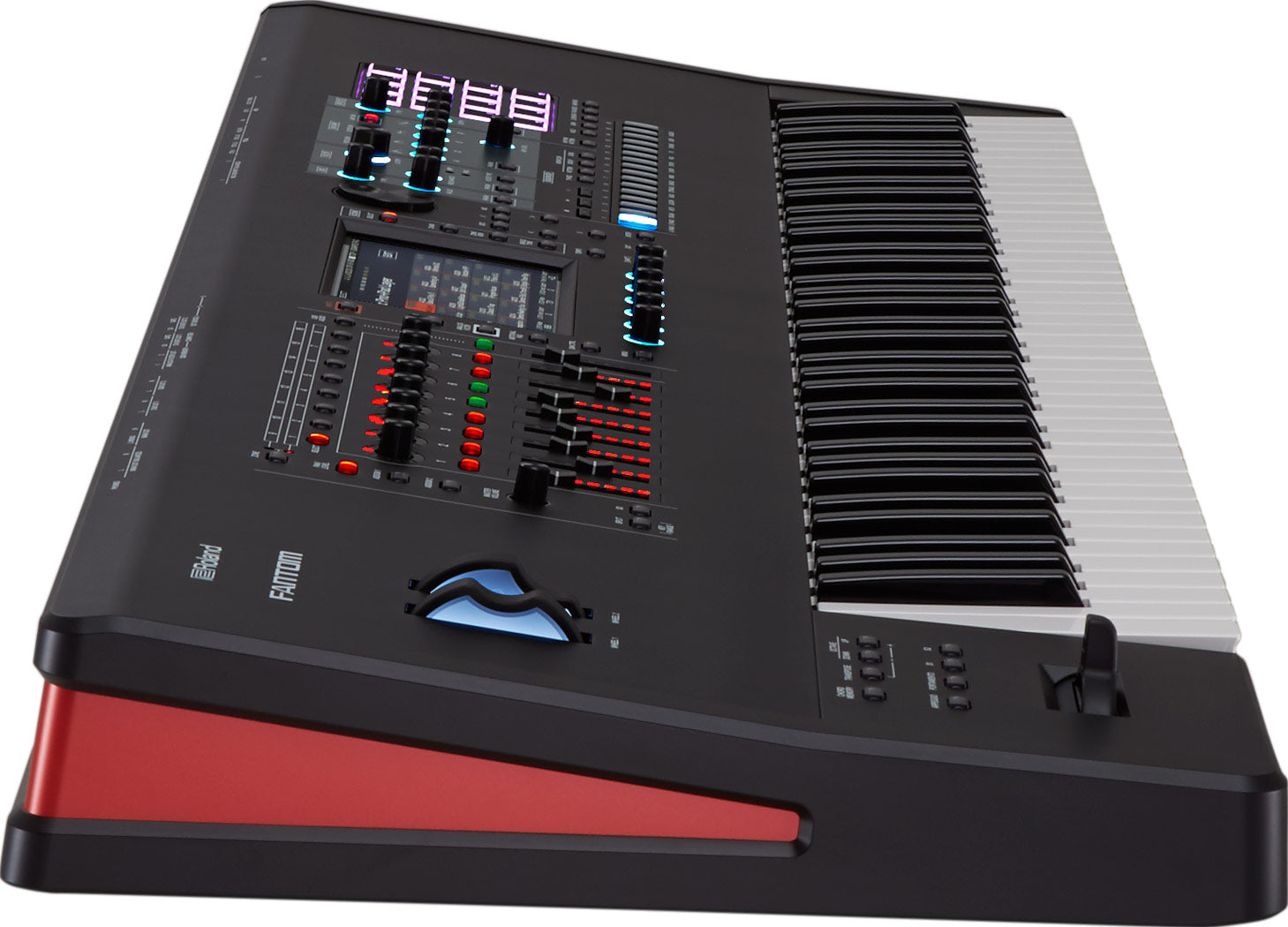

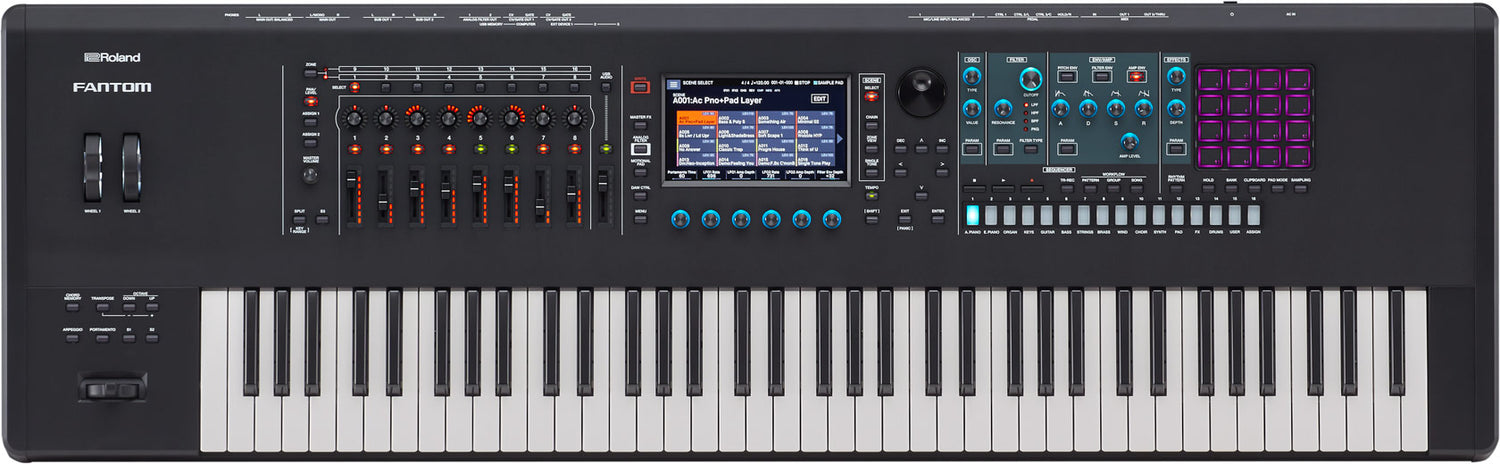

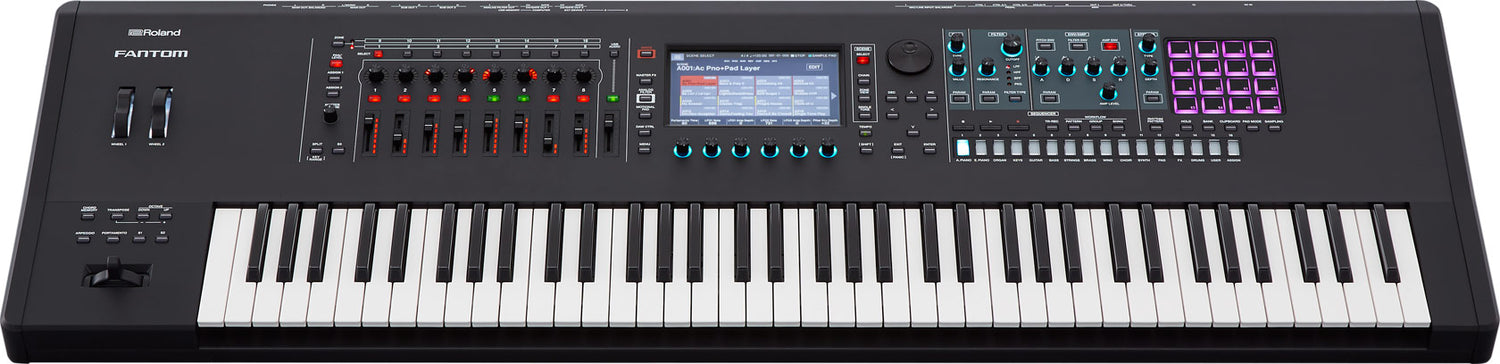

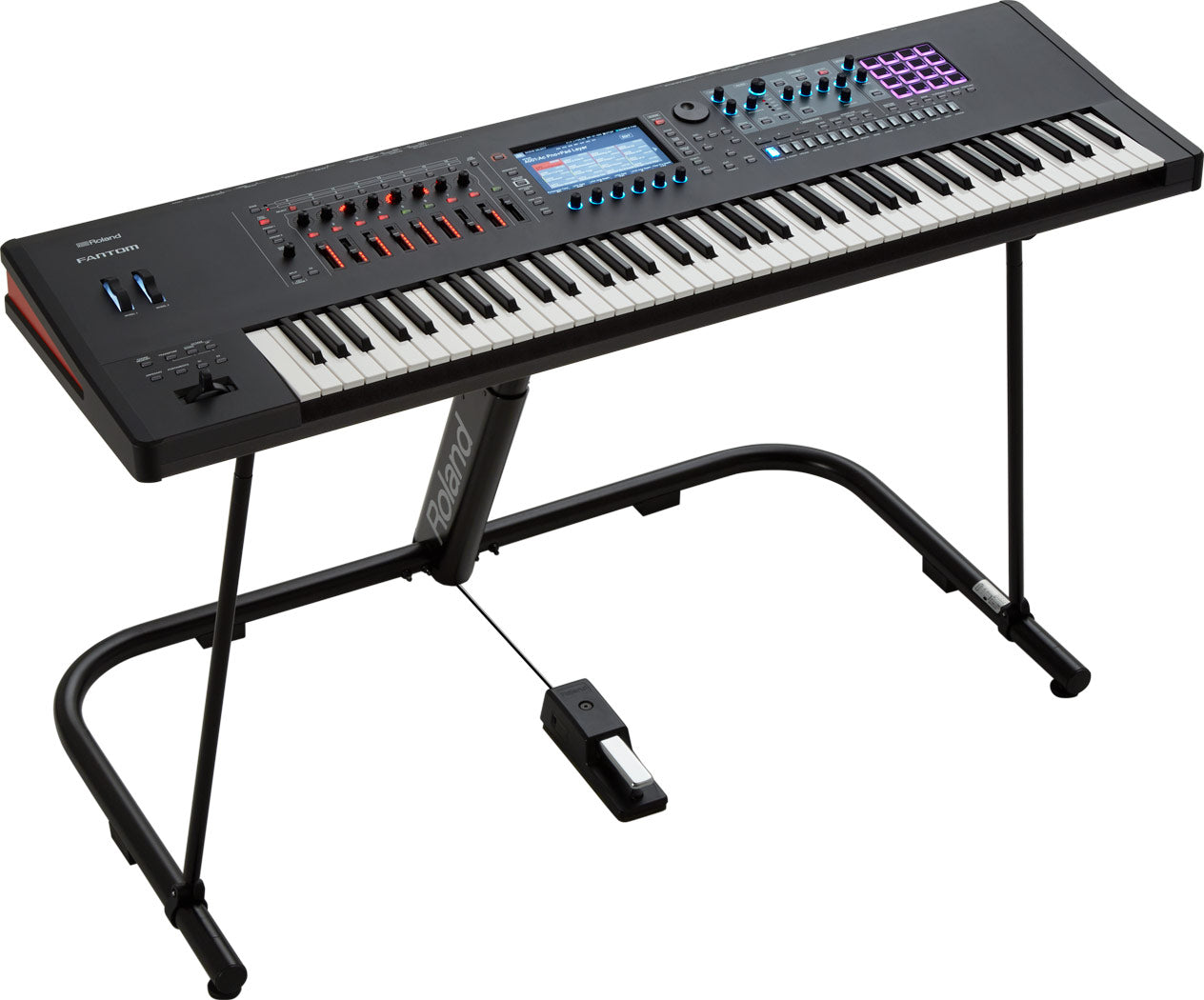

Roland Fantom 7 Synthesizer

• Great synth with fast workflow and endless creative possibilities.
• Excellent sound quality, in-depth composition tools, easy re-call of creative environments.
• Deep computer integration.
• 76 semi-weighted keys with aftertouch
• Sound engine with realistic electronic and acoustic sounds, with expandability.
• Hybrid sounds combining modern PCM, virtual analog and routable analog filters.
• V-piano technology with excellent piano sound and superb dynamics.
• Scenes: Settings for all 16 layers and effects, patterns.

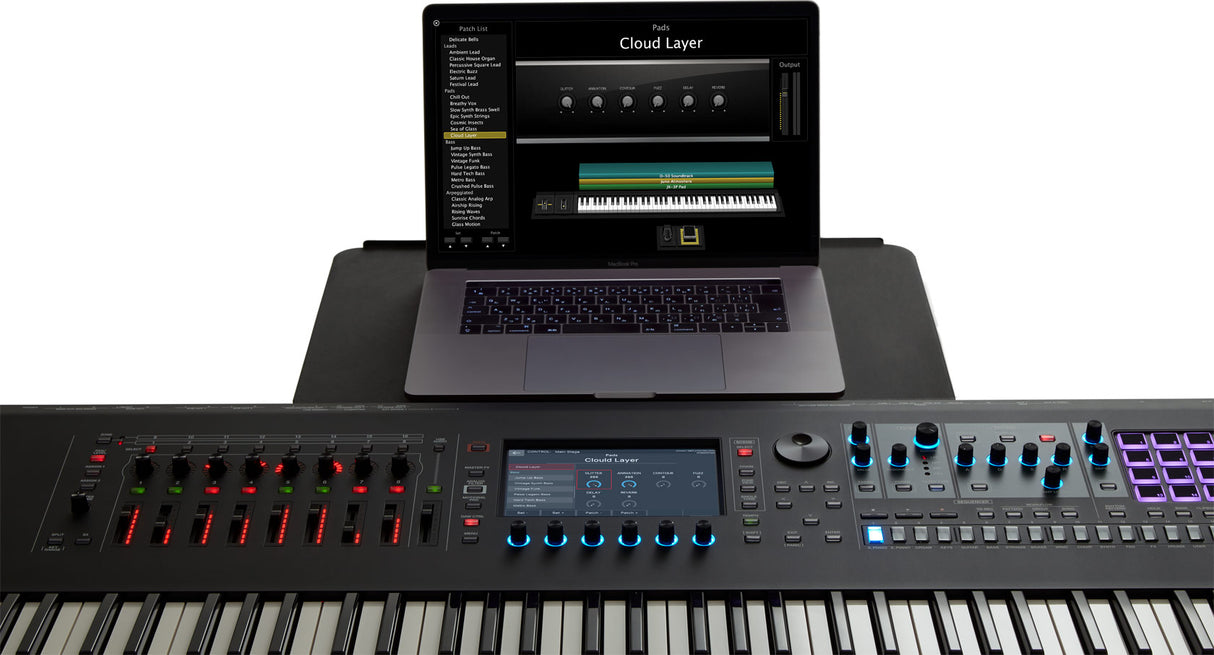

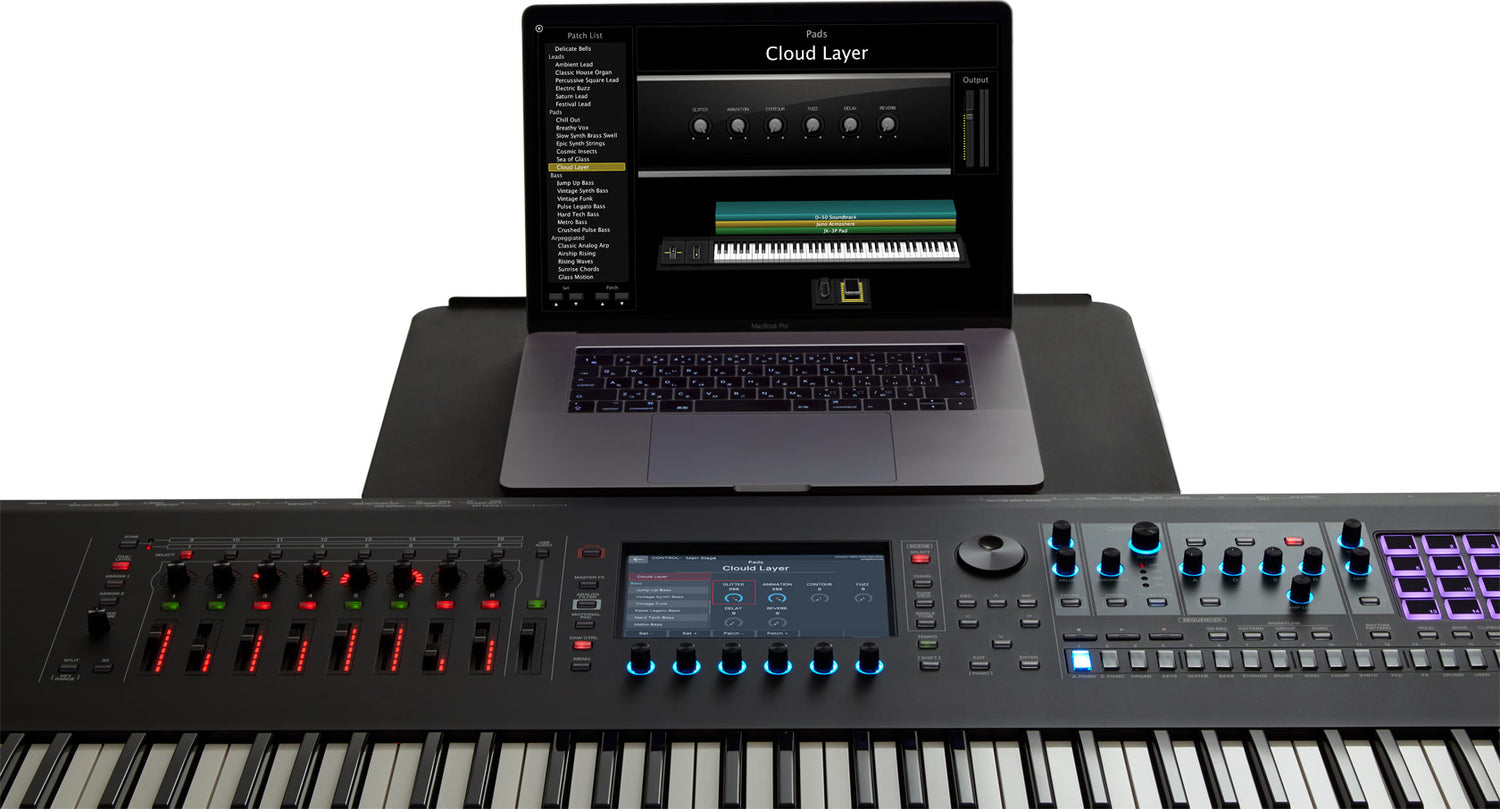

• Deep integration with DAWs, soft synths.
• 16x3 stereo audio interface.
• Multitrack sequencer.
• TR-REC sequencer as you know them from the iconic Roland drum machines.
• Big DSP power for rich polyphony and smooth switching between sounds.
• Available with 61, 76 and 88 keys.

• 76 Keys (semi-weighted keyboard and channel aftertouch)
• Expansion:

EXZ Series
EXSN Series
EXM Series

* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.

• Parts 16 Zones (Internal + External)
• Scenes: 128 Scenes x 4 Bank

* The Scenes can import and export.

• Tones: Over 3,500 Tones, Over 90 Drum kits
• Tone Remain: 16 parts (16 zones / 16 scenes).

* Tone Remain does not apply to V-Piano and VTW sounds.
Favorite Rating System: 4 Steps (0-3)
Tone Search / Scene Search Raiting, Character

• Effects:

Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 System, 90 Type
TFX: 1 System, 90 Types
Input MFX: 2 Systems(in Parallel), 90 Types

Chorus: 9 types
Reverb: 7 types
Master Compressor
Master EQ
Input Reverb: 7 types
Input EQ: 2 Systems (in Parallel)
Analog Filter:
STEREO
Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp
Vocoder:
Band: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20
Scene Chain:
Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 62 (0-9, A-Z, a-z) per 1 Chain Set

• SEQUENCER:

MIDI Tracks 16 (Internal/External)
Group 16
Pattern 8 (per each Track)
Pattern Length 32 measures
Recording Method Realtime recording, Step recording, TR-REC
Editing Method Piano roll edit (Touch Edit / Automation support), Microscope
Song 1 (per Scene)
File format:
Original, SMF export/import supported

* PAD Sampler trigger data can be recorded.

• SAMPLER - KEYBOARD MULTISAMPLE:

Format 16/24-bit linear, 44.1/48kHz, WAV/AIFF
Number of Samples 8,000
Number of Multisamples 128
Sampling Time
The maximum is 2 minutes 44 second (1 Sample)

* A total of approximately 2 GB (Share with Expansion titles)"
* Keyboard Multisample can import and export as ZEN-Core Tone.

• SAMPLER - PAD SAMPLER:

Format 16-bit linear, 44.1/48kHz, WAV/AIFF import supported
Maximum Polyphony 8
Number of Samples 16 Pads x 4 Banks
Sampling Time:
The maximum is 60 minutes (the equivalent of approximately 660 MB).

* A total of approximately 2 GB can be saved (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.

• SAMPLER - INTERNAL STORAGE SPACE FOR FILES: 2GB

Rhythm PatternYes
ArpeggiatorYes
Chord MemoryYes
Motional PadYes
PAD Mode:
Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
AIRA LINK:
Yes

* When connect to MX-1
CV/Gate Control:
2 x CV/Gate or 3 x CV/1 x Gate
ControllersÆ
Pitch Bend/Modulation Lever (*)
Assignable Switch x 2 (S1/S2)
Control Knob x 8
Slider x 8
USB Audio Slider
Wheel x 2 (*)
Function Knob x 6
Sound Modified Knob x 11 (*)
4 x 4 Pad

* 1024 step editing support
It can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.

• Display:

Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen, Wallpaper support)

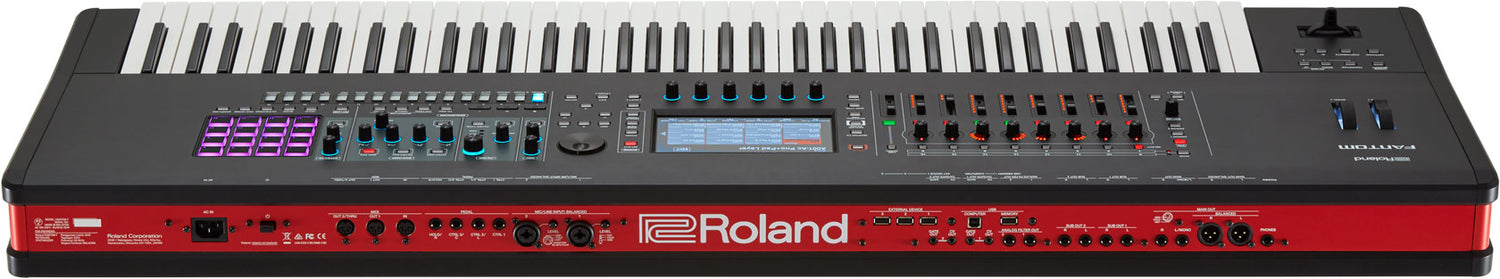

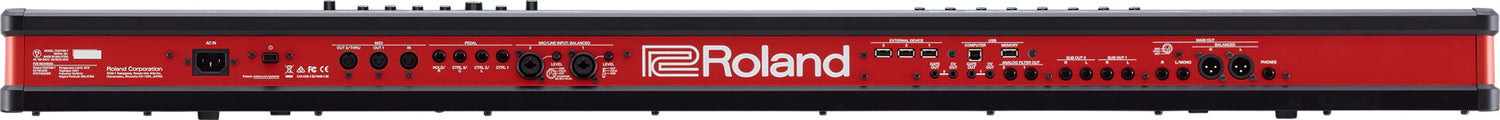

• Connectors:

Headphones Jack: Stereo 1/4-inch phone type
MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT Jacks (L, R) (XLR type)
SUB OUT1 Jacks (L, R) (1/4-inch phone type)
SUB OUT2 Jacks (L, R) (1/4-inch phone type)
ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)
Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2x GATE OUT
FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3) * 1024 Step value support
MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
USB MEMORY Port
USB COMPUTER Port (AUDIO/ MIDI)

3 x External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.

• Audio Interface:

Max 24 bit/96 KHz
Record 16 Stereo Channel
Playback 3 Stereo Channel

• External Memory USB Flash drive (sold separately)

Power Supply AC 117-240V, 50/60Hz
Power Consumption 50 W

• Accessories
• Owner's manual
• Power Cord

Options (sold separately)
Keyboard Stand: KS-11Z, KS-13
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*)

* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.

Width 1,296 mm
51-1/16 inches
Depth 403 mm
15-7/8 inches
Height 106 mm
4-3/16 inches
Weight 17.7 kg
39 lbs 1 oz
