• Yamaha HS4 2-way active monitors in compact design with powerful sound
• 26W + 26W Class-D amplifier
• HF: 1" Dome, LF: 4.5" Cone
• Good solid bass and detailed soundstage
• Room Control and High Trim functions
• Headphone output and volume control on the front

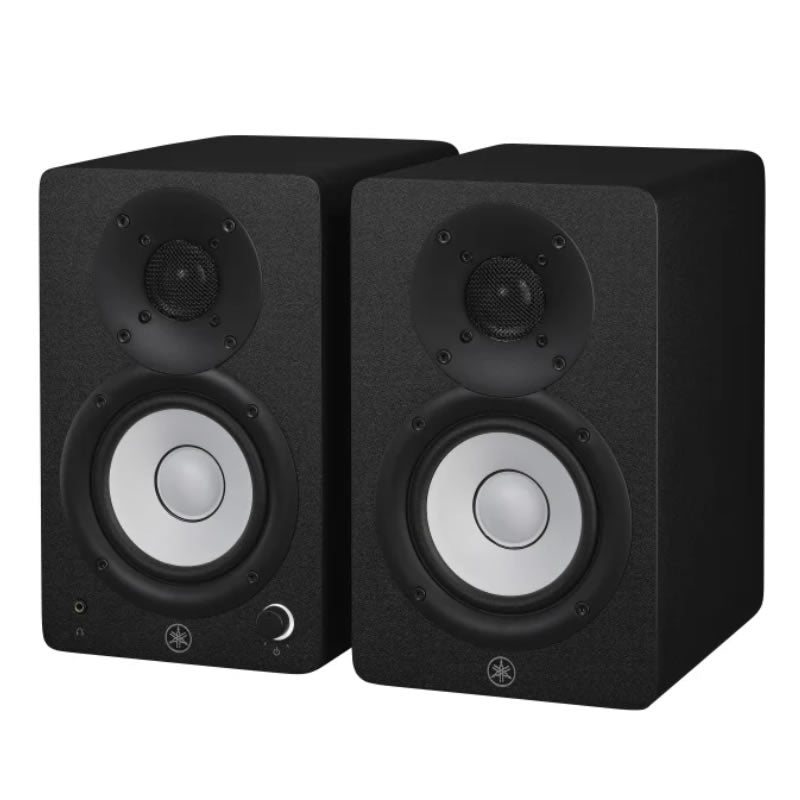

Yamaha HS4 Active Studio Monitors (Black)

• Yamaha's HS series of studio monitors are known for great sound for the price - the go-to monitors for many producers and artists.
• Yamaha The HS4 is a new member of the HS family.
• 2-way active monitors in a compact design with powerful sound.
• 26W + 26W Class-D amplifier.
• HS4 stands out from HS3 by having deeper bass and higher SPL of 102 dB.
• HF: 1" Dome, LF: 4.5" Cone.
• Well-defined bass and detailed soundstage.
• Frequency response: (-3 dB) 83 Hz - 20 kHz / (-10 dB) 60 Hz - 22 kHz
• With Room Control and High Trim functions.
• Plenty of connectivity options with XLR/TRS, RCA and Stereo Mini inputs.
• Headphone output and volume control on the front.
• Available in black and white.

• System Type 2-way Powered speaker
• Frequency Response (-3 dB) 83 Hz - 20 kHz
• Frequency Response (-10 dB) 60 Hz - 22 kHz
• Crossover Frequency 2.3 kHz
• Maximum Output Level (Measured peak, IEC noise@1m) 102 dB SPL

Dimensions:

• L Side 150×240×213 mm
• R Side 150×240×203 mm

Weight:

• L Side 3.7 kg
• R Side 3.1 kg

Input Connector:

• L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini
• R Side: Speaker Input

Output Connector:

• L Side: Headphone, Speaker Output

Speaker section:

• Enclosure: Bass-reflex type, Material: MDF
• Speaker Components: HF: 1" Dome, LF: 4.5" Cone
• Nominal Impedance: 6
• Amplifier section:
• Maximum Output:
• Dynamic, RL=6 - 26 W + 26 W
• THD 0.1%, 1kHz, RL=6 - 20 W + 20 W
• Input Impedance LINE 1 (COMBO): 20 k, LINE 2 (RCA, ST Mini): 10 k
• Input Sensitivity (Volume: Maximum) LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu
• Maximum Input LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu

Input Connectors: LINE 1: COMBO (XLR/TRS PHONE), LINE 2: RCA, Stereo Mini

Controls:

• Front: Volume
• ROOM CONTROL SWITCH 0/-2/-4 dB below 500 Hz
• HIGH TRIM SWITCH +2/0/-2/-2 dB above 2 kHz

Indicator Power ON (White LED)
Power Requirements (*) Depending on area of purchase; 100-240 V, 50/60 Hz
Power Consumption 15 W
Accessories

• Included in the package:
• Stereo Mini - RCA Cable 1.5 m
• Speaker Cable 2.5 m
• Anti Slip Pad
• Quick Start Guide
• Safety Guide
