• Powerful Ampeg Venture V12 amplifier top with Legacy Preamp, 3-band EQ and sweepable mids
• 1200 Watt @ 4 Ohms, Class D power section
• Ultra Hi/3-way Ultra Lo knobs
• SGT overdrive circuit with SVT and B15 voicings
• Built-in Variable Compressor
• Effects loop, XLR DI output, Auc input, Headphone output
• Preamp Out and Poweramp In

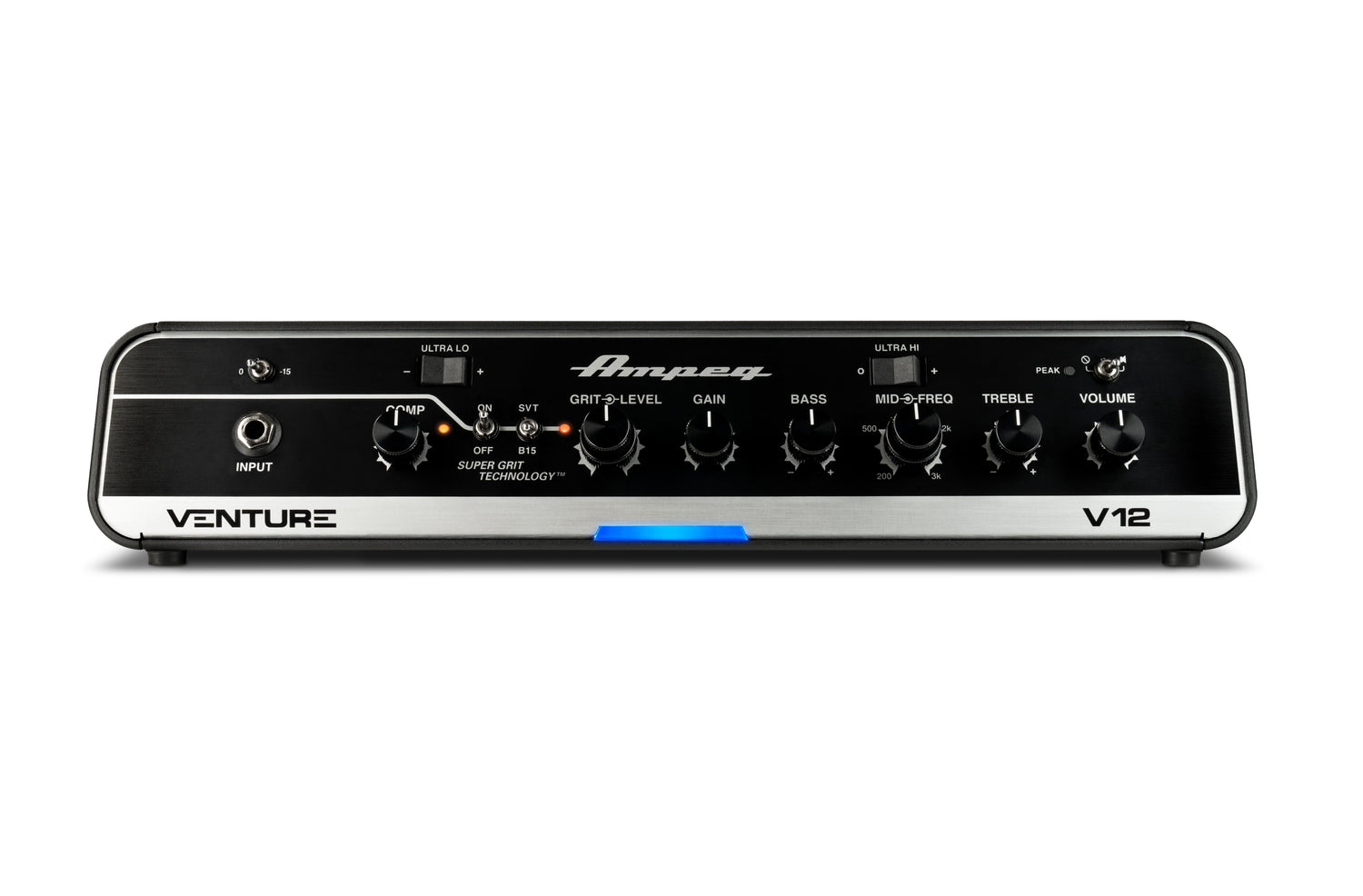

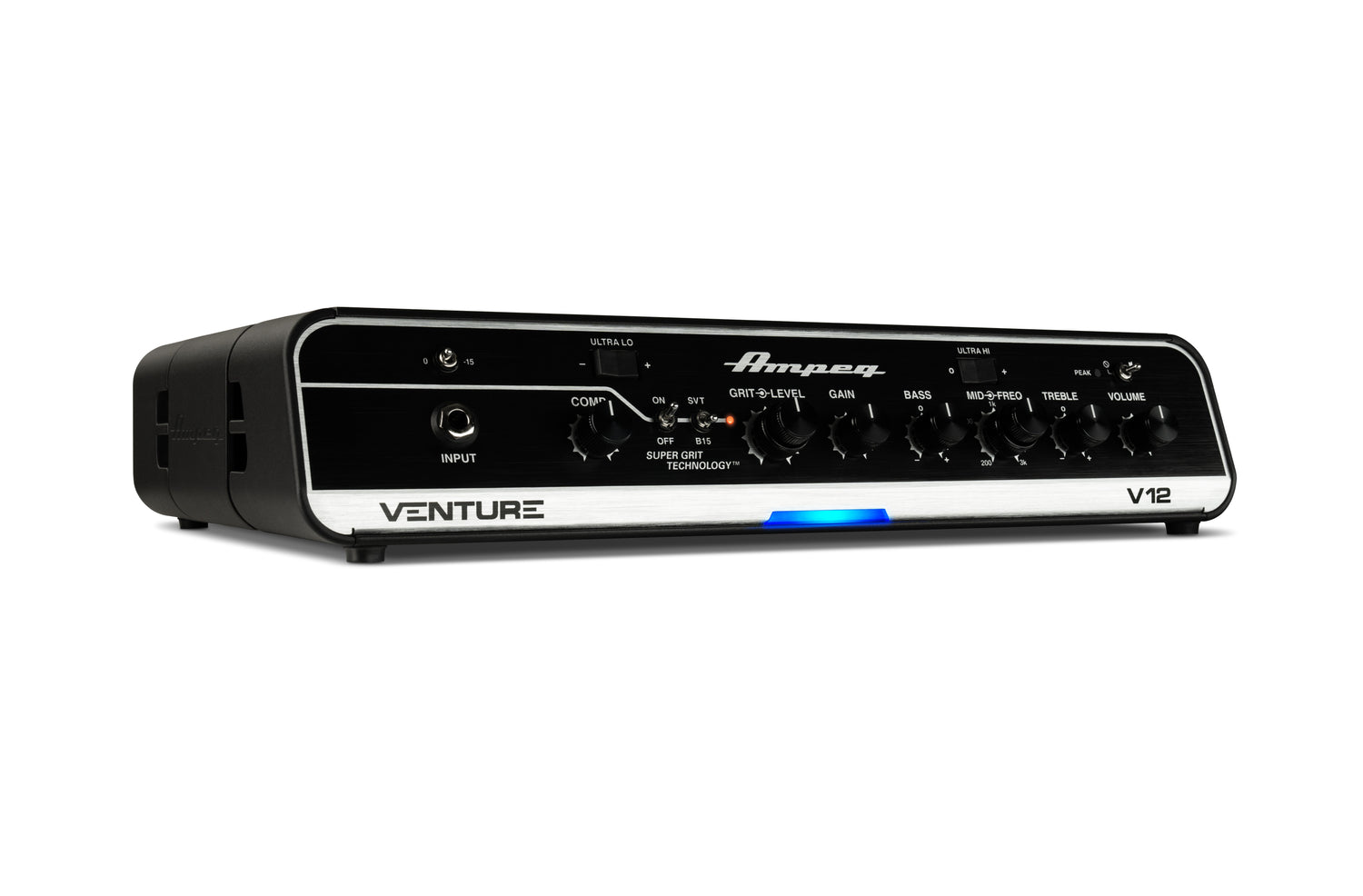

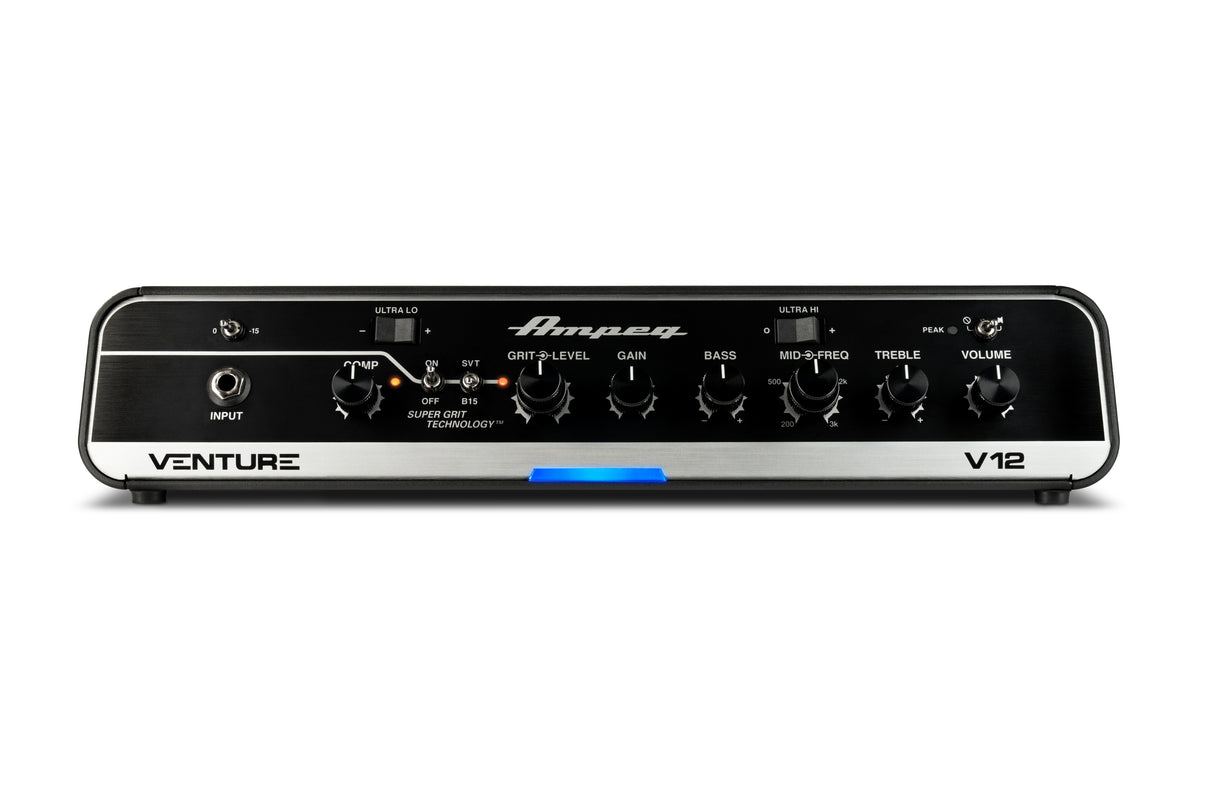

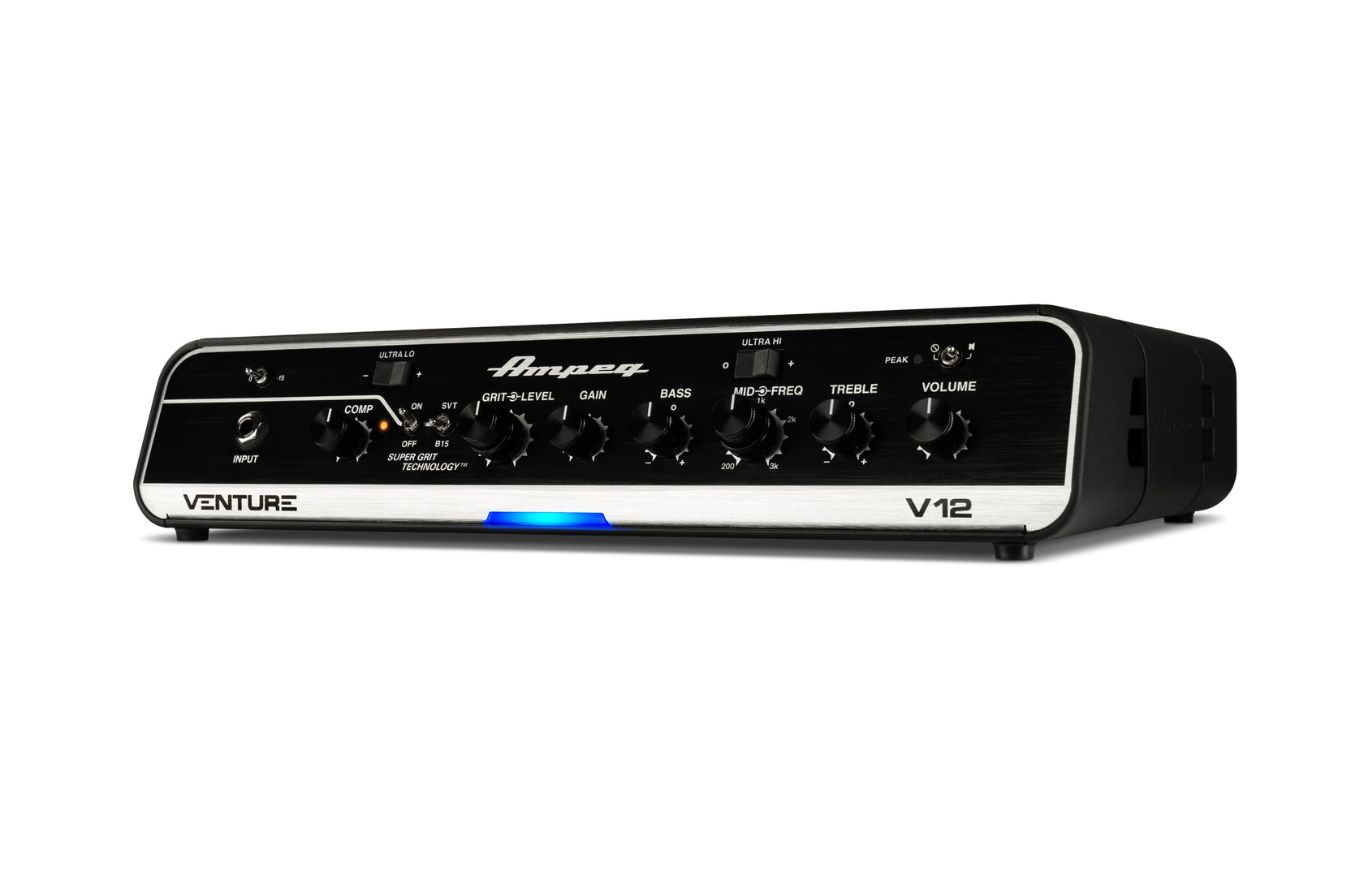

Ampeg Venture V12 Bass Amplifier Top

• Ampeg's Venture Series of amplifier tops and cabinets give you powerful, compact amplifier setups with great features.
• Great ease of use, intuitive controls and wide sonic versatility.
• The V12 top is the largest in the Venture family with the V3, V7 and V12 tops.
• Powerful 1200 Watts @ 4 Ohms, Class D power section.
• Built-in Legacy Preamp with 3-band EQ and sweepable mids.
• Ultra Hi/3-way Ultra Lo controls.
• Super Grit Technology (SGT) overdrive circuit with SVT and B15 voicings that can be controlled with AFS2 footswitch (sold separately).
• Built-in Variable Compressor.
• Effects loop, XLR DI output, Auc input, Headphone output.
• Preamp Out and Poweramp In.
• Neutrik speakON speaker outputs.
• Fits perfectly with the various enclosures in the Venture series.

Output Power Rating @ 1% THD (@ 4 Ohm):

100 VAC = 1032W
100-240 VAC = 1220W
(The output delta is less than 1 dB between the two outputs at 100V and 240V, respectively.)

Signal-to-Noise Ratio:

80 dB (20 Hz-20 kHz unweighted)

Maximum Gain @ 1 kHz:

65 dB

Input Impedance:

1 Meg

Power Amp:

Class D - ICE power (switching)

Tone Controls:

Bass: +/- 14 dB @ 40 Hz
Mid: +/- 14 dB @ selected frequency
Treble: +17/-14 dB @ 4 kHz

Power Requirements:

100 VAC
100-240 VAC
50-60Hz
1600W Max

Size (H x W x D):

3.07 x 14.57 x 10.78 in
78.1 x 370 x 273.8 mm

Weight (approximate):

8.3 lbs
3.76 kg
