• Zoom The AMS-24 sound card is great value for money!
• Very user friendly
• Sublime sound quality

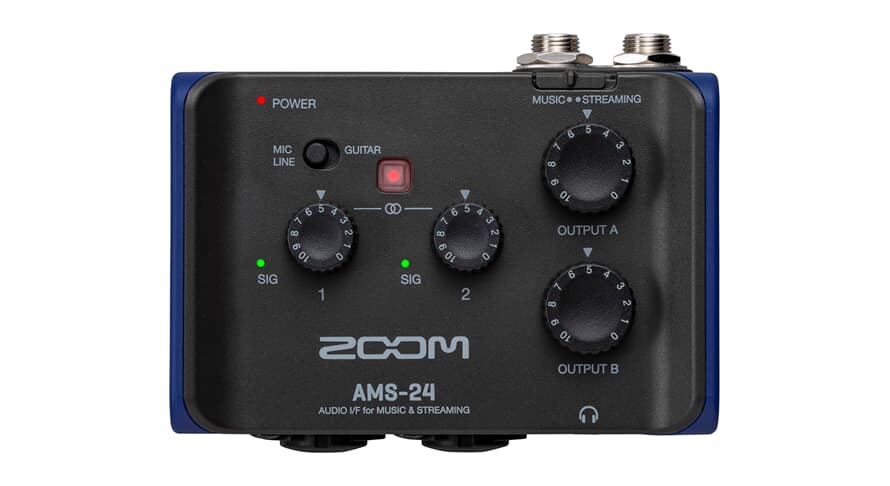

Zoom AMS-24 Sound card

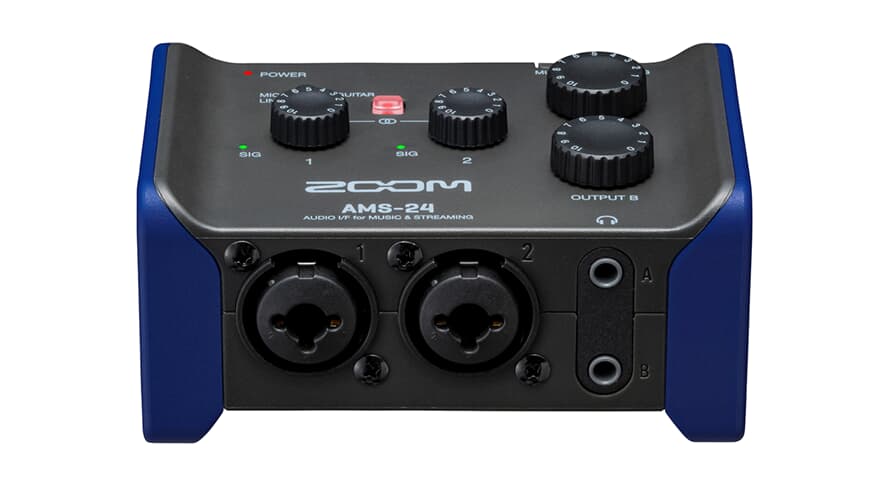

• The AMS-24 is an optimal choice for solo streams and multi-instrument sessions -equipped with two XLR/TRS combo inputs
• Two headphone outputs and two TRS outputs for external monitors.
• With the built-in hardware connector, the AMS-24 is designed to simplify common streaming challenges
• Easily switch from recording to live streaming with the Music / Streaming button
• When in Music mode, each input works independently and you can control each one with a touch
• In Streaming mode, all inputs will combine into a single signal so you can work with streaming software easily

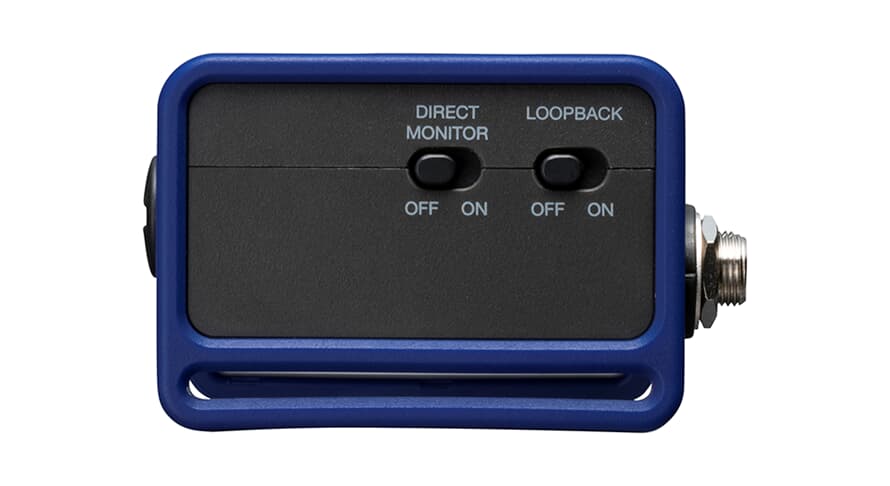

• The Direct Monitor switch sends the input signal directly to your headphones, while you can route the same signal to your DAW or streaming software
• Designed to integrate seamlessly with commonly used software, apps and platforms
• Input 1 can be switched from mic or line level to guitar level (Hi-Z)
• Link two inputs for stereo recording or streaming, and control both inputs with one gain knob

• Number of input channels: mono (MIC/LINE) 2
• Number of output channels: Stereo (TRS) 1
•  Stereo (TELEPHONE): 2

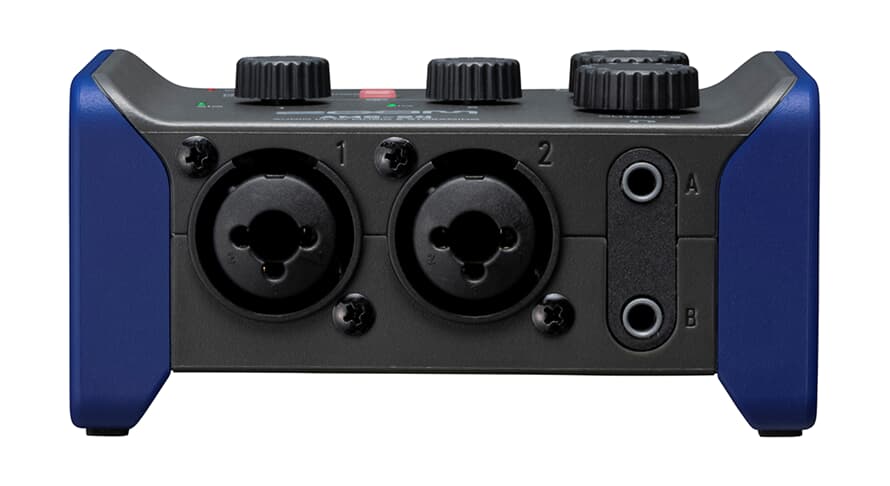

• Input 1-2 Type XLR/TRS combo connector
•   (XLR: 2 HOT, TRS: TIP HOT)
•   Input gain - - +58 dB / - - +50 dB (when set to GUITAR)
•   Input impedance XLR: 2.7 k
•   TRS: 18 k / 330 k (when set to GUITAR)
•   Maximum input level XLR: +6 dBu
•   TRS: +22 dBu / +8.5 dBu (when set to GUITAR)

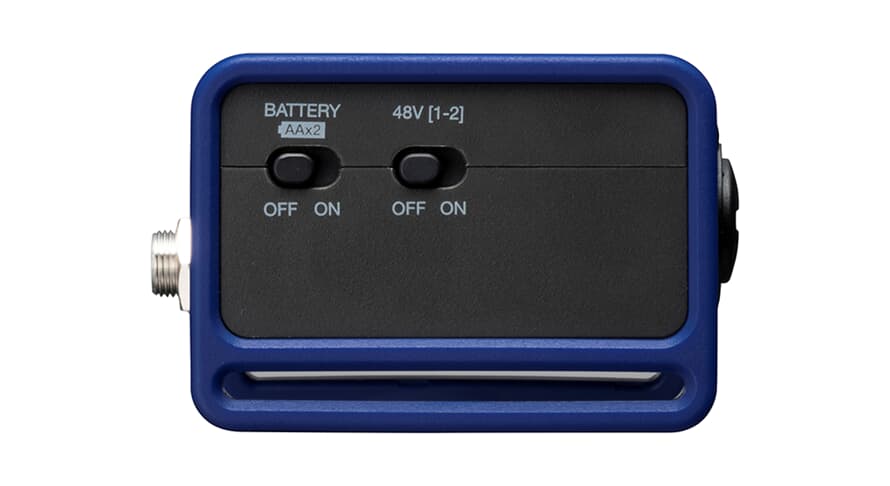

•   Phantom +48 V

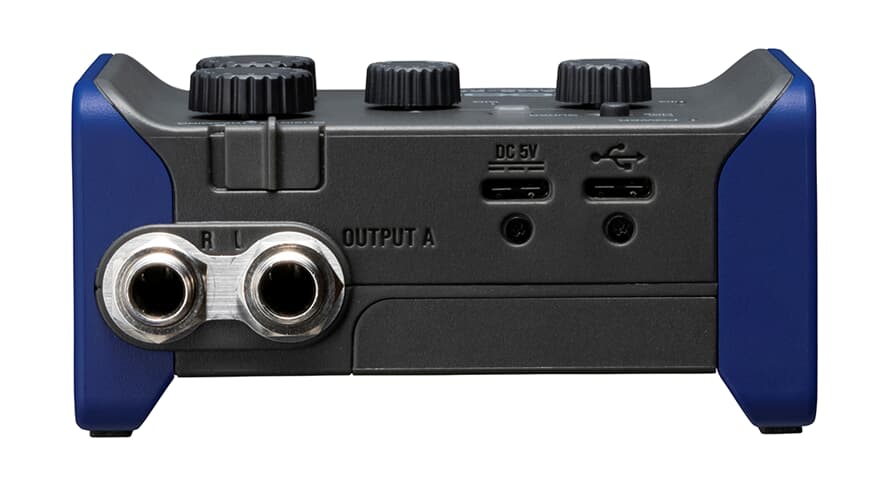

• OUTPUT A (standard phone jack) Type TRS phone jack (impedance balanced)
•   Maximum output level +10 dBu (at 0 dBFS)
•   Output impedance 100
• OUTPUT A-B (main phone jack) Type 3.5 mm stereo mini jack
•   30 mW + 30 mW (32 load)
•   Output impedance 10
• USB USB Type-C (audio interface function)
•   - Use a USB cable that supports data transfer. USB bus power is supported.
• DC 5V USB Type-C (for power supply)
• Frequency response
•   44.1 kHz: ±1 dB (20 Hz - 20 kHz)
•   96 kHz: ±1.5 dB (20 Hz - 40 kHz)
• Corresponding input noise
•   -120 dBu or less (IHF-A) at +58dB/150 input
• Audio interface
• Input and output channels Recording: 2 channels
•   Playback: 4 channels
• Sampling rates 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
• Bit depth 24-bit
• Interface USB 2.0
• Class USB Audio Class 2.0
• Power

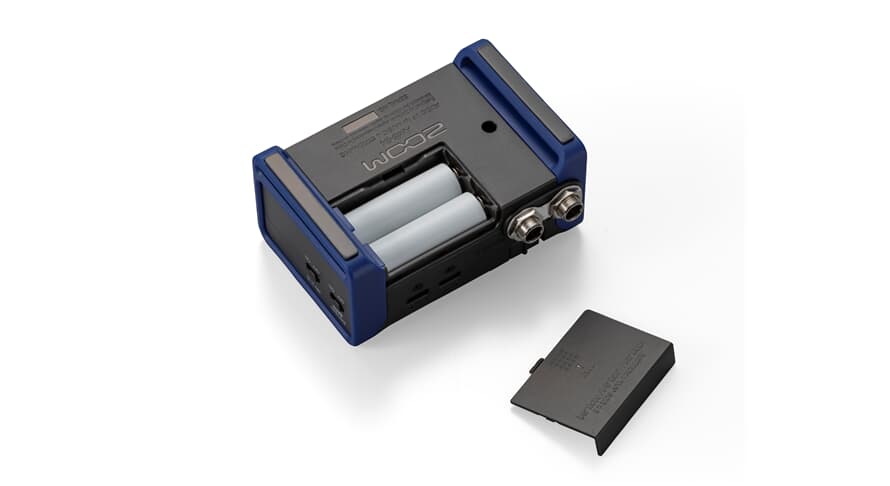

•   2 AA batteries (alkaline, lithium or rechargeable NiMH)
•   AC adapter (ZOOM AD-17): DC 5 V/1A
•   - USB bus power supported.
• Rated current
•   USB/AC adapter (5 V): 380 mA
•   Batteries (2.4 V): 470 mA
• Estimated continuous operating time when using batteries
•   44.1 kHz, 48 V off, with 32 headphone load
•   Alkaline batteries: approx. 4 hours
•   NiMH batteries (1900 mAh): approx. 5.5 hours
•   Lithium batteries: approx. 11 hours
•   - The above values are approximate. - Continuous battery operating times were determined using in-house testing methods. They can vary greatly depending on the conditions of use.
• Power consumption: 5 W maximum

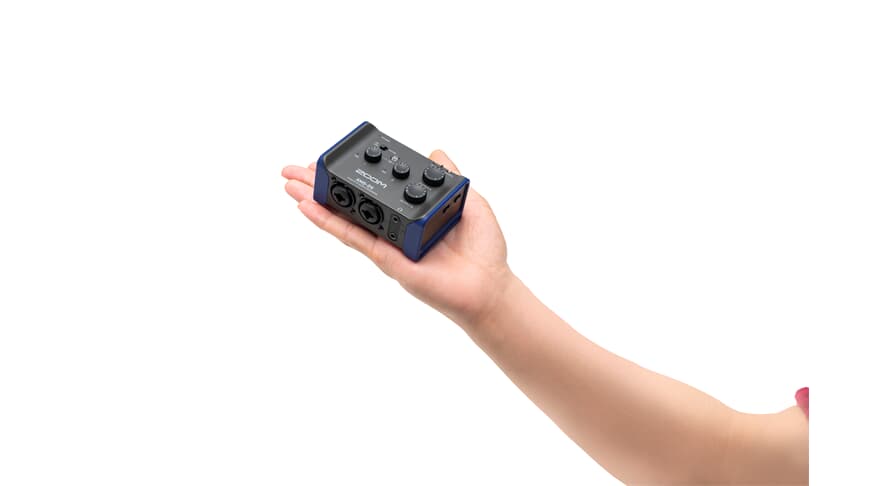

• Dimensions: 94,5 mm (W) × 74,0 mm (D) × 46,0 mm (H)
• Weight (unit only): 134 g
• Weight (including batteries): 180 g
