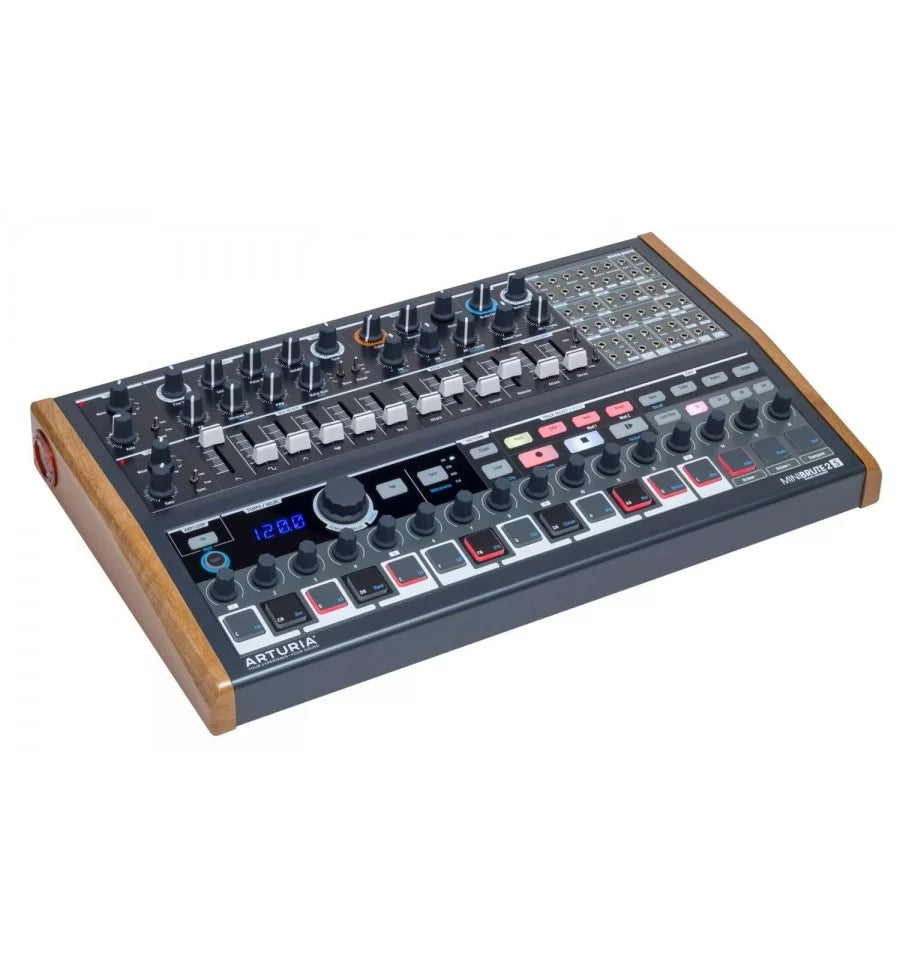

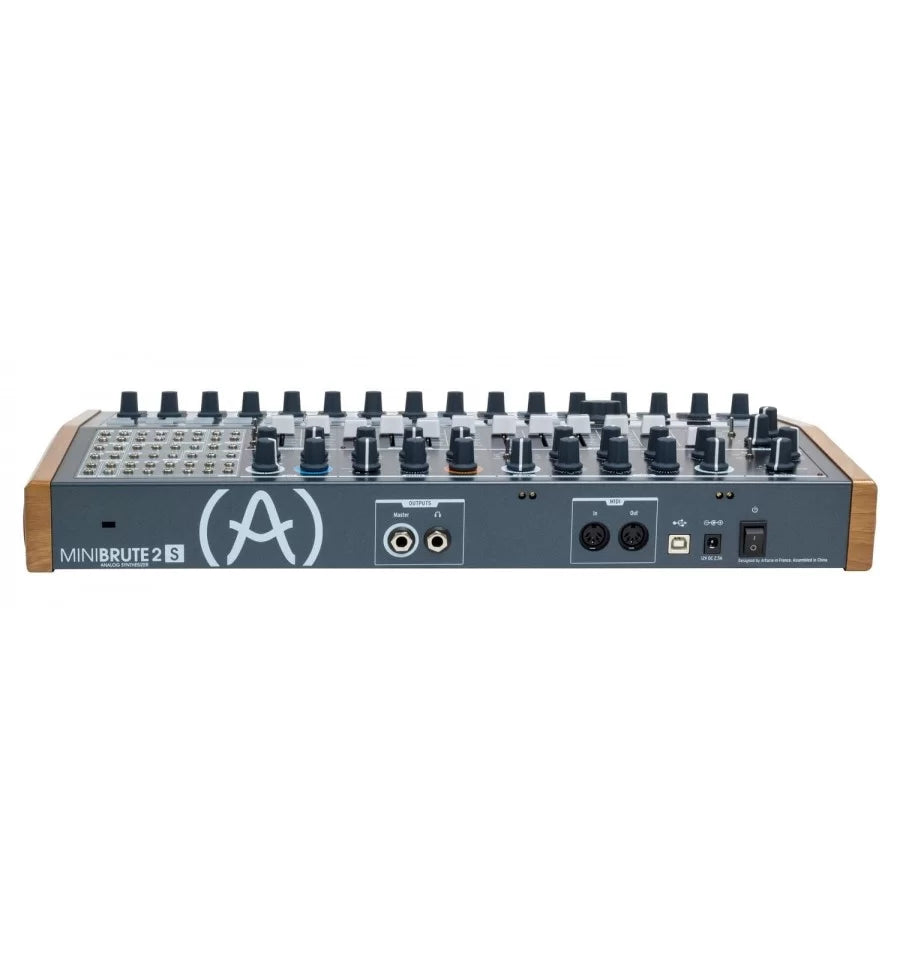

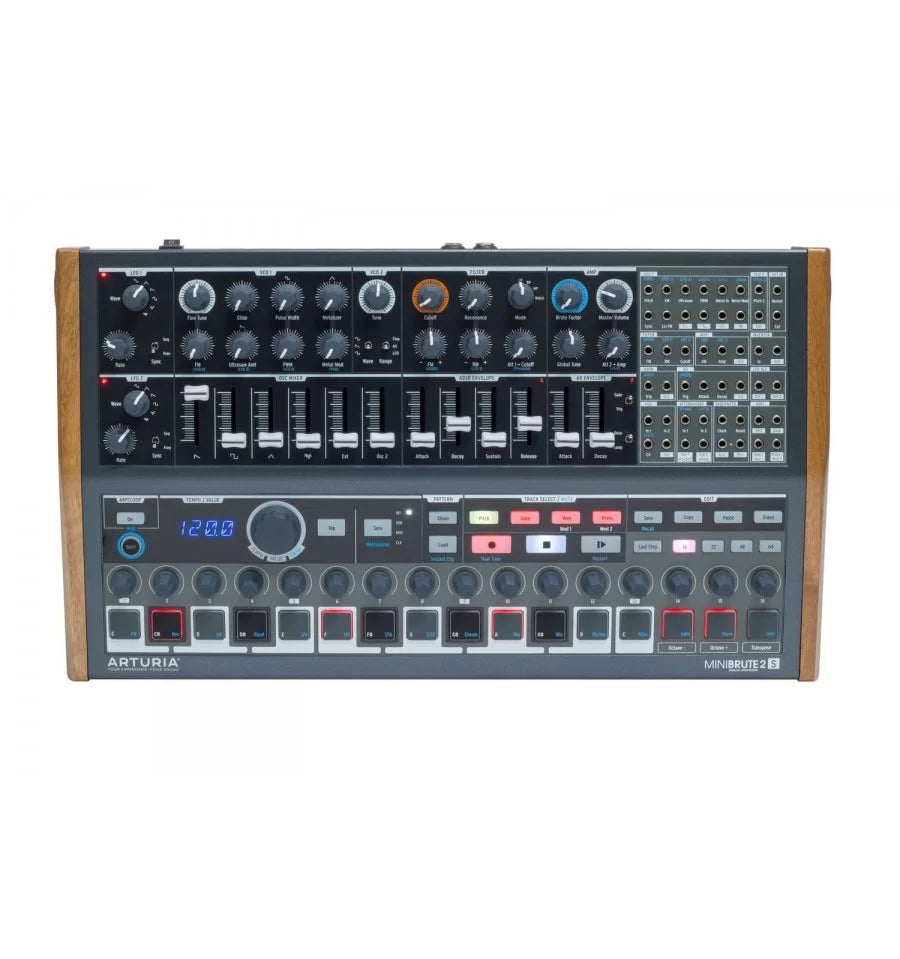

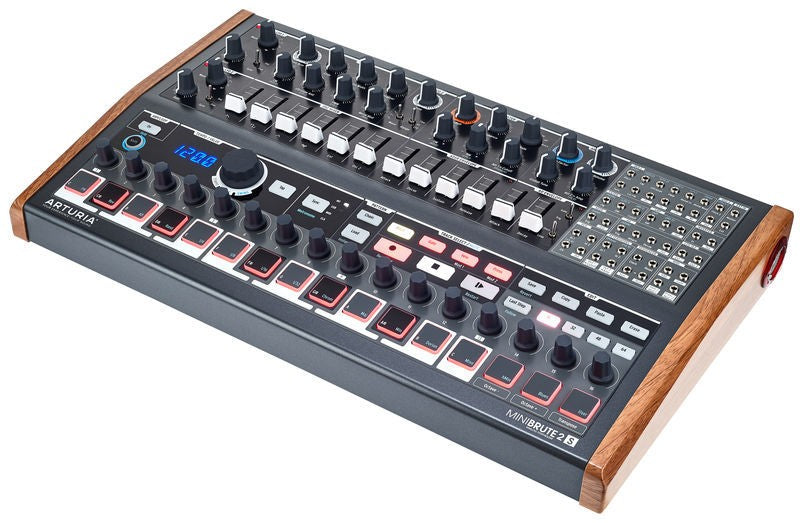

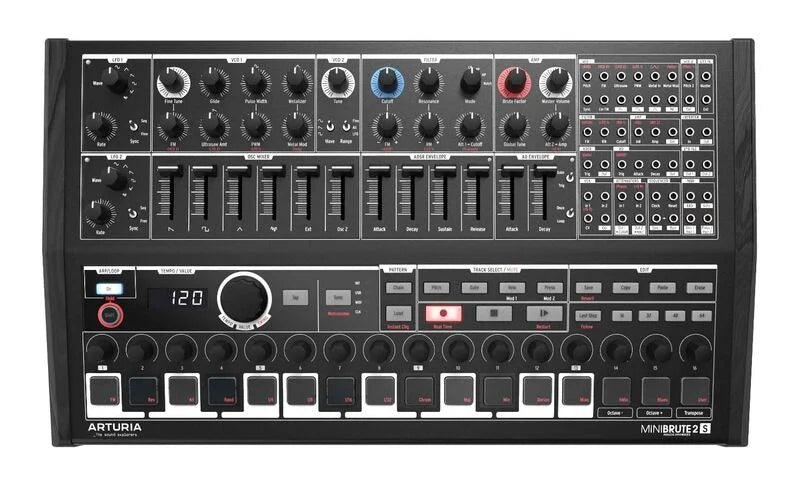

Analog Synthesizer

2 Analog VCO's:

• VCO1 : Saw + UltraSaw, Square +Pulse width, Triangle + Metalizer. (Waveform mixing)

• VCO2 : Sine, Saw, Square waveforms (three tuning ranges).

VCO 2>1 Hard Sync, VCO1 linear and exponential FM

White Noise Generator

External Audio In

Steiner Parker filter (12dB per octave): Low Pass, High Pass, Band Pass, Notch modes.

2 LFO's with Sync: Sine, Tri, Saw, Square, Random, Slew Random

1 ADSR envelope

1 AD envelope

1 AD envelope

• Trig, Gate modes

• One shot or Loop

• Attack and Decay times CV controllable

48-point CV and Gate patchbay

• Inputs and Outputs for the voice and sequencer

• Utility modules: inverter, attenuators, VCA

16 velocity and pressure sensitive pads

16 encoders

64 sequence memories

• Sequence Pitch, Gate, Velocity and Pressure on up to 64 steps

• Alternatively, sequence modulations such as Gates, LFOs, AD Envelopes, ...

• Real-time or step recording modes

• Arpeggiator/Looper

Save and recall sequence patterns on the fly

MIDI and USB I/O
