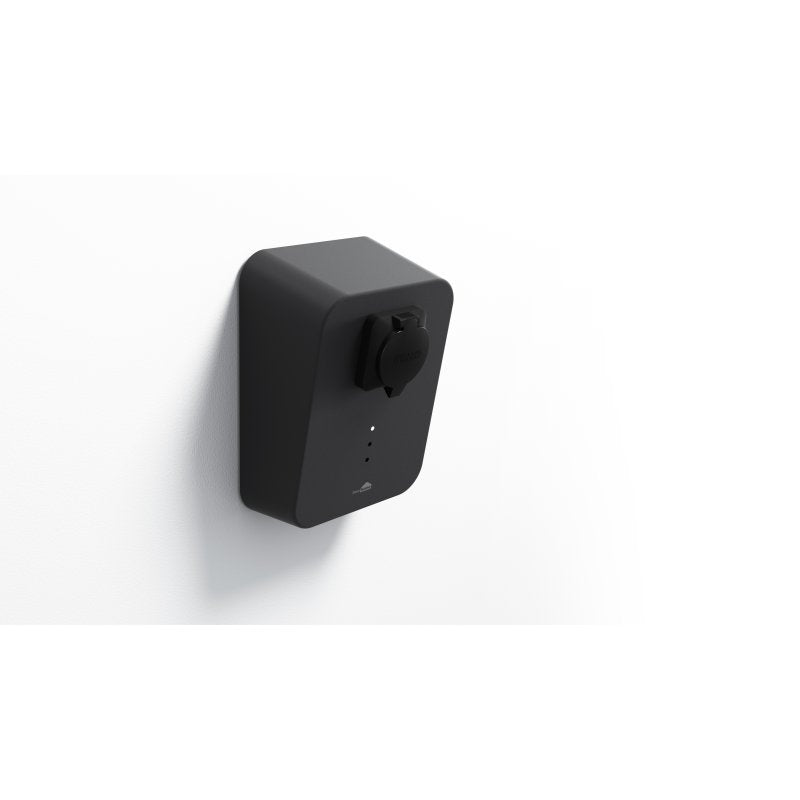

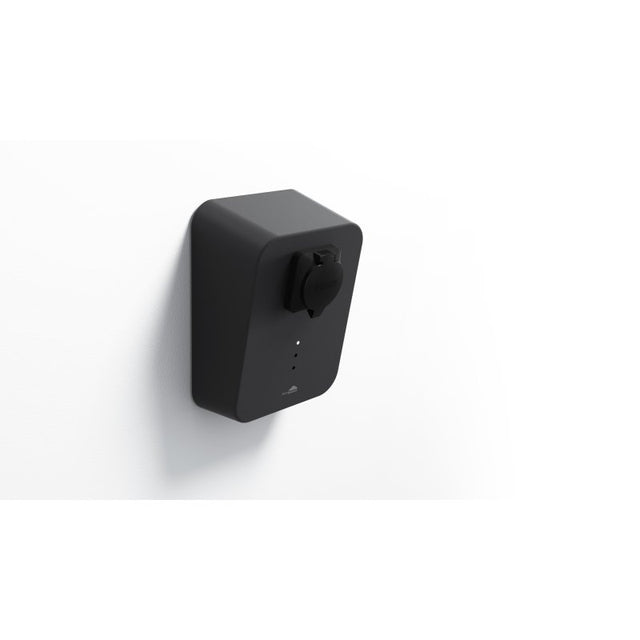

Innohome Charlie-3 EV Charging Station

(0)
🎧
Support online
Support 1 Support 2 Support 3
Save 33%
€523,00 €791,00
TTC
Livraison gratuite
€523,00 €791,00

Description

  • IEC Charging Mode 3
  • Type 2 charger
  • Phase 3 - 230VAC input
  • 32A (@22kW)
  • LED status indicator.
  • IP44 casing


Innohome Charlie-3 EV Charging Station

  • Charging station for electric and hybrid cars in mode 3.
  • Type 2 and therefore suitable for almost all electric/hybrid cars according to the EU standard.
  • Compact and stylish modern Scandinavian design fits perfectly into any environment.
  • The 32 A ensures that the car is fully charged overnight.
  • In one hour of charging, the battery achieves a driving range of approximately 120km.
  • Built-in 6mA DC monitor and LED charger status overview.

Spécifications

  • Weight (kg)
    2

Plus de spécifications

  • IEC 61851-1 Charging Mode 3
  • IEC 62196 (Type 2) Charging socket
  • 3-phase 230VAC Input
  • 32A Maximum Charging Current (22kW)
  • Installer configurable charging current
  • Built-in 6mA DC Current monitor
  • LED Indicators for charging status
  • IP44 Casing
  • Operating Temperature -25 degrees to +50 degrees Celsius
  • CE Certified

Brand: Innohome
SKU: 1520013
Barcode: 6430025091945
