• Versatile and smart mini device
• Play analog/digital or radio
• Spotify Connect
• Built-in equalizer
• Available in several colours

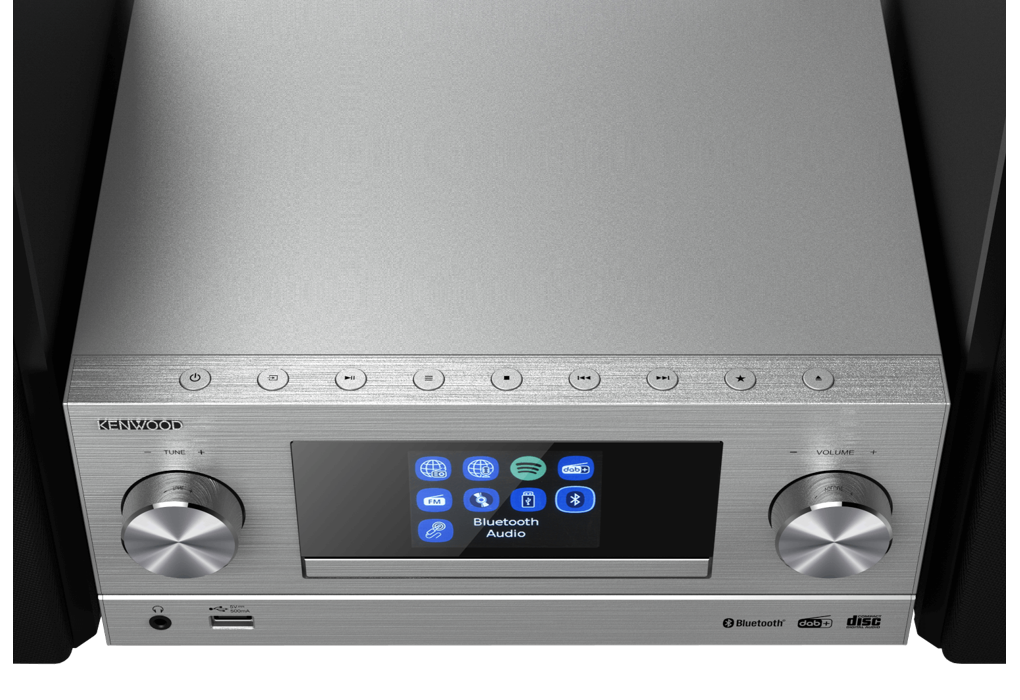

Kenwood M9000S - Smart Mini Device, Silver

• Smart mini stereo from Kenwood in minimalist silver design.
• Great sound despite its compact size with 2 x 50W two-way bass-reflex speakers.
• Large TFT colour display.
• Versatile music playback; analog via USB, CD or digital via bluetooth.
• Spotify Connect makes it easy to connect and use Spotify directly via the system.
• Boost sound with a smart equalizer with 5 presets.
• DAB+ / FM-RDS / Internet radio
• Alarm and sleep timer.

Product Specifications

General Features

• Equalizer: 5 Presets (Powerful / Clear / Bright / Warm / Balanced)
• Remote Control: 31-key Slim Type Remote
• Remote Control App: Yes, (UNDOK App)
• Dimmable Display: Yes, High / Medium / Low / Timeout

Tuner Features

• Tuner: Yes, FM
• Tuner (DAB+): Yes
• Radio Data System: Yes
• Number of Presets (FM): 20
• Number of Presets (DAB): 20
• Alarm: Yes, Dual Alarm
• Sleep Timer: Yes

Bluetooth General Features

• Technology: Bluetooth ver. 4.2
• Advanced Audio Distribution Profile (A2DP): Yes
• Audio/Video Remote Control Profile (AVRCP): Yes
• Transmission Power: Class 1
• Maximum Service Area: About 10m (Communication range may vary depending on environmental conditions)
• Frequency Band: 2.4 GHz (2.402 GHz - 2.480 GHz)

Network Features

• Wi-Fi: Yes
• Bluetooth: Yes
• Internet Radio: Yes
• Spotify Connect: Yes

USB Features

• Playable Files: MP3, AAC
• Compatible Media: Mass Storage Device
• Repeat Playback: Repeat one / Repeat folder / Repeat all
• Random Playback: Random playback

CD Features

• CD DA / CD-R/RW: Yes
• MP3: Yes
• Repeat Playback: Repeat one / Repeat folder (only for MP3)
• Random Playback: Yes

Analogue Inputs/Outputs

• Push-type Speaker Terminals: Yes
• Headphone Jack (3.5 mm): Yes
• Auxiliary Input Jack (3.5 mm): Yes, at the backside
• Line Input Jack (3.5 mm): Yes, Rear side
• 75 Ohm FM Antenna Connector: Yes

Amplifier Features

• Maximum Stereo Output Power: 2 x 50 Watt

Speakers

• Type: Bookshelf
• Configuration: 2-Way Bass Reflex Speakers
• Grill: Detachable textile cover

Tuner Specifications

• FM Tuning Frequency Range: 87.5 ~ 108MHz
• DAB+ Tuning Frequency Range: 174.928 MHz ~ 239.200 MHz (Band III)

USB Specifications

• Format: USB Host (Playback)
• USB Standard: 1.1 / 2.0
• Usable USB Devices: USB mass storage class devices
• Compatible Files: MP3/AAC files with file extension <.mp3> or <.m4a>
• MP3 Sampling Frequency (Stereo): 44.1kHz
• MP3 Bitrate (CBR/VBR): 32 kbps to 320 kbps
• Maximum Folders: 99, over 99 cannot be displayed
• Maximum Layers: No limitation
• Maximum Files: No limitation
• Maximum Files per Folder: 999, over 999 cannot be displayed
• Maximum Current Supply: 500mA
• File System: FAT 16 / 32

CD Player Specifications

• Signal to Noise Ratio: More than 65 dB
• Dynamic Range: More than 60 dB

Network Specifications

• Wi-Fi IEEE Standard: WIFI IEEE 802.11 a/b/g/n
• Wi-Fi Protocol: a / b / g / n
• Wi-Fi Security Encryption: WEP, WPA, WPA2 (PSK), WPS
• Wi-Fi Frequency Range: WiFi: 2.412 - 2.472 GHz, 5.18 - 5.32 GHz, 5.50 - 5.70GHz, 5.745 - 5.825GHz
• WiFi Output Power WiFi 2.4G: 13.6 dBm
• WiFi Output Power WiFi 5G: 13.6 dBm
• WiFi Output Power WiFi 5.8G: 13.6 dBm

Speaker Specifications

• Impedance: 6Ω
• Tweeter: 30 mm Dome Tweeter
• Low-Midrange: 130mm Driver
• Speaker: Bass-reflex type

General Specifications

• Display Type: 2.8“ (7.1 cm) TFT Color Display

Power Specifications

• Power Consumption: 40 Watt
• Stand-by Power Consumption (less than): 0.8 Watt
• Power Supply: 100-240V AC 50/60Hz
• Operational Temperature Range: 0 °C - 35 °C

App(s)

• UNDOK: Yes
• App Store (Apple): Link
• Google Play (Android): Link

Dimensions & Weight

• Dimensions Body (WxHxD): 260 x 115 x 260 mm
• Dimensions Speaker (WxHxD): 173 x 263 x 240 mm

Downloads

• Manual Download
