Package contents

• 1 x unit
• 1 x user manual
• 1 x power cord
• 1 x remote control
• 1 x diffuser cover

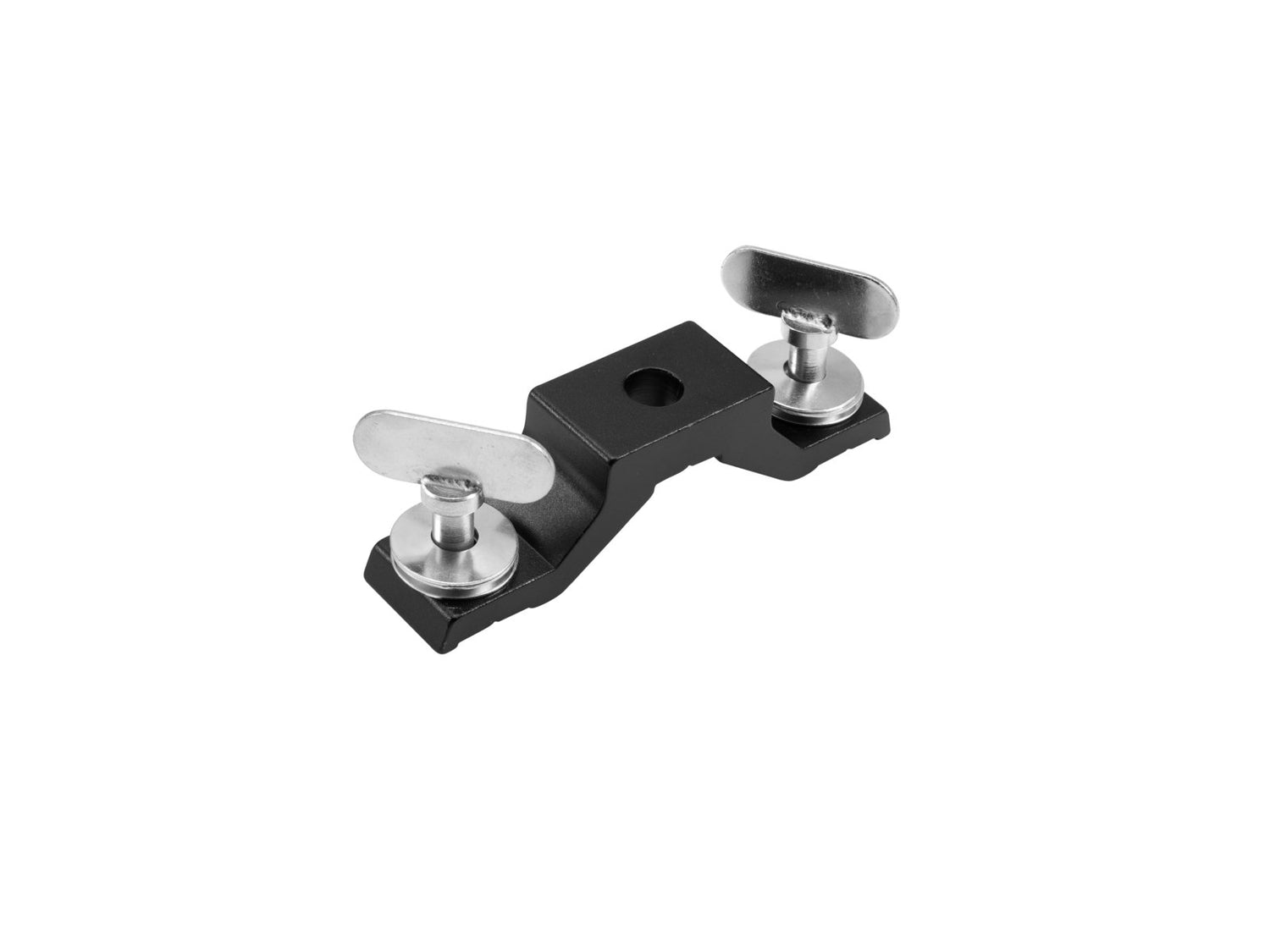

• 1 x omega bracket
• 1 x barndoor
• 1 x battery

• Silent operation
• Control via stand-alone; DMX; Master/slave function; IR remote control; RDM

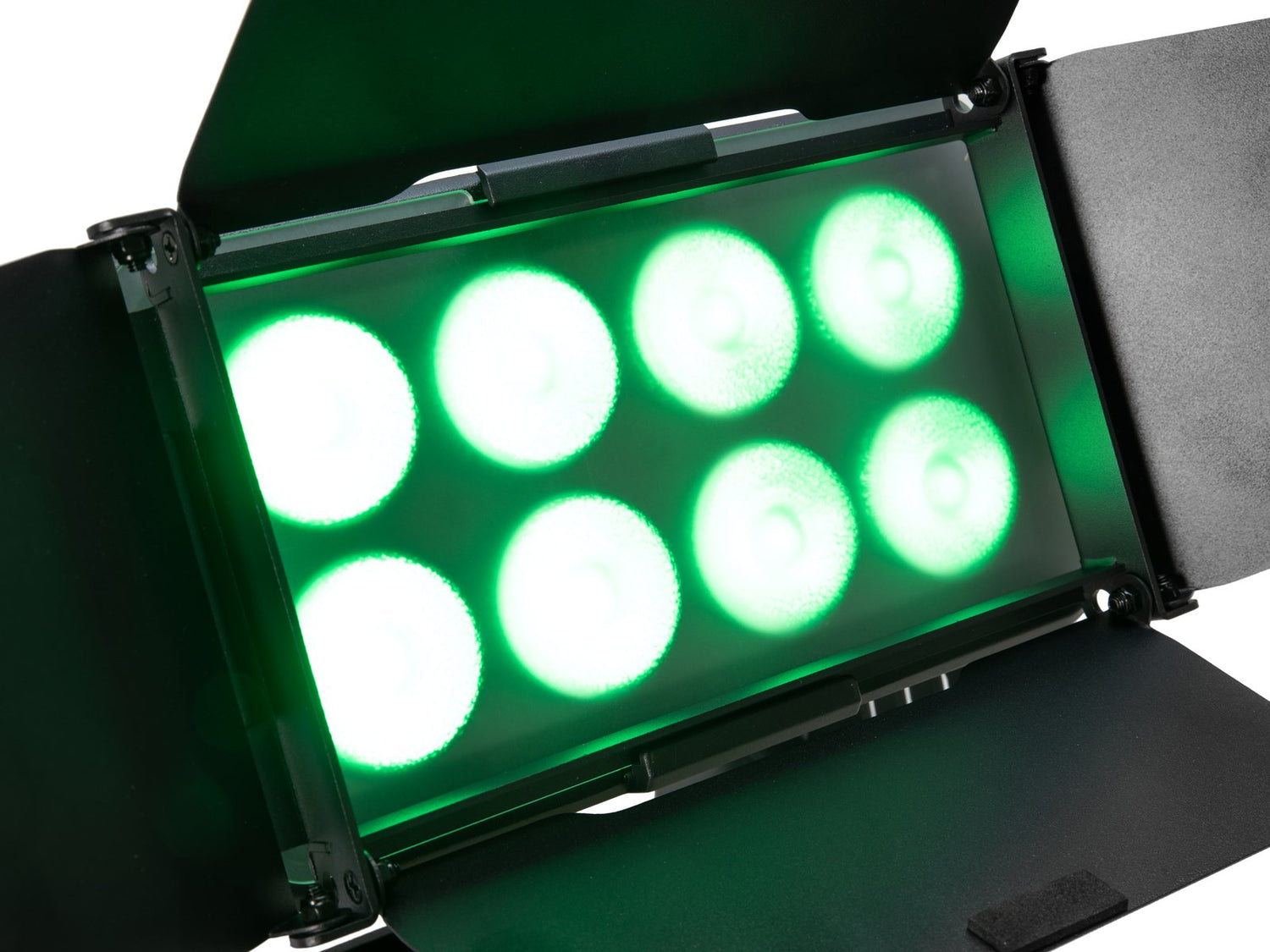

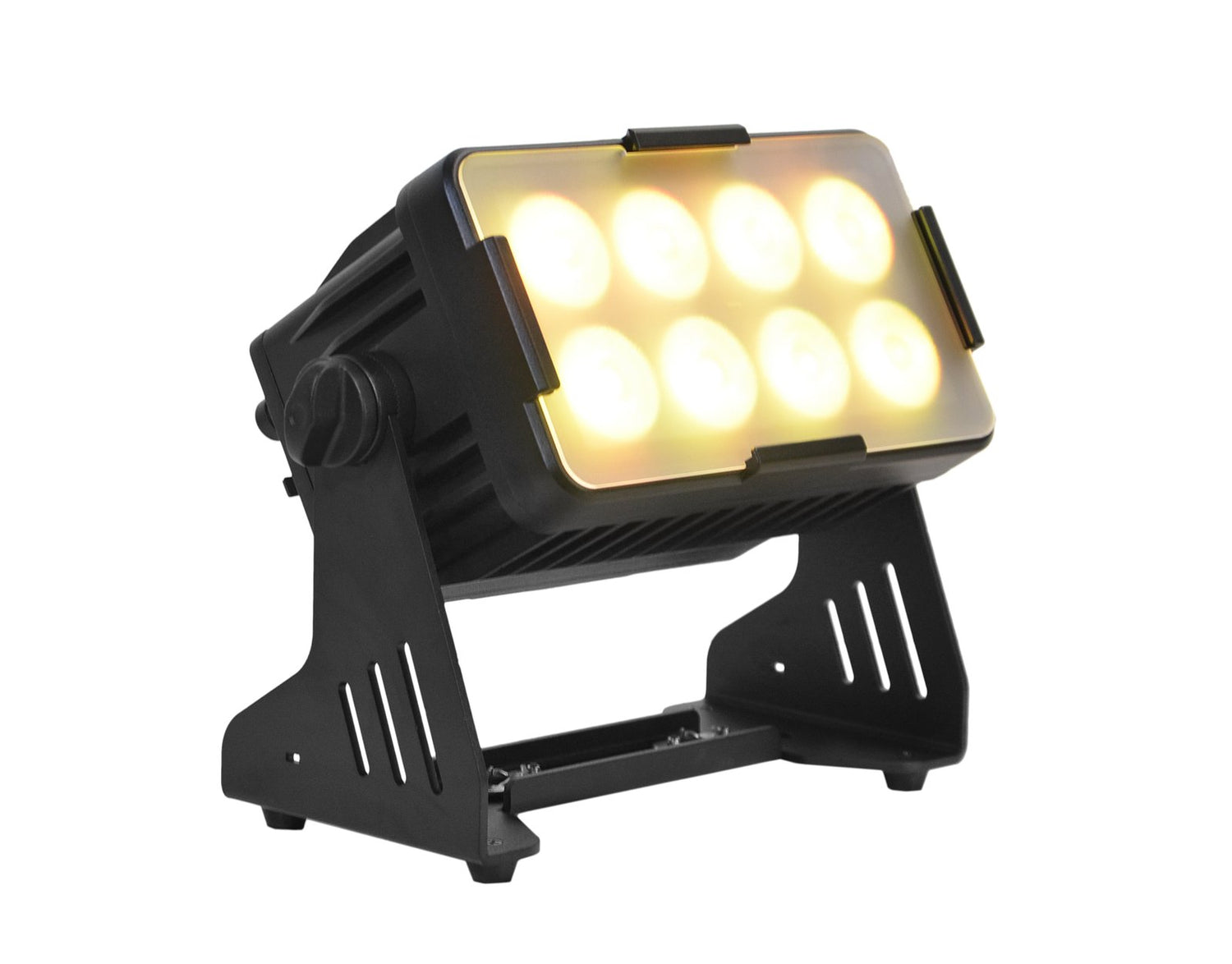

• Additional frost filter provides a wide, soft and homogeneous light

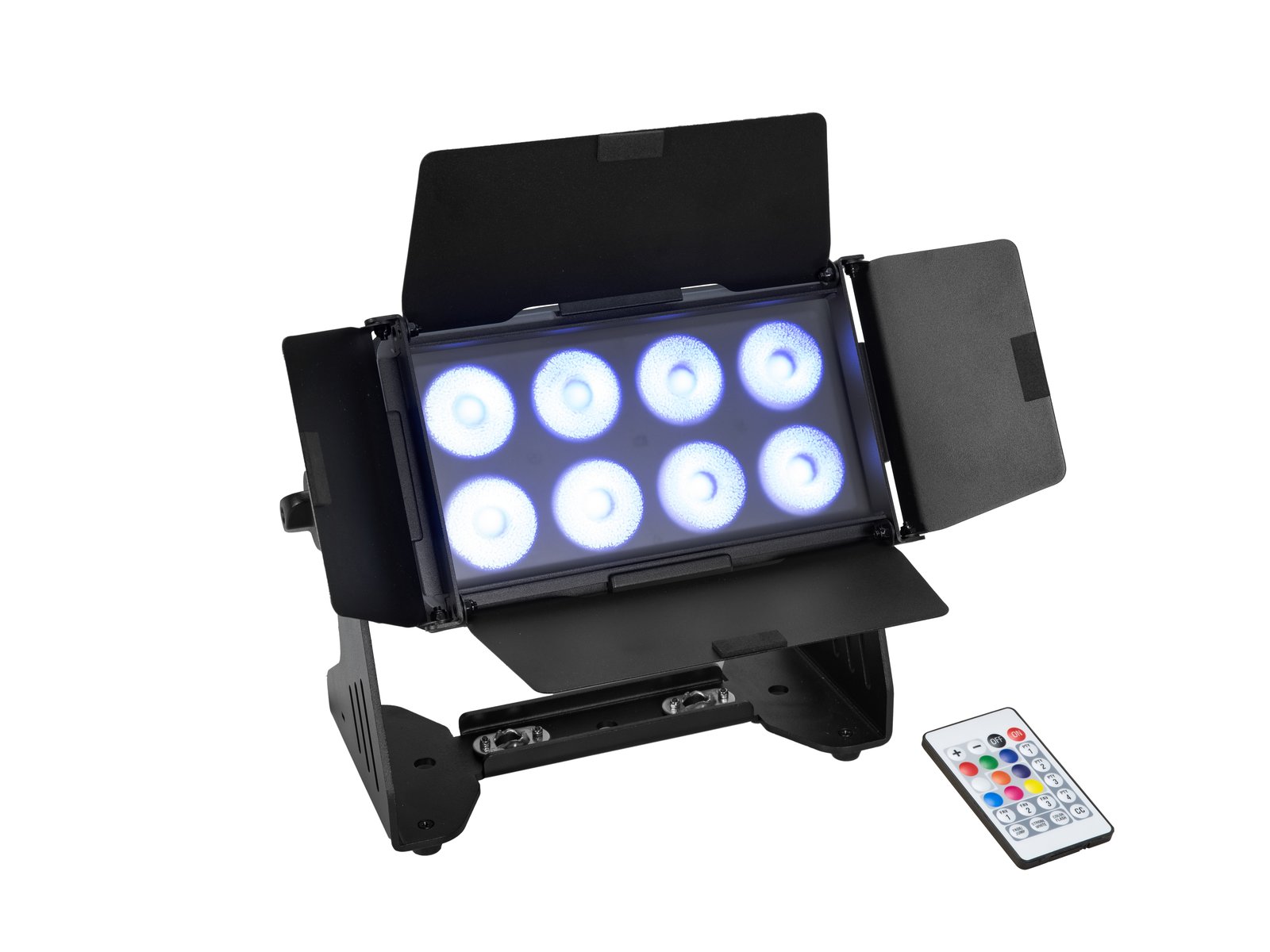

• 4 barn doors to avoid blinding the audience and for protection during transport

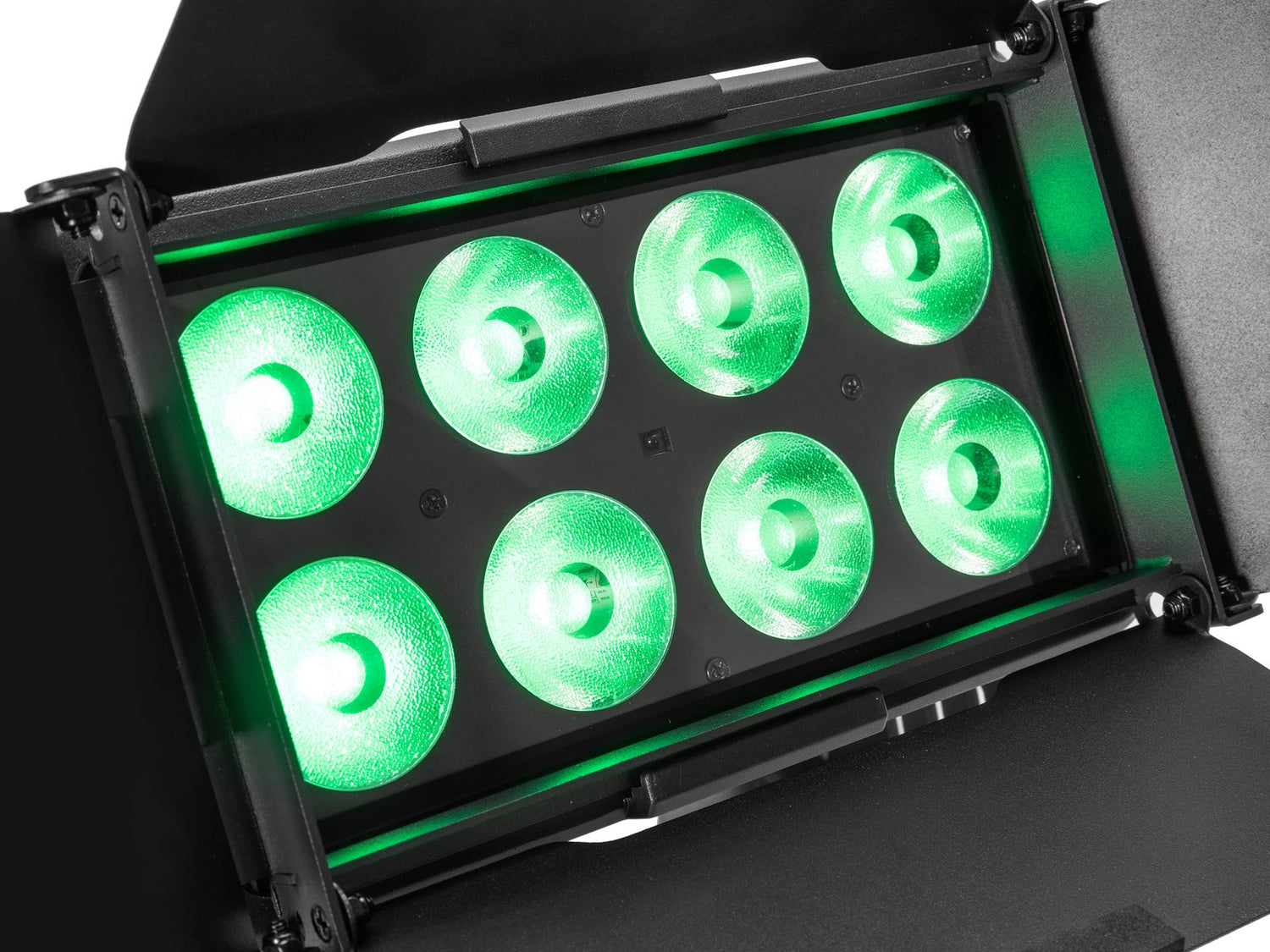

• 8 powerful LEDs 10 W high-power 4in1 QCL RGBW (homogenous color mix)
• 36 integrated show programs
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) with adjustable response; white balance
• Strobe effect
• 3 buttons on the remote control for saving your own settings
• With a beam angle of 10°

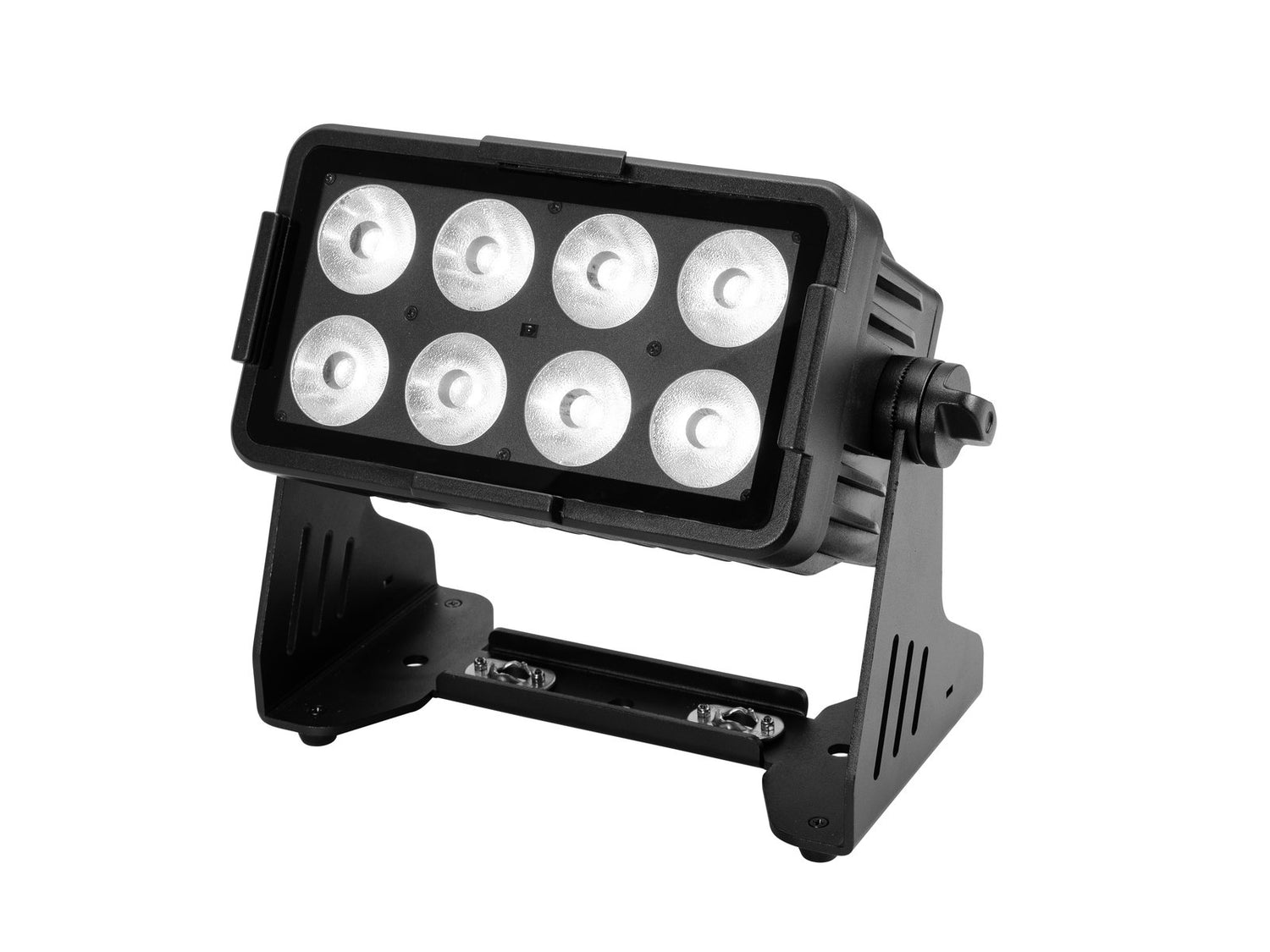

• With Mounting bracket; with Omega bracket
• OLED display
• Flicker-free
• Mains input and output for power linking up to 8 units
• Suitable for outdoor use IP65
• With pressure compensation membrane
• With a KENSINGTON LOCK theft protection
• For application areas such as: Stage; architecture; mobile use; Rental

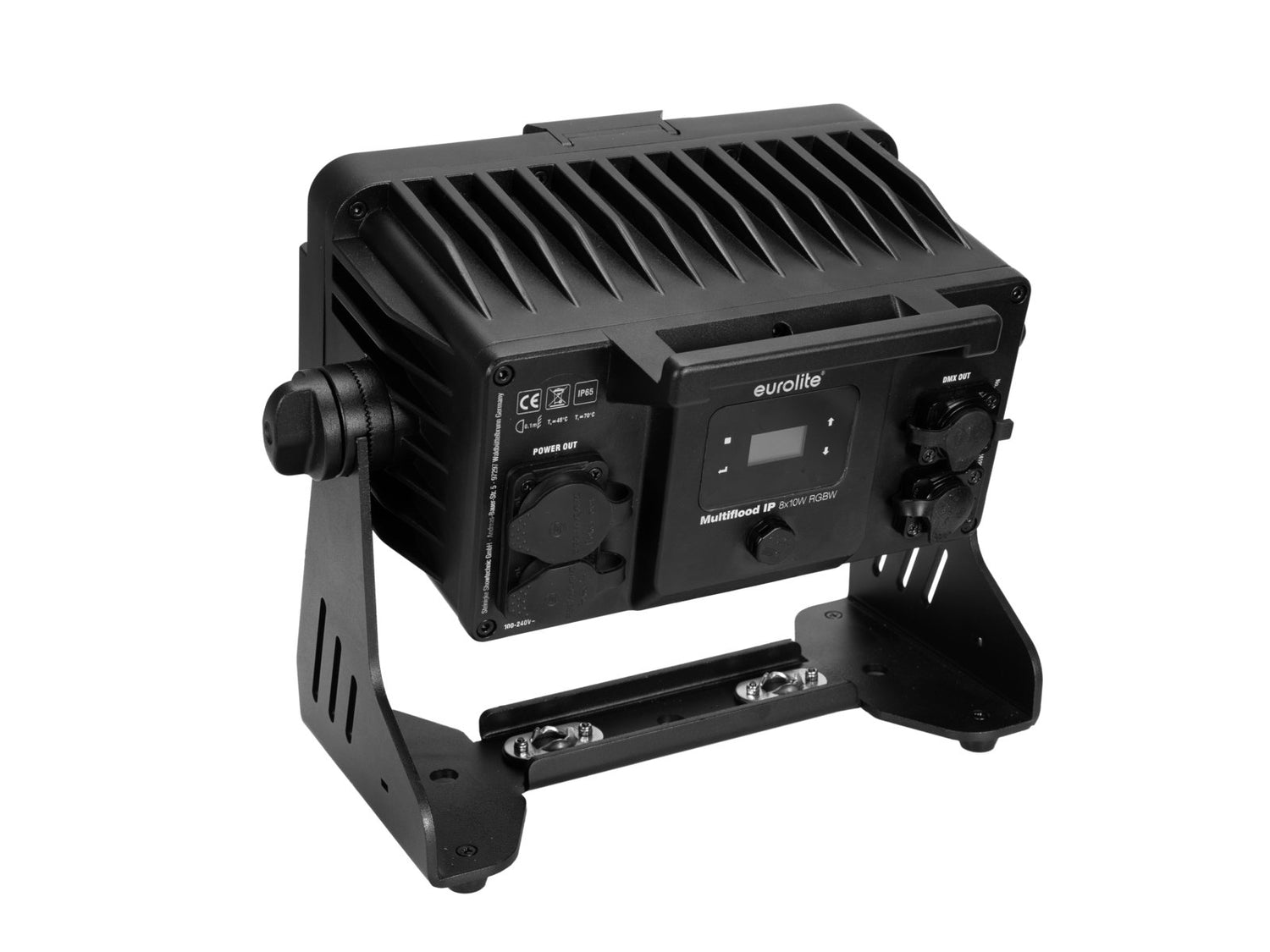

• The device is cooled by passive convection cooling
• Preprogrammed in Light Captain; LED PC-Control 512; Light´J

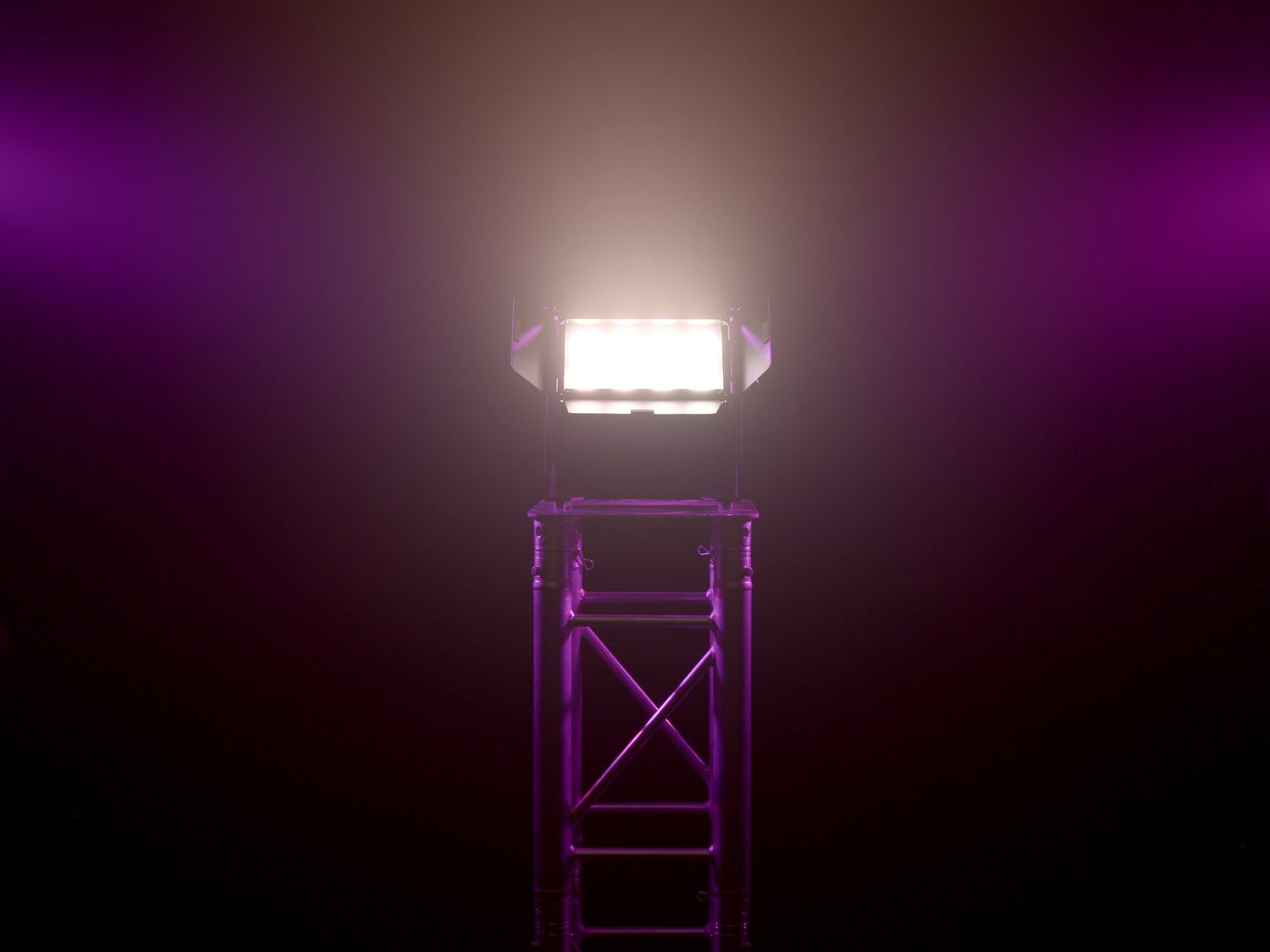

• Application possibility: Suspended; on stand; standing

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 80 W
• IP classification: IP65
• Protection class: Protection class I

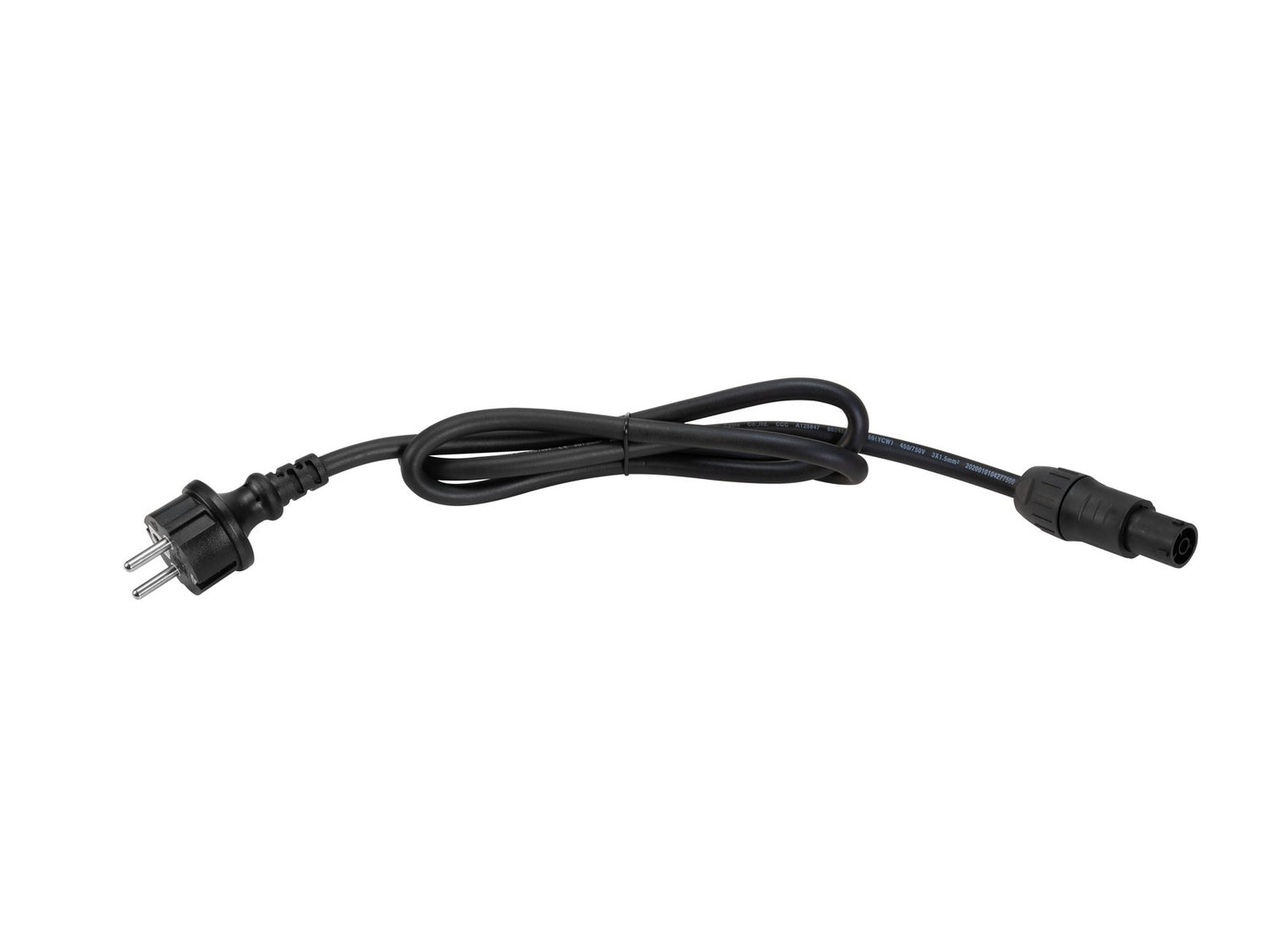

• Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
• Power output: IP T-Con (F) mounting version
• Lamp type: LED lamp
• LED: 8 x 10 W high-power 4in1 QCL RGBW (homogenous color mix)
• Flash rate: 1 - 23 Hz
• DMX channels: 3; 4; 6; 8; 11
• DMX input: 3-pin XLR (M) mounting version IP
• DMX output: 3-pin XLR (F) mounting version IP
• Cooling: Passive convection cooling
• Control: Stand-alone; DMX; Master/slave function; IR remote control; RDM
• Preprogrammed in: Light Captain; LED PC-Control 512; Light´J
• Beam angle: 10°
• Beam angle (1/2 peak): 10° Frost filter 25°
• Beam angle (1/10 peak): 25° Frost filter 55°
• Housing color: Black
• Attachment system: Mounting bracket Omega bracket
• Display type: OLED display
• Theft protection: KENSINGTON LOCK
• Noise classification:    Class 0 (no noise at all)

Dimensions:

• Length: 31,9 cm
• Width: 14 cm
• Height: 24,8 cm
• Weight:    6,10 kg

Remote control

Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in

Legal specifications

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
