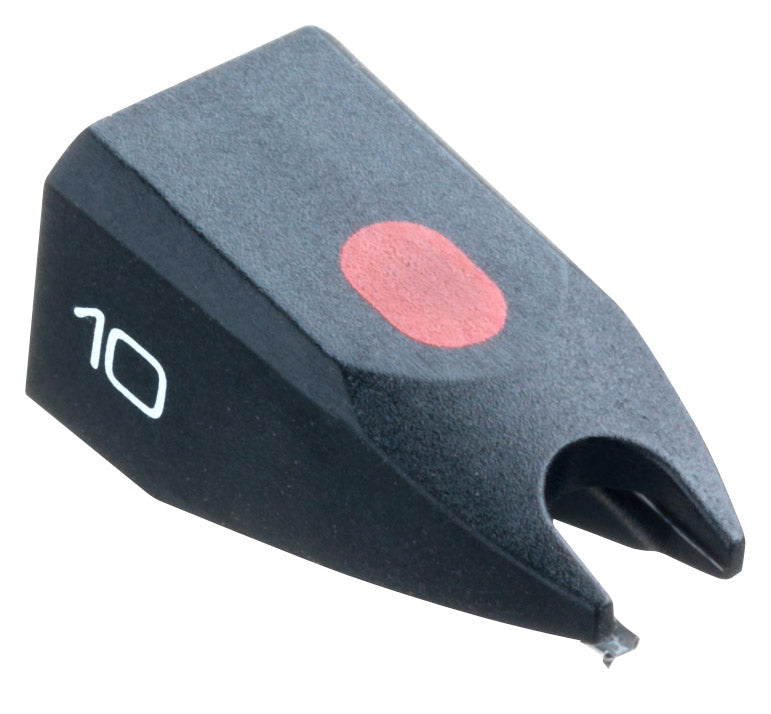

Ortofon 10 Stylus

€66,95
Made to order. Estimated delivery in 6–10 business days.
Shipping €10 (free shipping over €199)
Payment methods accepted
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • MobilePay
  • Shop Pay
  • USDC
  • Visa


€66,95

Description

  • This spare Stylus fits Ortofon OD1, Super OM 10, OM 10, OMP 10, TM 10
  • Elliptical Styli like this have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli
  • Not suitable for scratching


Ortofon 10 Stylus

  • This spare Stylus fits Ortofon OD1, Super OM 10, OM 10, OMP 10, TM 10

  • Elliptical Styli like this have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli

  • Not suitable for scratching

If your pickup Stylus is getting worn, you don't need to buy a whole new pickup.

You can simply replace the Stylus tip itself by purchasing this replacement Stylus.

It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.

Technical specifications

Frequency range 20-24.000 Hz
Frequency response 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) 70 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,5 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Stylus colour Black
Recommended for following cartridges

Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12

Brand: Ortofon
SKU: 21031
EAN: 5705796130065
Weight: 0.1 kg
